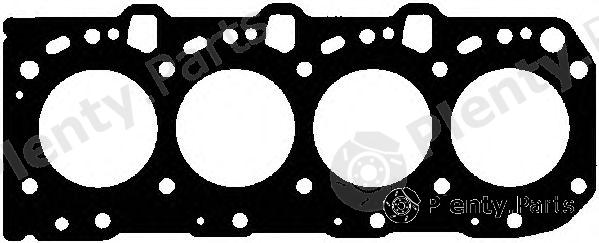

AJUSA 10148020 Gasket, cylinder head

AJUSA part 10148020 Gasket, cylinder head
AJUSA part 10148020 Gasket, cylinder head

AJUSA 10148020 Gasket, cylinder head

by AJUSA

Manufacturer Part Number: 10148020

Сharacteristics:
  • Diameter [mm]: 93,5
  • Notches / Holes Number: 3
  • Width [mm]: 183
  • Length [mm]: 470
  • Thickness [mm]: 1
  • only in connection with: 81036400

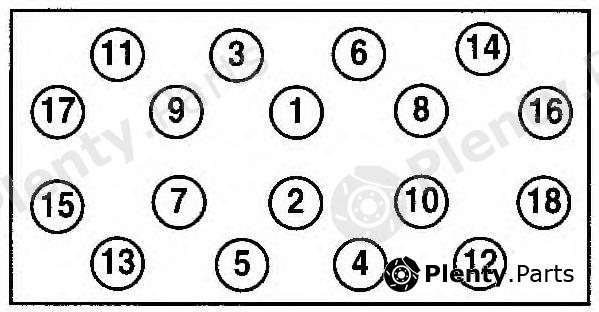

  • Tightening procedure: 4Kpm, 8.5Kpm, -90º+8.5Kpm, 90º, 90º Retightening: no

Product Details

BrandAJUSA
AJUSA article (MPN)10148020
Vehicle subsystemCylinder Head

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA11115-30040-C0, 11115-0L010-C0

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for AJUSA 10148020 Gasket, cylinder head offered by BGA, CORTECO, HERTH+BUSS JAKOPARTS, MAGNETI MARELLI, NIPPARTS, PAYEN, REINZ, SPESSO, WILMINK GROUP manufacturers

ManufacturerReference numbers
BGACH2585B
CORTECO415604P
HERTH+BUSS JAKOPARTSJ1252094
MAGNETI MARELLI600000024630
NIPPARTSJ1252133
PAYENAF5982
REINZ61-53510-20
SPESSO21528/6703
WILMINK GROUPWG1159955, WG1177669

Vehicle fitment / AJUSA 10148020 Gasket, cylinder head compatibility

This product fits the following models: TOYOTA CONDOR, TOYOTA DYNA, TOYOTA FORTUNER, TOYOTA HIACE COMMUTER V, TOYOTA HIACE III, TOYOTA HIACE IV, TOYOTA HIACE SBV IV, TOYOTA HILUX, TOYOTA HILUX II, TOYOTA HILUX III, TOYOTA INNOVA, TOYOTA KIJANG INNOVA, TOYOTA QUALIS, TOYOTA QUANTUM III, TOYOTA QUANTUM V, TOYOTA SW4, TOYOTA TACOMA II, TOYOTA ZACE, etc. See all vehicles this product (AJUSA 10148020) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
TOYOTACONDOR
TGN4
KUN4
2.5 D-4D
2004/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
Front wheel
MPV / Van / Minivan
TOYOTADYNA
KD
LY
TRY2
K
2.5 D4d
2001/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
Rear wheel
With flatbed/undercarriage
TOYOTAFORTUNER
TGN6
KUN6
GGN6
TGN5
LAN5
KUN5
GGN5
2.5 D-4D 4WD
2009/01 - 2015/052KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
TOYOTAHIACE COMMUTER V
TRH2
KDH2
2.5 D-4D 4WD
2005/01 - 2KD-FTV 128 hp 94 kW 2.5 L Diesel
AWD / 4WD
Passenger Van / Wagon / Minibus
TOYOTAHIACE III
LH1
RZH1
YH7
LH6
LH7
LH5
YH5
YH6
2.5 D-4D 4WD
2001/08 - 2004/082KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
AWD / 4WD
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
TOYOTAHIACE IV
LH1
LXH1
RZH1
LH1
YH7
LH6
LH7
LH5
YH5
YH6
2.5 D-4D
2.5 D-4D 4WD
2001/08 - 2006/082KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
TOYOTAHIACE SBV IV
LXH1
RZH1
LH1
2.5 D-4D
2.5 D-4D 4WD
2001/11 - 2006/082KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
TOYOTAHILUX
VIGO III KUN
TGN
LAN
GGN
2.5 D-4D
2.5 D-4D 4WD
2.5 D 4WD
2004/11 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 120 hp 88 kW 2.5 L Diesel
2KD-FTV 120 hp 88 kW 2.5 L Diesel
2KD-FTV 128 hp 94 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
AWD / 4WD
Rear wheel
Pickup truck / Pickup
TOYOTAHILUX II
LN8
RN5
LN6
YN6
YN5
LN5
RN6
2.5 D-4D
2.5 D-4D 4WD
2001/11 - 2005/072KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
AWD / 4WD
Rear wheel
Pickup truck / Pickup
TOYOTAHILUX III
KUN
TGN
LAN
GGN
2.5 D-4D
2.5 D-4D 4WD
2.5 D 4WD
2004/11 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 120 hp 88 kW 2.5 L Diesel
2KD-FTV 120 hp 88 kW 2.5 L Diesel
2KD-FTV 128 hp 94 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
AWD / 4WD
Rear wheel
Pickup truck / Pickup
TOYOTAINNOVA
TGN4
KUN4
2.5 D-4D
2004/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
Front wheel
MPV / Van / Minivan
TOYOTAKIJANG INNOVA
TGN4
KUN4
2.5 D-4D
2004/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
Front wheel
MPV / Van / Minivan
TOYOTAQUALIS
TGN4
KUN4
2.5 D-4D
2004/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
Front wheel
MPV / Van / Minivan
TOYOTAQUANTUM III
LH1
RZH1
2.5 D-4D 4WD
2001/08 - 2004/082KD-FTV 102 hp 75 kW 2.5 L Diesel
AWD / 4WD
Passenger Van / Wagon / Minibus
TOYOTAQUANTUM V
TRH2
KDH2
2.5 D-4D 4WD
2005/01 - 2KD-FTV 128 hp 94 kW 2.5 L Diesel
AWD / 4WD
Passenger Van / Wagon / Minibus
TOYOTASW4
TGN6
KUN6
GGN6
TGN5
LAN5
KUN5
GGN5
2.5 D-4D 4WD
2009/01 - 2015/052KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
TOYOTATACOMA II
LN8
RN5
LN6
YN6
YN5
LN5
RN6
2.5 D-4D
2.5 D-4D 4WD
2001/11 - 2005/072KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
AWD / 4WD
Rear wheel
Pickup truck / Pickup
TOYOTAZACE
TGN4
KUN4
2.5 D-4D
2004/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
Front wheel
MPV / Van / Minivan
