ATE 24.0128-0141.1 (24012801411) Brake Disc
ATE 24.0128-0141.1 (24012801411) Brake Disc
by ATEManufacturer Part Number: 24.0128-0141.1 (24012801411)
Alternative ATE part number(s): 428141

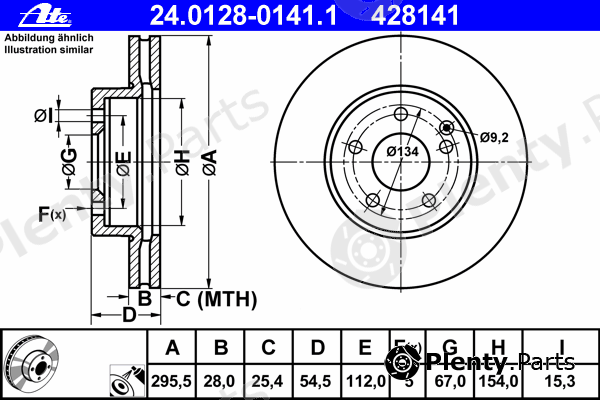

- Diameter [mm]: 295,5
- Brake Disc Thickness [mm]: 28
- Minimum thickness [mm]: 25,4
- Brake Disc Type: Vented
- Number of Holes: 5
- Surface: Coated
- Height [mm]: 54,5
- Centering Diameter [mm]: 67
- Inner diameter [mm]: 154
- Bolt Hole Circle Ø [mm]: 112
- Bore Ø [mm]: 15,3
- Machining: Alloyed / High-carbon
- MAPP code available:
- Warning notice ---------------------- Work on the SBC brake system may only be carried out by trained specialists! ¿ Risk of injury! ¿ System is pressurized! ¿ Observe manufacturer¿s guidelines! ¿ Before starting maintenance and repair work the system must be deactivated. ¿ After finishing maintenance and repair work the system must be reactivated. ¿ Only use appropriate service and diagnosis equipment! ¿ Recommendation: ContiSys Check Item no. 03.9301-6000.4 ContiSys Scan Item no. 03.9301-5000.4 Bleeding unit ATE FB 30s Item no. 03.9302-3010.4 Continental is not liable for damages which occur due to incorrect installation of the product.
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0128-0141.1 (24012801411) Alternative ATE part number(s): 428141 |
| Vehicle subsystem | All |
Original (OEM) part numbers
Suitable for MERCEDES-BENZ vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| MERCEDES-BENZ | 2114210712 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0128-0141.1 (24012801411) Brake Disc offered by ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FERODO, FOMAR, FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| ALANKO | 304820, 303147 |
| AP | 24897V |
| BARUM | BAR28141 |
| BENDIX | 562212B, 562212BC |
| BORG & BECK | BBD4355 |
| BOSCH | 0986479038, 0986479R99 |
| Brake ENGINEERING | DI956275 |
| BRECO | BV8502, BS8502 |
| BREMBO | 09.9362.14, 09936211 |
| BREMSI | DBB252V |
| CAR | 142.386 |
| CIFAM | 800-600, 800600C |
| DELPHI | BG3755C, BG3755 |
| Dr!ve+ | DP1010110840 |
| E.T.F. | 190812 |
| EUROBRAKE | 5815203358 |
| FARCOM | 230482, 231242 |
| FERODO | DDF1252C1, DDF1252C, DDF1252, DDF12521 |
| FOMAR | FO2922 |
| FTE | BS5414B, BS5414HB, BS5464, BS5414 |
| GIRLING | 6042611 |
| GRAF | DF29600 |
| HELLA | 8DD355108781, 8DD355108771 |
| HELLA PAGID | 8DD355108771, 8DD355108781 |
| ICER | 78BD08122 |
| JP GROUP | 1363104709, 1363104700 |
| JURID | 562212JC, 562212J |
| KAGER | 371377, 371131, 371376, 371175 |
| KAWE | 667610 |
| KRAFT | 6041230 |
| LPR | M2017VR |
| MAGNETI MARELLI | 351286820500, 360406007700, 361302040148 |
| MAPCO | 15810 |
| METELLI | 230600C, 23-0600 |
| METZGER | 6110672, 24897V |
| MEYLE | 0155212051, 0155212051PD |
| MGA | D1540 |
| MINTEX | MDC1616 |
| NECTO | WN1269 |
| NIBK | RN1270 |
| NK | 313358, 203359, 203358, 313359 |
| OPEN PARTS | BDR199820 |
| OPTIMAL | BS7788, BS7788C |
| PAGID | 54151 |
| PATRON | PBD4261 |
| PEX | 14.0714 |
| PILENGA | V298 |
| PROTECHNIC | PRD2680 |
| QUINTON HAZELL | BDC5414, BSF5414 |
| R BRAKE | 78RBD20812 |
| REMSA | 667610 |
| ROADHOUSE | 667610 |
| ROTINGER | RT2933, RT2933T5 |
| SASIC | 6106054 |
| sbs | 1815203358, 1815203359, 1815313359, 1815313358 |
| STARLINE | PB2932, PB2932C |
| TEMPLIN | 0311020825, 0311020820 |
| TEXTAR | 92115105, 92115100, 98200115101PRO, 98200115101, 92115103 |
| TRUSTING | DF1600 |
| TRW | DF4261 |
| VAICO | V3080047 |
| VALEO | 297326, 197326, 186751 |
| VILLAR | 6281804 |
| WAGNER LOCKHEED | WGR12521 |
| WOKING | D667610 |
| ZIMMERMANN | 400361852, 400.3618.00, 400.3618.20, 400.3618.50 |
Vehicle fitment / ATE 24.0128-0141.1 (24012801411) Brake Disc compatibility
This product fits the following models: MERCEDES-BENZ E-CLASS, etc. See all vehicles this product (ATE 24.0128-0141.1 (24012801411)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | E-CLASS S211 W211 | E 200 CDI E 200 Kompressor E200 NGT E 200 T Kompressor E 220 CDI E 220 T CDI E 230 E 240 E 240 T E 270 T CDI E 280 T CDI 211.004 211.006 211.007 211.008 211.041 211.042 211.052 211.061 211.206 211.207 211.208 211.216 211.220 211.241 211.242 211.261 | 2002/03 - 2009/07 | 163 hp 120 kW 2.7 L Diesel M112.913 177 hp 130 kW 2.6 L Petrol M112.913 177 hp 130 kW 2.6 L Petrol M112.917 177 hp 130 kW 2.6 L Petrol M271.941 163 hp 120 kW 1.8 L Petrol M271.956 184 hp 135 kW 1.8 L Petrol M272.922 204 hp 150 kW 2.5 L Petrol OM642.920 190 hp 140 kW 3 L Diesel OM646.820 136 hp 100 kW 2.1 L Diesel OM646.821 136 hp 100 kW 2.1 L Diesel OM646.821 163 hp 120 kW 2.1 L Diesel OM646.821 170 hp 125 kW 2.1 L Diesel OM646.951 102 hp 75 kW 2.2 L Diesel OM646.951 122 hp 90 kW 2.2 L Diesel OM646.961 136 hp 100 kW 2.1 L Diesel OM646.961 136 hp 100 kW 2.1 L Diesel OM646.961 150 hp 110 kW 2.1 L Diesel OM646.961 150 hp 110 kW 2.1 L Diesel OM647.961 177 hp 130 kW 2.7 L Diesel | Rear wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
