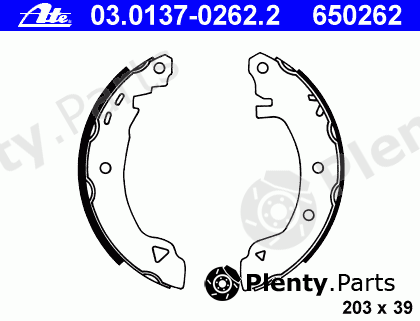

ATE 03.0137-0262.2 (03013702622) Brake Shoe Set

ATE part 03.0137-0262.2 (03013702622) Brake Shoe Set

ATE 03.0137-0262.2 (03013702622) Brake Shoe Set

by ATE

Manufacturer Part Number: 03.0137-0262.2 (03013702622)
Alternative ATE part number(s): 650262

Сharacteristics:
  • Brake Pad: with lining
  • Diameter [mm]: 203
  • Width [mm]: 39
  • Brake System: Bendix
  • Inspection Tag: E1 90R-011043/032
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)03.0137-0262.2 (03013702622) Alternative ATE part number(s): 650262
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
FIAT / LANCIA / ALFA60750871, 9947106, 9950814, 203x38, 650262203x38, 60703319, 60750472, 60750466

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 03.0137-0262.2 (03013702622) Brake Shoe Set offered by A.B.S., ALANKO, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, BSG, CIFAM, DELPHI, DENCKERMANN, E.T.F., FERODO, FOMAR, fri.tech., FTE, GIRLING, GKN-SPIDAN, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, PAGID, PATRON, PEX, PROTECHNIC, QUINTON HAZELL, RAICAM, REMSA, ROADHOUSE, ROULUNDS BRAKING, sbs, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, VILLAR, WEEN, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.8136, 8917
ALANKO302715, 302717
BENDIX362324B, 361052B
BORG & BECKBBS6316, BBS6103
BOSCH0986487872, 0986487295, 0986487329
Brake ENGINEERINGSH1240, SH1618
BREMBOS23508
BREMSIGF0418
BSF01587
BSGBSG30205012
CIFAM153002
DELPHILS1575, LS1434
DENCKERMANNB120182
E.T.F.090527, 090432
FERODOFSB553, FSB401, FSB306
FOMARFO9076
fri.tech.1004008
FTEBB1109A2
GIRLING5185383, 5186313
GKN-SPIDAN33605, 33916
HELLA8DB355002-061, 8DB355022741, 8DB355001-111
HELLA PAGID8DB355002-061, 8DB355001-111, 8DB355022741
JP GROUP4363900119
JURID361052J, 362324J
KAGER340397
KAWE04920
KRAFT6023090
LPR04920
MAGNETI MARELLI360219192171
MAPCO8026
MAXGEAR190270
METELLI530002
METZGERMG654
MEYLE2145330004
MGAM682
MINTEXMFR396, MSP311, MFR531
NECTON1325, N1363
NK2723580, 2710523, 2710487
PAGIDH9230, H8605, R1324
PATRONPSP401
PEX6.133
PROTECHNICPRS0003
QUINTON HAZELLBBF819, BS809, BS819
RAICAM2492, 2730, RA24920, RA27300
REMSA4182.04, 4182.03, 4182.01
ROADHOUSE4182.03, 4182.04, 4182.01
ROULUNDS BRAKING0650, 0500, 0654
sbs18492723580, 18492710523
TEXTAR84038600, 91046500, 98101046504, 98101038614, 91038600
TRISCAN810015580, 8105102525, 810015483, 810012523
TRUSTING004008
TRWGS8631, GS8538, GS8531
VALEO562589, 562514
VILLAR6290578
WEEN1522414, 1522145
WOKINGZ418201, Z418203, Z418204
ZIMMERMANN10990.104.7, 10990.104.6

Vehicle fitment / ATE 03.0137-0262.2 (03013702622) Brake Shoe Set compatibility

This product fits the following models: ALFA ROMEO 145, ALFA ROMEO 146, ALFA ROMEO 33, FIAT BRAVA, FIAT BRAVO I, FIAT MAREA, FIAT MAREA WEEKEND, etc. See all vehicles this product (ATE 03.0137-0262.2 (03013702622)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
ALFA ROMEO145
930
1.4 i.e. 16V T.S.
1.6 16V T.S.
1.6 i.e. 16V T.S.
1.9 JTD
1.9 TD
1994/10 - 2001/01AR32102 112 hp 82 kW 1.6 L Petrol
AR32302 105 hp 77 kW 1.9 L Diesel
AR33503 103 hp 76 kW 1.4 L Petrol
AR38501 103 hp 76 kW 1.4 L Petrol
AR33601 90 hp 66 kW 1.9 L Diesel
AR67501 90 hp 66 kW 1.9 L Diesel
AR38201 120 hp 88 kW 1.6 L Petrol
AR67601 120 hp 88 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
ALFA ROMEO146
930
1.4 i.e. 16V T.S.
1.6 16V T.S.
1.6 i.e. 16V T.S.
1.9 JTD
1.9 TD
1994/12 - 2001/01AR32102 112 hp 82 kW 1.6 L Petrol
AR32302 105 hp 77 kW 1.9 L Diesel
AR33503 103 hp 76 kW 1.4 L Petrol
AR38501 103 hp 76 kW 1.4 L Petrol
AR33601 90 hp 66 kW 1.9 L Diesel
AR67501 90 hp 66 kW 1.9 L Diesel
AR38201 120 hp 88 kW 1.6 L Petrol
AR67601 120 hp 88 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
ALFA ROMEO33
905
905A
907A
907B
1.2
1.3
1.4
1.4 i.e.
1.4 i.e. 4x4
1.5
1.5 i.e
1.5 i.e.
1.5 QV
1.7
1.7 16V
1.7 16V 4x4
1.7 i.e.
1.7 i.e. 4x4
1.7 QV
1.8 TD

905.A
905.A1A
905.A1C
905.A1D
905.A1F
905.A1H
905.A1B
905.A1C
905.A1G
905.A2
905.A2A
905.A2G
905.A2N
905.A2V
905.A3
905.A3D
907.A1A
907.A1B
907.A1C
907A1F
907.A1G
907A2A
907.A3A
907.A3B
907A5
907.B1A
907.B1E
907.B1G
907.B1H
1983/05 - 1994/09AR30143 84 hp 62 kW 1.5 L Petrol
AR30504 84 hp 62 kW 1.5 L Petrol
AR30146 105 hp 77 kW 1.5 L Petrol
AR30508 105 hp 77 kW 1.5 L Petrol
AR30514 95 hp 70 kW 1.5 L Petrol
AR30520 90 hp 66 kW 1.5 L Petrol
AR30588 102 hp 75 kW 1.5 L Petrol
AR30588 105 hp 77 kW 1.5 L Petrol
AR30146 105 hp 77 kW 1.5 L Petrol
AR30508 105 hp 77 kW 1.5 L Petrol
AR30588 105 hp 77 kW 1.5 L Petrol
AR30168 86 hp 63 kW 1.3 L Petrol
AR30587 86 hp 63 kW 1.3 L Petrol
AR30182 95 hp 70 kW 1.5 L Petrol
AR30502 75 hp 55 kW 1.3 L Petrol
AR30586 75 hp 55 kW 1.3 L Petrol
AR30502 79 hp 58 kW 1.3 L Petrol
AR30520 90 hp 66 kW 1.5 L Petrol
AR30550 114 hp 84 kW 1.7 L Petrol
AR30550 118 hp 87 kW 1.7 L Petrol
AR30550 118 hp 87 kW 1.7 L Petrol
AR30550 129 hp 95 kW 1.7 L Petrol
AR30558 105 hp 77 kW 1.7 L Petrol
AR30585 68 hp 50 kW 1.2 L Petrol
AR30587 90 hp 66 kW 1.4 L Petrol
AR30588 102 hp 75 kW 1.5 L Petrol
AR30734 105 hp 77 kW 1.5 L Petrol
AR30736 107 hp 79 kW 1.7 L Petrol
AR30737 105 hp 77 kW 1.7 L Petrol
AR30737 107 hp 79 kW 1.7 L Petrol
AR30736 107 hp 79 kW 1.7 L Petrol
AR30737 107 hp 79 kW 1.7 L Petrol
AR30736 107 hp 79 kW 1.7 L Petrol
AR30737 107 hp 79 kW 1.7 L Petrol
AR30737A 105 hp 77 kW 1.7 L Petrol
AR30746 137 hp 101 kW 1.7 L Petrol
AR30747 129 hp 95 kW 1.7 L Petrol
AR30747 132 hp 97 kW 1.7 L Petrol
AR30750 101 hp 74 kW 1.5 L Petrol
AR30751 97 hp 71 kW 1.5 L Petrol
AR30753 88 hp 65 kW 1.4 L Petrol
AR30753 90 hp 66 kW 1.4 L Petrol
AR30755 88 hp 65 kW 1.4 L Petrol
AR30755 90 hp 66 kW 1.4 L Petrol
AR30753 88 hp 65 kW 1.4 L Petrol
AR30755 88 hp 65 kW 1.4 L Petrol
AR30755 90 hp 66 kW 1.4 L Petrol
AR30755 90 hp 66 kW 1.4 L Petrol
VM82A 73 hp 54 kW 1.8 L Diesel
VM96A 84 hp 62 kW 1.8 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
FIATBRAVA
182
1.4
1.4 12 V
1.6 16V
1.8 GT 16V
1.9 D
1.9 TD 100 S
1.9 TD 75 S

182.BA
182.BB
182.BC
182.BF
182.BG
182.BH
1995/10 - 2001/10160A7.000 65 hp 48 kW 1.9 L Diesel
182A2.000 113 hp 83 kW 1.8 L Petrol
182A3.000 80 hp 59 kW 1.4 L Petrol
182A4.000 103 hp 76 kW 1.6 L Petrol
182A5.000 75 hp 55 kW 1.4 L Petrol
182A6.000 90 hp 66 kW 1.6 L Petrol
182A7.000 100 hp 74 kW 1.9 L Diesel
182A8.000 75 hp 55 kW 1.9 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
FIATBRAVO I
182
1.4
1.6 16V
1.8 GT
1.9 D
1.9 TD 100 S
1.9 TD 75 S

182.AA
182.AB
182.AC
182.AF
182.AG
182.AH
1995/10 - 2001/10160A7.000 65 hp 48 kW 1.9 L Diesel
182A2.000 113 hp 83 kW 1.8 L Petrol
182A3.000 80 hp 59 kW 1.4 L Petrol
182A4.000 103 hp 76 kW 1.6 L Petrol
182A5.000 75 hp 55 kW 1.4 L Petrol
182A6.000 90 hp 66 kW 1.6 L Petrol
182A7.000 100 hp 74 kW 1.9 L Diesel
182A8.000 75 hp 55 kW 1.9 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
FIATMAREA
185
1.4 80 12V
1.6 100 16V
1.8 115 16V
1.9 TD 100
1.9 TD 75
1996/09 - 2002/05182A2.000 113 hp 83 kW 1.8 L Petrol
182A3.000 80 hp 59 kW 1.4 L Petrol
182A4.000 103 hp 76 kW 1.6 L Petrol
182A7.000 100 hp 74 kW 1.9 L Diesel
182A8.000 75 hp 55 kW 1.9 L Diesel
Front wheel
Sedan / Saloon
FIATMAREA WEEKEND
185
1.4 80 12V
1996/09 - 2002/05182A3.000 80 hp 59 kW 1.4 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
