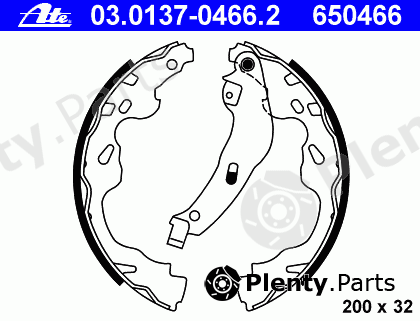

ATE 03.0137-0466.2 (03013704662) Brake Shoe Set

ATE part 03.0137-0466.2 (03013704662) Brake Shoe Set

ATE 03.0137-0466.2 (03013704662) Brake Shoe Set

by ATE

Manufacturer Part Number: 03.0137-0466.2 (03013704662)
Alternative ATE part number(s): 650466

Сharacteristics:
  • Brake Pad: with lining
  • Diameter [mm]: 200
  • Width [mm]: 32
  • Supplementary Article/Supplementary Info: with lever
  • Brake System: Bosch
  • Inspection Tag: E1 90R-011043/202
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)03.0137-0466.2 (03013704662) Alternative ATE part number(s): 650466
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, OPEL, SUZUKI, TOYOTA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4241N2
OPEL4708598, 93193429
SUZUKI53200-62J01, 53200-62J02
TOYOTA04495-0H010, 04495-0D020

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 03.0137-0466.2 (03013704662) Brake Shoe Set offered by A.B.S., ALANKO, ASHIKA, ASHUKI, AUTOMEGA, AYWIPARTS, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, E.T.F., FEBI BILSTEIN, FERODO, FIT, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, IPS Parts, JAPANPARTS, JAPKO, JURID, KAMOKA, KAVO PARTS, KAWE, KRAFT, LPR, LYNX, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, NIPPARTS, NK, OPEN PARTS, PAGID, RAICAM, REMSA, ROADHOUSE, ROULUNDS BRAKING, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, WEEN, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.9165
ALANKO302632
ASHIKA5502212
ASHUKIT11346
AUTOMEGA3042410N2
AYWIPARTSAW1820041
BENDIX362445B, 362428B
BLUE PRINTADT34159, ADK84137
BORG & BECKBBS6356
BOSCH0986487665, 0986487695
Brake ENGINEERINGSH2546
BREMBOS83509
BREMSIGF0961
BSF01666
CIFAM153438
DELPHILS1961
DENCKERMANNB120157
E.T.F.090633
FEBI BILSTEIN37534
FERODOFSB672
FITFT1209
FOMARFO9086
fri.tech.1115.310
FTEBB1342A1
GIRLING5184804
HANS PRIES720373
HELLA8DB355002-891
HELLA PAGID8DB355002-891
HERTH+BUSS JAKOPARTSJ3508026, J3502073
IPS PartsIBL4207
JAPANPARTSGF-212AF
JAPKO55212
JURID362445J, 362428J
KAMOKAJQ202039
KAVO PARTSBS9933
KAWE08660
KRAFT6023805
LPR08660
LYNXBS7526
MAGNETI MARELLI360219198309, 600000094000
MAPCO8701
METELLI530438
METZGERMG209
MEYLE11145330018K, 11145330018
MGAM831
MINTEXMFR553
NIBKFN2386
NIPPARTSJ3508026, J3502082, J3502073
NK2745705
OPEN PARTSBSA210400
PAGIDH9815
RAICAMRA28220, 2822
REMSA418700
ROADHOUSE418700
ROULUNDS BRAKING680791
TEXTAR98101064504, 91064500
TRISCAN8105102597
TRUSTING115310
TRWGS8480
VAICOV424135
VALEO564075
WEEN1522136
WOKINGZ418700
ZIMMERMANN10990.149.8

Vehicle fitment / ATE 03.0137-0466.2 (03013704662) Brake Shoe Set compatibility

This product fits the following models: CITROËN C1, CITROËN C1 II, OPEL AGILA, PEUGEOT 107, PEUGEOT 108, SUZUKI SPLASH, SUZUKI SWIFT III, TOYOTA AYGO, TOYOTA ECHO, TOYOTA VITZ, TOYOTA YARIS, TOYOTA YARISVITZ, VAUXHALL AGILAII, etc. See all vehicles this product (ATE 03.0137-0466.2 (03013704662)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC1
PM
PN
1.0
1.4 HDi
2005/06 - 1KR-FE 68 hp 50 kW 1 L Petrol
8HT(DV4TD) 54 hp 40 kW 1.4 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNC1 II
1.0 VTi 68
1.2 VTi 82
2014/04 - 1KR-FE 69 hp 51 kW 1 L Petrol
HMT(EB2D) 82 hp 60 kW 1.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
OPELAGILA
B H08
1.0
1.0 LPG
1.2
1.2 LPG
1.3 CDTI
2008/04 - D13A 75 hp 55 kW 1.3 L Diesel
Z13DTJ 75 hp 55 kW 1.3 L Diesel
K10B 65 hp 48 kW 1 L Petrol
K10B 65 hp 48 kW 1 L Petrol
K10B 68 hp 50 kW 1 L Petrol
K12B 86 hp 63 kW 1.2 L Petrol
K12B 86 hp 63 kW 1.2 L Petrol
K12B 94 hp 69 kW 1.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
PEUGEOT107
1.0
1.4 HDi
2005/06 - 1KR(384F) 68 hp 50 kW 1 L Petrol
CFA(384F) 68 hp 50 kW 1 L Petrol
8HT(DV4TD) 54 hp 40 kW 1.4 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
PEUGEOT108
1.0 VTi
1.2
2014/05 - 1KR-FE 69 hp 51 kW 1 L Petrol
HMT(EB2D) 82 hp 60 kW 1.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
SUZUKISPLASH
1.0
1.2
1.2 VVT
1.3 CDTI
2008/01 - D13A 75 hp 55 kW 1.3 L Diesel
Z13DTJ 75 hp 55 kW 1.3 L Diesel
K10B 65 hp 48 kW 1 L Petrol
K10B 68 hp 50 kW 1 L Petrol
K12B 86 hp 63 kW 1.2 L Petrol
K12B 90 hp 66 kW 1.2 L Petrol
K12B 91 hp 67 kW 1.2 L Petrol
K12B 94 hp 69 kW 1.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
SUZUKISWIFT III
MZ
EZ
1.3
1.3 4x4
1.3 DDiS
1.5
1.5 4x4
2005/02 - D13A 75 hp 55 kW 1.3 L Diesel
Z13DT 69 hp 51 kW 1.3 L Diesel
Z13DTJ 75 hp 55 kW 1.3 L Diesel
M13A 90 hp 66 kW 1.3 L Petrol
M13A 92 hp 68 kW 1.3 L Petrol
M13A 92 hp 68 kW 1.3 L Petrol
M15A 101 hp 74 kW 1.5 L Petrol
M15A 102 hp 75 kW 1.5 L Petrol
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAAYGO
PAB4
KGB4
WNB1
KGB1
1.0
1.0 GPL
1.2
1.4 HDi

KGB10
WNB10
2005/07 - 1KR-FE 68 hp 50 kW 1 L Petrol
1KR-FE 69 hp 51 kW 1 L Petrol
1PP 82 hp 60 kW 1.2 L Petrol
2WZ-TV 54 hp 40 kW 1.4 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAECHO
SCP1
NLP1
NCP1
1.0 16V
1.3
1.4 D-4D
1999/04 - 2005/091ND-TV 75 hp 55 kW 1.4 L Diesel
1ND-TV 90 hp 66 kW 1.4 L Diesel
1SZ-FE 65 hp 48 kW 1 L Petrol
1SZ-FE 68 hp 50 kW 1 L Petrol
2SZ-FE 87 hp 64 kW 1.3 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAVITZ
SCP1
NLP1
NCP1
1.0 16V
1.3
1.4 D-4D
1999/04 - 2005/091ND-TV 75 hp 55 kW 1.4 L Diesel
1ND-TV 90 hp 66 kW 1.4 L Diesel
1SZ-FE 65 hp 48 kW 1 L Petrol
1SZ-FE 68 hp 50 kW 1 L Petrol
2SZ-FE 87 hp 64 kW 1.3 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAYARIS
SCP1
NLP1
NCP1
1.0 16V
1.3
1.4 D-4D
1999/04 - 2005/091ND-TV 75 hp 55 kW 1.4 L Diesel
1ND-TV 90 hp 66 kW 1.4 L Diesel
1SZ-FE 65 hp 48 kW 1 L Petrol
1SZ-FE 68 hp 50 kW 1 L Petrol
2SZ-FE 87 hp 64 kW 1.3 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAYARISVITZ
SCP1
NLP1
NCP1
1.0 16V
1.3
1.4 D-4D
1999/04 - 2005/091ND-TV 75 hp 55 kW 1.4 L Diesel
1ND-TV 90 hp 66 kW 1.4 L Diesel
1SZ-FE 65 hp 48 kW 1 L Petrol
1SZ-FE 68 hp 50 kW 1 L Petrol
2SZ-FE 87 hp 64 kW 1.3 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
VAUXHALLAGILAII
B
1.0 12V
1.0 i
1.2 i 16V
1.3 CDTI
2008/01 - 2014/11D13A 75 hp 55 kW 1.3 L Diesel
Z13DTJ 75 hp 55 kW 1.3 L Diesel
K10B 65 hp 48 kW 1 L Petrol
K10B 68 hp 50 kW 1 L Petrol
K12B 86 hp 63 kW 1.2 L Petrol
K12B 94 hp 69 kW 1.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
