ATE 13.0460-4809.2 (13046048092) Brake Pad Set, disc brake
ATE 13.0460-4809.2 (13046048092) Brake Pad Set, disc brake
by ATEManufacturer Part Number: 13.0460-4809.2 (13046048092)
Alternative ATE part number(s): 24468, 24469, 604809

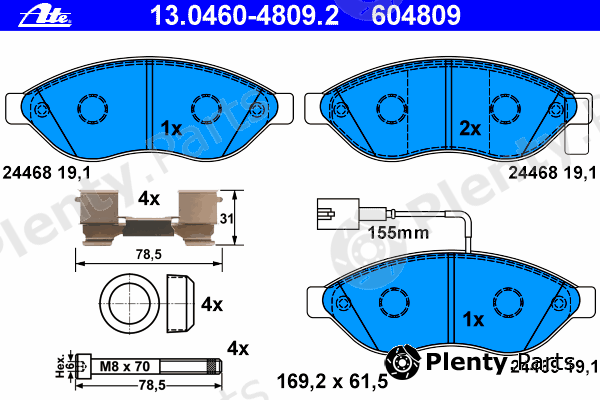

- Width [mm]: 169,3
- Height [mm]: 61,5
- Thickness [mm]: 19,1
- Wear Warning Contact: incl. wear warning contact
- Number of wear indicators [per axle]: 2
- Warning Contact Length [mm]: 155
- Supplementary Article/Supplementary Info: with accessories
- Supplementary Article/Info 2: with brake caliper screws
- Number of screws: 4
- Brake System: Brembo
- Inspection Tag: E1 90R-011054/912
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 13.0460-4809.2 (13046048092) Alternative ATE part number(s): 24468, 24469, 604809 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| CITROEN / PEUGEOT | 425358, 425357, 425462, 1612433980 |
| FIAT / LANCIA / ALFA | 77364160, 77366019 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 13.0460-4809.2 (13046048092) Brake Pad Set, disc brake offered by A.B.S., ALANKO, AYWIPARTS, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BREMBO, BREMSI, BSF, CASALS, CIFAM, COBREQ, DELPHI, DITAS, Dr!ve+, DURON, E.T.F., FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, Good Will, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JURATEK, JURID, KAWE, KRAFT, LPR, LYNX, MAGNETI MARELLI, MALÒ, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PROCODIS FRANCE, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, sbs, STOP, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, WEEN, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 37577 |
| ALANKO | 300648 |
| AYWIPARTS | AW1810118, AW1810219 |
| BARUM | BA2275 |
| BENDIX | 573260B |
| BORG & BECK | BBP2001 |
| BOSCH | 0986495293, 0986494581, 0986494591, 0986494111, 0986495096 |
| Brake ENGINEERING | PA1754 |
| BRECK | 244680070320 |
| BREMBO | P61092, P61090 |
| BREMSI | BP3285 |
| BSF | 10785 |
| CASALS | BKM468 |
| CIFAM | 822-708-0 |
| COBREQ | N1184 |
| DELPHI | LP1992 |
| DITAS | DFB2714 |
| Dr!ve+ | DP1010100908 |
| DURON | DBP231924 |
| E.T.F. | 121285 |
| FEBI BILSTEIN | 16716 |
| FENOX | BP43118 |
| FERODO | FVR1924, FSL1924 |
| FOMAR | FO924481 |
| fri.tech. | 7240 |
| FTE | BL2019A4 |
| GALFER | B1G10208722 |
| GIRLING | 6117414, 6116814 |
| Good Will | 1089F |
| G.U.D | GBP123701 |
| HANS PRIES | 722513 |
| HELLA | 8DB355020-661, 8DB355012-931 |
| HELLA PAGID | 8DB355020-661, 8DB355012-931 |
| ICER | 141803 |
| JURATEK | JCP021 |
| JURID | 573260J |
| KAWE | 810094, 123701 |
| KRAFT | 6003423 |
| LPR | 05P1287 |
| LYNX | BD-2828 |
| MAGNETI MARELLI | 363702161467, 363710201657, 363700201657, 363916060189 |
| MALÒ | 1050392 |
| MAXGEAR | 190673 |
| METELLI | 22-0708-0 |
| METZGER | 1170073, 123701 |
| MEYLE | 02524468192PD, 0252446819W2 |
| MINTEX | MDB2846 |
| NECTO | FD7267V |
| NIBK | PN0474W |
| NK | 221959 |
| OPEN PARTS | BPA123701 |
| OPTIMAL | 12299 |
| PAGID | T1657 |
| PROCODIS FRANCE | PF1439 |
| PROTECHNIC | PRP12303M, PRP1230 |
| QUINTON HAZELL | MBP1573, BP1573 |
| R BRAKE | RB1803 |
| REMSA | 1237.01 |
| ROADHOUSE | 21237.01 |
| sbs | 1501221959 |
| STOP | 573260S |
| SWAG | 62916716 |
| TEXTAR | 2446802, 2446819025, 2446801 |
| TRISCAN | 8105101650 |
| TRUSTING | 7240 |
| TRW | GDB1681, GDB1741 |
| VAICO | V420093 |
| VALEO | 301891, 598891 |
| WAGNER LOCKHEED | WBP24468B |
| WEEN | 1512624 |
| WOKING | P1337301 |
| ZIMMERMANN | 24468.190.1, 244681903 |
Vehicle fitment / ATE 13.0460-4809.2 (13046048092) Brake Pad Set, disc brake compatibility
This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, PEUGEOT MANAGER, etc. See all vehicles this product (ATE 13.0460-4809.2 (13046048092)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| CITROËN | JUMPER | 2.0 BlueHDi 110 2.0 BlueHDi 130 2.0 BlueHDi 160 2.2 HDi 100 2.2 HDi 110 2.2 HDi 120 2.2 HDi 130 2.2 HDi 150 3.0 HDi 145 3.0 HDi 155 3.0 HDi 160 3.0 HDi 180 | 2006/04 - | 110 hp 81 kW 2 L Diesel 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel 4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel 4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel 4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel 4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel AHN(DW10FUD) 130 hp 96 kW 2 L Diesel AHP(DW10FUC) 163 hp 120 kW 2 L Diesel F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel F1CE3481N 146 hp 107 kW 3 L Diesel | Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| CITROËN | RELAY | 2.0 BlueHDi 110 2.0 BlueHDi 130 2.0 BlueHDi 160 2.2 HDi 100 2.2 HDi 110 2.2 HDi 120 2.2 HDi 130 2.2 HDi 150 3.0 HDi 145 3.0 HDi 155 3.0 HDi 160 3.0 HDi 180 | 2006/04 - | 110 hp 81 kW 2 L Diesel 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel 4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel 4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel 4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel 4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel AHN(DW10FUD) 130 hp 96 kW 2 L Diesel AHP(DW10FUC) 163 hp 120 kW 2 L Diesel F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel F1CE3481N 146 hp 107 kW 3 L Diesel | Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| FIAT | DUCATO 250 290 | 100 Multijet 2 2 D 110 Multijet 2 3 D 115 Multijet 2 0 D 120 Multijet 2 3 D 120 Multijet 2 3 D 4x4 130 Multijet 2 3 D 140 Natural Power 150 Multijet 2 3 D 150 Multijet 3 0 D 160 Multijet 3 0 D 180 Multijet 3 0 D | 2006/07 - | 250A1.000 116 hp 85 kW 2 L Diesel 250A2.000 116 hp 85 kW 2 L Diesel 4HV 100 hp 74 kW 2.2 L Diesel F1AE0481D 120 hp 88 kW 2.3 L Diesel F1AE0481D 120 hp 88 kW 2.3 L Diesel FPT 120 hp 88 kW 2.3 L Diesel F1AE0481N 131 hp 96 kW 2.3 L Diesel F1AE0481T 126 hp 93 kW 2.3 L Diesel F1AE3481D 131 hp 96 kW 2.3 L Diesel F1AGL411D 131 hp 96 kW 2.3 L Diesel F1AE0481T 126 hp 93 kW 2.3 L Diesel F1AE3481D 131 hp 96 kW 2.3 L Diesel F1AGL411D 131 hp 96 kW 2.3 L Diesel F1AE3481E 148 hp 109 kW 2.3 L Diesel F1AE3481E 148 hp 109 kW 2.3 L Diesel F1AGL411A 150 hp 110 kW 2.3 L Diesel F1AGL411C 150 hp 110 kW 2.3 L Diesel F1AE3481G 113 hp 83 kW 2.3 L Diesel F1CE0441A 136 hp 100 kW 3 L Petrol F1CE0441A 136 hp 100 kW 3 L Petrol F1CFA401A 136 hp 100 kW 3 L Petrol F1CE0481D 156 hp 115 kW 3 L Diesel F1CE0481D 158 hp 116 kW 3 L Diesel F1CE3481M 158 hp 116 kW 3 L Diesel F1CE0481D 158 hp 116 kW 3 L Diesel F1CE3481M 156 hp 115 kW 3 L Diesel F1CE3481E 177 hp 130 kW 3 L Diesel F1CE3481N 146 hp 107 kW 3 L Diesel | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| PEUGEOT | BOXER | 2.0 BlueHDi 110 2.0 BlueHDi 130 2.0 BlueHDi 160 2.2 HDi 100 2.2 HDi 110 2.2 HDi 120 2.2 HDi 130 2.2 HDi 150 3.0 HDi 3.0 HDi 145 3.0 HDi 160 3.0 HDi 175 | 2006/04 - | 110 hp 81 kW 2 L Diesel 120 hp 88 kW 2.2 L Diesel 130 hp 96 kW 2 L Diesel 146 hp 107 kW 3 L Diesel 163 hp 120 kW 2 L Diesel 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel 4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel 4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel 4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel 4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel | Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| PEUGEOT | MANAGER | 2.0 BlueHDi 110 2.0 BlueHDi 130 2.0 BlueHDi 160 2.2 HDi 100 2.2 HDi 110 2.2 HDi 120 2.2 HDi 130 2.2 HDi 150 3.0 HDi 3.0 HDi 145 3.0 HDi 160 3.0 HDi 175 | 2006/04 - | 110 hp 81 kW 2 L Diesel 120 hp 88 kW 2.2 L Diesel 130 hp 96 kW 2 L Diesel 146 hp 107 kW 3 L Diesel 163 hp 120 kW 2 L Diesel 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel 4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel 4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel 4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel 4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel | Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
