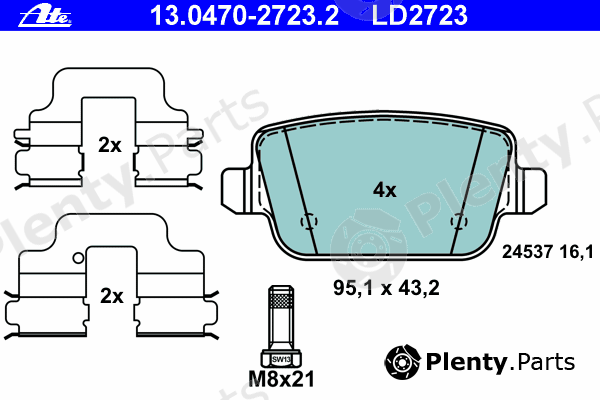

ATE 13.0470-2723.2 (13047027232) Brake Pad Set, disc brake
ATE 13.0470-2723.2 (13047027232) Brake Pad Set, disc brake
by ATEManufacturer Part Number: 13.0470-2723.2 (13047027232)
Alternative ATE part number(s): 24537, LD2723
- Width [mm]: 95,1
- Height [mm]: 43,2
- Thickness [mm]: 16,1
- Wear Warning Contact: not prepared for wear indicator
- Wear Warning Contact: excl. wear warning contact
- Supplementary Article/Supplementary Info: with accessories
- Supplementary Article/Info 2: with brake caliper screws
- Number of screws: 4
- Brake System: Lucas / TRW
- Inspection Tag: E1 90R-011403/1356
- MAPP code available:
- Technically it is possible to combine ATE Ceramic brake pads with the PowerDisc or with perforated brake discs. The brak ing power with such a pairing is the same as with an origina l ATE brake pad or OE brake pad. However, when the two compo nents interact they can generate more noise in braking. ATE Ceramic brake pads were developed for comfort-oriented drive rs. We therefore recommend using them with normal brake disc s, i.e. smooth ones.
Product Details
| Brand | ATE |
| ATE article (MPN) | 13.0470-2723.2 (13047027232) Alternative ATE part number(s): 24537, LD2723 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for FORD vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| FORD | 1439867, 1459408, 1477803, 1566234, 1682005, 6G91-2M008-GD, ME6G9J-2M008-GA, 1756395, 6G91-2M008-GF |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 13.0470-2723.2 (13047027232) Brake Pad Set, disc brake offered by A.B.S., ASHUKI, ATE, AUTOMEGA, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BREMBO, CIFAM, COBREQ, DELPHI, FEBI BILSTEIN, FENOX, FERODO, GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, JURID, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MALÒ, METELLI, METZGER, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PROCODIS FRANCE, REMSA, ROADHOUSE, SCT Germany, SWAG, TEXTAR, TRW manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 37561 |
| ASHUKI | 175338HD |
| ATE | 13.0460-2723.2 |
| AUTOMEGA | 30105660234 |
| BENDIX | 573263B |
| BLUE PRINT | ADF124201, ADJ134219 |
| BORG & BECK | BBP2122 |
| BOSCH | 0986494214 |
| Brake ENGINEERING | PA1916 |
| BRECK | 245370070200, 245370070210 |
| BREMBO | P24075, P44017, P44016 |
| CIFAM | 822-780-0 |
| COBREQ | N868 |
| DELPHI | LP1969 |
| FEBI BILSTEIN | 16642 |
| FENOX | BP43041 |
| FERODO | FSL1917, FDB1917 |
| GIRLING | 6117321 |
| HANS PRIES | 303964 |
| HELLA | 8DB355013-301 |
| HELLA PAGID | 8DB355013-301 |
| ICER | 181801 |
| JURID | 573263J, 573263JC |
| KEY PARTS | KBP2122 |
| KRAFT | 6012304 |
| LPR | 05P1272 |
| MAGNETI MARELLI | 363916060257 |
| MALÒ | 1050394 |
| METELLI | 22-0780-0 |
| METZGER | 1170058, 125600 |
| MGA | 865 |
| MINTEX | MDB2887, MDK0257 |
| NK | 222567 |
| OPEN PARTS | BPA125600 |
| OPTIMAL | 12322 |
| PAGID | T1696 |
| PROCODIS FRANCE | PF1448 |
| REMSA | 1256.00 |
| ROADHOUSE | 21256.00 |
| SCT Germany | SP476PR |
| SWAG | 50916642 |
| TEXTAR | 2453715734, 2453715714, 2453708, 2453701, 2453703, 2453702 |
| TRW | GDB1732, GDB1732DTE |
Vehicle fitment / ATE 13.0470-2723.2 (13047027232) Brake Pad Set, disc brake compatibility
This product fits the following models: FORD FOCUS II, FORD GALAXY, FORD KUGA I, FORD MONDEO IV, FORD S-MAX, etc. See all vehicles this product (ATE 13.0470-2723.2 (13047027232)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| FORD | FOCUS II DA | 2.5 RS 2.5 RS 500 | 2009/01 - 2011/07 | JZDA 305 hp 224 kW 2.5 L Petrol JZDA 350 hp 257 kW 2.5 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| FORD | GALAXY WA6 | 1.6 EcoBoost 1.6 TDCi 1.8 TDCi 2.0 2.0 EcoBoost 2.0 Flexifuel 2.0 TDCi 2.2 TDCi 2.3 | 2006/05 - 2015/06 | AOWA 145 hp 107 kW 2 L Petrol AOWB 145 hp 107 kW 2 L Petrol AZWA 130 hp 96 kW 2 L Diesel AZWC 136 hp 100 kW 2 L Diesel KLWA 115 hp 85 kW 2 L Diesel QXWA 140 hp 103 kW 2 L Diesel QXWB 140 hp 103 kW 2 L Diesel QXWC 140 hp 103 kW 2 L Diesel TXWA 163 hp 120 kW 2 L Diesel TYWA 115 hp 85 kW 2 L Diesel UFWA 140 hp 103 kW 2 L Diesel UKWA 136 hp 100 kW 2 L Diesel FFWA 100 hp 74 kW 1.8 L Diesel QYWA 125 hp 92 kW 1.8 L Diesel JTWA 160 hp 118 kW 1.6 L Petrol JTWB 160 hp 118 kW 1.6 L Petrol KNWA 200 hp 147 kW 2.2 L Diesel Q4BA 175 hp 129 kW 2.2 L Diesel Q4WA 175 hp 129 kW 2.2 L Diesel SEWA 160 hp 118 kW 2.3 L Petrol T1WA 115 hp 85 kW 1.6 L Diesel T1WB 115 hp 85 kW 1.6 L Diesel TBWA 145 hp 107 kW 2 L Petrol TBWB 145 hp 107 kW 2 L Petrol TNWA 203 hp 149 kW 2 L Petrol TNWB 199 hp 146 kW 2 L Petrol | Front wheel | MPV / Van / Minivan |
| FORD | KUGA I | 2.0 TDCi 2.0 TDCi 4x4 2.5 2.5 4x4 | 2008/03 - | G6DG 136 hp 100 kW 2 L Diesel TXDA 163 hp 120 kW 2 L Diesel UFDA 140 hp 103 kW 2 L Diesel UKDA 136 hp 100 kW 2 L Diesel G6DG 136 hp 100 kW 2 L Diesel UFDA 140 hp 103 kW 2 L Diesel UKDA 136 hp 100 kW 2 L Diesel HYDB 200 hp 147 kW 2.5 L Petrol HYDB 200 hp 147 kW 2.5 L Petrol HYDC 200 hp 147 kW 2.5 L Petrol | AWD / 4WD Front wheel | Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV |
| FORD | MONDEO IV BA7 | 1.6 EcoBoost 1.6 TDCi 1.6 Ti 1.8 TDCi 2.0 2.0 EcoBoost 2.0 Flexifuel 2.0 LPG 2.0 SCTi 2.0 TDCi 2.2 TDCi 2.3 2.5 | 2007/03 - | AOBA 145 hp 107 kW 2 L Petrol AOBC 145 hp 107 kW 2 L Petrol TBBA 145 hp 107 kW 2 L Petrol AZBA 130 hp 96 kW 2 L Diesel AZBC 136 hp 100 kW 2 L Diesel KLBA 115 hp 85 kW 2 L Diesel LPBA 115 hp 85 kW 2 L Diesel QXBA 140 hp 103 kW 2 L Diesel QXBB 140 hp 103 kW 2 L Diesel TXBA 163 hp 120 kW 2 L Diesel TXBB 163 hp 120 kW 2 L Diesel TYBA 115 hp 85 kW 2 L Diesel UFBA 140 hp 103 kW 2 L Diesel UFBB 140 hp 103 kW 2 L Diesel UKBA 136 hp 100 kW 2 L Diesel UKBB 136 hp 100 kW 2 L Diesel AZBA 130 hp 96 kW 2 L Diesel KLBA 115 hp 85 kW 2 L Diesel LPBA 115 hp 85 kW 2 L Diesel QXBA 140 hp 103 kW 2 L Diesel QXBB 140 hp 103 kW 2 L Diesel TXBA 163 hp 120 kW 2 L Diesel TXBB 163 hp 120 kW 2 L Diesel TYBA 115 hp 85 kW 2 L Diesel UFBA 140 hp 103 kW 2 L Diesel UFBB 140 hp 103 kW 2 L Diesel FFBA 100 hp 74 kW 1.8 L Diesel KHBA 125 hp 92 kW 1.8 L Diesel QYBA 125 hp 92 kW 1.8 L Diesel HUBA 220 hp 162 kW 2.5 L Petrol JTBA 160 hp 118 kW 1.6 L Petrol JTBB 160 hp 118 kW 1.6 L Petrol KGBA 120 hp 88 kW 1.6 L Petrol PNBA 125 hp 92 kW 1.6 L Petrol RHBA 110 hp 81 kW 1.6 L Petrol KNBA 200 hp 147 kW 2.2 L Diesel Q4BA 175 hp 129 kW 2.2 L Diesel PNBA 125 hp 92 kW 1.6 L Petrol RHBA 110 hp 81 kW 1.6 L Petrol Q4BA 175 hp 129 kW 2.2 L Diesel SEBA 160 hp 118 kW 2.3 L Petrol T1BA 115 hp 85 kW 1.6 L Diesel T1BB 115 hp 85 kW 1.6 L Diesel T1BC 115 hp 85 kW 1.6 L Diesel TBBA 145 hp 107 kW 2 L Petrol TBBA 145 hp 107 kW 2 L Petrol TBBB 145 hp 107 kW 2 L Petrol TNBA 203 hp 149 kW 2 L Petrol TPBA 240 hp 176 kW 2 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch Sedan / Saloon |
| FORD | S-MAX WA6 | 1.6 EcoBoost 1.6 TDCi 1.8 TDCi 2.0 2.0 EcoBoost 2.0 Flexifuel 2.0 TDCi 2.2 TDCi 2.3 2.5 ST | 2006/05 - | AOWA 145 hp 107 kW 2 L Petrol AOWB 145 hp 107 kW 2 L Petrol AZWA 130 hp 96 kW 2 L Diesel AZWC 136 hp 100 kW 2 L Diesel KLWA 115 hp 85 kW 2 L Diesel QXWA 140 hp 103 kW 2 L Diesel QXWB 140 hp 103 kW 2 L Diesel QXWC 140 hp 103 kW 2 L Diesel TXWA 163 hp 120 kW 2 L Diesel TYWA 115 hp 85 kW 2 L Diesel UFWA 140 hp 103 kW 2 L Diesel UKWA 136 hp 100 kW 2 L Diesel FFWA 100 hp 74 kW 1.8 L Diesel QYWA 125 hp 92 kW 1.8 L Diesel HUWA 220 hp 162 kW 2.5 L Petrol JTWA 160 hp 118 kW 1.6 L Petrol JTWB 160 hp 118 kW 1.6 L Petrol KNWA 200 hp 147 kW 2.2 L Diesel Q4WA 175 hp 129 kW 2.2 L Diesel SEWA 160 hp 118 kW 2.3 L Petrol T1WA 115 hp 85 kW 1.6 L Diesel T1WB 115 hp 85 kW 1.6 L Diesel TBWA 145 hp 107 kW 2 L Petrol TBWB 145 hp 107 kW 2 L Petrol TNWA 203 hp 149 kW 2 L Petrol TNWB 199 hp 146 kW 2 L Petrol TPWA 240 hp 176 kW 2 L Petrol | Front wheel | MPV / Van / Minivan |
