ATE 13.0470-3605.2 (13047036052) Brake Pad Set, disc brake
ATE 13.0470-3605.2 (13047036052) Brake Pad Set, disc brake
by ATEManufacturer Part Number: 13.0470-3605.2 (13047036052)
Alternative ATE part number(s): 20180, 20181, LD3605

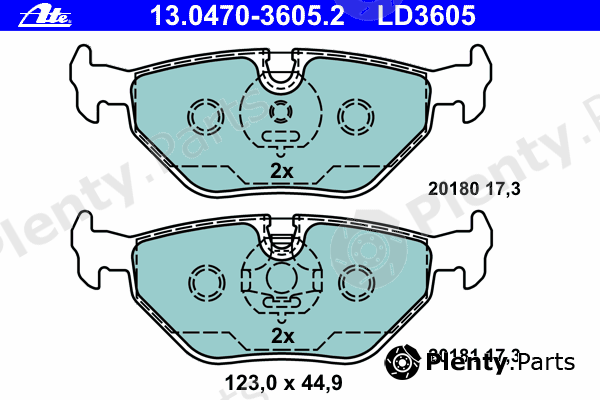

- Width [mm]: 123
- Height [mm]: 44,9
- Thickness [mm]: 17,3
- Wear Warning Contact: prepared for wear indicator
- Wear Warning Contact: excl. wear warning contact
- Brake System: ATE
- Inspection Tag: E1 90R-011403/1262
- MAPP code available:
- Technically it is possible to combine ATE Ceramic brake pads with the PowerDisc or with perforated brake discs. The brak ing power with such a pairing is the same as with an origina l ATE brake pad or OE brake pad. However, when the two compo nents interact they can generate more noise in braking. ATE Ceramic brake pads were developed for comfort-oriented drive rs. We therefore recommend using them with normal brake disc s, i.e. smooth ones.
Product Details
| Brand | ATE |
| ATE article (MPN) | 13.0470-3605.2 (13047036052) Alternative ATE part number(s): 20180, 20181, LD3605 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for BMW, MG, ROVER, SAAB vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| BMW | 34212157575, 34216778168, 34216761239, 34211160533, 34211161455, 34211162446, 34211162536, 34211164499, 34211164501, 34211165233, 34211165235, 34216750190, 34216761238, 34216761241, 34211160340, 34212157574 |
| MG | SFP100520 |
| ROVER | SFP100520, GBP90341AF |
| SAAB | 5058110 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 13.0470-3605.2 (13047036052) Brake Pad Set, disc brake offered by A.B.S., ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, COBREQ, DELPHI, DENCKERMANN, Dr!ve+, FEBI BILSTEIN, FENOX, FERODO, FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PROCODIS FRANCE, QUINTON HAZELL, REMSA, ROADHOUSE, ROULUNDS BRAKING, STARLINE, SWAG, TEXTAR, TRUCKTEC AUTOMOTIVE, TRW, VAICO, VALEO, VILLAR, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 36824 |
| ATE | 13.0460-3605.2 |
| BENDIX | 571387X, 571960B-AS, 571960B, 571387B, 571527B |
| BORG & BECK | BBP1493, BBP1677 |
| BOSCH | 0986TB2595, F03B150266, 0986424484, 0986424667, 0986460964, F03B150281, 0986AB4726, F026000009 |
| Brake ENGINEERING | PA1180, PA484 |
| BREMBO | P06025, P71006, P06013, P06011 |
| COBREQ | N865 |
| DELPHI | LP907, LP1423 |
| DENCKERMANN | B111092 |
| Dr!ve+ | DP1010100821, DP1010100950 |
| FEBI BILSTEIN | 16351, 16176, 16196 |
| FENOX | BP43160, K1741 |
| FERODO | FQT1301, FSL850, FDB1301, FDB850, TAR1301, FCP850S, FDB1867, FDS1301, FSL1301, FQT850, FDS850, TAR850 |
| FTE | BL1613A2, BL1037A2, BL1751A2 |
| GIRLING | 6109172, 6113432, 6113442, 6111892 |
| HANS PRIES | 500382 |
| HELLA | 8DB355008-761, 8DB355009-051, 8DB355007-511 |
| HELLA PAGID | 8DB355009-051, 8DB355007-511, 8DB355008-761 |
| JP GROUP | 1463701419, 1463701410 |
| JURID | 571387J, 571960J-AS, 571387JAS, 571387D, 571527J, 571960JC, 571960J, 571527JAS |
| KEY PARTS | KBP1677 |
| KRAFT | 6012540 |
| LPR | 05P463 |
| MAGNETI MARELLI | 363916060154 |
| METZGER | 1170014, 026540 |
| MEYLE | 0252160717, 0252160717PD |
| MGA | C1493, 479, 432, C1002 |
| MINTEX | MDB2763, MDB1572, MDB1888, MDK0186, MDB1879 |
| NECTO | FD6633 |
| NK | 221516, 221509 |
| OPEN PARTS | BPA026530 |
| OPTIMAL | 9945, 12259, 9544 |
| PAGID | T1039, T1207, T1178 |
| PEX | 7.462 |
| PROCODIS FRANCE | PF1070, PF1317 |
| QUINTON HAZELL | BLF1009, BP1009, 0265.50, 0265.40, BP1338, BLF1122, BP620, 0265.30, 0265.41 |
| REMSA | 0265.41, 0265.40, 0265.30, 0265.50 |
| ROADHOUSE | 2265.41, 2265.50, 2265.30, 2265.40 |
| ROULUNDS BRAKING | 672781, 469881 |
| STARLINE | BDS381P |
| SWAG | 20916176, 20916351, 20916196 |
| TEXTAR | 2160781, 2193491, 2193402, 2193411, 2193481, 2160702 |
| TRUCKTEC AUTOMOTIVE | 0835007 |
| TRW | GDB1344DTE, GDB1189, GDB1343, GDB917, GDB1430, GDB1344, GDB1258 |
| VAICO | V208116, V208107 |
| VALEO | 168980, 598386 |
| VILLAR | 6260463 |
| ZIMMERMANN | 21934.170.1, 20180.170.1 |
Vehicle fitment / ATE 13.0470-3605.2 (13047036052) Brake Pad Set, disc brake compatibility
This product fits the following models: BMW 3, BMW Z1, BMW Z3, BMW Z4, MG MG ZT, MG MG ZT- T, ROVER 75, SAAB 9-5, etc. See all vehicles this product (ATE 13.0470-3605.2 (13047036052)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| BMW | 3 E36 E46 | 316 Ci 316 g 316 i 316 ti 318 Ci 318 d 318 i 318i 318 is 318is 318 td 318 tds 318 ti 320 Cd 320 Ci 320 d 320 i 320 td 323 Ci 323 i 323 i 2.5 323is 323 ti 325 Ci 325 i 325is 325 td 325 tds 325 ti 325 xi 328 Ci 328 i 328i | 1990/09 - 2007/12 | M40B16(164E1) 100 hp 73 kW 1.6 L Petrol M43B16(164E2) 102 hp 75 kW 1.6 L Petrol M40B18(184E1) 113 hp 83 kW 1.8 L Petrol M43B18(184E2) 115 hp 85 kW 1.8 L Petrol M41D17(174T1) 90 hp 66 kW 1.7 L Diesel M42B18(184S1) 140 hp 103 kW 1.8 L Petrol M44B19(194S1) 140 hp 103 kW 1.9 L Petrol M43B16(164E2) 102 hp 75 kW 1.6 L Petrol M43B16(164E2) 102 hp 75 kW 1.6 L Petrol M43B19(194E1) 105 hp 77 kW 1.9 L Petrol M43B16(164E3) 105 hp 77 kW 1.6 L Petrol M43B19(194E1) 105 hp 77 kW 1.9 L Petrol N40B16A 115 hp 85 kW 1.6 L Petrol N42B18A 115 hp 85 kW 1.8 L Petrol N45B16A 115 hp 85 kW 1.6 L Petrol N46B18A 115 hp 85 kW 1.8 L Petrol M43B16(164E3) 105 hp 77 kW 1.6 L Petrol N45B16A 115 hp 85 kW 1.6 L Petrol M43B18(184E2) 115 hp 85 kW 1.8 L Petrol M43B18(184E2) 116 hp 85 kW 1.8 L Petrol M43B19(194E1) 116 hp 85 kW 1.9 L Petrol M43B19(194E1) 118 hp 87 kW 1.9 L Petrol N42B20A 143 hp 105 kW 2 L Petrol N46B20A 143 hp 105 kW 2 L Petrol M43B19(194E1) 118 hp 87 kW 1.9 L Petrol N42B20A 143 hp 105 kW 2 L Petrol N46B20A 143 hp 105 kW 2 L Petrol M43B19(194E1) 118 hp 87 kW 1.9 L Petrol N42B20A 143 hp 105 kW 2 L Petrol N46B20A 143 hp 105 kW 2 L Petrol N46B20A 150 hp 110 kW 2 L Petrol M44B19(194S1) 140 hp 103 kW 1.9 L Petrol M47D20(204D1) 115 hp 85 kW 2 L Diesel M47D20(204D4) 116 hp 85 kW 2 L Diesel M47D20(204D1) 116 hp 85 kW 2 L Diesel M47D20(204D4) 116 hp 85 kW 2 L Diesel M47D20(204D1) 129 hp 95 kW 2 L Diesel M47D20(204D1) 136 hp 100 kW 2 L Diesel M47D20(204D4) 150 hp 110 kW 2 L Diesel M47D20(204D1) 136 hp 100 kW 2 L Diesel M47D20(204D4) 150 hp 110 kW 2 L Diesel M47D20(204D4) 115 hp 85 kW 2 L Diesel M47D20(204D4) 150 hp 110 kW 2 L Diesel M50B20(206S1) 150 hp 110 kW 2 L Petrol M50B20(206S2) 150 hp 110 kW 2 L Petrol M52B20(206S3) 150 hp 110 kW 2 L Petrol M50B20(206S2) 150 hp 110 kW 2 L Petrol M52B20(206S3) 150 hp 110 kW 2 L Petrol M50B25(256S1) 192 hp 141 kW 2.5 L Petrol M50B25(256S2) 192 hp 141 kW 2.5 L Petrol M50B25(256S2) 192 hp 141 kW 2.5 L Petrol M51D25(256T1) 115 hp 85 kW 2.5 L Diesel M51D25(256T1) 143 hp 105 kW 2.5 L Diesel M52B20(206S3) 150 hp 110 kW 2 L Petrol M52B20(206S4) 150 hp 110 kW 2 L Petrol M54B22(226S1) 170 hp 125 kW 2.2 L Petrol M52B25(256S3) 170 hp 125 kW 2.5 L Petrol M52B25(256S4) 170 hp 125 kW 2.5 L Petrol M52B28(286S1) 193 hp 142 kW 2.8 L Petrol M52B28(286S2) 193 hp 142 kW 2.8 L Petrol M54B22(226S1) 163 hp 120 kW 2.2 L Petrol M54B22(226S1) 170 hp 125 kW 2.2 L Petrol M54B25(256S5) 192 hp 141 kW 2.5 L Petrol N40B16A 105 hp 77 kW 1.6 L Petrol N40B16A 115 hp 85 kW 1.6 L Petrol N42B18A 115 hp 85 kW 1.8 L Petrol N45B16A 115 hp 85 kW 1.6 L Petrol N46B18A 115 hp 85 kW 1.8 L Petrol N42B18A 115 hp 85 kW 1.8 L Petrol N45B16A 115 hp 85 kW 1.6 L Petrol N46B18A 115 hp 85 kW 1.8 L Petrol N42B20A 143 hp 105 kW 2 L Petrol N46B20A 143 hp 105 kW 2 L Petrol N42B20A 143 hp 105 kW 2 L Petrol N46B20A 143 hp 105 kW 2 L Petrol N46B20A 150 hp 110 kW 2 L Petrol N46B20B 150 hp 110 kW 2 L Petrol | AWD / 4WD Rear wheel | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch Sedan / Saloon |
| BMW | Z1 | 2.5 | 1988/06 - 1991/06 | M20B25(256K1) 170 hp 125 kW 2.5 L Petrol | Rear wheel | Convertible / cabrio |
| BMW | Z3 E36 | 1.8 1.9 2.0 2.2 2.8 3.0 | 1995/10 - 2003/06 | M43B18(184E2) 116 hp 85 kW 1.8 L Petrol M43B19(194E1) 116 hp 85 kW 1.9 L Petrol M43B19(194E1) 118 hp 87 kW 1.9 L Petrol M44B19(194S1) 140 hp 103 kW 1.9 L Petrol M52B20(206S4) 150 hp 110 kW 2 L Petrol M52B28(286S1) 192 hp 141 kW 2.8 L Petrol M52B28(286S1) 192 hp 141 kW 2.8 L Petrol M52B28(286S1) 194 hp 143 kW 2.8 L Petrol M52B28(286S2) 194 hp 143 kW 2.8 L Petrol M54B22(226S1) 170 hp 125 kW 2.2 L Petrol M54B30(306S3) 231 hp 170 kW 3 L Petrol | Rear wheel | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster |
| BMW | Z4 E85 E86 | 2.0 i 2.2 i 2.5 i 2.5 si 3.0 i 3.0 si | 2003/02 - 2009/02 | M54B22(226S1) 170 hp 125 kW 2.2 L Petrol M54B25(256S5) 192 hp 141 kW 2.5 L Petrol N52B25A 177 hp 130 kW 2.5 L Petrol M54B30(306S3) 231 hp 170 kW 3 L Petrol N46B20A 150 hp 110 kW 2 L Petrol N46B20B 150 hp 110 kW 2 L Petrol N52B25A 218 hp 160 kW 2.5 L Petrol N52B30A 265 hp 195 kW 3 L Petrol | Rear wheel | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster |
| MG | MG ZT | 160 180 1.8 T 16V 190 2.0 CDTi | 2001/06 - 2005/07 | 18K4G 160 hp 118 kW 1.8 L Petrol 204D2 116 hp 85 kW 2 L Diesel 204D2 131 hp 96 kW 2 L Diesel 25K4F 160 hp 118 kW 2.5 L Petrol 25K4F 177 hp 130 kW 2.5 L Petrol 25K4F 190 hp 140 kW 2.5 L Petrol | Front wheel | Sedan / Saloon |
| MG | MG ZT- T | 160 180 1.8 T 16V 190 2.0 CDTi | 2001/10 - 2005/07 | 18K4G 160 hp 118 kW 1.8 L Petrol 204D2 116 hp 85 kW 2 L Diesel 204D2 131 hp 96 kW 2 L Diesel 25K4F 160 hp 118 kW 2.5 L Petrol 25K4F 177 hp 130 kW 2.5 L Petrol 25K4F 190 hp 140 kW 2.5 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon |
| ROVER | 75 RJ | 1.8 1.8 Turbo 2.0 CDT 2.0 CDTi 2.0 V6 2.5 V6 | 1999/02 - 2005/05 | 18K4G 150 hp 110 kW 1.8 L Petrol 204D2 131 hp 96 kW 2 L Diesel 20K4F 150 hp 110 kW 2 L Petrol 25K4F 177 hp 130 kW 2.5 L Petrol KV6 175 hp 129 kW 2.5 L Petrol K1.8 120 hp 88 kW 1.8 L Petrol KV6 177 hp 130 kW 2.5 L Petrol M47R 115 hp 85 kW 2 L Diesel | Front wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| SAAB | 9-5 YS3E | 1.9 TiD 2.0 t 2.0 t Biopower 2.0 t BioPower 2.0 Turbo SE 2.2 TiD 2.3 t 2.3 t BioPower 2.3 Turbo 3.0 TiD 3.0 V6t | 1997/09 - 2009/12 | B204R 192 hp 141 kW 2 L Petrol B205E 150 hp 110 kW 2 L Petrol B205L 185 hp 136 kW 2 L Petrol B205E 150 hp 110 kW 2 L Petrol B205E 150 hp 110 kW 2 L Petrol B205L 185 hp 136 kW 2 L Petrol B205E 179 hp 132 kW 2 L Petrol B205E 192 hp 141 kW 2 L Petrol B235E 170 hp 125 kW 2.3 L Petrol B235E 185 hp 136 kW 2.3 L Petrol B235E 182 hp 134 kW 2.3 L Petrol B235L 220 hp 162 kW 2.3 L Petrol B235R 230 hp 169 kW 2.3 L Petrol B235R 250 hp 184 kW 2.3 L Petrol B235R 256 hp 188 kW 2.3 L Petrol B235R 260 hp 191 kW 2.3 L Petrol B235R 305 hp 224 kW 2.3 L Petrol B235E 185 hp 136 kW 2.3 L Petrol B235R 207 hp 152 kW 2.3 L Petrol B235E 185 hp 136 kW 2.3 L Petrol B235R 207 hp 152 kW 2.3 L Petrol B235R 210 hp 154 kW 2.3 L Petrol B235L 220 hp 162 kW 2.3 L Petrol B235R 230 hp 169 kW 2.3 L Petrol B235R 250 hp 184 kW 2.3 L Petrol B235R 256 hp 188 kW 2.3 L Petrol B235R 260 hp 191 kW 2.3 L Petrol B235R 305 hp 224 kW 2.3 L Petrol B308E 200 hp 147 kW 3 L Petrol D223L 120 hp 88 kW 2.2 L Diesel D308L 177 hp 130 kW 3 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DTR 175 hp 129 kW 1.9 L Diesel | Front wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
