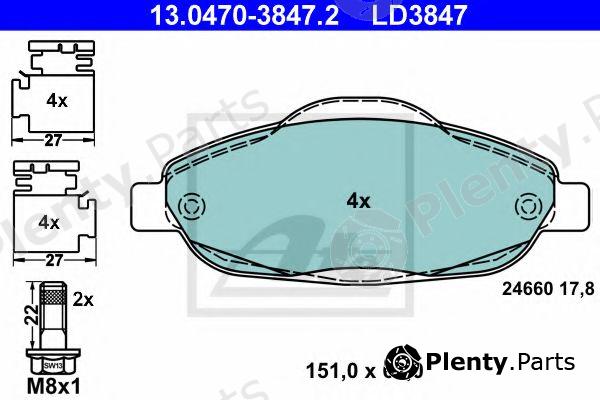

ATE 13.0470-3847.2 (13047038472) Brake Pad Set, disc brake
ATE 13.0470-3847.2 (13047038472) Brake Pad Set, disc brake
by ATEManufacturer Part Number: 13.0470-3847.2 (13047038472)
Alternative ATE part number(s): 24660, LD3847
- Width [mm]: 151
- Height [mm]: 62
- Thickness [mm]: 17,8
- Wear Warning Contact: not prepared for wear indicator
- Wear Warning Contact: excl. wear warning contact
- Supplementary Article/Supplementary Info: with accessories
- Supplementary Article/Info 2: with brake caliper screws
- Number of screws: 2
- Brake System: Bosch
- Inspection Tag: E1 90R-02A0171/0055
- MAPP code available:
- Technically it is possible to combine ATE Ceramic brake pads with the PowerDisc or with perforated brake discs. The brak ing power with such a pairing is the same as with an origina l ATE brake pad or OE brake pad. However, when the two compo nents interact they can generate more noise in braking. ATE Ceramic brake pads were developed for comfort-oriented drive rs. We therefore recommend using them with normal brake disc s, i.e. smooth ones.
Product Details
| Brand | ATE |
| ATE article (MPN) | 13.0470-3847.2 (13047038472) Alternative ATE part number(s): 24660, LD3847 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for CITROEN / PEUGEOT vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| CITROEN / PEUGEOT | 425393, 425426, 1613259380 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 13.0470-3847.2 (13047038472) Brake Pad Set, disc brake offered by A.B.S., ALANKO, ATE, AUTOMEGA, BENDIX, BLUE PRINT, BORG & BECK, Brake ENGINEERING, BRECK, BREMBO, CIFAM, COBREQ, Dr!ve+, FEBI BILSTEIN, FENOX, FERODO, GIRLING, HELLA, HELLA PAGID, ICER, JURID, KEY PARTS, KRAFT, MAGNETI MARELLI, METELLI, MEYLE, MINTEX, OPEN PARTS, OPTIMAL, PAGID, PROCODIS FRANCE, ROULUNDS BRAKING, SWAG, TEXTAR, TRW manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 37607 |
| ALANKO | 300658 |
| ATE | 13.0460-3847.2 |
| AUTOMEGA | 304254026 |
| BENDIX | 573241B |
| BLUE PRINT | ADP154204 |
| BORG & BECK | BBP2065 |
| Brake ENGINEERING | PA1815 |
| BRECK | 246600070100 |
| BREMBO | P61101 |
| CIFAM | 822-804-0 |
| COBREQ | N1182 |
| Dr!ve+ | DP1010100178 |
| FEBI BILSTEIN | 16844 |
| FENOX | BP43036 |
| FERODO | FDB4003 |
| GIRLING | 6117614 |
| HELLA | 8DB355013-911 |
| HELLA PAGID | 8DB355013-911 |
| ICER | 181851 |
| JURID | 573241JC, 573241J |
| KEY PARTS | KBP2065 |
| KRAFT | 6005507 |
| MAGNETI MARELLI | 363700201766 |
| METELLI | 22-0804-0 |
| MEYLE | 0252466017PD, 0252466017 |
| MINTEX | MDB2950, MDK0233 |
| OPEN PARTS | BPA132300 |
| OPTIMAL | 12340 |
| PAGID | T1766 |
| PROCODIS FRANCE | PF1466 |
| ROULUNDS BRAKING | 856481 |
| SWAG | 62916844 |
| TEXTAR | 2466001, 2466017814 |
| TRW | GDB1761, GDB1761DTE |
Vehicle fitment / ATE 13.0470-3847.2 (13047038472) Brake Pad Set, disc brake compatibility
This product fits the following models: PEUGEOT 3008, PEUGEOT 308, PEUGEOT 308 CC, PEUGEOT 308 SW, etc. See all vehicles this product (ATE 13.0470-3847.2 (13047038472)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| PEUGEOT | 3008 | 1.2 1.6 BlueHDi 120 1.6 HDi 1.6 VTi | 2009/06 - | 5FS(EP6C) 120 hp 88 kW 1.6 L Petrol 5FW(EP6) 120 hp 88 kW 1.6 L Petrol EP6 120 hp 88 kW 1.6 L Petrol 9HD(DV6CTED) 114 hp 84 kW 1.6 L Diesel 9HR(DV6C) 112 hp 82 kW 1.6 L Diesel 9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel BHZ(DV6FC) 120 hp 88 kW 1.6 L Diesel HNY(EB2DTS) 131 hp 96 kW 1.2 L Petrol | Front wheel | MPV / Van / Minivan |
| PEUGEOT | 308 4A 4C | 1.4 16V 1.6 16V 1.6 BioFlex 1.6 HDi 2.0 HDi | 2007/09 - | 114 hp 84 kW 1.6 L Diesel 90 hp 66 kW 1.6 L Diesel 9HP(DV6DTED) 92 hp 68 kW 1.6 L Diesel 9HR(DV6C) 112 hp 82 kW 1.6 L Diesel 9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel 5FT(EP6DT) 140 hp 103 kW 1.6 L Petrol 5FW(EP6) 120 hp 88 kW 1.6 L Petrol 5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol EP6 120 hp 88 kW 1.6 L Petrol EP6CDT 156 hp 115 kW 1.6 L Petrol 8FR(EP3) 98 hp 72 kW 1.4 L Petrol 8FS(EP3) 95 hp 70 kW 1.4 L Petrol EP3 95 hp 70 kW 1.4 L Petrol NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel RHR(DW10BTED4) 140 hp 103 kW 2 L Diesel | Front wheel | Hatchback / Sportback / Sport hatch |
| PEUGEOT | 308 CC | 1.6 16V 1.6 HDi | 2009/06 - | 114 hp 84 kW 1.6 L Diesel 9HR(DV6C) 112 hp 82 kW 1.6 L Diesel EP6 120 hp 88 kW 1.6 L Petrol | Front wheel | Convertible / cabrio |
| PEUGEOT | 308 SW | 1.4 16V 1.6 16V 1.6 Bioflex 1.6 HDi 2.0 Bioflex | 2007/09 - | 114 hp 84 kW 1.6 L Diesel 9HP(DV6DTED) 92 hp 68 kW 1.6 L Diesel 9HR(DV6C) 112 hp 82 kW 1.6 L Diesel 9HV(DV6ATED4) 90 hp 66 kW 1.6 L Diesel 9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel 9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel 5FW(EP6) 120 hp 88 kW 1.6 L Petrol EP6 120 hp 88 kW 1.6 L Petrol 8FR(EP3) 98 hp 72 kW 1.4 L Petrol 8FS(EP3) 95 hp 70 kW 1.4 L Petrol NFU(TU5JP4) 112 hp 82 kW 1.6 L Petrol RFJ(EW10A) 140 hp 103 kW 2 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon |
