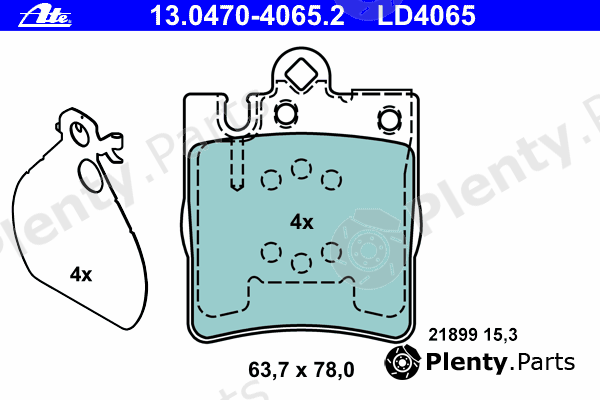

ATE 13.0470-4065.2 (13047040652) Brake Pad Set, disc brake
ATE 13.0470-4065.2 (13047040652) Brake Pad Set, disc brake
by ATEManufacturer Part Number: 13.0470-4065.2 (13047040652)
Alternative ATE part number(s): 21899, LD4065
- Width [mm]: 63,7
- Height [mm]: 78
- Thickness [mm]: 15,3
- Wear Warning Contact: prepared for wear indicator
- Wear Warning Contact: excl. wear warning contact
- Supplementary Article/Supplementary Info: with accessories
- Brake System: ATE
- Inspection Tag: E1 90R-011403/1278
- MAPP code available:
- Technically it is possible to combine ATE Ceramic brake pads with the PowerDisc or with perforated brake discs. The brak ing power with such a pairing is the same as with an origina l ATE brake pad or OE brake pad. However, when the two compo nents interact they can generate more noise in braking. ATE Ceramic brake pads were developed for comfort-oriented drive rs. We therefore recommend using them with normal brake disc s, i.e. smooth ones.
Product Details
| Brand | ATE |
| ATE article (MPN) | 13.0470-4065.2 (13047040652) Alternative ATE part number(s): 21899, LD4065 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for MERCEDES-BENZ vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| MERCEDES-BENZ | 0034202820, 0034205220, 0054201920, 0024205220 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 13.0470-4065.2 (13047040652) Brake Pad Set, disc brake offered by A.B.S., ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, DELPHI, Dr!ve+, FEBI BILSTEIN, FENOX, FERODO, FOMAR, FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, JURID, KRAFT, MAGNETI MARELLI, METZGER, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PROCODIS FRANCE, QUINTON HAZELL, REMSA, ROADHOUSE, ROULUNDS BRAKING, SCT Germany, STELLOX, SWAG, TEXTAR, TRW, VAICO, VALEO, VILLAR, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 37022 |
| ATE | 13.0460-4065.2 |
| BENDIX | 571988B, 571988B-AS |
| BORG & BECK | BBP1665 |
| BOSCH | F03B150088, 0986495081, 0986494022, 0986424520 |
| Brake ENGINEERING | PA1553, PA1368 |
| BREMBO | P50033 |
| DELPHI | LP1618 |
| Dr!ve+ | DP1010100847 |
| FEBI BILSTEIN | 16149, 16399 |
| FENOX | BP43240 |
| FERODO | FDB1322, FSL1322 |
| FOMAR | FO680281 |
| FTE | BL1679A2 |
| GIRLING | 6114212, 6113342 |
| HANS PRIES | 400947 |
| HELLA | 8DB355008-451 |
| HELLA PAGID | 8DB355008-451 |
| ICER | 181312 |
| JURID | 571988J, 571988J-AS |
| KRAFT | 6011150 |
| MAGNETI MARELLI | 363916060553 |
| METZGER | 070900, 1170064, 070910 |
| MGA | 543 |
| MINTEX | MDB1991 |
| NECTO | FD7004A |
| NK | 223339 |
| OPEN PARTS | BPA070900 |
| OPTIMAL | 10468, 10340 |
| PAGID | T1152 |
| PEX | 7.863, 7.525 |
| PROCODIS FRANCE | PF1279 |
| QUINTON HAZELL | BP1100, 0709.10, BLF1100, 0709.00 |
| REMSA | 0709.10, 0709.00 |
| ROADHOUSE | 2709.10, 2709.00 |
| ROULUNDS BRAKING | 680281 |
| SCT Germany | SP466PR |
| STELLOX | 720010SX |
| SWAG | 10916399, 10916149 |
| TEXTAR | 2189881, 2189801, 2189891, 2189803 |
| TRW | GDB1334, GDB1421 |
| VAICO | V308127 |
| VALEO | 598447 |
| VILLAR | 6260957 |
| ZIMMERMANN | 21898.155.1 |
Vehicle fitment / ATE 13.0470-4065.2 (13047040652) Brake Pad Set, disc brake compatibility
This product fits the following models: MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS COUPE, MERCEDES-BENZ CLC-CLASS, MERCEDES-BENZ CLK, MERCEDES-BENZ E-CLASS, MERCEDES-BENZ SLK, etc. See all vehicles this product (ATE 13.0470-4065.2 (13047040652)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | C-CLASS CL203 S203 W203 | C 180 C 180 Kompressor C 200 CDI C 200 CGI Kompressor C 200 Kompressor C 220 CDI C 230 C 230 Kompressor C 240 C 240 4-matic C 270 CDI C 280 C 280 4-matic C 30 CDI AMG C 320 C 320 4-matic C 320 CDI C 350 C 350 4-matic 203.004 203.006 203.007 203.008 203.016 203.020 203.040 203.042 203.043 203.046 203.052 203.054 203.056 203.061 203.064 203.081 203.084 203.087 203.092 203.204 203.204 203.207 203.206 203.207 203.208 203.216 203.220 203.235 203.240 203.242 203.243 203.245 203.246 203.252 203.254 203.256 203.261 203.264 203.281 203.284 203.287 203.292 203.718 203.740 203.747 203.752 203.756 203.764 | 2000/05 - 2008/05 | M111.951 129 hp 95 kW 2 L Petrol M111.955 163 hp 120 kW 2 L Petrol M111.981 197 hp 145 kW 2.3 L Petrol M112.912 170 hp 125 kW 2.6 L Petrol M112.916 170 hp 125 kW 2.6 L Petrol M112.946 218 hp 160 kW 3.2 L Petrol M112.953 218 hp 160 kW 3.2 L Petrol M271.940 163 hp 120 kW 1.8 L Petrol M271.942 170 hp 125 kW 1.8 L Petrol M271.946 143 hp 105 kW 1.8 L Petrol M271.948 192 hp 141 kW 1.8 L Petrol M272.920 204 hp 150 kW 2.5 L Petrol M272.940 231 hp 170 kW 3 L Petrol M272.941 231 hp 170 kW 3 L Petrol M272.960 272 hp 200 kW 3.5 L Petrol M272.960 272 hp 200 kW 3.5 L Petrol M272.970 272 hp 200 kW 3.5 L Petrol M272.970 272 hp 200 kW 3.5 L Petrol OM611.962 102 hp 75 kW 2.2 L Diesel OM646.962 102 hp 75 kW 2.2 L Diesel OM611.962 116 hp 85 kW 2.2 L Diesel OM611.962 136 hp 100 kW 2.2 L Diesel OM611.962 143 hp 105 kW 2.2 L Diesel OM611.962 143 hp 105 kW 2.2 L Diesel OM612.962 163 hp 120 kW 2.7 L Diesel OM612.962 170 hp 125 kW 2.7 L Diesel OM612.990 231 hp 170 kW 3 L Diesel OM642.910 224 hp 165 kW 3 L Diesel OM646.962 102 hp 75 kW 2.2 L Diesel OM646.962 122 hp 90 kW 2.2 L Diesel OM646.963 136 hp 100 kW 2.2 L Diesel OM646.963 150 hp 110 kW 2.2 L Diesel OM646.963 150 hp 110 kW 2.2 L Diesel | AWD / 4WD Rear wheel | Coupe / Sports car / Grand tourer / Speedster / Roadster Estate / Turnier / Vario / Wagon Sedan / Saloon |
| MERCEDES-BENZ | C-CLASS COUPE CL203 | C 230 C 230 Kompressor C 30 CDI AMG C 320 C 350 203.718 203.740 203.747 203.752 203.756 203.764 | 2001/03 - 2008/05 | M111.981 197 hp 145 kW 2.3 L Petrol M112.946 218 hp 160 kW 3.2 L Petrol M271.948 192 hp 141 kW 1.8 L Petrol M272.920 204 hp 150 kW 2.5 L Petrol M272.960 272 hp 200 kW 3.5 L Petrol OM612.990 231 hp 170 kW 3 L Diesel | Rear wheel | Coupe / Sports car / Grand tourer / Speedster / Roadster |
| MERCEDES-BENZ | CLC-CLASS CL203 | CLC 200 Kompressor CLC 230 CLC 350 203.741 203.752 203.756 | 2008/05 - 2011/06 | M271.957 184 hp 135 kW 1.8 L Petrol M272.920 204 hp 150 kW 2.5 L Petrol M272.960 272 hp 200 kW 3.5 L Petrol | Rear wheel | Coupe / Sports car / Grand tourer / Speedster / Roadster |
| MERCEDES-BENZ | CLK A208 A209 C208 C209 | 200 CGI 200 Kompressor 220 CDI 230 Kompressor 240 270 CDI 280 320 320 CDI 350 430 55 AMG CLK 200 Kompressor CLK 240 CLK 280 CLK 320 CLK 320 CDI CLK 350 208.365 208.444 208.445 208.447 208.448 208.465 208.470 208.474 209.308 209.316 209.320 209.341 209.342 209.343 209.354 209.356 209.361 209.365 209.420 209.441 209.442 209.454 209.456 209.461 209.465 | 1997/06 - 2010/03 | M111.944 192 hp 141 kW 2 L Petrol M111.956 163 hp 120 kW 2 L Petrol M111.973 193 hp 142 kW 2.3 L Petrol M111.975 193 hp 142 kW 2.3 L Petrol M111.982 197 hp 145 kW 2.3 L Petrol M112.912 163 hp 120 kW 2.6 L Petrol M112.912 170 hp 125 kW 2.6 L Petrol M112.912 170 hp 125 kW 2.6 L Petrol M112.940 218 hp 160 kW 3.2 L Petrol M112.955 218 hp 160 kW 3.2 L Petrol M113.943 279 hp 205 kW 4.3 L Petrol M113.981 347 hp 255 kW 5.4 L Petrol M113.984 347 hp 255 kW 5.4 L Petrol M271.940 163 hp 120 kW 1.8 L Petrol M271.942 170 hp 125 kW 1.8 L Petrol M271.955 184 hp 135 kW 1.8 L Petrol M272.940 231 hp 170 kW 3 L Petrol M272.960 272 hp 200 kW 3.5 L Petrol OM612.962 170 hp 125 kW 2.7 L Diesel OM612.967 163 hp 120 kW 2.7 L Diesel OM612.967 170 hp 125 kW 2.7 L Diesel OM642.910 224 hp 165 kW 3 L Diesel OM646.966 136 hp 100 kW 2.2 L Diesel OM646.966 150 hp 110 kW 2.2 L Diesel | Rear wheel | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster |
| MERCEDES-BENZ | E-CLASS W210 | E 270 CDI E 280 E 280 4-matic E 300 E 300 Turbo-D E 320 E 320 4-matic E 320 CDI E 420 E 430 210.016 210.025 210.026 210.053 210.055 210.063 210.065 210.070 210.072 210.081 210.082 | 1995/06 - 2002/03 | M104.945 193 hp 142 kW 2.8 L Petrol M104.992 220 hp 162 kW 3.2 L Petrol M104.995 220 hp 162 kW 3.2 L Petrol M112.921 204 hp 150 kW 2.8 L Petrol M112.941 224 hp 165 kW 3.2 L Petrol M113.940 279 hp 205 kW 4.3 L Petrol M119.985 279 hp 205 kW 4.2 L Petrol OM606.962 177 hp 130 kW 3 L Diesel OM612.961 163 hp 120 kW 2.7 L Diesel OM612.961 170 hp 125 kW 2.7 L Diesel OM613.961 197 hp 145 kW 3.2 L Diesel | AWD / 4WD Rear wheel | Sedan / Saloon |
| MERCEDES-BENZ | SLK R171 | 200 Kompressor 280 300 350 171.442 171.445 171.454 171.456 171.458 | 2004/03 - 2011/02 | M271.944 163 hp 120 kW 1.8 L Petrol M271.954 184 hp 135 kW 1.8 L Petrol M272.942 231 hp 170 kW 3 L Petrol M272.963 272 hp 200 kW 3.5 L Petrol M272.969 305 hp 224 kW 3.5 L Petrol | Rear wheel | Convertible / cabrio |
