ATE 13.0470-4990.2 (13047049902) Brake Pad Set, disc brake

ATE 13.0470-4990.2 (13047049902) Brake Pad Set, disc brake

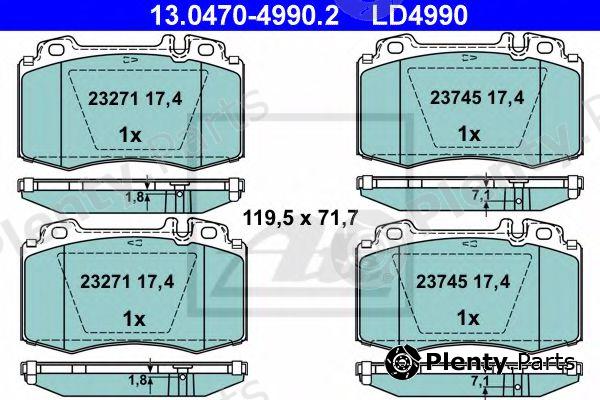

Manufacturer Part Number: 13.0470-4990.2 (13047049902)
Alternative ATE part number(s): 23271, LD4990, 23745

• Width [mm]: 119,5
• Height [mm]: 71,7
• Thickness [mm]: 17,4
• Wear Warning Contact: prepared for wear indicator
• Equipment Variant: Abstand WK-Bohrungen
• Bore Distance 1 [mm]: 1,8
• Bore Distance 2 [mm]: 7,1
• Wear Warning Contact: excl. wear warning contact
• Brake System: Brembo
• Inspection Tag: E1 90R-011403/1342
• MAPP code available:
• Warning notice ---------------------- Work on the SBC brake system may only be carried out by trained specialists! ¿ Risk of injury! ¿ System is pressurized! ¿ Observe manufacturer¿s guidelines! ¿ Before starting maintenance and repair work the system must be deactivated. ¿ After finishing maintenance and repair work the system must be reactivated. ¿ Only use appropriate service and diagnosis equipment! ¿ Recommendation: ContiSys Check Item no. 03.9301-6000.4 ContiSys Scan Item no. 03.9301-5000.4 Bleeding unit ATE FB 30s Item no. 03.9302-3010.4 Continental is not liable for damages which occur due to incorrect installation of the product.
• Technically it is possible to combine ATE Ceramic brake pads with the PowerDisc or with perforated brake discs. The brak ing power with such a pairing is the same as with an origina l ATE brake pad or OE brake pad. However, when the two compo nents interact they can generate more noise in braking. ATE Ceramic brake pads were developed for comfort-oriented drive rs. We therefore recommend using them with normal brake disc s, i.e. smooth ones.
