ATE 13.0470-7268.2 (13047072682) Brake Pad Set, disc brake
ATE 13.0470-7268.2 (13047072682) Brake Pad Set, disc brake
by ATEManufacturer Part Number: 13.0470-7268.2 (13047072682)
Alternative ATE part number(s): 23794, 24697, LD7268

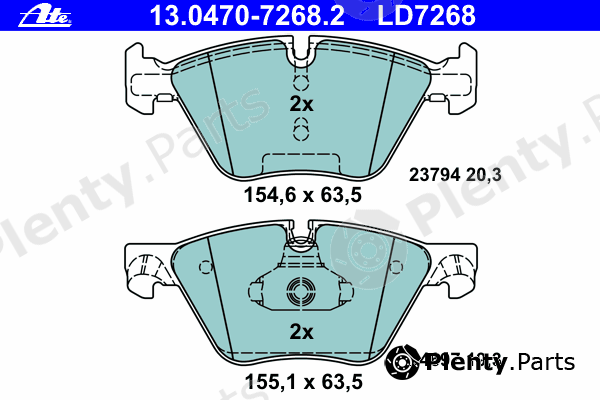

- Width 1 [mm]: 155,1
- Height 1 [mm]: 63,5
- Thickness/Strength 1 [mm]: 19,3
- Width 2 [mm]: 154,6
- Height 2 [mm]: 63,5
- Thickness/Strength 2 [mm]: 20,3
- Wear Warning Contact: prepared for wear indicator
- Wear Warning Contact: excl. wear warning contact
- Brake System: ATE
- Inspection Tag: E1 90R-011403/1290
- MAPP code available:
- Technically it is possible to combine ATE Ceramic brake pads with the PowerDisc or with perforated brake discs. The brak ing power with such a pairing is the same as with an origina l ATE brake pad or OE brake pad. However, when the two compo nents interact they can generate more noise in braking. ATE Ceramic brake pads were developed for comfort-oriented drive rs. We therefore recommend using them with normal brake disc s, i.e. smooth ones.
Product Details
| Brand | ATE |
| ATE article (MPN) | 13.0470-7268.2 (13047072682) Alternative ATE part number(s): 23794, 24697, LD7268 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for BMW vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| BMW | 34116858047, 34116775310, 34116856591 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 13.0470-7268.2 (13047072682) Brake Pad Set, disc brake offered by A.B.S., ATE, BLUE PRINT, BORG & BECK, BOSCH, BREMBO, DELPHI, DENCKERMANN, FEBI BILSTEIN, GIRLING, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, MAPCO, METZGER, MEYLE, MINTEX, OPEN PARTS, OPTIMAL, PAGID, REMSA, ROADHOUSE, ROULUNDS BRAKING, SWAG, TEXTAR, TRW manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 37786 |
| ATE | 13.0460-7268.2 |
| BLUE PRINT | ADB114205 |
| BORG & BECK | BBP2224 |
| BOSCH | 0986494705 |
| BREMBO | P06060 |
| DELPHI | LP1956 |
| DENCKERMANN | B111228 |
| FEBI BILSTEIN | 16825 |
| GIRLING | 6118822 |
| HANS PRIES | 502290 |
| HELLA | 8DB355014-351 |
| HELLA PAGID | 8DB355014-351 |
| JP GROUP | 1463602710 |
| MAPCO | 6627 |
| METZGER | 085720, 1170684, 105230, 1170538 |
| MEYLE | 0252469719, 0252469719PD |
| MINTEX | MDB3007 |
| OPEN PARTS | BPA105230 |
| OPTIMAL | 12393 |
| PAGID | T1818 |
| REMSA | 0857.20 |
| ROADHOUSE | 2857.20 |
| ROULUNDS BRAKING | 845181 |
| SWAG | 20916825 |
| TEXTAR | 2469719305, 2469781, 2469701 |
| TRW | GDB1559, GDB1559DTE, GDB1882 |
Vehicle fitment / ATE 13.0470-7268.2 (13047072682) Brake Pad Set, disc brake compatibility
This product fits the following models: BMW 5, etc. See all vehicles this product (ATE 13.0470-7268.2 (13047072682)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| BMW | 5 F10 F18 F11 | 518 d 520 d 520 d xDrive 520 i 523 d 523 i | 2009/12 - | B47D20A 136 hp 100 kW 2 L Diesel B47D20A 150 hp 110 kW 2 L Diesel N47D20C 136 hp 100 kW 2 L Diesel N47D20C 143 hp 105 kW 2 L Diesel B47D20A 163 hp 120 kW 2 L Diesel B47D20A 190 hp 140 kW 2 L Diesel N47D20C 163 hp 120 kW 2 L Diesel N47D20C 184 hp 135 kW 2 L Diesel N20B16A 170 hp 125 kW 1.6 L Petrol N20B16A 184 hp 135 kW 1.6 L Petrol N20B20A 163 hp 120 kW 2 L Petrol N20B20A 184 hp 135 kW 2 L Petrol N20B20B 184 hp 135 kW 2 L Petrol N20B20A 163 hp 120 kW 2 L Petrol N20B20A 184 hp 135 kW 2 L Petrol N20B20B 163 hp 120 kW 2 L Petrol N20B20A 184 hp 135 kW 2 L Petrol N20B20B 184 hp 135 kW 2 L Petrol N52B25A 204 hp 150 kW 2.5 L Petrol N52B25AF 204 hp 150 kW 2.5 L Petrol N52B25B 204 hp 150 kW 2.5 L Petrol N52B25BF 204 hp 150 kW 2.5 L Petrol N53B30A 204 hp 150 kW 3 L Petrol N20B20A 184 hp 135 kW 2 L Petrol N52B25A 204 hp 150 kW 2.5 L Petrol N53B30A 204 hp 150 kW 3 L Petrol N47D20C 184 hp 135 kW 2 L Diesel | AWD / 4WD Rear wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
