ATE 24.0109-0100.2 (24010901002) Brake Disc

ATE part 24.0109-0100.2 (24010901002) Brake Disc

ATE 24.0109-0100.2 (24010901002) Brake Disc

by ATE

Manufacturer Part Number: 24.0109-0100.2 (24010901002)
Alternative ATE part number(s): 409100

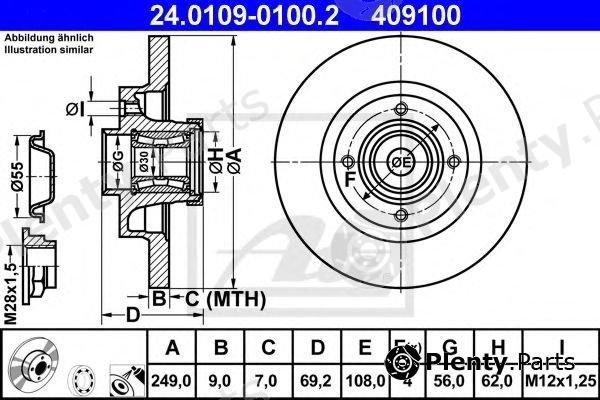

Сharacteristics:
  • Diameter [mm]: 249
  • Brake Disc Thickness [mm]: 9
  • Minimum thickness [mm]: 7
  • Brake Disc Type: Solid
  • Surface: Coated
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 108
  • Height [mm]: 69,2
  • Centering Diameter [mm]: 56
  • Inner diameter [mm]: 62
  • Thread Size: M12x1,25
  • Supplementary Article/Info 2: with bearing(s)
  • Support plate diameter [mm]: 30
  • Supplementary Article/Info 2: with ABS sensor ring
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0109-0100.2 (24010901002) Alternative ATE part number(s): 409100
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT424932, 424919

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0109-0100.2 (24010901002) Brake Disc offered by A.B.S., ALANKO, AP, Automotive Bearings, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREDA LORETT, BREMBO, BREMSI, BRT Bearings, CAR, CIFAM, DELPHI, E.T.F., FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GIRLING, GKN-SPIDAN, GRAF, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, SKF, SNR, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TREVI AUTOMOTIVE, TRUSTING, TRW, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17893C
ALANKO304599
AP14911Y
Automotive BearingsABK1679
BENDIX562374B
BLUE PRINTADP154304
BORG & BECKBBD5808S, BBD5940S
BOSCH0986479S43, 0986479255, 0986479275
Brake ENGINEERINGDI956714S
BRECOBY7694
BREDA LORETTKRT2773, KRT8105
BREMBO08.9512.27
BREMSIDBB560S
BRT BearingsPWK1679
CAR142.1349, 142.1316
CIFAM800-878
DELPHIBG9022RS, BG9022RSC
E.T.F.192450
FEBI BILSTEIN32782
FERODODDF1560, DDF1564, DDF1560-1, DDF1564-1
FOMARFO4211
fri.tech.BD1079
FTEBS7136LS
GIRLING6020596
GKN-SPIDAN72155
GRAFDF29878
HANS PRIES722485
HELLA8DD355111331, 8DD355116-431
HELLA PAGID8DD355116-431, 8DD355111331
JP GROUP4163200609, 4163202109, 4163201109
JURATEKCIT146C, CIT128C
JURID562374J
KAGER370989
KAMOKA1031132
KAWE6101420, 6101400
LPRC1013PRCA, C1013PCA
MAGNETI MARELLI360704005200
MAPCO153422, 15342
METELLI23-0878
METZGER6110018
MGAD1671R
MINTEXMDC2121, MDC1860
NK311952, 201952
OPEN PARTSBDA251030
OPTIMAL602883BS1
PAGID54333, 55021
PATRONPBD7016
PILENGA5389
PROTECHNICPRD5289B
QUINTON HAZELLBDC5771
REMSA61046.00, 6101400, 6101420
ROADHOUSE6101420, 61046.00, 6101400
ROTINGERRT3256BS, RT3256BST5
ROULUNDS BRAKINGWD01081
SASIC6100004
sbs1815311952, 1815201952
SKFVKBD1012
SNRKF15957U, KF15953U
STARLINEPB4007C
STELLOX6020-1952-SX
SWAG62932782
TEMPLIN0311013111
TEXTAR98200133301, 92202103, 92133300, 98200202101, 92133303, 92202100, 89017700
TREVI AUTOMOTIVEWB1167
TRUSTINGDF1079A
TRWDF2059BS
VALEO197002
WOKINGD6101400, D6101420
ZIMMERMANN440.3115.00

Vehicle fitment / ATE 24.0109-0100.2 (24010901002) Brake Disc compatibility

This product fits the following models: CITROËN C3 II, CITROËN C3 PICASSO, CITROËN C4, CITROËN C4 CACTUS, CITROËN C4 I, CITROËN C4 PALLAS, CITROËN DS3, DS DS 3, PEUGEOT 2008, PEUGEOT 207, PEUGEOT 207 CC, PEUGEOT 207 SW, PEUGEOT 208, PEUGEOT 307, PEUGEOT 307 CC, PEUGEOT 307 SW, etc. See all vehicles this product (ATE 24.0109-0100.2 (24010901002)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC3 II
1.2 THP 110
1.6 BlueHDi 100
1.6 BlueHDi 75
1.6 HDi 110
1.6 HDi 115
1.6 VTi 120
2009/11 - 5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
9HD(DV6C) 114 hp 84 kW 1.6 L Diesel
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
BHW(DV6FE) 75 hp 55 kW 1.6 L Diesel
BHY(DV6FD) 99 hp 73 kW 1.6 L Diesel
HNZ(EB2DT) 110 hp 81 kW 1.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNC3 PICASSO
1.2 THP 110
1.4 VTi 95
1.4 VTi 95 LPG
1.6 BlueHDi 100
1.6 HDi
1.6 HDi 110
1.6 HDi 115
1.6 HDI 90
1.6 VTi 120
2009/02 - 5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
5FW(EP6) 120 hp 88 kW 1.6 L Petrol
8FN(EP3) 95 hp 70 kW 1.4 L Petrol
8FN(EP3) 95 hp 70 kW 1.4 L Petrol
8FP(EP3) 95 hp 70 kW 1.4 L Petrol
8FS(EP3) 95 hp 70 kW 1.4 L Petrol
9HD(DV6C) 114 hp 84 kW 1.6 L Diesel
9HP(DV6DTED) 92 hp 68 kW 1.6 L Diesel
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
BHY(DV6FD) 99 hp 73 kW 1.6 L Diesel
HNZ(EB2DT) 110 hp 81 kW 1.2 L Petrol
Front wheel
MPV / Van / Minivan
CITROËNC4

LA
1.4 16V
1.6 16V
1.6 HDi
1.6 THP 150
1.6 VTi 120
2.0 16V
2.0 HDi
2.0 VTR
2004/11 - 5FW(EP6) 120 hp 88 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
KFU(ET3J4) 88 hp 65 kW 1.4 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFK(EW10J4S) 177 hp 130 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RHF(DW10BTED4) 140 hp 103 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
Sedan / Saloon
CITROËNC4 CACTUS
1.2 THP 110
1.2 VTi 75
1.2 VTi 82
1.6 BlueHDi 100
1.6 HDi 90
2014/09 - 9HP(DV6DTED) 92 hp 68 kW 1.6 L Diesel
BHY(DV6FD) 99 hp 73 kW 1.6 L Diesel
HMU(EB2D) 75 hp 55 kW 1.2 L Petrol
HMZ(EB2F) 82 hp 60 kW 1.2 L Petrol
HNZ(EB2DT) 110 hp 81 kW 1.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNC4 I
LC
1.4 16V
1.6 16V
1.6 16V Bio-Flex
1.6 Flex
1.6 HDi
1.6 THP 140
1.6 THP 150
1.6 VTi 120
2.0 16V
2.0 HDi
2004/11 - 2011/07110 hp 81 kW 1.6 L Petrol
143 hp 105 kW 2 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFK(EW10J4S) 177 hp 130 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
5FT(EP6DT) 140 hp 103 kW 1.6 L Petrol
5FW(EP6) 120 hp 88 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
KFU(ET3J4) 88 hp 65 kW 1.4 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
RHF(DW10BTED4) 140 hp 103 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNC4 PALLAS
1.6 16V
1.6 HDi
2.0 16V
2006/07 - 9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
Front wheel
Sedan / Saloon
CITROËNDS3
1.2 THP 110
1.6 BlueHDi 100
1.6 BlueHDi 115
1.6 BlueHDi 120
1.6 BlueHDi 75
1.6 HDi 110
1.6 HDi 115
1.6 Racing
1.6 THP 150
1.6 THP 155
1.6 THP 165
1.6 VTi 120
2009/11 - 2015/075FD(EP6DTS) 207 hp 152 kW 1.6 L Petrol
5FD(EP6DTS) 207 hp 152 kW 1.6 L Petrol
5FU(EP6CDTX) 200 hp 147 kW 1.6 L Petrol
5FN(EP6CDT) 150 hp 110 kW 1.6 L Petrol
5FN(EP6CDT) 150 hp 110 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
5FR(EP6DT) 156 hp 115 kW 1.6 L Petrol
5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
5GZ(EP6FDT) 165 hp 121 kW 1.6 L Petrol
9HD(DV6C) 114 hp 84 kW 1.6 L Diesel
9HL(DV6C) 114 hp 84 kW 1.6 L Diesel
BHX(DV6FC) 115 hp 85 kW 1.6 L Diesel
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
BHW(DV6FE) 75 hp 55 kW 1.6 L Diesel
BHX(DV6FC) 115 hp 85 kW 1.6 L Diesel
BHY(DV6FD) 99 hp 73 kW 1.6 L Diesel
BHZ(DV6FC) 120 hp 88 kW 1.6 L Diesel
HNZ(EB2DT) 110 hp 81 kW 1.2 L Petrol
Front wheel
Convertible / cabrio
Hatchback / Sportback / Sport hatch
DSDS 3
1.2 THP 130
1.2 VTi 110
1.6 BlueHDi 100
1.6 BlueHDi 120
1.6 BlueHDi 75
1.6 THP 165
1.6 THP 208
2015/04 - 110 hp 81 kW 1.2 L Petrol
120 hp 88 kW 1.6 L Diesel
165 hp 121 kW 1.6 L Petrol
5GM(EP6FDTX) 208 hp 153 kW 1.6 L Petrol
75 hp 55 kW 1.6 L Diesel
99 hp 73 kW 1.6 L Diesel
HNY(EB2DTS) 130 hp 96 kW 1.2 L Petrol
Front wheel
Convertible / cabrio
Hatchback / Sportback / Sport hatch
PEUGEOT2008
1.2 THP 110
1.2 THP 130
1.2 VTi
1.4 HDi
1.6 BlueHDi 100
1.6 BlueHDi 120
1.6 BlueHDi 75
1.6 HDi
1.6 VTi
2013/03 - 5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
8HR(DV4C) 68 hp 50 kW 1.4 L Diesel
9HD(DV6CTED) 114 hp 84 kW 1.6 L Diesel
9HP(DV6DTED) 92 hp 68 kW 1.6 L Diesel
BHX(DV6FC) 116 hp 85 kW 1.6 L Diesel
BHW(DV6FE) 75 hp 55 kW 1.6 L Diesel
BHY(DV6FD) 100 hp 73 kW 1.6 L Diesel
BHZ(DV6FC) 120 hp 88 kW 1.6 L Diesel
HMZ(EB2F) 82 hp 60 kW 1.2 L Petrol
HNY(EB2DTS) 130 hp 96 kW 1.2 L Petrol
HNZ(EB2DT) 110 hp 81 kW 1.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
PEUGEOT207

WA
WC
1.6
1.6 16V
1.6 16V RC
1.6 16V Turbo
1.6 16V VTi
1.6 HDi
1.6 HDi 110
2006/02 - 122 hp 90 kW 1.6 L Petrol
N6A(TU5JP4) 110 hp 81 kW 1.6 L Petrol
5FR(EP6DT) 156 hp 115 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
5FW(EP6) 120 hp 88 kW 1.6 L Petrol
EP6 120 hp 88 kW 1.6 L Petrol
5FY(EP6DTS) 174 hp 128 kW 1.6 L Petrol
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
9HV(DV6TED4) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
LCV / Van / Cargo
PEUGEOT207 CC
WD
1.6
1.6 16V
1.6 16V Turbo
1.6 HDi
2007/02 - 122 hp 90 kW 1.6 L Petrol
5FR(EP6DT) 156 hp 115 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
EP6CDT 156 hp 115 kW 1.6 L Petrol
5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
5FW(EP6) 120 hp 88 kW 1.6 L Petrol
EP6 120 hp 88 kW 1.6 L Petrol
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
Front wheel
Convertible / cabrio
PEUGEOT207 SW
WK
1.6 16V
1.6 16V RC
1.6 16V Turbo
1.6 HDi
2007/02 - 5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
5FW(EP6) 120 hp 88 kW 1.6 L Petrol
EP6 120 hp 88 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
5FY(EP6DTS) 174 hp 128 kW 1.6 L Petrol
9HP(DV6DTED) 92 hp 68 kW 1.6 L Diesel
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
PEUGEOT208
1.0
1.2
1.2 THP
1.4 GPL
1.4 HDi
1.4 VTi
1.6
1.6 BlueHDi 100
1.6 BlueHDi 120
1.6 GTi
1.6 HDi
1.6 HDi / BlueHDi 75
1.6 THP 165
2012/03 - 165 hp 121 kW 1.6 L Petrol
208 hp 153 kW 1.6 L Petrol
5FU(EP6CDTX) 200 hp 147 kW 1.6 L Petrol
5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
5FV(EP6DT) 156 hp 115 kW 1.6 L Petrol
EP6CDT 156 hp 115 kW 1.6 L Petrol
8FS(EP3) 95 hp 70 kW 1.4 L Petrol
EP3C 95 hp 70 kW 1.4 L Petrol
8HP(DV4C) 68 hp 50 kW 1.4 L Diesel
8HR(DV4C) 68 hp 50 kW 1.4 L Diesel
9HD(DV6CTED) 114 hp 84 kW 1.6 L Diesel
9HP(DV6DTED) 92 hp 68 kW 1.6 L Diesel
BHX(DV6FC) 116 hp 85 kW 1.6 L Diesel
9HK(DV6ETEDM) 75 hp 55 kW 1.6 L Diesel
BHW(DV6FE) 75 hp 55 kW 1.6 L Diesel
BHY(DV6FD) 100 hp 73 kW 1.6 L Diesel
BHZ(DV6FC) 120 hp 88 kW 1.6 L Diesel
EP3C 95 hp 70 kW 1.4 L Petrol
HMZ(EB2F) 82 hp 60 kW 1.2 L Petrol
HNZ(EB2DT) 110 hp 81 kW 1.2 L Petrol
ZMZ(EB0) 68 hp 50 kW 1 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
PEUGEOT307
3A/C
3E
1.4
1.4 16V
1.4 HDi
1.6
1.6 16V
1.6 BioFlex
1.6 HDi
1.6 HDi 110
2.0
2.0 16V
2.0 HDi 110
2.0 HDI 110
2.0 HDi 135
2.0 HDi 90
2.0 HDI 90
2000/08 - 8HX(DV4TD) 68 hp 50 kW 1.4 L Diesel
8HZ(DV4TD) 68 hp 50 kW 1.4 L Diesel
8HZ(DV4TD) 68 hp 50 kW 1.4 L Diesel
9HV(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HV(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HV(DV6TED4) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
KFU(ET3J4) 88 hp 65 kW 1.4 L Petrol
KFW(TU3JP) 75 hp 55 kW 1.4 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
NFU(TU5JP4) 110 hp 81 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFN(EW10J4) 140 hp 103 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHS(DW10ATED) 107 hp 79 kW 2 L Diesel
RHY(DW10TD) 90 hp 66 kW 2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
PEUGEOT307 CC
3B
1.6 16V
2.0 16V
2.0 HDi 135
2003/10 - NFU(TU5JP4) 110 hp 80 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Convertible / cabrio
PEUGEOT307 SW
3H
1.4
1.4 16V
1.4 HDi 70
1.6 16V
1.6 HDI 110
1.6 HDI 90
2.0 16V
2.0 HDI 110
2.0 HDi 135
2.0 HDI 90
2002/03 - 8HZ(DV4TD) 68 hp 50 kW 1.4 L Diesel
9HV(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
KFU(ET3J4) 88 hp 65 kW 1.4 L Petrol
KFW(TU3JP) 75 hp 55 kW 1.4 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFN(EW10J4) 140 hp 103 kW 2 L Petrol
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHS(DW10ATED) 107 hp 79 kW 2 L Diesel
RHY(DW10TD) 90 hp 66 kW 2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Effortless shopping
  • Offers Near You
  • Competitive Prices
  • Full Information
  • 40 Million Spares
  • Trusted Sellers
Information
Follow us & get in touch
Plenty.Parts © 2016 - 2025.
The best place to find auto parts for the best price.
