ATE 24.0109-0142.1 (24010901421) Brake Disc

ATE part 24.0109-0142.1 (24010901421) Brake Disc

ATE 24.0109-0142.1 (24010901421) Brake Disc

by ATE

Manufacturer Part Number: 24.0109-0142.1 (24010901421)
Alternative ATE part number(s): 409142

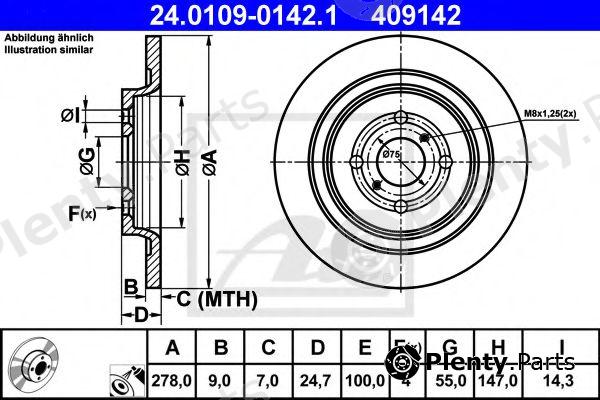

Сharacteristics:
  • Diameter [mm]: 278
  • Brake Disc Thickness [mm]: 9
  • Minimum thickness [mm]: 7
  • Brake Disc Type: Solid
  • Number of Holes: 4
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 100
  • Height [mm]: 24,7
  • Centering Diameter [mm]: 55
  • Inner diameter [mm]: 147
  • Bore Ø [mm]: 14,3
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0109-0142.1 (24010901421) Alternative ATE part number(s): 409142
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for DAIHATSU, TOYOTA vehicles

OE manufacturerOEM reference numbers
DAIHATSU42431-0D060
TOYOTA42431-0D060

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0109-0142.1 (24010901421) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, EUROBRAKE, FARCOM, FENOX, FERODO, FOMAR, FREMAX, fri.tech., FTE, GALFER, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JP GROUP, JURID, KAGER, KAMOKA, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17827
ALANKO303513
AP15014
ASHUKIT60338
BENDIX562422BC, 562422B
BLUE PRINTADT343274
BORG & BECKBBD4601
BOSCH0986479C05, 0986479360
Brake ENGINEERINGDI956740
BRECOBS6006
BREMBO08.B044.10
BREMSIDBB588S
BSF11876
CIFAM800947
DELPHIBG4076
DENCKERMANNB130621
EUROBRAKE58152045111
FARCOM230706, 231123
FENOXTB215344
FERODODDF1588, DDF15881
FOMARFO2826
FREMAXBD2022
fri.tech.BD1174
FTEBS7144, BS7144B
GALFERB1G20901421
GIRLING6048004
HELLA8DD355114-051
HELLA PAGID8DD355114-051
HERTH+BUSS JAKOPARTSJ3312064
JP GROUP4863201309
JURID562422J, 562422JC
KAGER371312
KAMOKA103150
KAVO PARTSBR9461, BR9461C
KAWE6117300
LPRT2046P
MAGNETI MARELLI360704012200, 600000090800
MAPCO25235
METELLI230947
METZGER6110181, 6117300
MEYLE30155230034
MGAD1713
MINTEXMDC1824
NIBKRN1497
NK2045111
OPEN PARTSBDA233910, BDR233910
OPTIMALBS8538
PAGID54619
PATRONPBD4800
PILENGA5486
PROTECHNICPRD5373
REMSA6117300
ROADHOUSE6117300
ROTINGERRT1696T5, RT1696
SASIC6106120
sbs18152045111
TEXTAR92161900, 98200161901
TRISCAN8120131015
TRUSTINGDF1174
TRWDF4800
VAICOV7040013
VALEO197111
VEMA98712
WOKINGD6117300
ZIMMERMANN590259520, 590.2595.00

Vehicle fitment / ATE 24.0109-0142.1 (24010901421) Brake Disc compatibility

This product fits the following models: DAIHATSU CHARADE, TOYOTA VITZ, TOYOTA YARIS, TOYOTA YARISVITZ, etc. See all vehicles this product (ATE 24.0109-0142.1 (24010901421)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
DAIHATSUCHARADE
1.33 16V
2011/05 - 1NR-FE 99 hp 73 kW 1.33 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAVITZ
NHP13
NSP13
NCP13
KSP13
NLP13
SCP9
NSP9
KSP9
NCP9
ZSP9
1.0
1.0 GPL
1.0 VVT-i
1.3
1.33 VVT-i
1.3 4WD
1.3 VVT-i
1.4 D-4D
1.5 Hybrid
2005/08 - 1KR-FE 69 hp 51 kW 1 L Petrol
1ND-TV 90 hp 66 kW 1.4 L Diesel
1NR-FE 100 hp 74 kW 1.33 L Petrol
1NR-FE 99 hp 73 kW 1.33 L Petrol
1NR-FE 95 hp 70 kW 1.3 L Petrol
1NR-FE 95 hp 70 kW 1.3 L Petrol
1NR-FE 99 hp 73 kW 1.3 L Petrol
1NR-FKE 99 hp 73 kW 1.3 L Petrol
1NZ-FXE 73 hp 54 kW 1.5 L Hybrid
1NZ-FXE 75 hp 55 kW 1.5 L Hybrid
2NZ-FE 86 hp 63 kW 1.3 L Petrol
2NZ-FE 86 hp 63 kW 1.3 L Petrol
2NZ-FE 87 hp 64 kW 1.3 L Petrol
2SZ-FE 86 hp 63 kW 1.3 L Petrol
2SZ-FE 87 hp 64 kW 1.3 L Petrol
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAYARIS
NCP15
NHP13
NSP13
NCP13
KSP13
NLP13
SCP9
NSP9
KSP9
NCP9
ZSP9
1.0
1.0 GPL
1.0 VVT-i
1.2
1.3
1.33 VVT-i
1.3 4WD
1.3 VVT-i
1.4 D-4D
1.5 Hybrid
2005/08 - 1KR-FE 69 hp 51 kW 1 L Petrol
1ND-TV 90 hp 66 kW 1.4 L Diesel
1NR-FE 100 hp 74 kW 1.33 L Petrol
1NR-FE 99 hp 73 kW 1.33 L Petrol
1NR-FE 95 hp 70 kW 1.3 L Petrol
1NR-FE 95 hp 70 kW 1.3 L Petrol
1NR-FE 99 hp 73 kW 1.3 L Petrol
1NR-FKE 99 hp 73 kW 1.3 L Petrol
1NZ-FXE 73 hp 54 kW 1.5 L Hybrid
1NZ-FXE 75 hp 55 kW 1.5 L Hybrid
2NZ-FE 86 hp 63 kW 1.3 L Petrol
2NZ-FE 86 hp 63 kW 1.3 L Petrol
2NZ-FE 87 hp 64 kW 1.3 L Petrol
2SZ-FE 86 hp 63 kW 1.3 L Petrol
2SZ-FE 87 hp 64 kW 1.3 L Petrol
3NR-FE 86 hp 63 kW 1.2 L Petrol
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAYARISVITZ
NHP13
NSP13
NCP13
KSP13
NLP13
SCP9
NSP9
KSP9
NCP9
ZSP9
1.0
1.0 GPL
1.0 VVT-i
1.3
1.33 VVT-i
1.3 4WD
1.3 VVT-i
1.4 D-4D
1.5 Hybrid
2005/08 - 1KR-FE 69 hp 51 kW 1 L Petrol
1ND-TV 90 hp 66 kW 1.4 L Diesel
1NR-FE 100 hp 74 kW 1.33 L Petrol
1NR-FE 99 hp 73 kW 1.33 L Petrol
1NR-FE 95 hp 70 kW 1.3 L Petrol
1NR-FE 95 hp 70 kW 1.3 L Petrol
1NR-FE 99 hp 73 kW 1.3 L Petrol
1NR-FKE 99 hp 73 kW 1.3 L Petrol
1NZ-FXE 73 hp 54 kW 1.5 L Hybrid
1NZ-FXE 75 hp 55 kW 1.5 L Hybrid
2NZ-FE 86 hp 63 kW 1.3 L Petrol
2NZ-FE 86 hp 63 kW 1.3 L Petrol
2NZ-FE 87 hp 64 kW 1.3 L Petrol
2SZ-FE 86 hp 63 kW 1.3 L Petrol
2SZ-FE 87 hp 64 kW 1.3 L Petrol
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
