ATE 24.0109-0150.2 (24010901502) Brake Disc

ATE part 24.0109-0150.2 (24010901502) Brake Disc

ATE 24.0109-0150.2 (24010901502) Brake Disc

by ATE

Manufacturer Part Number: 24.0109-0150.2 (24010901502)
Alternative ATE part number(s): 409150

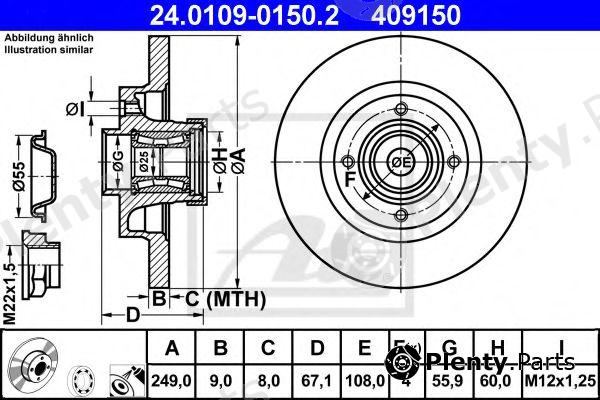

Сharacteristics:
  • Diameter [mm]: 249
  • Brake Disc Thickness [mm]: 9
  • Minimum thickness [mm]: 8
  • Brake Disc Type: Solid
  • Surface: Coated
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 108
  • Height [mm]: 67,1
  • Centering Diameter [mm]: 55,9
  • Inner diameter [mm]: 60
  • Thread Size: M12x1,25
  • Supplementary Article/Info 2: with bearing(s)
  • Support plate diameter [mm]: 25
  • Supplementary Article/Info 2: with ABS sensor ring
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0109-0150.2 (24010901502) Alternative ATE part number(s): 409150
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4246Z9, 424934

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0109-0150.2 (24010901502) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREDA LORETT, BREMBO, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, SKF, SNR, STARLINE, SWAG, TEMPLIN, TEXTAR, TREVI AUTOMOTIVE, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17631C
ALANKO304596
AP14900Y
BENDIX562373B
BORG & BECKBBD5808S, BBD5796S
BOSCH0986479S42, 0986479219, 0986479279
Brake ENGINEERINGDI956700S, DI956714S
BRECOBY7679
BREDA LORETTKRT2772
BREMBO08.9512.17
BSF11541R
CAR142.1084
CIFAM800-827
DELPHIBG3962, BG9021RS
DENCKERMANNB130425
FEBI BILSTEIN27201
FENOXTB215371
FERODODDF1523, DDF1523-1, DDF1561
FOMARFO4211, FO4203
fri.tech.BD1079
FTEBS5425L
GIRLING6020596, 6044526
GRAFDF29827
HELLA8DD355111-331, 8DD355116431
HELLA PAGID8DD355111-331, 8DD355116431
ICER78BD47441
JP GROUP4163200609, 4163201209
JURATEKCIT128C
JURID562373J
KAGER370989, 370990
KAMOKA1031137, 1031132
KAWE6101400
LPRC1005PCA
MAGNETI MARELLI360704005200
MAPCO15329
METELLI23-0827
METZGER6110723
MEYLE11-155230041
MGAD1624R
MINTEXMDC1860, MDC2121
NATIONALNBD1642
NK201947, 201939
OPEN PARTSBDA234130
OPTIMALBS7934
PAGID54333, 55021
PEX14.0830
PILENGA5177
PROTECHNICPRD5286B
QUINTON HAZELLBDC5425, BDC5772, BSF5425
R BRAKE78RBD14744
REMSA6101400
ROADHOUSE6101400
ROTINGERRT3256BS, RT3256BST5, RT3214BS, RT3214BST5
SASIC6100005
sbs1815201947, 1815201939
SKFVKBD1011
SNRKF15948U
STARLINEPB3229C
SWAG62927201
TEMPLIN0311013031
TEXTAR92202103, 89017700, 92202100, 92133300, 98200133301, 92133303
TREVI AUTOMOTIVEWB1166
TRISCAN812028122C
TRUSTINGDF1079A
TRWDF4452, DF4452BS, DF2059BS
VAICOV2240009
VALEO186899, 297899
VEMA98657
WOKINGD6101400
ZIMMERMANN180.3022.00

Vehicle fitment / ATE 24.0109-0150.2 (24010901502) Brake Disc compatibility

This product fits the following models: CITROËN C4, CITROËN C4 I, CITROËN C4 PALLAS, PEUGEOT 307, PEUGEOT 307 CC, PEUGEOT 307 SW, etc. See all vehicles this product (ATE 24.0109-0150.2 (24010901502)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC4

LA
1.4 16V
1.6 16V
1.6 HDi
1.6 THP 150
1.6 VTi 120
2.0 16V
2.0 HDi
2.0 VTR
2004/11 - 5FW(EP6) 120 hp 88 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
KFU(ET3J4) 88 hp 65 kW 1.4 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFK(EW10J4S) 177 hp 130 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RHF(DW10BTED4) 140 hp 103 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
Sedan / Saloon
CITROËNC4 I
LC
1.4 16V
1.6 16V
1.6 16V Bio-Flex
1.6 Flex
1.6 HDi
1.6 THP 140
1.6 THP 150
1.6 VTi 120
2.0 16V
2.0 HDi
2004/11 - 2011/07110 hp 81 kW 1.6 L Petrol
143 hp 105 kW 2 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFK(EW10J4S) 177 hp 130 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
5FT(EP6DT) 140 hp 103 kW 1.6 L Petrol
5FW(EP6) 120 hp 88 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
KFU(ET3J4) 88 hp 65 kW 1.4 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
RHF(DW10BTED4) 140 hp 103 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNC4 PALLAS
1.6 16V
1.6 HDi
2.0 16V
2006/07 - 9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
Front wheel
Sedan / Saloon
PEUGEOT307
3A/C
3E
1.4
1.4 16V
1.4 HDi
1.6
1.6 16V
1.6 BioFlex
1.6 HDi
1.6 HDi 110
2.0
2.0 16V
2.0 HDi 110
2.0 HDI 110
2.0 HDi 135
2.0 HDi 90
2.0 HDI 90
2000/08 - 8HX(DV4TD) 68 hp 50 kW 1.4 L Diesel
8HZ(DV4TD) 68 hp 50 kW 1.4 L Diesel
8HZ(DV4TD) 68 hp 50 kW 1.4 L Diesel
9HV(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HV(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HV(DV6TED4) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
KFU(ET3J4) 88 hp 65 kW 1.4 L Petrol
KFW(TU3JP) 75 hp 55 kW 1.4 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
NFU(TU5JP4) 110 hp 81 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFN(EW10J4) 140 hp 103 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFN(EW10J4) 143 hp 105 kW 2 L Petrol
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHS(DW10ATED) 107 hp 79 kW 2 L Diesel
RHY(DW10TD) 90 hp 66 kW 2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
PEUGEOT307 CC
3B
1.6 16V
2.0 16V
2.0 HDi 135
2003/10 - NFU(TU5JP4) 110 hp 80 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
Convertible / cabrio
PEUGEOT307 SW
3H
1.4
1.4 16V
1.4 HDi 70
1.6 16V
1.6 HDI 110
1.6 HDI 90
2.0 16V
2.0 HDI 110
2.0 HDi 135
2.0 HDI 90
2002/03 - 8HZ(DV4TD) 68 hp 50 kW 1.4 L Diesel
9HV(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
KFU(ET3J4) 88 hp 65 kW 1.4 L Petrol
KFW(TU3JP) 75 hp 55 kW 1.4 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFN(EW10J4) 140 hp 103 kW 2 L Petrol
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHS(DW10ATED) 107 hp 79 kW 2 L Diesel
RHY(DW10TD) 90 hp 66 kW 2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
