ATE 24.0109-0167.1 (24010901671) Brake Disc

ATE 24.0109-0167.1 (24010901671) Brake Disc

by ATE

Manufacturer Part Number: 24.0109-0167.1 (24010901671)
Alternative ATE part number(s): 409167

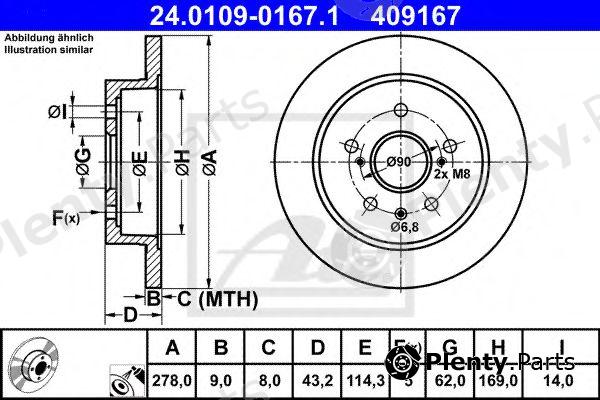

Сharacteristics:
  • Diameter [mm]: 278
  • Brake Disc Thickness [mm]: 9
  • Minimum thickness [mm]: 8
  • Brake Disc Type: Solid
  • Number of Holes: 5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 43,2
  • Centering Diameter [mm]: 62
  • Inner diameter [mm]: 169
  • Bore Ø [mm]: 14
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0109-0167.1 (24010901671) Alternative ATE part number(s): 409167
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FIAT / LANCIA / ALFA, SUZUKI vehicles

OE manufacturerOEM reference numbers
FIAT / LANCIA / ALFA71750932, 71768089
SUZUKI55611-55L00, 55611-80J01

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0109-0167.1 (24010901671) Brake Disc offered by A.B.S., AP, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CIFAM, DELPHI, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, KAMOKA, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, REMSA, ROADHOUSE, sbs, TEXTAR, TRUSTING, TRW, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.18078
AP15033
BLUE PRINTADK84335, ADK84331, ADF124307
BORG & BECKBBD5168
BOSCH0986479047
Brake ENGINEERINGDI957026, DI956986
BRECOBS6025
BREMBO08B55710
CIFAM8001398C
DELPHIBG4222
fri.tech.BD1438
FTEBS7746B, BS7746
GIRLING6061734, 6061784
HELLA8DD355116791
HELLA PAGID8DD355116791
KAMOKA103154
METELLI231398C
METZGER6110330, 6142500
MEYLE33155230002PD, 33155230009PD
MGAD1957
MINTEXMDC2181
NATIONALNBD1860
NIBKRN1524
NK205223
OPEN PARTSBDA256610
OPTIMALBS9156
PAGID55223
PATRONPBD1830
REMSA61372.00
ROADHOUSE61372.00
sbs1815205223
TEXTAR98200222301, 92222300
TRUSTINGDF1438
TRWDF6178, DF6173
ZIMMERMANN230237920

Vehicle fitment / ATE 24.0109-0167.1 (24010901671) Brake Disc compatibility

This product fits the following models: FIAT SEDICI, SUZUKI SX4, etc. See all vehicles this product (ATE 24.0109-0167.1 (24010901671)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FIATSEDICI
FY
1.6 16V
1.6 16V 4x4
1.9 D Multijet
1.9 D Multijet 4x4
2.0 D Multijet
2.0 D Multijet 4x4
2006/06 - D19AA 120 hp 88 kW 1.9 L Diesel
D20AA 135 hp 99 kW 2 L Diesel
M16A 107 hp 79 kW 1.6 L Petrol
M16A 120 hp 88 kW 1.6 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKISX4
EY
GY
GY
1.5
1.5 VVT
1.5 VVT 4x4
1.6
1.6 DDIS
1.6 VVT
1.6 VVT 4x4
1.9 DDiS
1.9 DDiS 4x4
2.0
2.0 4x4
2.0 DDiS
2.0 DDiS 4x4
2006/06 - 9HX 90 hp 66 kW 1.6 L Diesel
D19AA 120 hp 88 kW 1.9 L Diesel
D20AA 135 hp 99 kW 2 L Diesel
J20A 146 hp 107 kW 2 L Petrol
M15A 112 hp 82 kW 1.5 L Petrol
M15A 99 hp 73 kW 1.5 L Petrol
M16A 101 hp 74 kW 1.6 L Petrol
M16A 101 hp 74 kW 1.6 L Petrol
M16A 102 hp 75 kW 1.6 L Petrol
M16A 107 hp 79 kW 1.6 L Petrol
M16A 120 hp 88 kW 1.6 L Petrol
M16A 107 hp 79 kW 1.6 L Petrol
M16A 112 hp 82 kW 1.6 L Petrol
M16A 120 hp 88 kW 1.6 L Petrol
M16A 107 hp 79 kW 1.6 L Petrol
M16A 120 hp 88 kW 1.6 L Petrol
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
Sedan / Saloon
