ATE 24.0110-0150.1 (24011001501) Brake Disc

ATE part 24.0110-0150.1 (24011001501) Brake Disc

ATE 24.0110-0150.1 (24011001501) Brake Disc

by ATE

Manufacturer Part Number: 24.0110-0150.1 (24011001501)
Alternative ATE part number(s): 410150

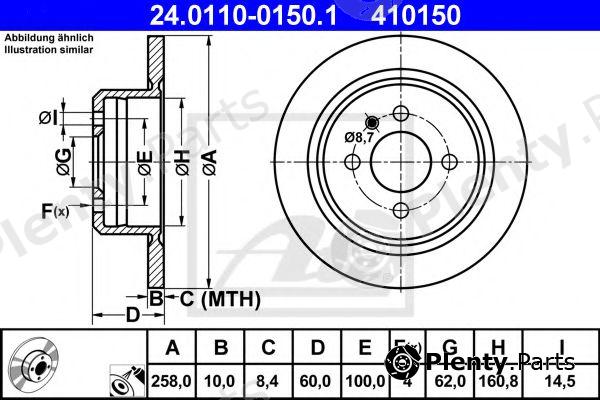

Сharacteristics:
  • Diameter [mm]: 258
  • Brake Disc Thickness [mm]: 10
  • Minimum thickness [mm]: 8,4
  • Brake Disc Type: Solid
  • Number of Holes: 4
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 100
  • Height [mm]: 60
  • Centering Diameter [mm]: 62
  • Inner diameter [mm]: 160,8
  • Bore Ø [mm]: 14,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0110-0150.1 (24011001501) Alternative ATE part number(s): 410150
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for BMW vehicles

OE manufacturerOEM reference numbers
BMW34211119581, 34216755407

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0110-0150.1 (24011001501) Brake Disc offered by A.B.S., BENDIX, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.15726
BENDIX561132BC, 561132B
BOSCH0986478034
Brake ENGINEERINGDI839472
BRECOBS7271
BREMBO08.3947.24, 08.3947.20
BREMSIDBA093S
BSF11273
CAR142.111
CIFAM800-084
DELPHIBG202, BG2202
E.T.F.199581
EUROBRAKE5815201510
FARCOM230042
FEBI BILSTEIN04091
FENOXTB215119
FERODODDF093, DDF093-1
FOMARFO2070
fri.tech.BD0093
FTEBS3288B, BS3288
GIRLING6015614
GRAFDF2884
HANS PRIES500557
HELLA8DD355100-351
HELLA PAGID8DD355100-351
ICER78BD95812
JP GROUP1463200209
JURID561132JC, 561132J
KAGER370322
KAMOKA103186
KAWE619700
KRAFT6052500
LPRB2131P
MAGNETI MARELLI353610612540, 431602041230, 360406015200
MAPCO15719
METELLI23-0084
METZGER6110451
MEYLE3155233001PD, 3155233001
MGAD884
MINTEXMDC470
NECTOWN272
NK311510, 201510
OPTIMALBS1970C, BS1970
PAGID50407
PATRONPBD1561
PEX14.0087
PILENGA5119
PROTECHNICPRD5131
QUINTON HAZELL6197.00, BDC3288, BSF3288
R BRAKE78RBD29581
REMSA6197.00
ROADHOUSE6197.00
ROTINGERRT1048, RT1048T5
ROULUNDS BRAKINGD2070
sbs1815311510, 1815201510
STELLOX60201510SX
SWAG20904091
TEMPLIN0311011640
TEXTAR98200019201, 92019200
TRISCAN812011113
TRUCKTEC AUTOMOTIVE0834018
TRUSTINGDF093
TRWDF1561
VAICOV2040019
VALEO186117, DF404, 185054
VEMA98188
VILLAR6281466
WOKINGD619700
ZIMMERMANN150112920, 150.1129.50, 150.1129.00, 150112952

Vehicle fitment / ATE 24.0110-0150.1 (24011001501) Brake Disc compatibility

This product fits the following models: BMW 3, etc. See all vehicles this product (ATE 24.0110-0150.1 (24011001501)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
BMW3
E21
E30
316
316 i
318 i
318 is
320 i
320 is
323 i
324 d
324 td
325 e
325 e 2.7
325es 2.7
325 i

Ecotronic
1978/01 - 1994/06M10B18(184EA) 105 hp 77 kW 1.8 L Petrol
M10B18(184KA) 102 hp 75 kW 1.8 L Petrol
M40B18(184E1) 113 hp 83 kW 1.8 L Petrol
M40B18(184E1) 115 hp 85 kW 1.8 L Petrol
M10B18(184KA) 102 hp 75 kW 1.8 L Petrol
M40B16(164E1) 100 hp 73 kW 1.6 L Petrol
M40B16(164E1) 102 hp 75 kW 1.6 L Petrol
M10B18(184VC) 90 hp 66 kW 1.8 L Petrol
M10B18(184VD) 90 hp 66 kW 1.8 L Petrol
M20B20(206EB) 125 hp 92 kW 2 L Petrol
M20B20(206KA) 129 hp 95 kW 2 L Petrol
M20B20(206KA) 150 hp 110 kW 2 L Petrol
M20B20(206KA) 129 hp 95 kW 2 L Petrol
M20B23(236EA) 143 hp 105 kW 2.3 L Petrol
M20B23(236EC) 150 hp 110 kW 2.3 L Petrol
M20B25(256E1) 170 hp 125 kW 2.5 L Petrol
M20B25(256E2) 170 hp 125 kW 2.5 L Petrol
M20B25(256E2) 171 hp 126 kW 2.5 L Petrol
M20B25(256EX) 170 hp 125 kW 2.5 L Petrol
M20B25(256K1) 170 hp 125 kW 2.5 L Petrol
M20B25(256E2) 170 hp 125 kW 2.5 L Petrol
M20B25(256E2) 171 hp 126 kW 2.5 L Petrol
M20B25(256EX) 170 hp 125 kW 2.5 L Petrol
M20B25(256K1) 170 hp 125 kW 2.5 L Petrol
M20B25(256K1) 170 hp 125 kW 2.5 L Petrol
M20B27(276KA) 122 hp 90 kW 2.7 L Petrol
M20B27(276KB) 122 hp 90 kW 2.7 L Petrol
M20B27(276KA) 122 hp 90 kW 2.7 L Petrol
M20B27(276KB) 122 hp 90 kW 2.7 L Petrol
M20B27(276KB) 129 hp 95 kW 2.7 L Petrol
M21D24(246DA) 86 hp 63 kW 2.4 L Diesel
M21D24(246TB) 115 hp 85 kW 2.4 L Diesel
M40B16(164E1) 100 hp 73 kW 1.6 L Petrol
M40B16(164E1) 102 hp 75 kW 1.6 L Petrol
M40B18(184E1) 113 hp 83 kW 1.8 L Petrol
M40B18(184E1) 113 hp 83 kW 1.8 L Petrol
M40B18(184E1) 115 hp 85 kW 1.8 L Petrol
M42B18(184S1) 136 hp 100 kW 1.8 L Petrol
S14B20(204EA) 192 hp 141 kW 2 L Petrol
Rear wheel
Convertible / cabrio
Estate / Turnier / Vario / Wagon
Sedan / Saloon
