ATE 24.0110-0214.1 (24011002141) Brake Disc

ATE part 24.0110-0214.1 (24011002141) Brake Disc

ATE 24.0110-0214.1 (24011002141) Brake Disc

by ATE

Manufacturer Part Number: 24.0110-0214.1 (24011002141)
Alternative ATE part number(s): 410214

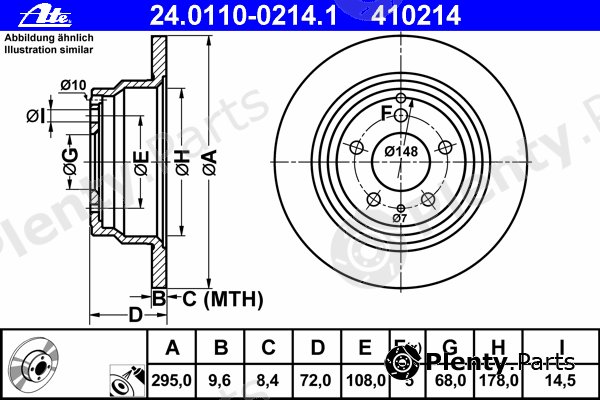

Сharacteristics:
  • Diameter [mm]: 295
  • Brake Disc Thickness [mm]: 9,6
  • Minimum thickness [mm]: 8,4
  • Brake Disc Type: Solid
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 108
  • Height [mm]: 72
  • Centering Diameter [mm]: 68
  • Inner diameter [mm]: 178
  • Bore Ø [mm]: 14,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0110-0214.1 (24011002141) Alternative ATE part number(s): 410214
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VOLVO vehicles

OE manufacturerOEM reference numbers
VOLVO271794

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0110-0214.1 (24011002141) Brake Disc offered by A.B.S., AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CIFAM, DELPHI, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, STELLOX, STOP, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16237
APX14454, 14454V
BARUMBAR10214
BENDIX561867B, 561867BC
BORG & BECKBBD5062
BOSCH0986478628, 0986479892
Brake ENGINEERINGDI955515
BRECOBV7481, BS7481
BREMBO08.5569.76, 08.5569.24, 08.5569.20, 08.5569.21
BREMSIDBA552S
CIFAM800376C, 800-376
DELPHIBG2842, BG842
E.T.F.197940
EUROBRAKE5815204833
FARCOM230260, 230860
FEBI BILSTEIN11455
FERODODDF552C1, DDF5521, DDF552C, DDF552
FOMARFO2306
fri.tech.BD0061
FTEBS3913, BS3913B
GIRLING6026604
GRAFDF29376
HELLA8DD355103-691, 8DD355103-701, 8DD355103702
HELLA PAGID8DD355103-701, 8DD355103-691, 8DD355103702
ICER78BD79402
JP GROUP4963200209
JURID561867J, 561867JC
KAGER370456
KAMOKA1031104
KAWE641100
KRAFT6056325
LPRV1293PR
MAGNETI MARELLI360406051500, 353616025550
MAPCO15965
MAXGEAR190975
METELLI23-0376, 230376C
METZGER641100, 6110268
MEYLE5155235014/PD, 5155235014
MGAD1176
MINTEXMDC920
NECTOWN601
NIBKRN1290
NK314833, 204833
OPEN PARTSBDA161610
OPTIMALBS4110C, BS-4110
PAGID54009PRO, 54009
PATRONPBD2660
PEX14.0665
PILENGA5264
PROTECHNICPRD5136
QUINTON HAZELLBSF3913, BDC3913
R BRAKE78RBD27940
REMSA6411.00
ROADHOUSE6411.00
ROTINGERRT1068, RT1068T5
ROULUNDS BRAKINGD2306
sbs1815314833, 1815204833
STARLINEPB1068C
STELLOX60204833SX
STOP561867S
SWAG55911455
TEMPLIN0311029630, 0311029635
TEXTAR98200066801, 92066805, 92066803, 92066800, 98200066801PRO
TRISCAN812027120, 812027120C
TRUSTINGDF061
TRWDF2660
VALEO186528
VEMA98600
VILLAR6281612
WOKINGD641100
ZIMMERMANN610.1197.00, 610119752, 610.1197.50, 610.1197.20

Vehicle fitment / ATE 24.0110-0214.1 (24011002141) Brake Disc compatibility

This product fits the following models: VOLVO 850, VOLVO C70 I, VOLVO S70, VOLVO V70  , VOLVO V70 I, etc. See all vehicles this product (ATE 24.0110-0214.1 (24011002141)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VOLVO850
LS
LW
2.0
2.0 Turbo
2.3 T5
2.3 T5 R
2.3 T5-R
2.3 Turbo R
2.5
2.5 TDI
1991/06 - 1997/10B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204FT 210 hp 155 kW 2 L Petrol
B5204T 210 hp 155 kW 2 L Petrol
B5204T2 179 hp 132 kW 2 L Petrol
B5204FT 210 hp 155 kW 2 L Petrol
B5204T 210 hp 155 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5234FT 226 hp 166 kW 2.3 L Petrol
B5234T2 239 hp 176 kW 2.3 L Petrol
B5234T4 250 hp 184 kW 2.3 L Petrol
B5234T5 241 hp 177 kW 2.3 L Petrol
B5234T5 241 hp 177 kW 2.3 L Petrol
B5234T5 243 hp 179 kW 2.3 L Petrol
B5252 140 hp 103 kW 2.5 L Petrol
B5252FS 144 hp 106 kW 2.5 L Petrol
B5254S 170 hp 125 kW 2.5 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VOLVOC70 I
2.0
2.0 T
2.3 T-5
2.3 T5
2.4 T
2.5
2.5 T
1997/03 - 2005/10B5204T2 180 hp 132 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5234T3 239 hp 176 kW 2.3 L Petrol
B5234T9 245 hp 180 kW 2.3 L Petrol
B5234T3 240 hp 176 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
B5254S 170 hp 125 kW 2.5 L Petrol
B5244T 193 hp 142 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
B5244T7 200 hp 147 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.5 L Petrol
Front wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
VOLVOS70
LS
2.0
2.0 Turbo
2.3
2.3 T-5
2.3 Turbo
2.4
2.4 AWD
2.4 Blu-Fuel
2.4 T5 AWD
2.4 Turbo
2.5
2.5 Bifuel
2.5 TDI
2.5 TDi AWD
1996/11 - 2000/11B5202FS 126 hp 93 kW 2 L Petrol
B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5204T 210 hp 155 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234T3 239 hp 176 kW 2.3 L Petrol
B5234T3 241 hp 177 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.4 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5252FS 144 hp 106 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.5 L Petrol
GB5252S 144 hp 106 kW 2.5 L Petrol
B5244T 193 hp 142 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5252FS 144 hp 106 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOV70
LV
2.0
2.0 Turbo
2.0 Turbo AWD
2.3
2.3 AWD
2.3 T-5
2.3 T-5 AWD
2.3 T AWD
2.3 Turbo
2.4
2.4 AWD
2.4 Bifuel
2.4 Turbo
2.5
2.5 AWD
2.5 Bifuel
2.5 TDI
2.5 TDi AWD
2.5 Turbo AWD
1996/11 - 2000/11B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5204T 211 hp 155 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234T4 250 hp 184 kW 2.3 L Petrol
B5234T3 239 hp 176 kW 2.3 L Petrol
B5234T3 241 hp 177 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
B5244T2 265 hp 195 kW 2.5 L Petrol
B5252FS 144 hp 106 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
GB5252S 144 hp 106 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 I
LV
2.0
2.0 Turbo
2.0 Turbo AWD
2.3
2.3 AWD
2.3 T-5
2.3 T-5 AWD
2.3 T AWD
2.3 Turbo
2.4
2.4 AWD
2.4 Bifuel
2.4 Turbo
2.5
2.5 AWD
2.5 Bifuel
2.5 TDI
2.5 TDi AWD
2.5 Turbo AWD
1996/11 - 2000/11B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5204T 211 hp 155 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234T4 250 hp 184 kW 2.3 L Petrol
B5234T3 239 hp 176 kW 2.3 L Petrol
B5234T3 241 hp 177 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
B5244T2 265 hp 195 kW 2.5 L Petrol
B5252FS 144 hp 106 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
GB5252S 144 hp 106 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
