ATE 24.0110-0232.1 (24011002321) Brake Disc
ATE 24.0110-0232.1 (24011002321) Brake Disc
by ATEManufacturer Part Number: 24.0110-0232.1 (24011002321)
Alternative ATE part number(s): 410232

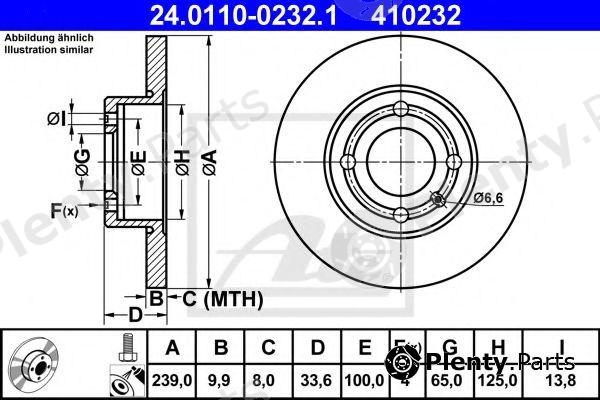

- Diameter [mm]: 239
- Brake Disc Thickness [mm]: 9,9
- Minimum thickness [mm]: 8
- Brake Disc Type: Solid
- Number of Holes: 4
- Surface: Coated
- Bolt Hole Circle Ø [mm]: 100
- Height [mm]: 33,6
- Centering Diameter [mm]: 65
- Inner diameter [mm]: 125
- Bore Ø [mm]: 13,8
- Supplementary Article/Info 2: with screws
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0110-0232.1 (24011002321) Alternative ATE part number(s): 410232 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for VAG vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| VAG | 6N0615301 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0110-0232.1 (24011002321) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KLAXCAR FRANCE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 16542 |
| ALANKO | 305401, 304175 |
| AP | 14585 |
| BARUM | BAR10232 |
| BENDIX | 561980B, 561980BC |
| BORG & BECK | BBD5100, BBD5110 |
| BOSCH | 0986478620 |
| Brake ENGINEERING | DI955529 |
| BRECO | BS7508 |
| BREMBO | DP85036, 08.6785.10 |
| BREMSI | DBA795S |
| BSF | 11210 |
| CAR | 142.744 |
| CIFAM | 800-371 |
| DELPHI | BG2911 |
| DENCKERMANN | B130262 |
| EUROBRAKE | 5815204754 |
| FARCOM | 230893, 230302 |
| FEBI BILSTEIN | 18841 |
| FENOX | TB215253 |
| FERODO | DDF795C, DDF7951, DDF795C1, DRF795, DDF795 |
| FOMAR | FO2355 |
| fri.tech. | BD0948 |
| FTE | BS4503B, BS4503 |
| GALFER | B1G21002321 |
| GIRLING | 6027553 |
| GRAF | DF29371 |
| HELLA | 8DD355104-191, 8DD355104-181 |
| HELLA PAGID | 8DD355104-181, 8DD355104-191 |
| ICER | 78BD53042 |
| JP GROUP | 1163103809 |
| JURID | 561980J, 561980JC |
| KAGER | 370112 |
| KAMOKA | 103156 |
| KAWE | 641800 |
| KEY PARTS | KBD5100 |
| KLAXCAR FRANCE | 25653Z |
| KRAFT | 6044820 |
| LPR | V2301P |
| MAGNETI MARELLI | 360704009300, 353615825140, 360406048800 |
| MAPCO | 25770 |
| MAXGEAR | 190786 |
| METELLI | 23-0371 |
| METZGER | 641800, 6110137 |
| MEYLE | 1155210021 |
| MGA | D1171 |
| MINTEX | MDC1064 |
| NECTO | WN900 |
| NK | 314754, 204754 |
| OPEN PARTS | BDA173310 |
| OPTIMAL | BS4180 |
| PAGID | 53946PRO, 53946 |
| PEX | 14.0632 |
| PILENGA | 5253 |
| PROTECHNIC | PRD1319 |
| QUINTON HAZELL | BDC4503, BSF4503, 6418.00 |
| R BRAKE | 78RBD25304 |
| REMSA | 6418.00, 817104 |
| ROADHOUSE | 817104, 6418.00 |
| ROTINGER | RT1443T5, RT1443 |
| ROULUNDS BRAKING | D2355 |
| sbs | 1815204754, 1815314754 |
| SWAG | 30918841 |
| TEMPLIN | 0311030115, 0311030110 |
| TEXTAR | 92071903, 98200071901PRO, 98200071901, 92071900 |
| TRISCAN | 812029138 |
| TRUCKTEC AUTOMOTIVE | 0735199 |
| TRUSTING | DF948 |
| TRW | DF2755BP, DF2755 |
| VAICO | V1040012 |
| VALEO | 186581 |
| VEMA | 98074 |
| VILLAR | 6280664 |
| WOKING | D641800, 8071304 |
| ZIMMERMANN | 600320420, 600.3204.50, 600.3204.00 |
Vehicle fitment / ATE 24.0110-0232.1 (24011002321) Brake Disc compatibility
This product fits the following models: SEAT AROSA, VW DERBY, VW FLIGHT, VW POLO, VW POLO CLASSIC, etc. See all vehicles this product (ATE 24.0110-0232.1 (24011002321)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| SEAT | AROSA 6H | 1.0 | 1997/05 - 2004/06 | AER 50 hp 37 kW 1 L Petrol AHT 50 hp 37 kW 1 L Petrol ALD 50 hp 37 kW 1 L Petrol ALL 50 hp 37 kW 1 L Petrol ANV 50 hp 37 kW 1 L Petrol AUC 50 hp 37 kW 1 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| VW | DERBY 6KV2 | 64 1 9 D | 1996/01 - 1996/10 | 1Y 64 hp 47 kW 1.9 L Diesel | Front wheel | Sedan / Saloon |
| VW | FLIGHT 6KV2 | 64 1 9 D | 1996/01 - 1996/10 | 1Y 64 hp 47 kW 1.9 L Diesel | Front wheel | Sedan / Saloon |
| VW | POLO 6KV2 6N1 6N2 6NF | 1.0 1.9 D 1.9 SDI 45 1.0 55 1.3 64 1 9 D 64 1.9 D 64 1.9 SDI 75 1.6 | 1994/10 - 2001/09 | 1Y 64 hp 47 kW 1.9 L Diesel ADX 55 hp 40 kW 1.3 L Petrol AEA 75 hp 55 kW 1.6 L Petrol AEE 75 hp 55 kW 1.6 L Petrol AHS 75 hp 55 kW 1.6 L Petrol AEF 64 hp 47 kW 1.9 L Diesel AEV 45 hp 33 kW 1 L Petrol AGD 64 hp 47 kW 1.9 L Diesel AGD 64 hp 47 kW 1.9 L Diesel ASX 64 hp 47 kW 1.9 L Diesel | Front wheel | Hatchback / Sportback / Sport hatch LCV / Van / Cargo Sedan / Saloon |
| VW | POLO CLASSIC 6KV2 | 64 1 9 D | 1996/01 - 1996/10 | 1Y 64 hp 47 kW 1.9 L Diesel | Front wheel | Sedan / Saloon |
