ATE 24.0110-0315.1 (24011003151) Brake Disc

ATE part 24.0110-0315.1 (24011003151) Brake Disc

ATE 24.0110-0315.1 (24011003151) Brake Disc

by ATE

Manufacturer Part Number: 24.0110-0315.1 (24011003151)
Alternative ATE part number(s): 410315

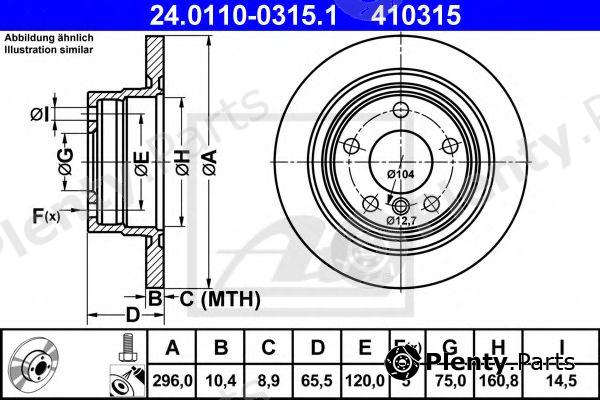

Сharacteristics:
  • Supplementary Article/Info 2: with screws
  • Diameter [mm]: 296
  • Brake Disc Thickness [mm]: 10,4
  • Minimum thickness [mm]: 8,9
  • Brake Disc Type: Solid
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 65,5
  • Centering Diameter [mm]: 75
  • Inner diameter [mm]: 160,8
  • Bore Ø [mm]: 14,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0110-0315.1 (24011003151) Alternative ATE part number(s): 410315
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for BMW vehicles

OE manufacturerOEM reference numbers
BMW34214031725, 34216764649, 34216855002, 34216769271

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0110-0315.1 (24011003151) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17649
ALANKO303377
AP14941V, 14941, 14941X
BENDIX562310B
BORG & BECKBBD4466
BOSCH0986479C55, 0986479306
Brake ENGINEERINGDI956487
BRECOBV7732, BS7732
BREMBO08A2051X, 08.A205.11, 08.A205.10
BREMSIDBB230S
BSF11411
CAR142.1074
CIFAM800814C
DELPHIBG3960
DENCKERMANNB130420
E.T.F.191725
FARCOM230703, 231120
FEBI BILSTEIN24482
FERODODDF1230, DDF1230-1
FOMARFO2793
fri.tech.BD1093
FTEBS7209B, BS7209, BS7209HB
GIRLING6044514
HANS PRIES500950
HELLA8DD355111-301, 8DD355111-291
HELLA PAGID8DD355111-291, 8DD355111-301
ICER78BD17252
JP GROUP1463200709, 1463200700
JURID562310JC, 562310J
KAGER370934
KAMOKA1031007
KAWE6108400
LPRB2004P
MAGNETI MARELLI360406089300, 360406089301
MAPCO25785
METELLI230814C
METZGER6110424, 14941V
MEYLE3155233068, 3155233068/PD
MGAD1808
MINTEXMDC1746
NK311556, 201556
OPEN PARTSBDA233510, BDR233510
OPTIMALBS7594C, BS7594
PAGID54331PRO, 54331
PEX14.0796
PROTECHNICPRD5267
QUINTON HAZELLBDC5437
R BRAKE78RBD21725
REMSA6108400
ROADHOUSE6108400
ROTINGERRT1604, RT1604T5
SASIC6106135
sbs1815201556, 1815311556
STARLINEPB1604C
SWAG20924482
TEMPLIN0311012315, 0311012310
TEXTAR92133103, 92133100, 98200133101PRO, 98200133101
TRUCKTEC AUTOMOTIVE0834122
TRUSTINGDF1093
TRWDF4451, DF4451BP, DF4462
VAICOV2080058
VALEO197344
WOKINGD6108400
ZIMMERMANN150.3429.50, 150.3429.00, 150.3429.20, 150342952

Vehicle fitment / ATE 24.0110-0315.1 (24011003151) Brake Disc compatibility

This product fits the following models: BMW 1, BMW 3, etc. See all vehicles this product (ATE 24.0110-0315.1 (24011003151)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
BMW1
E81
E87
118 i
120 i
2003/11 - 2012/09N43B20A 143 hp 105 kW 2 L Petrol
N43B20A 170 hp 125 kW 2 L Petrol
N46B20B 129 hp 95 kW 2 L Petrol
N43B20A 143 hp 105 kW 2 L Petrol
N46B20B 136 hp 100 kW 2 L Petrol
N43B20A 163 hp 120 kW 2 L Petrol
N43B20A 170 hp 125 kW 2 L Petrol
N46B20A 156 hp 115 kW 2 L Petrol
N46B20B 150 hp 110 kW 2 L Petrol
N46B20B 156 hp 115 kW 2 L Petrol
N46B20BD 150 hp 110 kW 2 L Petrol
N46B20BD 156 hp 115 kW 2 L Petrol
N46B20C 150 hp 110 kW 2 L Petrol
N46B20C 156 hp 115 kW 2 L Petrol
N46B20CC 150 hp 110 kW 2 L Petrol
N46B20CC 156 hp 115 kW 2 L Petrol
N43B20A 163 hp 120 kW 2 L Petrol
N43B20A 170 hp 125 kW 2 L Petrol
N46B20B 156 hp 115 kW 2 L Petrol
N46B20C 156 hp 115 kW 2 L Petrol
Rear wheel
Hatchback / Sportback / Sport hatch
BMW3
E90
E92
316 d
316 i
318 d
318 i
320 i
2005/01 - 2013/12M47D20(204D4) 122 hp 90 kW 2 L Diesel
N43B16A 122 hp 90 kW 1.6 L Petrol
N43B16A 122 hp 90 kW 1.6 L Petrol
N45B16A 115 hp 85 kW 1.6 L Petrol
N46B20A 150 hp 110 kW 2 L Petrol
N46B20B 150 hp 110 kW 2 L Petrol
N46B20B 156 hp 115 kW 2 L Petrol
N46B20C 150 hp 110 kW 2 L Petrol
N46B20C 156 hp 115 kW 2 L Petrol
N46B20CC 156 hp 115 kW 2 L Petrol
N46B20CD 156 hp 115 kW 2 L Petrol
N46B20E 156 hp 115 kW 2 L Petrol
N46B20B 129 hp 95 kW 2 L Petrol
N47D20C 116 hp 85 kW 2 L Diesel
Rear wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
Sedan / Saloon
