ATE 24.0110-0325.2 (24011003252) Brake Disc

ATE part 24.0110-0325.2 (24011003252) Brake Disc

ATE 24.0110-0325.2 (24011003252) Brake Disc

by ATE

Manufacturer Part Number: 24.0110-0325.2 (24011003252)
Alternative ATE part number(s): 410325

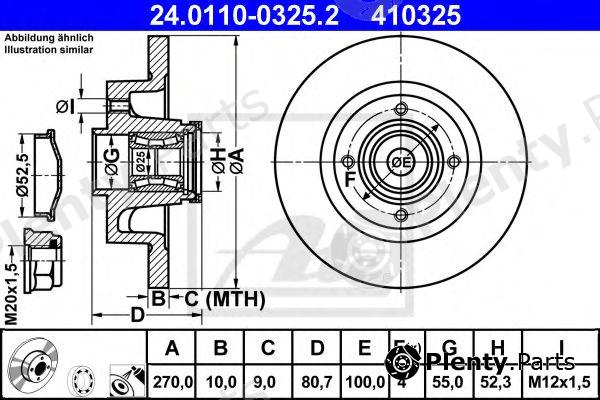

Сharacteristics:
  • Diameter [mm]: 270
  • Brake Disc Thickness [mm]: 10
  • Minimum thickness [mm]: 9
  • Brake Disc Type: Solid
  • Surface: Coated
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 100
  • Height [mm]: 80,7
  • Centering Diameter [mm]: 55
  • Inner diameter [mm]: 52,3
  • Thread Size: M12x1,5
  • Supplementary Article/Info 2: with bearing(s)
  • Support plate diameter [mm]: 25
  • Supplementary Article/Info 2: with ABS sensor ring
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0110-0325.2 (24011003252) Alternative ATE part number(s): 410325
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for RENAULT vehicles

OE manufacturerOEM reference numbers
RENAULT7701207898, 8660001812, 8671018107

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0110-0325.2 (24011003252) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREDA LORETT, BREMBO, BREMSI, BSF, CIFAM, DELPHI, E.T.F., FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, SKF, SNR, STARLINE, SWAG, TEMPLIN, TEXTAR, TREVI AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17727C
ALANKO304620, 304619, 304235
AP14918Y
BENDIX051438B, 562379B
BORG & BECKBBD5897S
BOSCH0986479196, 0986479274
Brake ENGINEERINGDI956532S
BRECOBY7696
BREDA LORETTKRT2768
BREMBO08.A135.17, 08.A135.10
BREMSIDBB570S
BSF11510R
CIFAM800804
DELPHIBG9032RSC, BG4044, BG9032RS
E.T.F.197898
FEBI BILSTEIN28155
FENOXTB218087
FERODODDF1443, DDF1570, DDF1443-1, DDF1570-1
FOMARFO4207
fri.tech.BD1271
FTEBS7073LS, BS7073L
GIRLING6044146
HANS PRIES700643
HELLA8DD355113-491
HELLA PAGID8DD355113-491
JP GROUP4363201109
JURID562379J
KAGER371299
KAMOKA1031136
KAWE6104720
LPRR1030PCA
MAGNETI MARELLI360704011800, 361111183129
MAPCO15139
METELLI230804
METZGER6110083
MEYLE16-155230004
MGAD1677R
MINTEXMDC1859
NATIONALNBD1643
NK203965, 313965
OPEN PARTSBDA242730
OPTIMALBS8202
PAGID54545
PATRONPBD7018
PILENGA5756
PROTECHNICPRD5288B
REMSA6104720
ROADHOUSE6104720
ROTINGERRT3240BS, RT3240BST5
SASIC6104012, 6104019
sbs1815203965, 1815313965
SKFVKBD1014
SNRKF15578U
STARLINEPB3240C
SWAG60928155
TEMPLIN0311025551
TEXTAR98200154501, 92154500
TREVI AUTOMOTIVEWB2270
TRUSTINGDF1271, DF1271A
TRWDF4414BS, DF4414
VAICOV4640004
VALEO186898
VEMA98760
WOKINGD6104720
ZIMMERMANN470.2420.00

Vehicle fitment / ATE 24.0110-0325.2 (24011003252) Brake Disc compatibility

This product fits the following models: RENAULT MEGANE II, RENAULT SCÉNIC II, etc. See all vehicles this product (ATE 24.0110-0325.2 (24011003252)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
RENAULTMEGANE II
KM0/1
1.4
1.5 dCi
1.6
1.6 16V
1.6 16V Hi-Flex
1.9 dCi
2.0

KM13
KM16
KM1E
2003/08 - 2009/08F4R770 135 hp 99 kW 2 L Petrol
F4R771 135 hp 99 kW 2 L Petrol
F9Q800 120 hp 88 kW 1.9 L Diesel
F9Q803 131 hp 96 kW 1.9 L Diesel
F9Q804 110 hp 81 kW 1.9 L Diesel
F9Q804 131 hp 96 kW 1.9 L Diesel
F9Q808 90 hp 66 kW 1.9 L Diesel
F9Q808 92 hp 68 kW 1.9 L Diesel
F9Q818 110 hp 81 kW 1.9 L Diesel
F9Q818 115 hp 85 kW 1.9 L Diesel
K4J730 98 hp 72 kW 1.4 L Petrol
K4J740 98 hp 72 kW 1.4 L Petrol
K4M760 112 hp 82 kW 1.6 L Petrol
K4M761 112 hp 82 kW 1.6 L Petrol
K4M762 105 hp 77 kW 1.6 L Petrol
K4M812 112 hp 82 kW 1.6 L Petrol
K4M813 112 hp 82 kW 1.6 L Petrol
K4M760 113 hp 83 kW 1.6 L Petrol
K4M761 113 hp 83 kW 1.6 L Petrol
K4M856 105 hp 77 kW 1.6 L Petrol
K9K722 82 hp 60 kW 1.5 L Diesel
K9K724 86 hp 63 kW 1.5 L Diesel
K9K728 101 hp 74 kW 1.5 L Diesel
K9K729 101 hp 74 kW 1.5 L Diesel
K9K728 103 hp 76 kW 1.5 L Diesel
K9K732 106 hp 78 kW 1.5 L Diesel
K9K734 106 hp 78 kW 1.5 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
RENAULTSCÉNIC II
JM0/1
1.4
1.5 dCi
1.6
1.6 16V
1.9 D
1.9 dCi
2.0
2.0 16V Turbo

JM02
JM13
JM05
JM0U
JM1N
JM1U
JM2V
JM0B
JM0H
JM1A
JM0C
JM0J
JM1B
JM0F
JM0G
JM12
JM1G
JM2C
JM0W
JM14
JM15
JM16
JM1E
JM1F
JM1R
2003/06 - F4R770 135 hp 99 kW 2 L Petrol
F4R771 135 hp 99 kW 2 L Petrol
F4R770 138 hp 101 kW 2 L Petrol
F4R776 163 hp 120 kW 2 L Petrol
F9Q804 110 hp 81 kW 1.9 L Diesel
F9Q804 131 hp 96 kW 1.9 L Diesel
F9Q816 131 hp 96 kW 1.9 L Diesel
F9Q818 131 hp 96 kW 1.9 L Diesel
F9QJ803 131 hp 96 kW 1.9 L Diesel
F9Q812 116 hp 85 kW 1.9 L Diesel
F9QJ803 116 hp 85 kW 1.9 L Diesel
F9Q812 120 hp 88 kW 1.9 L Diesel
K4J730 98 hp 72 kW 1.4 L Petrol
K4J740 98 hp 72 kW 1.4 L Petrol
K4J770 98 hp 72 kW 1.4 L Petrol
K4M706 112 hp 82 kW 1.6 L Petrol
K4M766 112 hp 82 kW 1.6 L Petrol
K4M812 112 hp 82 kW 1.6 L Petrol
K4M813 112 hp 82 kW 1.6 L Petrol
K4M761 113 hp 83 kW 1.6 L Petrol
K4M782 113 hp 83 kW 1.6 L Petrol
K9K722 82 hp 60 kW 1.5 L Diesel
K9K724 86 hp 63 kW 1.5 L Diesel
K9K728 101 hp 74 kW 1.5 L Diesel
K9K729 101 hp 74 kW 1.5 L Diesel
K9K732 106 hp 78 kW 1.5 L Diesel
K9K734 103 hp 76 kW 1.5 L Diesel
Front wheel
MPV / Van / Minivan
