ATE 24.0111-0165.1 (24011101651) Brake Disc

ATE part 24.0111-0165.1 (24011101651) Brake Disc

ATE 24.0111-0165.1 (24011101651) Brake Disc

by ATE

Manufacturer Part Number: 24.0111-0165.1 (24011101651)
Alternative ATE part number(s): 411165

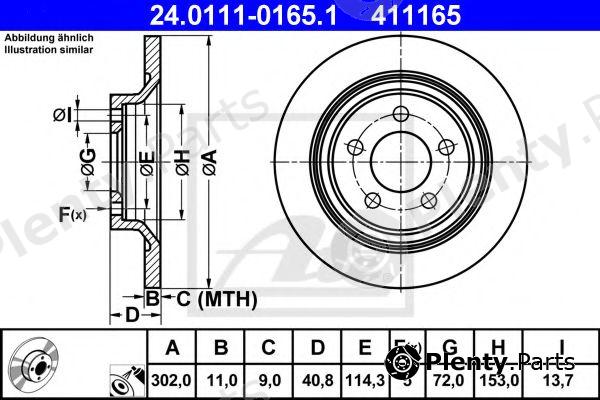

Сharacteristics:
  • Diameter [mm]: 302
  • Brake Disc Thickness [mm]: 11
  • Minimum thickness [mm]: 9
  • Brake Disc Type: Solid
  • Number of Holes: 5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 40,8
  • Centering Diameter [mm]: 72
  • Inner diameter [mm]: 153
  • Bore Ø [mm]: 13,7
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0111-0165.1 (24011101651) Alternative ATE part number(s): 411165
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MAZDA vehicles

OE manufacturerOEM reference numbers
MAZDAC26Y-26-251A, C23Y-26-251A

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0111-0165.1 (24011101651) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSF, CAR, CIFAM, DELPHI, FERODO, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JP GROUP, KAGER, KAMOKA, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, MDR, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, TEXTAR, TRUSTING, TRW, VAICO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17675
ALANKO304431
AP14968, 14968V
ASHUKIM60648
BLUE PRINTADM54393
BORG & BECKBBD4522
BOSCH0986479233, 0986479C69
Brake ENGINEERINGDI956805
BRECOBV7759, BS7759
BREMBO08A71110, 08.A711.11
BSF11626
CAR142.1327
CIFAM8001081C
DELPHIBG4026
FERODODDF1547-1, DDF1547
FOMARFO2813
fri.tech.BD1128
FTEBS5512, BS5512B
GIRLING6044684
HELLA8DD355112901
HELLA PAGID8DD355112-901
HERTH+BUSS JAKOPARTSJ3313033
JP GROUP3863200609
KAGER371065
KAMOKA103180
KAVO PARTSBR4778, BR4778C
KAWE6111300
LPRM5015P
MAGNETI MARELLI600000091030, 360406091800
MAPCO25236
MDRMRD2323
METELLI231081C
METZGER6111300, 6110198
MEYLE35155230016
MGAD1817
MINTEXMDC2202
NIBKRN25001
NIPPARTSJ3313033
NK203261
OPEN PARTSBDR226410, BDA226410
OPTIMALBS-7774
PAGID54482
PILENGA5522
PROTECHNICPRD5363
QUINTON HAZELLBDC5512
REMSA61113.00
ROADHOUSE61113.00
ROTINGERRT1658T5, RT1658
sbs1815203261
TEXTAR92148200, 98200148201, 92148203
TRUSTINGDF1128
TRWDF4468
VAICOV3240010
WOKINGD6111300
ZIMMERMANN370308520

Vehicle fitment / ATE 24.0111-0165.1 (24011101651) Brake Disc compatibility

This product fits the following models: MAZDA 5, MAZDA PREMACY, etc. See all vehicles this product (ATE 24.0111-0165.1 (24011101651)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MAZDA5
CR19
CW
1.6 CD
1.8
1.8 MZR
2.0
2.0 CD
2005/03 - L823 116 hp 85 kW 1.8 L Petrol
L850 116 hp 85 kW 1.8 L Petrol
LF5H 150 hp 110 kW 2 L Petrol
LFZB 144 hp 106 kW 2 L Petrol
LFZB 147 hp 108 kW 2 L Petrol
PE-VPS 151 hp 111 kW 2 L Petrol
LFF7 146 hp 107 kW 2 L Petrol
RF7J 110 hp 81 kW 2 L Diesel
RF7J 143 hp 105 kW 2 L Diesel
Y650 116 hp 85 kW 1.6 L Diesel
Y655 116 hp 85 kW 1.6 L Diesel
Front wheel
MPV / Van / Minivan
MAZDAPREMACY
CP
CW
1.6 CD
1.8 MZR
2.0
2005/02 - L850 116 hp 85 kW 1.8 L Petrol
LF5H 150 hp 110 kW 2 L Petrol
LFZB 144 hp 106 kW 2 L Petrol
LFZB 147 hp 108 kW 2 L Petrol
PE-VPS 151 hp 111 kW 2 L Petrol
LFF7 145 hp 107 kW 2 L Petrol
Y650 116 hp 85 kW 1.6 L Diesel
Y655 116 hp 85 kW 1.6 L Diesel
Front wheel
MPV / Van / Minivan
