ATE 24.0112-0155.1 (24011201551) Brake Disc

ATE part 24.0112-0155.1 (24011201551) Brake Disc

ATE 24.0112-0155.1 (24011201551) Brake Disc

by ATE

Manufacturer Part Number: 24.0112-0155.1 (24011201551)
Alternative ATE part number(s): 412155

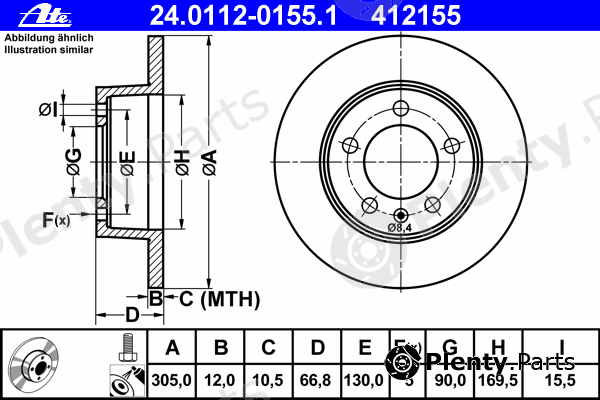

Сharacteristics:
  • Diameter [mm]: 305
  • Brake Disc Thickness [mm]: 12
  • Minimum thickness [mm]: 10,5
  • Brake Disc Type: Solid
  • Surface: Coated
  • Number of Holes: 5
  • Height [mm]: 66,8
  • Centering Diameter [mm]: 90
  • Inner diameter [mm]: 169,5
  • Bolt Hole Circle Ø [mm]: 130
  • Bore Ø [mm]: 15,5
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0112-0155.1 (24011201551) Alternative ATE part number(s): 412155
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for NISSAN, OPEL, RENAULT vehicles

OE manufacturerOEM reference numbers
NISSAN4320600QAA
OPEL4403045, 9111045
RENAULT7700314107

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0112-0155.1 (24011201551) Brake Disc offered by A.B.S., ALANKO, AP, ASHIKA, ASHUKI, AUTOMEGA, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JAPANPARTS, JAPKO, JP GROUP, JURID, KAGER, KAMOKA, KAVO PARTS, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROFIT, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17331
ALANKO303655, 305094
AP14825
ASHIKA6101102
ASHUKI09934401
AUTOMEGA1244030045, 1044030045, 1344030045, 30770003140107
BARUMBAR12155
BENDIX562164B, 562164BC
BLUE PRINTADN143106
BORG & BECKBBD4296
BOSCH0986478970
Brake ENGINEERINGDI956162
BRECKBR021SA100
BRECOBS7624
BREMBO08.9371.10
BREMSIDBB272S
BSF11536
CAR142.037
CASALS55379, 55377
CIFAM800-690
DELPHIBG3681
DENCKERMANNB130157
Dr!ve+DP1010110224
E.T.F.191410
EUROBRAKE5815203643
FARCOM230986
FEBI BILSTEIN24491
FENOXTB218069
FERODODDF12721, DDF1272, DDF1272C, DDF1272C-1
FOMARFO1649
fri.tech.BD0965
FTEBS5348, BS5348B
GALFERB1G21201551
GIRLING6042344
GRAFDF29690
HANS PRIES207071
HELLA8DD355108-291, 8DD355108-281
HELLA PAGID8DD355108-291, 8DD355108-281
HERTH+BUSS JAKOPARTSJ3311048
ICER78BD14102
JAPANPARTSDP102
JAPKO61102
JP GROUP1263202300, 1263202309
JURID562164JC, 562164J
KAGER370862
KAMOKA1032544
KAVO PARTSBR6772C, BR6772
KAWE6735.00
KEY PARTSKBD4296
KRAFT6055090
LPRO1005P
MAGNETI MARELLI361302040121, 360406101020, 360704012600, 360406039600, 353613449540, 600000090380
MALÒ1110040
MAPCO25704
MAXGEAR190815
METELLI230690
METZGER6110201, 14825
MEYLE6155236037
MGAD1392
MINTEXMDC1539, MDC1529, MDK0244
NECTOWN1285
NK313643, 203643
OPEN PARTSBDA200110
OPTIMALBS-7948
PAGID50361, 50361PRO
PATRONPBD4234
PEX14.0826
PILENGA5754, 5334
PROFIT50101272
PROTECHNICPRD5265
QUINTON HAZELLBDC5348, BSF5348
R BRAKE78RBD21410
REMSA673500
ROADHOUSE673500
ROTINGERRT1584T5, RT1584
ROULUNDS BRAKINGD1649
sbs1815313643, 1815203643
STARLINEPB1584C, PB1584
STELLOX60203643SX
SWAG60924491
TEMPLIN0311083180, 0311083185
TEXTAR98200111201, 92111203, 92111200
TRISCAN812010183
TRUSTINGDF965
TRWDF4234, DF4234BP
VAICOV4040030
VALEO186740
VILLAR6281045
WAGNER LOCKHEEDWGR12721
WOKINGD673500
ZIMMERMANN430149220, 430.1492.00

Vehicle fitment / ATE 24.0112-0155.1 (24011201551) Brake Disc compatibility

This product fits the following models: NISSAN INTERSTAR, OPEL MOO, RENAULT MASTER II, VAUXHALL MOOI, etc. See all vehicles this product (ATE 24.0112-0155.1 (24011201551)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
NISSANINTERSTAR

X70
dCi 100
dCi 120
dCi 140
dCi 150
dCi 80
dCI 90
2002/07 - F9Q772 82 hp 60 kW 1.9 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9U632 145 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U720 99 hp 73 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U720 101 hp 74 kW 2.5 L Diesel
G9U720 99 hp 73 kW 2.5 L Diesel
G9U720 99 hp 73 kW 2.5 L Diesel
ZD30 136 hp 100 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
OPELMOO
F9
H9
J9
U9
E9
1.9 DTI
2.2 DTI
2.5 CDTI
2.5 D
2.5 DTi
2.5 DTI
2.8 DTI
3.0 DTi
3.0 DTI
1998/07 - F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q772 82 hp 60 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S8U772 80 hp 59 kW 2.5 L Diesel
S9W700 114 hp 84 kW 2.8 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
Front wheel
Dump truck
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
RENAULTMASTER II
ED/HD/UD
FD
JD
1.9 dCi 80
1.9 dTI
2.2 dCI 90
2.5 D
2.5 dCi
2.5 dCi 100
2.5 dCi 120
2.8 dTI
3.0 dCi 120
3.0 dCi 140
3.0 dCi 160

ED0S
UD0S
ED4V
ED8V
FD0U
FD0V
HD0S
FD0S
HD1S
JD0T
JDCV
1998/07 - F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q772 82 hp 60 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U750 114 hp 84 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U750 114 hp 84 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
ZD3600 116 hp 85 kW 3 L Diesel
ZD3A604 156 hp 115 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VAUXHALLMOOI
A Chassis/Cab ED
UD
HD
A Combi JD
A Van FD
1.9 DTI
2.2 DTI
2.5 CDTI
2.5 D
2.5 DTI
2.8 DTI
2.8 TDI
3.0 DTi
1998/10 - 2010/05F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
