ATE 24011501081 Brake Disc

ATE part 24011501081 Brake Disc

ATE 24011501081 Brake Disc

by ATE

Manufacturer Part Number: 24011501081
Alternative ATE part number(s): 415108

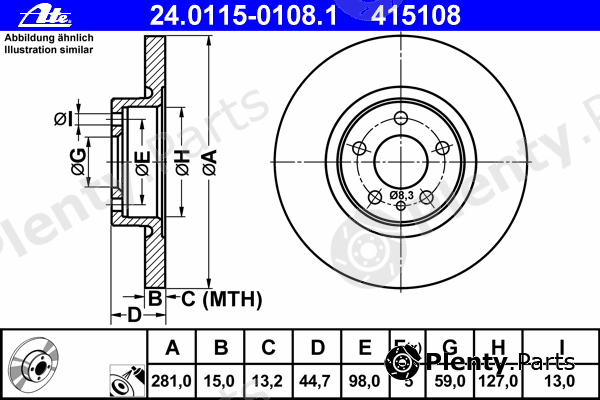

Сharacteristics:
  • Diameter [mm]: 281
  • Brake Disc Thickness [mm]: 15
  • Minimum thickness [mm]: 13,2
  • Brake Disc Type: Solid
  • Number of Holes: 5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 98
  • Height [mm]: 44,7
  • Centering Diameter [mm]: 59
  • Inner diameter [mm]: 127
  • Bore Ø [mm]: 13
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24011501081 Alternative ATE part number(s): 415108
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
FIAT / LANCIA / ALFA60617106, 60653487, 60658567

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24011501081 Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, EUROBRAKE, FARCOM, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, STELLOX, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16949
ALANKO304682, 302922
AP15368V, X15368, 15368
BENDIX562061BC, 562061B
BORG & BECKBBD4083
BOSCH0986478668
Brake ENGINEERINGDI955842
BRECOBS7569, BV7569
BREMBO08.7354.75, 08.7354.10, 08735411
BREMSIDBB057S
BSF11372
CAR142.013
CIFAM800-472
DELPHIBG3420
DENCKERMANNB130466
EUROBRAKE5815201017
FARCOM230264, 230864
FENOXTB215025
FERODODDF1057-1, DDF1057
FOMARFO2223
fri.tech.BD0654
FTEBS4769B, BS4769
GIRLING6040253
GRAFDF29472
HELLA8DD355106-451
HELLA PAGID8DD355106-451
ICER78BD85672
JP GROUP3063100509
JURID562061JC, 562061J
KAGER371010
KAMOKA1032114
KAWE651200
KRAFT6046810
LPRA2291P
MAGNETI MARELLI361302040145, 360406010500, 353610022140
MALÒ1110032
MAPCO15046
MAXGEAR190991
METELLI230472
MEYLE2155210013
MGAD1272
MINTEXMDC983
NECTOWN972
NK311017, 201017
OPEN PARTSBDR166110, BDA166110
OPTIMALBS-5120
PAGID50252
PATRONPBD4025
PEX14.0014
PILENGA5025
PROTECHNICPRD1233
QUINTON HAZELLBDC4769, BSF4769
R BRAKE78RBD28567
REMSA651200
ROADHOUSE6512.00
ROTINGERRT1478, RT1478T5
ROULUNDS BRAKINGD2223
sbs1815201017, 1815311017
STARLINEPB1478
STELLOX60201017SX
TEMPLIN0311011200
TEXTAR92096400, 98200096401
TRISCAN812012118
TRUSTINGDF654
TRWDF4025
VAICOV2440006
VALEO186605
VEMA98084
VILLAR6281741
WAGNER LOCKHEEDWGR10571
WOKINGD651200
ZIMMERMANN110221120, 110.2211.00

Vehicle fitment / ATE 24011501081 Brake Disc compatibility

This product fits the following models: ALFA ROMEO 147, ALFA ROMEO 156, etc. See all vehicles this product (ATE 24011501081) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
ALFA ROMEO147
937
1.6 16V T.SPARK ECO
937AXA1A
2001/01 - 2010/03AR37203 105 hp 77 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
ALFA ROMEO156
932
1.6 16V T.SPARK
1.6 16V T.SPARK.
1.8 16V T.SPARK
1.9 JTD

932A2B
932A2B
932A2C
932A3
932A31
932A4
932B2
932B2B
932B2B
932B2C
932B31
1997/09 - 2006/05192B1.000 136 hp 100 kW 1.9 L Diesel
937A4.000 126 hp 93 kW 1.9 L Diesel
192B1.000 136 hp 100 kW 1.9 L Diesel
937A4.000 126 hp 93 kW 1.9 L Diesel
937A5.000 150 hp 110 kW 1.9 L Diesel
937A2.000 115 hp 85 kW 1.9 L Diesel
AR32102 112 hp 82 kW 1.6 L Petrol
AR32102 120 hp 88 kW 1.6 L Petrol
AR32103 120 hp 88 kW 1.6 L Petrol
AR32104 120 hp 88 kW 1.6 L Petrol
AR67601 120 hp 88 kW 1.6 L Petrol
AR32201 144 hp 106 kW 1.8 L Petrol
AR32205 140 hp 103 kW 1.8 L Petrol
AR32302 105 hp 77 kW 1.9 L Diesel
AR37101 110 hp 81 kW 1.9 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
