ATE 24.0116-0100.1 (24011601001) Brake Disc

ATE part 24.0116-0100.1 (24011601001) Brake Disc

ATE 24.0116-0100.1 (24011601001) Brake Disc

by ATE

Manufacturer Part Number: 24.0116-0100.1 (24011601001)
Alternative ATE part number(s): 416100

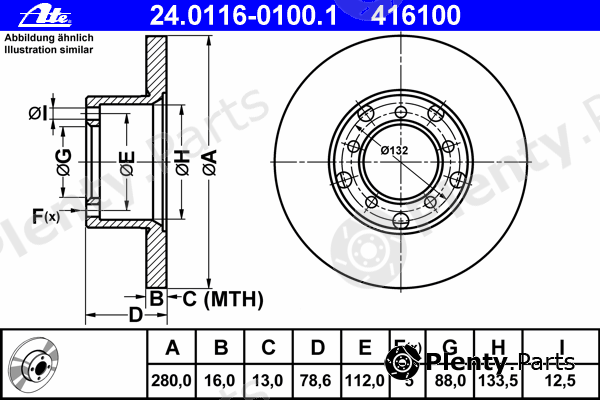

Сharacteristics:
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 16
  • Minimum thickness [mm]: 13
  • Brake Disc Type: Solid
  • Number of Holes: 5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 78,6
  • Centering Diameter [mm]: 88
  • Inner diameter [mm]: 133,5
  • Bore Ø [mm]: 12,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0116-0100.1 (24011601001) Alternative ATE part number(s): 416100
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MERCEDES-BENZ vehicles

OE manufacturerOEM reference numbers
MERCEDES-BENZ6014200272, 6014210412, 6014215012, 6014215112, 6014200072

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0116-0100.1 (24011601001) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BERAL, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSG, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, DURON, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAXGEAR, METELLI, MEYLE, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.15741
ALANKO305385, 304144
AP10060
BARUMBAR16100
BENDIX561135BC, 561135B
BERALBCR116A
BORG & BECKBBD4824
BOSCH0986478201
Brake ENGINEERINGDI839592
BRECOBS7272
BREMBO08.3959.20
BREMSIDBA095S
BSGBSG60210017
CAR142.460
CASALS55139
CIFAM800-210
DELPHIBG265, BG2265
DENCKERMANNB130006
DURONDCR116A
FARCOM230138, 230800
FEBI BILSTEIN04875, 04876
FENOXTB215191
FERODODDF095, FCR116A
FOMARFO2065
fri.tech.BD0041
FTEBS3305, BS3305B
GIRLING6015773
GRAFDF29210
HELLA8DD355100-201
HELLA PAGID8DD355100-201
ICER78BD42801
JP GROUP1363104309
JURID561135J, 561135JC
KAGER370040
KAMOKA103190
KAWE629100
KRAFT6041020
LPRM2141P
MAGNETI MARELLI353612812140, 431602040600, 360406031400
MAXGEAR190779
METELLI23-0210
MEYLE0155212006
MGAD1010
MINTEXMDC465
NK203311, 313311
OPEN PARTSBDA129910
OPTIMALBS-2910
PAGID52104
PATRONPBD1577
PEX14.0312
PILENGA5191
PROTECHNICPRD1122
QUINTON HAZELLBDC3305, 6291.00, BSF3305
R BRAKE78RBD14280
REMSA6291.00
ROADHOUSE6291.00
ROTINGERRT1043T5, RT1043
ROULUNDS BRAKINGD2065
sbs1815313311, 1815203311
STELLOX60203311SX
SWAG10904875, 10904876
TEMPLIN031101926300
TEXTAR98200012401, 93012400
TRISCAN812023108
TRUCKTEC AUTOMOTIVE0235039
TRUSTINGDF041
TRWDF1577
VAICOV3040036
VALEODF660, 186179
VILLAR6281204
WOKINGD629100
ZIMMERMANN400.1056.00

Vehicle fitment / ATE 24.0116-0100.1 (24011601001) Brake Disc compatibility

This product fits the following models: MERCEDES-BENZ T1, MERCEDES-BENZ T1TN, MERCEDES-BENZ T2LN1, etc. See all vehicles this product (ATE 24.0116-0100.1 (24011601001)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MERCEDES-BENZT1
601
602
207 D 2.4
208 2.3
208 D 2.3
209 D 2.9
210 2.3
210 D 2.8
210 D 2.9
307 D 2.4
308 D 2.3
309 D 3.0
310 2.3
310 D 2.9
1977/01 - 1996/0272 hp 53 kW 2.4 L Diesel
OM616.917 65 hp 48 kW 2.4 L Diesel
OM616.934 65 hp 48 kW 2.4 L Diesel
M102.942 95 hp 70 kW 2.3 L Petrol
M102.942 95 hp 70 kW 2.3 L Petrol
M102.945 105 hp 77 kW 2.3 L Petrol
M102.942 95 hp 70 kW 2.3 L Petrol
M102.945 105 hp 77 kW 2.3 L Petrol
M102.946 95 hp 70 kW 2.3 L Petrol
M115.955 86 hp 63 kW 2.3 L Petrol
M102.942 95 hp 70 kW 2.3 L Petrol
M115.955 86 hp 63 kW 2.3 L Petrol
M115.955 86 hp 63 kW 2.3 L Petrol
M115.972 86 hp 63 kW 2.3 L Petrol
OM601.940 79 hp 58 kW 2.3 L Diesel
OM601.940 82 hp 60 kW 2.3 L Diesel
OM602.940 95 hp 70 kW 2.8 L Diesel
OM602.940 98 hp 72 kW 2.8 L Diesel
OM602.940 95 hp 70 kW 2.9 L Diesel
OM602.940 95 hp 70 kW 2.9 L Diesel
OM602.940 98 hp 72 kW 2.9 L Diesel
OM602.940 98 hp 72 kW 2.8 L Diesel
OM616.917 65 hp 48 kW 2.4 L Diesel
OM616.937 65 hp 48 kW 2.4 L Diesel
OM616.937 72 hp 53 kW 2.4 L Diesel
OM616.939 72 hp 53 kW 2.4 L Diesel
OM616.917 65 hp 48 kW 2.4 L Diesel
OM616.937 72 hp 53 kW 2.4 L Diesel
OM616.937 72 hp 53 kW 2.4 L Diesel
OM616.939 72 hp 53 kW 2.4 L Diesel
OM617.913 88 hp 65 kW 2.9 L Diesel
OM617.913 88 hp 65 kW 3 L Diesel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
MERCEDES-BENZT1TN
407 D
408 D
409 D
410
410 D
611.017
611.018
611.067
611.068
611.317
611.318
611.367
611.368
611.417
611.418
611.467
611.468
1981/07 - 1995/06M102.942 95 hp 70 kW 2.3 L Petrol
M102.945 105 hp 77 kW 2.3 L Petrol
OM601.940 79 hp 58 kW 2.3 L Diesel
OM601.940 82 hp 60 kW 2.3 L Diesel
OM602.940 95 hp 70 kW 2.8 L Diesel
OM602.940 98 hp 72 kW 2.8 L Diesel
OM616.913 72 hp 53 kW 2.4 L Diesel
OM616.939 72 hp 53 kW 2.4 L Diesel
OM617.913 88 hp 65 kW 2.9 L Diesel
Rear wheel
LCV / Van / Cargo / Small truck
With flatbed/undercarriage
MERCEDES-BENZT2LN1
507 D
507 DK
508 D
510
667.001
667.002
667.061
667.062
667.301
667.302
667.341
667.342
667.341
667.342
667.361
667.362
1986/04 - 1994/12M102.946 105 hp 77 kW 2.3 L Petrol
M102.946 95 hp 70 kW 2.3 L Petrol
OM601.941 79 hp 58 kW 2.3 L Diesel
OM616.914 72 hp 53 kW 2.4 L Diesel
Rear wheel
Dump truck
LCV / Van / Cargo / Small truck
With flatbed/undercarriage
