ATE 24.0120-0172.1 (24012001721) Brake Disc
ATE 24.0120-0172.1 (24012001721) Brake Disc
by ATEManufacturer Part Number: 24.0120-0172.1 (24012001721)
Alternative ATE part number(s): 420172

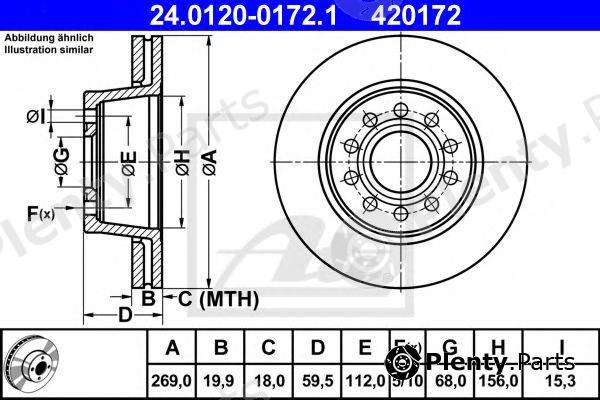

- Diameter [mm]: 269
- Brake Disc Thickness [mm]: 19,9
- Minimum thickness [mm]: 18
- Brake Disc Type: Vented
- Number of Holes: 5
- No. of holes 2: 10
- Machining: Alloyed / High-carbon
- Height [mm]: 59,5
- Centering Diameter [mm]: 68
- Inner diameter [mm]: 156
- Bolt Hole Circle Ø [mm]: 112
- Bore Ø [mm]: 15,3
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0120-0172.1 (24012001721) Alternative ATE part number(s): 420172 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for VAG vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| VAG | 857615601 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0120-0172.1 (24012001721) Brake Disc offered by A.B.S., ALANKO, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, DELPHI, FENOX, FTE, GIRLING, HELLA, HELLA PAGID, JURID, KAWE, MINTEX, NK, PAGID, PEX, QUINTON HAZELL, REMSA, ROADHOUSE, sbs, TEXTAR, TRUCKTEC AUTOMOTIVE, TRW, VAICO, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 16204 |
| ALANKO | 304267 |
| BENDIX | 561864B |
| BORG & BECK | BBD5049 |
| BOSCH | 0986478614 |
| Brake ENGINEERING | DI955414 |
| DELPHI | BG3029 |
| FENOX | TB219255, TB219208 |
| FTE | BS4778, BS4778B |
| GIRLING | 6045452 |
| HELLA | 8DD355122452, 8DD355122131, 8DD355103-851 |
| HELLA PAGID | 8DD355122131, 8DD355122452, 8DD355103-851 |
| JURID | 561864J |
| KAWE | 693010 |
| MINTEX | MDC1198 |
| NK | 204781, 314781 |
| PAGID | 53967 |
| PEX | 14.0773 |
| QUINTON HAZELL | BDC4778, BSF4778 |
| REMSA | 693010 |
| ROADHOUSE | 6930.10 |
| sbs | 1815314781, 1815204781 |
| TEXTAR | 92068400, 98200068401 |
| TRUCKTEC AUTOMOTIVE | 0735205 |
| TRW | DF4545 |
| VAICO | V1080103 |
| WOKING | D693010 |
| ZIMMERMANN | 100.1227.50, 100122720, 100.1227.52, 100.1227.00 |
Vehicle fitment / ATE 24.0120-0172.1 (24012001721) Brake Disc compatibility
This product fits the following models: AUDI 100, AUDI A6, AUDI QUATTRO, AUDI V8, etc. See all vehicles this product (ATE 24.0120-0172.1 (24012001721)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| AUDI | 100 4A C4 | S4 Turbo quattro S4 V8 quattro | 1991/08 - 1994/06 | AAN 230 hp 169 kW 2.2 L Petrol ABH 280 hp 206 kW 4.2 L Petrol | AWD / 4WD | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| AUDI | A6 4A C4 | S6 4.2 quattro S6 Plus quattro S6 Turbo quattro | 1994/06 - 1997/12 | AAN 230 hp 169 kW 2.2 L Petrol AEC 290 hp 213 kW 4.2 L Petrol AHK 326 hp 240 kW 4.2 L Petrol | AWD / 4WD | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| AUDI | QUATTRO 85 | 2.2 20V Turbo | 1989/08 - 1991/07 | RR 220 hp 162 kW 2.2 L Petrol | AWD / 4WD | Coupe / Sports car / Grand tourer / Speedster / Roadster |
| AUDI | V8 44 4C | 3.6 quattro 4.2 quattro | 1988/10 - 1994/02 | ABH 280 hp 206 kW 4.2 L Petrol PT 245 hp 180 kW 3.6 L Petrol PT 250 hp 184 kW 3.6 L Petrol | AWD / 4WD | Sedan / Saloon |
