ATE 24.0120-0173.1 (24012001731) Brake Disc
ATE 24.0120-0173.1 (24012001731) Brake Disc
by ATEManufacturer Part Number: 24.0120-0173.1 (24012001731)
Alternative ATE part number(s): 420173

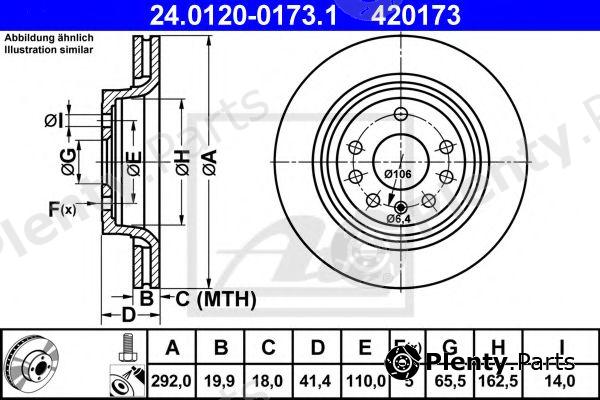

- Supplementary Article/Info 2: with screws
- Diameter [mm]: 292
- Brake Disc Thickness [mm]: 19,9
- Minimum thickness [mm]: 18
- Brake Disc Type: Vented
- Number of Holes: 5
- Surface: Coated
- Height [mm]: 41,4
- Centering Diameter [mm]: 65,5
- Inner diameter [mm]: 162,5
- Bolt Hole Circle Ø [mm]: 110
- Bore Ø [mm]: 14
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0120-0173.1 (24012001731) Alternative ATE part number(s): 420173 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for FIAT / LANCIA / ALFA, OPEL, SAAB vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| FIAT / LANCIA / ALFA | 71772548, 46836490 |
| OPEL | 569114, 93171778 |
| SAAB | 12762291, 9191336 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0120-0173.1 (24012001731) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17371 |
| ALANKO | 303899, 305227 |
| AP | 24908, 24908V, X24908 |
| BENDIX | 562220BC, 562220B |
| BORG & BECK | BBD4396 |
| BOSCH | 0986479S27, 0986479950, 0986479142 |
| Brake ENGINEERING | DI956292 |
| BRECO | BS8513, BV8513 |
| BREMBO | 09.9505.11, 09.9505.75, 09.9505.10 |
| BREMSI | DBB289V |
| BSF | 11458V |
| CAR | 142.033 |
| CIFAM | 800-682, 800682C |
| DELPHI | BG3886 |
| DENCKERMANN | B130426 |
| Dr!ve+ | DP1010110372 |
| E.T.F. | 199114 |
| FARCOM | 230478, 231239 |
| FEBI BILSTEIN | 23545 |
| FENOX | TB219173 |
| FERODO | DDF1289-1, DDF1289 |
| FOMAR | FO4007 |
| fri.tech. | BD0975 |
| FTE | BS5422, BS5422B |
| GIRLING | 6042842 |
| GRAF | DF29682 |
| HELLA | 8DD355109-181, 8DD355109-191, 8DD355122542 |
| HELLA PAGID | 8DD355122542, 8DD355109-181, 8DD355109-191 |
| ICER | 78BD91142 |
| JP GROUP | 1263200509 |
| JURID | 562220JC, 562220J |
| KAGER | 371102 |
| KAMOKA | 103213 |
| KAWE | 668610 |
| KRAFT | 6051651 |
| LPR | O1016V |
| MAGNETI MARELLI | 360406040100, 360704009900, 353613455640 |
| MALÒ | 1110078 |
| MAPCO | 257102, 25710 |
| METELLI | 23-0682, 230682C |
| METZGER | 24908V, 6110362 |
| MEYLE | 6155236027 |
| MGA | D1546 |
| MINTEX | MDC1675 |
| NECTO | WN1300 |
| NIBK | RN1612 |
| NK | 203650, 313650 |
| OPEN PARTS | BDRS199225, BDR199220 |
| OPTIMAL | BS7916C, BS-7916 |
| PAGID | 54184PRO, 54184 |
| PATRON | PBD4284 |
| PEX | 14.0822 |
| PILENGA | V765 |
| PROTECHNIC | PRD6160 |
| QUINTON HAZELL | BDC5422, BSF5422, 6686.10 |
| R BRAKE | 78RBD29114 |
| REMSA | 6686.10 |
| ROADHOUSE | 6686.10 |
| ROTINGER | RT20164, RT20164T5 |
| sbs | 1815313650, 1815203650 |
| STARLINE | PB20164, PB20164C |
| SWAG | 40923545 |
| TEMPLIN | 0311024275, 0311024270 |
| TEXTAR | 98200118401, 92118400, 92118403, 98200118401PRO, 92118405 |
| TRUSTING | DF975 |
| TRW | DF4284 |
| VAICO | V4080050, V4080002 |
| VALEO | 186882 |
| VEMA | 98765 |
| VILLAR | 6281908 |
| WOKING | D668610 |
| ZIMMERMANN | 430149620, 430149652, 430.1496.00 |
Vehicle fitment / ATE 24.0120-0173.1 (24012001731) Brake Disc compatibility
This product fits the following models: FIAT CROMA, OPEL SIGNUM, OPEL VECTRA C, OPEL VECTRA C GTS, SAAB 9-3, SAAB 9-3X, VAUXHALL SIGNUM, VAUXHALL VECTRAII, etc. See all vehicles this product (ATE 24.0120-0173.1 (24012001731)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| FIAT | CROMA 194 | 1.9 D Multijet 2.4 D Multijet | 2005/06 - | 939A2.000 150 hp 110 kW 1.9 L Diesel 939A8.000 136 hp 100 kW 1.9 L Diesel 939A3.000 200 hp 147 kW 2.4 L Diesel | Front wheel | Estate / Turnier / Vario / Wagon |
| OPEL | SIGNUM | 1.8 1.9 CDTI 2.0 DTI 2.0 Turbo 2.2 direct 2.2 DTI 2.2 DTI 16V 2.8 V6 Turbo 3.0 V6 CDTI 3.2 V6 | 2003/05 - | Y20DTH 100 hp 74 kW 2 L Diesel Y22DTR 117 hp 86 kW 2.2 L Diesel Y22DTR 125 hp 92 kW 2.2 L Diesel Y30DT 177 hp 130 kW 3 L Diesel Z30DT 184 hp 135 kW 3 L Diesel Z18XE 122 hp 90 kW 1.8 L Petrol Z18XER 140 hp 103 kW 1.8 L Petrol Z19DT 100 hp 74 kW 1.9 L Diesel Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z20NET 175 hp 129 kW 2 L Petrol Z22YH 155 hp 114 kW 2.2 L Petrol Z28NEL 230 hp 169 kW 2.8 L Petrol Z28NET 250 hp 184 kW 2.8 L Petrol Z32SE 211 hp 155 kW 3.2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| OPEL | VECTRA C | 1.6 1.6 16V 1.8 1.8 16V 1.9 CDTI 2.0 16V Turbo 2.0 DTI 2.0 DTI 16V 2.0 Turbo 2.2 16V 2.2 direct 2.2 DTI 2.2 DTI 16V 2.8 V6 Turbo 2.8 V6 Turbo OPC 3.0 CDTi 3.0 CDTI 3.0 V6 CDTI 3.2 V6 | 2002/04 - | Y20DTH 100 hp 74 kW 2 L Diesel Y20DTH 101 hp 74 kW 2 L Diesel Y22DTR 117 hp 86 kW 2.2 L Diesel Y22DTR 125 hp 92 kW 2.2 L Diesel Y30DT 177 hp 130 kW 3 L Diesel Y30DT 177 hp 130 kW 3 L Diesel Z30DT 184 hp 135 kW 3 L Diesel Z16XE 100 hp 74 kW 1.6 L Petrol Z16XEP 105 hp 77 kW 1.6 L Petrol Z18XE 122 hp 90 kW 1.8 L Petrol Z18XE 122 hp 90 kW 1.8 L Petrol Z18XER 140 hp 103 kW 1.8 L Petrol Z18XEL 110 hp 81 kW 1.8 L Petrol Z18XER 140 hp 103 kW 1.8 L Petrol Z19DT 100 hp 74 kW 1.9 L Diesel Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DTL 100 hp 74 kW 1.9 L Diesel Z20NET 175 hp 129 kW 2 L Petrol Z22SE 147 hp 108 kW 2.2 L Petrol Z22YH 155 hp 114 kW 2.2 L Petrol Z28NEL 230 hp 169 kW 2.8 L Petrol Z28NET 250 hp 184 kW 2.8 L Petrol Z28NET 255 hp 188 kW 2.8 L Petrol Z28NEL 230 hp 169 kW 2.8 L Petrol Z28NET 250 hp 184 kW 2.8 L Petrol Z28NET 255 hp 188 kW 2.8 L Petrol Z28NET 280 hp 206 kW 2.8 L Petrol Z28NET 280 hp 206 kW 2.8 L Petrol Z30DT 184 hp 135 kW 3 L Diesel Z32SE 211 hp 155 kW 3.2 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| OPEL | VECTRA C GTS | 1.6 1.8 1.8 16V 1.9 CDTI 2.0 16V Turbo 2.0 DTI 16V 2.2 16V 2.2 direct 2.2 DTI 16V 2.8 V6 Turbo 3.0 CDTi 3.0 CDTI 3.2 V6 | 2002/08 - | Y20DTH 101 hp 74 kW 2 L Diesel Y22DTR 117 hp 86 kW 2.2 L Diesel Y22DTR 125 hp 92 kW 2.2 L Diesel Y30DT 177 hp 130 kW 3 L Diesel Z16XE 100 hp 74 kW 1.6 L Petrol Z16XEP 105 hp 77 kW 1.6 L Petrol Z18XE 122 hp 90 kW 1.8 L Petrol Z18XEL 110 hp 81 kW 1.8 L Petrol Z18XER 140 hp 103 kW 1.8 L Petrol Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DTL 100 hp 74 kW 1.9 L Diesel Z20NET 175 hp 129 kW 2 L Petrol Z22SE 147 hp 108 kW 2.2 L Petrol Z22YH 155 hp 114 kW 2.2 L Petrol Z28NEL 230 hp 169 kW 2.8 L Petrol Z28NET 250 hp 184 kW 2.8 L Petrol Z28NET 255 hp 188 kW 2.8 L Petrol Z28NET 280 hp 206 kW 2.8 L Petrol Z30DT 184 hp 135 kW 3 L Diesel Z32SE 211 hp 155 kW 3.2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| SAAB | 9-3 YS3F | 1.8 i 1 8t 1.8t 2.0 1 8t BioPower 1.9 TiD 1.9 TTiD 2.0 t 2.0 t Bio Power 2.0 t BioPower 2.0 t Bio Power XWD 2.0 t BioPower XWD 2.0 Turbo XWD 2.0 t XWD 2.2 TiD 2.8 Turbo V6 2.8 Turbo V6 XWD | 2002/09 - | A19DTR 130 hp 96 kW 1.9 L Diesel A19DTR 160 hp 118 kW 1.9 L Diesel A19DTR 180 hp 132 kW 1.9 L Diesel Z19DTR 180 hp 132 kW 1.9 L Diesel A19DTR 130 hp 96 kW 1.9 L Diesel A19DTR 160 hp 118 kW 1.9 L Diesel Z19DTR 180 hp 132 kW 1.9 L Diesel A20NFT 220 hp 162 kW 2 L Petrol B207E 150 hp 110 kW 2 L Petrol B207G 163 hp 120 kW 2 L Petrol B207L 175 hp 129 kW 2 L Petrol B207M 200 hp 147 kW 2 L Petrol B207R 209 hp 154 kW 2 L Petrol B207R 241 hp 177 kW 2 L Petrol A20NFT 220 hp 162 kW 2 L Petrol B207E 150 hp 110 kW 2 L Petrol B207H 163 hp 120 kW 2 L Petrol B207L 175 hp 129 kW 2 L Petrol B207R 197 hp 145 kW 2 L Petrol A20NFT 220 hp 162 kW 2 L Petrol B207G 163 hp 120 kW 2 L Petrol B207L 175 hp 129 kW 2 L Petrol B207R 210 hp 154 kW 2 L Petrol A20NFT 220 hp 162 kW 2 L Petrol B207G 163 hp 120 kW 2 L Petrol B207L 175 hp 129 kW 2 L Petrol B207R 210 hp 154 kW 2 L Petrol B207R 241 hp 177 kW 2 L Petrol A20NFT 220 hp 162 kW 2 L Petrol B207G 163 hp 120 kW 2 L Petrol B207R 209 hp 154 kW 2 L Petrol B207R 241 hp 177 kW 2 L Petrol A20NFT 220 hp 162 kW 2 L Petrol B207H 163 hp 120 kW 2 L Petrol A20NFT 220 hp 162 kW 2 L Petrol B207H 163 hp 120 kW 2 L Petrol B207L 175 hp 129 kW 2 L Petrol B207M 200 hp 147 kW 2 L Petrol B207E 150 hp 110 kW 2 L Petrol B207E 150 hp 110 kW 2 L Petrol B207L 175 hp 129 kW 2 L Petrol B207H 163 hp 120 kW 2 L Petrol B207L 175 hp 129 kW 2 L Petrol B207R 197 hp 145 kW 2 L Petrol B207M 200 hp 147 kW 2 L Petrol B207R 209 hp 154 kW 2 L Petrol B207R 210 hp 154 kW 2 L Petrol B284L 256 hp 188 kW 2.8 L Petrol B284L 276 hp 203 kW 2.8 L Petrol LP9 230 hp 169 kW 2.8 L Petrol LP9 250 hp 184 kW 2.8 L Petrol B284L 256 hp 188 kW 2.8 L Petrol B284R 276 hp 203 kW 2.8 L Petrol B284R 280 hp 206 kW 2.8 L Petrol LP9 230 hp 169 kW 2.8 L Petrol LP9 250 hp 184 kW 2.8 L Petrol B284L 256 hp 188 kW 2.8 L Petrol B284R 276 hp 203 kW 2.8 L Petrol LP9 230 hp 169 kW 2.8 L Petrol LP9 250 hp 184 kW 2.8 L Petrol B284R 280 hp 206 kW 2.8 L Petrol D223L 125 hp 92 kW 2.2 L Diesel Z18XE 122 hp 90 kW 1.8 L Petrol Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel | AWD / 4WD Front wheel | Convertible / cabrio Estate / Turnier / Vario / Wagon Sedan / Saloon |
| SAAB | 9-3X | 1.9 TTiD 2.0 t BioPower XWD 2.0 t XWD | 2009/02 - | A19DTR 180 hp 132 kW 1.9 L Diesel Z19DTR 180 hp 132 kW 1.9 L Diesel A20NFT 220 hp 162 kW 2 L Petrol B207R 209 hp 154 kW 2 L Petrol B207R 209 hp 154 kW 2 L Petrol | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon |
| VAUXHALL | SIGNUM | 1.8 1.9 CDTI 1.9 CDTI 16V 1.9 Turbo 2.0 DTI 2.0 i Turbo 2.2 DTI 2.2 i 2.8 V6 Turbo 3.0 CDTi 3.0 V6 CDTI 3.2 V6 | 2003/03 - 2008/10 | Y20DTH 100 hp 74 kW 2 L Diesel Y22DTR 125 hp 92 kW 2.2 L Diesel Y30DT 177 hp 130 kW 3 L Diesel Z18XE 122 hp 90 kW 1.8 L Petrol Z18XER 140 hp 103 kW 1.8 L Petrol Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z19DTL 101 hp 74 kW 1.9 L Diesel Z20NET 175 hp 129 kW 2 L Petrol Z22YH 155 hp 114 kW 2.2 L Petrol Z28NEL 230 hp 169 kW 2.8 L Petrol Z28NET 250 hp 184 kW 2.8 L Petrol Z30DT 184 hp 135 kW 3 L Diesel Z32SE 211 hp 155 kW 3.2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| VAUXHALL | VECTRAII C C GTS C | 1.8 1.8 16V 1.8 16V Dualfuel 1.9 CDTI 1.9 CDTI 16V 2.0 16V Turbo 2.0 DTI 16V 2.2 16V 2.2 direct 2.2 DTI 16V 2.8 V6 Turbo 3.0 CDTi 3.0 V6 CDTI 3.2 V6 | 2000/01 - | Y20DTH 101 hp 74 kW 2 L Diesel Y22DTR 125 hp 92 kW 2.2 L Diesel Y30DT 177 hp 130 kW 3 L Diesel Z18XE 122 hp 90 kW 1.8 L Petrol Z18XER 140 hp 103 kW 1.8 L Petrol Z19DT 120 hp 88 kW 1.9 L Diesel Z19DTH 150 hp 110 kW 1.9 L Diesel Z20NET 175 hp 129 kW 2 L Petrol Z22SE 147 hp 108 kW 2.2 L Petrol Z22YH 155 hp 114 kW 2.2 L Petrol Z28NEL 230 hp 169 kW 2.8 L Petrol Z28NET 250 hp 184 kW 2.8 L Petrol Z28NET 255 hp 188 kW 2.8 L Petrol Z28NET 280 hp 206 kW 2.8 L Petrol Z28NEL 230 hp 169 kW 2.8 L Petrol Z28NET 255 hp 188 kW 2.8 L Petrol Z28NET 280 hp 206 kW 2.8 L Petrol Z30DT 184 hp 135 kW 3 L Diesel Z32SE 211 hp 155 kW 3.2 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch Sedan / Saloon |
