ATE 24.0120-0174.1 (24012001741) Brake Disc
ATE 24.0120-0174.1 (24012001741) Brake Disc
by ATEManufacturer Part Number: 24.0120-0174.1 (24012001741)
Alternative ATE part number(s): 420174

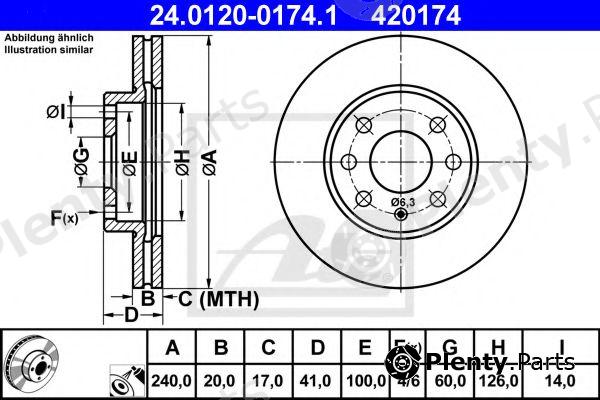

- Diameter [mm]: 240
- Brake Disc Thickness [mm]: 20
- Minimum thickness [mm]: 17
- Brake Disc Type: Vented
- Surface: Coated
- Number of Holes: 4
- No. of holes 2: 6
- Height [mm]: 41
- Centering Diameter [mm]: 60
- Inner diameter [mm]: 126
- Bolt Hole Circle Ø [mm]: 100
- Bore Ø [mm]: 14
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0120-0174.1 (24012001741) Alternative ATE part number(s): 420174 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for OPEL vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| OPEL | 569021, 9195985 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0120-0174.1 (24012001741) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, BSG, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, DITAS, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FI.BA, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17362 |
| ALANKO | 305343, 304077 |
| AP | 24221X, 24221, X24221, 24221V |
| BARUM | BAR20174 |
| BENDIX | 562290B, 562290BC |
| BORG & BECK | BBD4252 |
| BOSCH | 0986479B84, 0986479960, 0986479190 |
| Brake ENGINEERING | DI956125 |
| BRECO | BS8405, BV8405 |
| BREMBO | 09.8635.10, 09.3090.10, 09863511, 0986351X, 09.8635.75 |
| BREMSI | DBB130V |
| BSF | 11390V |
| BSG | BSG65210001, BSG65210011 |
| CAR | 142.383 |
| CASALS | 55442 |
| CIFAM | 800-569 |
| DELPHI | BG3568, BG2278 |
| DENCKERMANN | B130219 |
| DITAS | DFD1033 |
| Dr!ve+ | DP1010110350 |
| E.T.F. | 199021 |
| EUROBRAKE | 5815203640 |
| FARCOM | 230470, 230981, 231234 |
| FEBI BILSTEIN | 19508 |
| FERODO | DDF1130, DDF11301, DDF1130C1, DDF1130C |
| FI.BA | FBD149 |
| FOMAR | FO2616 |
| fri.tech. | BD0953 |
| FTE | BS5314B, BS5314 |
| GALFER | B1G22001741 |
| GIRLING | 6042361 |
| GRAF | DF29569 |
| HELLA | 8DD355108-331, 8DD355108-321 |
| HELLA PAGID | 8DD355108-331, 8DD355108-321 |
| ICER | 78BD90212 |
| JP GROUP | 1263100800, 1263100809 |
| JURID | 562290J, 562290JC |
| KAGER | 371246 |
| KAMOKA | 1032260 |
| KAWE | 666510 |
| KEY PARTS | KBD4252 |
| KRAFT | 6041680 |
| LPR | O1591V |
| MAGNETI MARELLI | 361302040264, 360704006500, 431602040130, 361302040184, 360406037303, 360406037300, 353613441240, 353613406240, 360406039300 |
| MAPCO | 257022, 25702 |
| MAXGEAR | 190805MAX, 190805 |
| METELLI | 23-0569 |
| METZGER | 6110054, 24221, 666510 |
| MEYLE | 6155216020 |
| MGA | D1403 |
| MINTEX | MDC1454, MDK0223 |
| NATIONAL | NBD1107 |
| NECTO | WN1149 |
| NK | 313640, 203640 |
| OPEN PARTS | BDR198320, BDA198320, BDRS198325 |
| OPTIMAL | BS7440 |
| PAGID | 50363PRO, 50363 |
| PATRON | PBD4236 |
| PEX | 14.0719 |
| PILENGA | V060, V762 |
| PROTECHNIC | PRD2515 |
| QUINTON HAZELL | BSF3205, BDC5314 |
| R BRAKE | 78RBD29021 |
| REMSA | 666510 |
| ROADHOUSE | 666510 |
| ROTINGER | RT20065, RT20065T5 |
| ROULUNDS BRAKING | D2616 |
| sbs | 1815313640, 1815203640 |
| STARLINE | PB20065C, PB20065 |
| SWAG | 40919508 |
| TEMPLIN | 0311024170, 0311024175 |
| TEXTAR | 92111403, 89005900, 98200111401PRO, 98200111401, 92111400 |
| TRUCKTEC AUTOMOTIVE | 0635004 |
| TRUSTING | DF953 |
| TRW | DF4236, DF4236BP |
| VAICO | V4080042 |
| VALEO | 186790 |
| VEMA | 98456 |
| VILLAR | 6280850 |
| WAGNER LOCKHEED | WGR11301 |
| WOKING | D666510 |
| ZIMMERMANN | 430.1494.50, 430.1494.00, 430149452, 430.1494.20 |
Vehicle fitment / ATE 24.0120-0174.1 (24012001741) Brake Disc compatibility
This product fits the following models: OPEL CORSA C, OPEL VITA C, VAUXHALL CORSAII, etc. See all vehicles this product (ATE 24.0120-0174.1 (24012001741)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| OPEL | CORSA C F08 F68 F08 W5L | 1.0 1.2 1.2 16V 1.2 Twinport 1.7 DI 1.7 DI 16V | 2000/09 - | Y17DTL 65 hp 48 kW 1.7 L Diesel Z10XE 58 hp 43 kW 1 L Petrol Z10XEP 60 hp 44 kW 1 L Petrol Z12XE 75 hp 55 kW 1.2 L Petrol Z12XEP 80 hp 59 kW 1.2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch LCV / Van / Cargo |
| OPEL | VITA C F08 F68 | 1.0 1.2 1.2 Twinport 1.7 DI | 2000/09 - 2009/12 | Y17DTL 65 hp 48 kW 1.7 L Diesel Z10XE 58 hp 43 kW 1 L Petrol Z10XEP 60 hp 44 kW 1 L Petrol Z12XE 75 hp 55 kW 1.2 L Petrol Z12XEP 80 hp 59 kW 1.2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch |
| VAUXHALL | CORSAII C C W5L F08 | 1.0 12V 1.2 16V 1.2 16V Dualfuel 1.2 Twinport 1.7 DI 16V | 2000/08 - 2006/10 | Y17DTL 65 hp 48 kW 1.7 L Diesel Z10XE 58 hp 43 kW 1 L Petrol Z10XEP 60 hp 44 kW 1 L Petrol Z12XE 75 hp 55 kW 1.2 L Petrol Z12XEP 80 hp 59 kW 1.2 L Petrol | Front wheel | Hatchback / Sportback / Sport hatch LCV / Van / Cargo |
