ATE 24.0120-0206.1 (24012002061) Brake Disc

ATE part 24.0120-0206.1 (24012002061) Brake Disc

ATE 24.0120-0206.1 (24012002061) Brake Disc

by ATE

Manufacturer Part Number: 24.0120-0206.1 (24012002061)
Alternative ATE part number(s): 420206

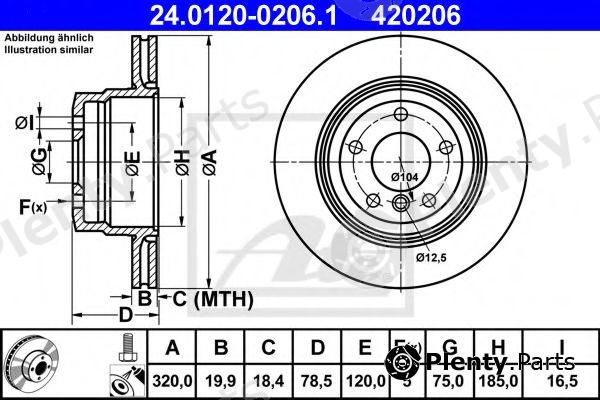

Сharacteristics:
  • Diameter [mm]: 320
  • Brake Disc Thickness [mm]: 19,9
  • Minimum thickness [mm]: 18,4
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 78,5
  • Centering Diameter [mm]: 75
  • Inner diameter [mm]: 185
  • Bore Ø [mm]: 16,5
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0120-0206.1 (24012002061) Alternative ATE part number(s): 420206
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for BMW vehicles

OE manufacturerOEM reference numbers
BMW34216868940, 34216771970, 34216793247

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0120-0206.1 (24012002061) Brake Disc offered by A.B.S., ALANKO, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GIRLING, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SWAG, TEMPLIN, TEXTAR, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17870
ALANKO303393
BENDIX562521BC
BLUE PRINTADB114304
BORG & BECKBBD4726
BOSCH0986479442
Brake ENGINEERINGDI956593
BRECOBV8729
BREMBO09.9925.11
BSF11743V
CAR142.1465
CIFAM8001025C
DELPHIBG4168
DENCKERMANNB130494
E.T.F.192576
FEBI BILSTEIN36386
FERODODDF1715C-1, DDF1715C
FOMARFO4194
fri.tech.BD1398
FTEBS7244HB, BS7244B, BS7244
GIRLING6048545
G.U.DGDB120206
HANS PRIES502030
HELLA8DD355122071, 8DD355114002, 8DD355114001
HELLA PAGID8DD355122071, 8DD355114002, 8DD355114-001
ICER78BD19702
JP GROUP1463202200
JURATEKBMW197
JURID562521JC
KAGER370923
KAMOKA103216
KAWE6128710
LPRB2054V
MAGNETI MARELLI360406068901
METELLI231025C
METZGER6110589, 25120V
MEYLE3155230004/PD
MGAD1714
MINTEXMDC2186
NIBKRN1593
OPEN PARTSBDR246520
OPTIMALBS8278C, BS8278
PAGID54611PRO, 54611
PATRONPBD4854
PILENGAV717
PROTECHNICPRD6191
QUINTON HAZELLBDC5810
R BRAKE78RBD21970
REMSA6128710
ROADHOUSE6128710
ROTINGERRT21040T5, RT21040
SWAG20936386
TEMPLIN0311012275, 0311012270
TEXTAR92161103, 92161105
TRUCKTEC AUTOMOTIVE0834147
TRUSTINGDF1398
TRWDF4854S
VAICOV2080094
VALEO197179, 297179
WOKINGD6128710
ZIMMERMANN150.3450.50, 150345052, 150.3450.20

Vehicle fitment / ATE 24.0120-0206.1 (24012002061) Brake Disc compatibility

This product fits the following models: BMW X5, BMW X6, etc. See all vehicles this product (ATE 24.0120-0206.1 (24012002061)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
BMWX5
E70
F15
F85
3.0 d
3.0 si
sDrive 25 d
xDrive 25 d
xDrive 30 d
xDrive 30 i
xDrive 35 d
xDrive 35 i
xDrive 40 d
xDrive 40e
2007/02 - B47D20B 231 hp 170 kW 2 L Diesel
N47D20D 211 hp 155 kW 2 L Diesel
N47D20D 218 hp 160 kW 2 L Diesel
B47D20B 231 hp 170 kW 2 L Diesel
N47D20D 211 hp 155 kW 2 L Diesel
N47D20D 218 hp 160 kW 2 L Diesel
N57D30A 218 hp 160 kW 3 L Diesel
M57D30(306D3) 211 hp 155 kW 3 L Diesel
M57D30(306D3) 235 hp 173 kW 3 L Diesel
M57D30(306D5) 286 hp 210 kW 3 L Diesel
N20B20A 211 hp 155 kW 2 L Hybrid
N20B20A 245 hp 180 kW 2 L Hybrid
N20B20A 279 hp 205 kW 2 L Hybrid
N20B20A 313 hp 230 kW 2 L Hybrid
N52B30A 272 hp 200 kW 3 L Petrol
N52B30A 272 hp 200 kW 3 L Petrol
N55B30A 306 hp 225 kW 3 L Petrol
N55B30A 306 hp 225 kW 3 L Petrol
N55B30A 320 hp 235 kW 3 L Petrol
N57D30A 211 hp 155 kW 3 L Diesel
N57D30A 235 hp 173 kW 3 L Diesel
N57D30A 245 hp 180 kW 3 L Diesel
N57D30A 249 hp 183 kW 3 L Diesel
N57D30A 258 hp 190 kW 3 L Diesel
N57D30A 277 hp 204 kW 3 L Diesel
N57D30A 258 hp 190 kW 3 L Diesel
N57D30B 306 hp 225 kW 3 L Diesel
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
BMWX6
E71
E72
F16
F86
30 d
xDrive 30 d
xDrive 35 d
xDrive 35 i
xDrive 40 d
xDrive 40 i
2008/05 - M57D30(306D3) 235 hp 173 kW 3 L Diesel
M57D30(306D5) 286 hp 210 kW 3 L Diesel
N54B30A 306 hp 225 kW 3 L Petrol
N54B30A 326 hp 240 kW 3 L Petrol
N55B30A 306 hp 225 kW 3 L Petrol
N55B30A 320 hp 235 kW 3 L Petrol
N55B30A 320 hp 235 kW 3 L Petrol
N57D30A 211 hp 155 kW 3 L Diesel
N57D30A 235 hp 173 kW 3 L Diesel
N57D30A 245 hp 180 kW 3 L Diesel
N57D30A 211 hp 155 kW 3 L Diesel
N57D30A 258 hp 190 kW 3 L Diesel
N57D30A 277 hp 204 kW 3 L Diesel
N57D30B 306 hp 225 kW 3 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
