ATE 24.0120-0210.1 (24012002101) Brake Disc

ATE part 24.0120-0210.1 (24012002101) Brake Disc

ATE 24.0120-0210.1 (24012002101) Brake Disc

by ATE

Manufacturer Part Number: 24.0120-0210.1 (24012002101)
Alternative ATE part number(s): 420210

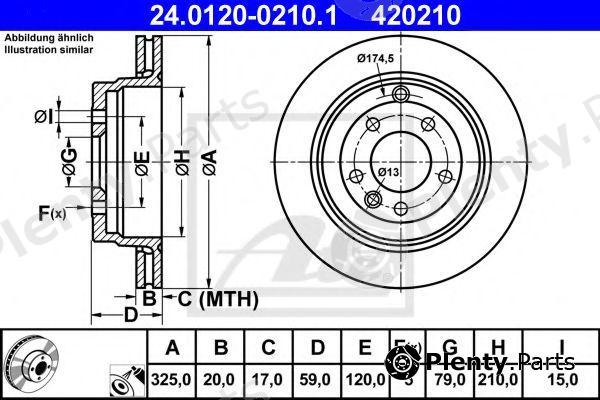

Сharacteristics:
  • Diameter [mm]: 325
  • Brake Disc Thickness [mm]: 20
  • Minimum thickness [mm]: 17
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 59
  • Centering Diameter [mm]: 79
  • Inner diameter [mm]: 210
  • Bore Ø [mm]: 15
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0120-0210.1 (24012002101) Alternative ATE part number(s): 420210
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for LAND ROVER vehicles

OE manufacturerOEM reference numbers
LAND ROVERSDB000634, SDB000635, SDB000636

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0120-0210.1 (24012002101) Brake Disc offered by A.B.S., ALANKO, AP, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSF, CIFAM, DELPHI, Dr!ve+, FERODO, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, ICER, KAGER, KAWE, LPR, MAGNETI MARELLI, METELLI, MEYLE, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, TEMPLIN, TEXTAR, TRUSTING, TRW, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17665
ALANKO305626, 304580
AP24987V, 24987
BLUE PRINTADJ134311
BORG & BECKBBD4532
BOSCH0986479375
Brake ENGINEERINGDI956428
BRECOBV8606, BS8606
BREMBO09.8874.31, 09.8874.30
BSF11798V
CIFAM8001019C
DELPHIBG4020, BG4020C
Dr!ve+DP1010110462
FERODODDF1431, DDF1431-1
FOMARFO4180
fri.tech.BD1122
FTEBS7114, BS7114B
GIRLING6047942
HELLA8DD355118-771, 8DD355118772, 8DD355112841
HELLA PAGID8DD355118-771, 8DD355118772, 8DD355112-841
ICER78BD73612
KAGER371276
KAWE699510
LPRA4008V
MAGNETI MARELLI360406054800
METELLI231019C
MEYLE53155230001PD
MGAD1651
MINTEXMDC1852
NK204028
OPEN PARTSBDRS225625, BDR225620
OPTIMALBS-7734
PAGID54476
PATRONPBD4794
PILENGAV441
PROTECHNICPRD6166
R BRAKE78RBD27361
REMSA699510
ROADHOUSE699510
ROTINGERRT20378T5, RT20378
sbs1815204028
TEMPLIN0311018815, 0311018810
TEXTAR92147605, 98200147601, 92147600, 92147603
TRUSTINGDF1122
TRWDF4794
VALEO197156
VILLAR6281856
WOKINGD699510
ZIMMERMANN450.5209.20, 450520952

Vehicle fitment / ATE 24.0120-0210.1 (24012002101) Brake Disc compatibility

This product fits the following models: LAND ROVER DISCOVERY III, LAND ROVER DISCOVERY IV, LAND ROVER LR3 III, LAND ROVER LR4 IV, LAND ROVER RANGE ROVER, etc. See all vehicles this product (ATE 24.0120-0210.1 (24012002101)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
LAND ROVERDISCOVERY III
LA
TAA
2.7 TD 4x4
4.0 4x4
4.0 V6 4x4
4.4 4x4
2004/07 - 2009/09218 hp 160 kW 4 L Petrol
406PN 219 hp 161 kW 4 L Petrol
276DT 190 hp 140 kW 2.7 L Diesel
406PN 218 hp 160 kW 4 L Petrol
448PN 299 hp 220 kW 4.4 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
LAND ROVERDISCOVERY IV
LA
2.7 TD 4x4
2009/09 - 276DT 190 hp 140 kW 2.7 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
LAND ROVERLR3 III
LA
TAA
2.7 TD 4x4
4.0 4x4
4.0 V6 4x4
4.4 4x4
2004/07 - 2009/09218 hp 160 kW 4 L Petrol
406PN 219 hp 161 kW 4 L Petrol
276DT 190 hp 140 kW 2.7 L Diesel
406PN 218 hp 160 kW 4 L Petrol
448PN 299 hp 220 kW 4.4 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
LAND ROVERLR4 IV
LA
2.7 TD 4x4
2009/09 - 276DT 190 hp 140 kW 2.7 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
LAND ROVERRANGE ROVER
LS
2.7 D 4x4
2005/02 - 2013/03276DT 190 hp 140 kW 2.7 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
