ATE 24.0122-0175.1 (24012201751) Brake Disc

ATE part 24.0122-0175.1 (24012201751) Brake Disc

ATE 24.0122-0175.1 (24012201751) Brake Disc

by ATE

Manufacturer Part Number: 24.0122-0175.1 (24012201751)
Alternative ATE part number(s): 422175

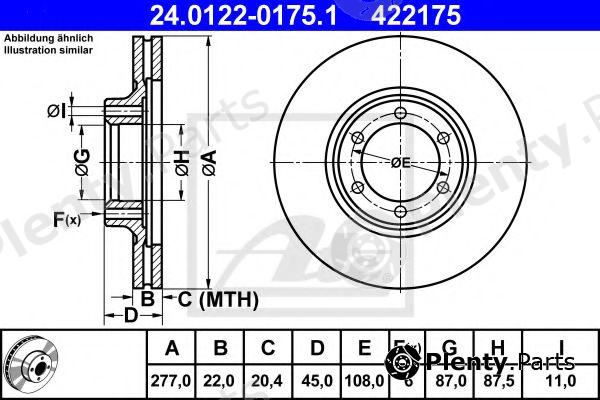

Сharacteristics:
  • Diameter [mm]: 277
  • Brake Disc Thickness [mm]: 22
  • Minimum thickness [mm]: 20,4
  • Brake Disc Type: Vented
  • Number of Holes: 6
  • Bolt Hole Circle Ø [mm]: 108
  • Height [mm]: 45
  • Centering Diameter [mm]: 87
  • Inner diameter [mm]: 87
  • Bore Ø [mm]: 11
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0122-0175.1 (24012201751) Alternative ATE part number(s): 422175
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for HYUNDAI / KIA (MOBIS), MITSUBISHI vehicles

OE manufacturerOEM reference numbers
HYUNDAI / KIA (MOBIS)MN116706
MITSUBISHIMN116706, MB407038, MB407039

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0122-0175.1 (24012201751) Brake Disc offered by A.B.S., ALANKO, AP, ASHIKA, ASHUKI, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, E.T.F., FERODO, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JAPANPARTS, JAPKO, JURID, KAGER, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, MEYLE, MGA, MINTEX, NECTO, NIBK, NIPPARTS, NK, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, VEMA, VILLAR, WOKING manufacturers

ManufacturerReference numbers
A.B.S.16074
ALANKO304591, 305591
AP24620
ASHIKA600H002, 6005520, 600HH20
ASHUKIC65401, C65220
BENDIX561765BC, 561765B
BLUE PRINTADC44318
BORG & BECKBBD5006
BOSCH0986478635
Brake ENGINEERINGDI952340
BRECOBS8217
BREMBO09.6817.10
BREMSIDBA460V
BSF11226V
CAR142.846
CIFAM8001620C
DELPHIBG2561
E.T.F.197038
FERODODDF460, DDF460-1
FOMARFO2643
fri.tech.BD0353
FTEBS7451
GIRLING6030311
HELLA8DD355120-001, 8DD355101161
HELLA PAGID8DD355120-001, 8DD355101161
HERTH+BUSS JAKOPARTSJ3305020
JAPANPARTSDIH02, DIH20, DI520
JAPKO60H20, 60H02, 60520
JURID561765J, 561765JC
KAGER370621
KAVO PARTSBR3231, BR5717, BR5717C
KAWE646410
LPRD1181V
MAGNETI MARELLI360406034000, 353613014240, 600000088640
MAPCO45544
METELLI231620C
MEYLE32155210000PD
MGAD1366
MINTEXMDC675, MDC929
NECTOWN951
NIBKRN1335
NIPPARTSJ3305020
NK203017, 313017
OPTIMALBS4640
PAGID52210, 52219
PEX14.0346
PILENGAV625
PROTECHNICPRD2373
QUINTON HAZELLBDC3916, 6464.10, BSF3916
REMSA6464.10
ROADHOUSE6464.10
ROTINGERRT2137, RT2137T5
ROULUNDS BRAKINGD2643
sbs1815313017, 1815203017
TEMPLIN0311019480
TEXTAR92074600, 92074603, 92035000, 98200074601
TRISCAN812042118
TRUSTINGDF353
TRWDF3031, DF7295
VALEO186653
VEMA98423
VILLAR6281406
WOKINGD646410

Vehicle fitment / ATE 24.0122-0175.1 (24012201751) Brake Disc compatibility

This product fits the following models: HYUNDAI GALLOPER II, MITSUBISHI COLTRODEO, MITSUBISHI DELICA, MITSUBISHI GALLOPER, MITSUBISHI L 200, MITSUBISHI L200 STORM, MITSUBISHI L 300, MITSUBISHI L 300 STAR, MITSUBISHI MIGHTY MAX, MITSUBISHI MONTERO  , MITSUBISHI PAJERO I, MITSUBISHI PAJERO I CANVAS TOP, MITSUBISHI PAJEROSHOGUN  , MITSUBISHI PAJEROSHOGUN I, MITSUBISHI PAJEROSHOGUNII, MITSUBISHI TRITON, etc. See all vehicles this product (ATE 24.0122-0175.1 (24012201751)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
HYUNDAIGALLOPER II
JK-01
2.5 TCi D
2.5 TD
2.5 TD intercooler
2.6 TD
3.0 V6
1998/08 - 2003/12D4BA 88 hp 65 kW 2.5 L Diesel
D4BB 86 hp 63 kW 2.6 L Diesel
D4BH 105 hp 77 kW 2.5 L Diesel
D4BH 99 hp 73 kW 2.5 L Diesel
G6AT 141 hp 104 kW 3 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHICOLTRODEO
K3T
K0T

K3T
K2T
K1T
K0T
2.0 4WD
2.5 D 4WD
2.5 TD 4WD
2.6 4WD

K24T
K32T
K22T
K33T
K34T
1986/11 - 1996/104D56(8V) 70 hp 51 kW 2.5 L Diesel
4D56(8V) 75 hp 55 kW 2.5 L Diesel
4D56T 87 hp 64 kW 2.5 L Diesel
4G54 114 hp 84 kW 2.6 L Petrol
4G63(SOHC8V) 102 hp 75 kW 2 L Petrol
4G63(SOHC8V) 86 hp 63 kW 2 L Petrol
G54B 103 hp 76 kW 2.6 L Petrol
AWD / 4WD
Pickup truck / Pickup
With flatbed/undercarriage
MITSUBISHIDELICA
P0W
P1W
P2W
2.0 4WD
2.4 4WD
2.5 TD 4WD
P13V
P23V
P23W
P03V
P13T
P13V
P23W
P03V
P13T
P24W
P24V
P25W
P25V
1986/11 - 4D56T 87 hp 64 kW 2.5 L Diesel
4G63(SOHC8V) 88 hp 65 kW 2 L Petrol
4G63(SOHC8V) 90 hp 66 kW 2 L Petrol
4G64(8V) 112 hp 82 kW 2.4 L Petrol
G64B 109 hp 80 kW 2.4 L Petrol
AWD / 4WD
Passenger Van / Wagon / Minibus
MITSUBISHIGALLOPER
JK-01
2.5 TD
2.5 TD intercooler
3.0 V6
1998/09 - 2003/12D4BF 88 hp 65 kW 2.5 L Diesel
D4BH 99 hp 73 kW 2.5 L Diesel
G6AT 141 hp 104 kW 3 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIL 200
K3T
K0T
K1T

K3T
K2T
K1T
K0T
2.0 4WD
2.5 D 4WD
2.5 TD 4WD
2.6 4WD

K24T
K32T
K22T
K33T
K34T
1986/11 - 1996/104D56(8V) 70 hp 51 kW 2.5 L Diesel
4D56(8V) 75 hp 55 kW 2.5 L Diesel
4D56T 87 hp 64 kW 2.5 L Diesel
4G54 114 hp 84 kW 2.6 L Petrol
4G63(SOHC8V) 102 hp 75 kW 2 L Petrol
4G63(SOHC8V) 86 hp 63 kW 2 L Petrol
G54B 103 hp 76 kW 2.6 L Petrol
AWD / 4WD
Pickup truck / Pickup
With flatbed/undercarriage
MITSUBISHIL200 STORM
K3T
K2T
K1T
K0T
2.0 4WD
2.5 D 4WD
2.5 TD 4WD
2.6 4WD

K24T
K32T
K22T
K33T
K34T
1986/11 - 1996/084D56(8V) 70 hp 51 kW 2.5 L Diesel
4D56T 87 hp 64 kW 2.5 L Diesel
4G63(SOHC8V) 102 hp 75 kW 2 L Petrol
4G63(SOHC8V) 86 hp 63 kW 2 L Petrol
G54B 103 hp 76 kW 2.6 L Petrol
AWD / 4WD
Pickup truck / Pickup
MITSUBISHIL 300
P0W
P1W
P2W
2.0 4WD
2.4 4WD
2.5 TD 4WD
P13V
P23V
P23W
P03V
P13T
P13V
P23W
P03V
P13T
P24W
P24V
P25W
P25V
1986/11 - 4D56T 87 hp 64 kW 2.5 L Diesel
4G63(SOHC8V) 88 hp 65 kW 2 L Petrol
4G63(SOHC8V) 90 hp 66 kW 2 L Petrol
4G64(8V) 112 hp 82 kW 2.4 L Petrol
G64B 109 hp 80 kW 2.4 L Petrol
AWD / 4WD
Passenger Van / Wagon / Minibus
MITSUBISHIL 300 STAR
P0W
P1W
P2W
SD
SE
SF
SG
S
2.0 4WD
2.4 4WD
2.5 TD 4WD
P13V
P23V
P23W
P03V
P13T
P13V
P23W
P03V
P13T
P24W
P24V
P25W
P25V
1986/11 - 4D56T 87 hp 64 kW 2.5 L Diesel
4G63(SOHC8V) 88 hp 65 kW 2 L Petrol
4G63(SOHC8V) 90 hp 66 kW 2 L Petrol
4G64(8V) 112 hp 82 kW 2.4 L Petrol
G64B 109 hp 80 kW 2.4 L Petrol
AWD / 4WD
Passenger Van / Wagon / Minibus
MITSUBISHIMIGHTY MAX
K3T
K2T
K1T
K0T
2.0 4WD
2.5 D 4WD
2.5 TD 4WD
2.6 4WD

K24T
K32T
K22T
K33T
K34T
1986/11 - 1996/084D56(8V) 70 hp 51 kW 2.5 L Diesel
4D56T 87 hp 64 kW 2.5 L Diesel
4G63(SOHC8V) 102 hp 75 kW 2 L Petrol
4G63(SOHC8V) 86 hp 63 kW 2 L Petrol
G54B 103 hp 76 kW 2.6 L Petrol
AWD / 4WD
Pickup truck / Pickup
MITSUBISHIMONTERO
L04G
L04G
L14G
2.5 TD
2.6
3.0 V6
L042G
L047G
L044G
L049G
L141G
L146G
1983/01 - 1991/124D56T 87 hp 64 kW 2.5 L Diesel
4D56T 95 hp 70 kW 2.5 L Diesel
4G54 103 hp 76 kW 2.6 L Petrol
6G72(SOHC12V) 141 hp 104 kW 3 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHIPAJERO I
L04G
L14G
L04G
L14G
NA
NB
NC
ND
NE
NF
NG
2.5 TD
3.0 V6
L044G
L049G
L141G
L146G
1988/11 - 1991/124D56T 87 hp 64 kW 2.5 L Diesel
6G72(SOHC12V) 141 hp 104 kW 3 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIPAJERO I CANVAS TOP
L04G
2.5 TD
2.6
L042G
L047G
L044G
L049G
1983/01 - 1990/114D56T 95 hp 70 kW 2.5 L Diesel
4G54 103 hp 76 kW 2.6 L Petrol
AWD / 4WD
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHIPAJEROSHOGUN
L04G
L14G
2.5 TD
3.0 V6
L044G
L049G
L141G
L146G
1988/11 - 1991/124D56T 87 hp 64 kW 2.5 L Diesel
6G72(SOHC12V) 141 hp 104 kW 3 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIPAJEROSHOGUN I
L04G
L04G
L14G
2.5 TD
2.6
3.0 V6
L042G
L047G
L044G
L049G
L141G
L146G
1983/01 - 1991/124D56T 87 hp 64 kW 2.5 L Diesel
4D56T 95 hp 70 kW 2.5 L Diesel
4G54 103 hp 76 kW 2.6 L Petrol
6G72(SOHC12V) 141 hp 104 kW 3 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHIPAJEROSHOGUNII
L04G
2.5 TD
2.6
L042G
L047G
L044G
L049G
1983/01 - 1990/114D56T 95 hp 70 kW 2.5 L Diesel
4G54 103 hp 76 kW 2.6 L Petrol
AWD / 4WD
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHITRITON
K3T
K0T
K1T
K3T
K2T
K1T
K0T
ME
MF
MG
MH
MJ
2.0 4WD
2.5 D 4WD
2.5 TD 4WD
2.6 4WD

K24T
K32T
K22T
K33T
K34T
1986/11 - 1996/104D56(8V) 70 hp 51 kW 2.5 L Diesel
4D56(8V) 75 hp 55 kW 2.5 L Diesel
4D56T 87 hp 64 kW 2.5 L Diesel
4G54 114 hp 84 kW 2.6 L Petrol
4G63(SOHC8V) 102 hp 75 kW 2 L Petrol
4G63(SOHC8V) 86 hp 63 kW 2 L Petrol
G54B 103 hp 76 kW 2.6 L Petrol
AWD / 4WD
Pickup truck / Pickup
With flatbed/undercarriage
