ATE 24.0122-0220.1 (24012202201) Brake Disc

ATE part 24.0122-0220.1 (24012202201) Brake Disc

ATE 24.0122-0220.1 (24012202201) Brake Disc

by ATE

Manufacturer Part Number: 24.0122-0220.1 (24012202201)
Alternative ATE part number(s): 422220

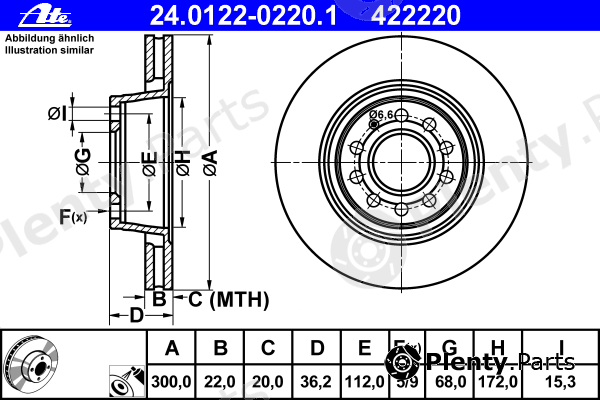

Сharacteristics:
  • Diameter [mm]: 300
  • Brake Disc Thickness [mm]: 22
  • Minimum thickness [mm]: 20
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • No. of holes 2: 9
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 36,2
  • Centering Diameter [mm]: 68
  • Inner diameter [mm]: 172
  • Bore Ø [mm]: 15,3
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0122-0220.1 (24012202201) Alternative ATE part number(s): 422220
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG8E0615601R, 8E0615601K

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0122-0220.1 (24012202201) Brake Disc offered by A.B.S., AP, BENDIX, BORG & BECK, Brake ENGINEERING, BRECO, BREMBO, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, FARCOM, FERODO, FREMAX, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, JP GROUP, JURID, KAWE, LPR, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, TEXTAR, TRUSTING, TRW, VAICO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17692
AP25198V, 25198
BENDIX562510BC
BORG & BECKBBD4548
Brake ENGINEERINGDI956603
BRECOBS8808, BV8808
BREMBO09.A814.10, 09.A814.11
BSF11572V
CAR142.1135
CIFAM8001179C
DELPHIBG3997
DENCKERMANNB130259
FARCOM230654, 231310
FERODODDF1889C1, DDF1889C
FREMAXBD6072
fri.tech.BD1092
FTEBS7698, BS7698B
GIRLING6060052
HELLA8DD355111832, 8DD355121941, 8DD355111-831, 8DD355111-821
HELLA PAGID8DD355111-831, 8DD355111-821, 8DD355111832, 8DD355121941
JP GROUP1163204409, 1163204400
JURID562510JC
KAWE6101210
LPRA1030V
MAGNETI MARELLI360406098100
METELLI231179C
METZGER6101210, 6110697
MEYLE1155231122/PD
MINTEXMDC1991
NK3147113, 2047113
OPEN PARTSBDR227120, BDRS227125
OPTIMALBS8054, BS8054C
PAGID54371PRO, 54371
REMSA6101210
ROADHOUSE6101210
ROTINGERRT20269T5, RT20269
SASIC6106040
sbs18153147113, 18152047113
TEXTAR98200137101, 92137100, 92137105, 92137103, 98200137101PRO
TRUSTINGDF1092
TRWDF6005
VAICOV1080108
WOKINGD6101210
ZIMMERMANN100.3316.52, 100.3316.20, 100.3316.00

Vehicle fitment / ATE 24.0122-0220.1 (24012202201) Brake Disc compatibility

This product fits the following models: AUDI A4, etc. See all vehicles this product (ATE 24.0122-0220.1 (24012202201)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
AUDIA4
8E2
B6
8E5
B6
8EC
B7
8ED
B7
8H7
B6
8HE
B7
S4 quattro
2003/03 - 2009/03BBK 344 hp 253 kW 4.2 L Petrol
BBK 344 hp 253 kW 4.2 L Petrol
BHF 344 hp 253 kW 4.2 L Petrol
AWD / 4WD
Convertible / cabrio
Estate / Turnier / Vario / Wagon
Sedan / Saloon
