ATE 24.0124-0127.1 (24012401271) Brake Disc
ATE 24.0124-0127.1 (24012401271) Brake Disc
by ATEManufacturer Part Number: 24.0124-0127.1 (24012401271)
Alternative ATE part number(s): 424127

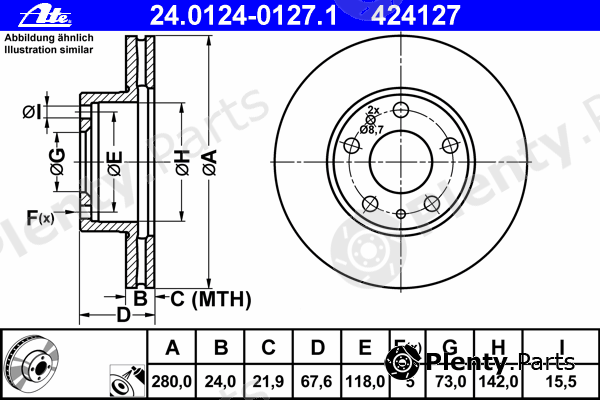

- Diameter [mm]: 280
- Brake Disc Thickness [mm]: 24
- Minimum thickness [mm]: 21,9
- Brake Disc Type: Vented
- Surface: Coated
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 118
- Height [mm]: 67,6
- Centering Diameter [mm]: 73
- Inner diameter [mm]: 142
- Bore Ø [mm]: 15,5
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0124-0127.1 (24012401271) Alternative ATE part number(s): 424127 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| CITROEN / PEUGEOT | 424926, 4246Y1, 424927, 1607872080, 4249H8, 4246L2, 4246X9, 4246L4, 424999, 4249K3 |
| FIAT / LANCIA / ALFA | 1300501080, 46806233, 51728377, 51848619, 51740244 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0124-0127.1 (24012401271) Brake Disc offered by A.B.S., AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, CAR, CASALS, CIFAM, DELPHI, DENCKERMANN, DITAS, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, FRIGAIR, fri.tech., FTE, GALFER, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KLAXCAR FRANCE, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, MENSAN, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 16291 |
| AP | 24813 |
| BARUM | BAR24127 |
| BENDIX | 561984B, 561984BC |
| BORG & BECK | BBD5094, BBD4801 |
| BOSCH | 0986479R98, 0986479312, 0986479B96, 0986479297, 0986479S70, 0986BB4094, 0986479B34, 0986478434 |
| Brake ENGINEERING | DI955505S |
| BRECK | BR323VA100 |
| BRECO | BS8529, BS8439, BS8165 |
| BREMBO | 09.5904.14, 09.9614.14, 09.8931.10, DP23015, 09.5904.10, 09893120, DP23025 |
| BREMSI | DBB170V, DBA767S |
| CAR | 142.173 |
| CASALS | 55406, 55407 |
| CIFAM | 800-340 |
| DELPHI | BG3841, BG2846 |
| DENCKERMANN | B130070 |
| DITAS | DFD1029 |
| Dr!ve+ | DP1010110543, DP1010110792 |
| E.T.F. | 194681 |
| EUROBRAKE | 5815209945 |
| FARCOM | 230769, 230083 |
| FEBI BILSTEIN | 10564 |
| FENOX | TB217039 |
| FERODO | DDF1170-1, DDF1170, DDF767C-1, DDF1170C, DDF767, DDF767C, DDF7671, DDF1170C-1 |
| FOMAR | FO2178 |
| FRIGAIR | DC03106 |
| fri.tech. | BD0834 |
| FTE | BS4361, BS4361B |
| GALFER | B1G22401271 |
| GIRLING | 6027211 |
| GRAF | DF29340 |
| HANS PRIES | 722454 |
| HELLA | 8DD355109-001, 8DD355108-991, 8DD355104-411, 8DD355104-401 |
| HELLA PAGID | 8DD355104-411, 8DD355104-401, 8DD355109-001, 8DD355108-991 |
| ICER | 78BD46812 |
| JP GROUP | 4163100909 |
| JURID | 561984J, 561984JC |
| KAGER | 370341 |
| KAMOKA | 1031534 |
| KAWE | 647610, 6135110 |
| KEY PARTS | KBD5094 |
| KLAXCAR FRANCE | 25039Z |
| KRAFT | 6045810 |
| LPR | F2171V |
| MAGNETI MARELLI | 353611535240, 353611525240, 361302040230, 360406023803, 431602040290, 360406023800, 360406022600, 360406022603 |
| MALÒ | 1110123, 1110193 |
| MAPCO | 15037 |
| MAXGEAR | 190798 |
| MENSAN | 230235 |
| METELLI | 23-0340 |
| METZGER | 25255, 6110473 |
| MEYLE | 2155210004 |
| MGA | D1140, D1734, D1407 |
| MINTEX | MDC839, MDC2154, MDC2686 |
| NATIONAL | NBD746 |
| NECTO | WN1193, WN777 |
| NK | 319945, 209945 |
| OPEN PARTS | BDA115120 |
| OPTIMAL | BS8380, BS4760 |
| PAGID | 50916PRO, 50916, 54166, 55751, 54166PRO |
| PATRON | PBD2721 |
| PEX | 14.0168 |
| PILENGA | V022, V039 |
| PROTECHNIC | PRD2339, PRD2121, PRD2541 |
| QUINTON HAZELL | BDC4361, BDC4399, 6476.10, BSF4361 |
| R BRAKE | 78RBD24681 |
| REMSA | 848601, 6135110, 6476.10 |
| ROADHOUSE | 6476.10, 6135110, 848601 |
| ROTINGER | RT2823T5, RT2823 |
| ROULUNDS BRAKING | D2178 |
| SASIC | 2464L24J |
| sbs | 1815209945, 1815319945 |
| STARLINE | PB4000C, PB2823 |
| STELLOX | 60209945VSX |
| SWAG | 70910564 |
| TEMPLIN | 0311080240, 0311080245, 031102600020 |
| TEXTAR | 98200073801, 92275103, 98200116601, 92073803, 92116603, 92116600, 92073800 |
| TRISCAN | 812010140, 812010140C |
| TRUSTING | DF834 |
| TRW | DF2721, RCDI01870 |
| VAICO | V4280017 |
| VALEO | 186418, 197043, DF094 |
| VEMA | 98225 |
| VILLAR | 6280291, 6281914 |
| WAGNER LOCKHEED | WGR11701, WGR07671 |
| WOKING | D647610, D6135110, 8586301 |
| ZIMMERMANN | 180.3013.00, 180.3013.50, 180301352, 180301320 |
Vehicle fitment / ATE 24.0124-0127.1 (24012401271) Brake Disc compatibility
This product fits the following models: CITROËN JUMPER, CITROËN RELAY, CITROËN XSARA, FIAT DUCATO, PEUGEOT BOXER, PEUGEOT MANAGER, etc. See all vehicles this product (ATE 24.0124-0127.1 (24012401271)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| CITROËN | JUMPER 230 230L 230P 244 244 Z | 1.9 D 1.9 TD 1.9 TD 4x4 2.0 2.0 4x4 2.0 bivalent 2.0 BlueHDi 110 2.0 BlueHDi 130 2.0 BlueHDi 160 2.0 HDi 2.0 HDI 2.2 HDi 2.2 HDi 100 2.2 HDi 110 2.2 HDi 120 2.2 HDi 130 2.2 HDi 150 2.5 D 2.5 D 4x4 2.5 DT 4x4 2.5 TD 2.5 TDi 2.5 TDi 4x4 2.8 D 2.8 HDi 2.8 HDi 4x4 3.0 HDi 145 3.0 HDi 155 3.0 HDi 160 3.0 HDi 180 | 1994/02 - | 110 hp 81 kW 2 L Diesel 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel 4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel 4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel 4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel 4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel 4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel 8140.43N 146 hp 107 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.63(F28D) 87 hp 64 kW 2.8 L Diesel AHN(DW10FUD) 130 hp 96 kW 2 L Diesel AHP(DW10FUC) 163 hp 120 kW 2 L Diesel D8C(XUD9UTF) 90 hp 66 kW 1.9 L Diesel D8C(XUD9UTF) 92 hp 68 kW 1.9 L Diesel D8C(XUD9UTF) 92 hp 68 kW 1.9 L Diesel D8C(XUD9UTF) 92 hp 68 kW 1.9 L Diesel DHX(XUD9TF/BTF) 90 hp 66 kW 1.9 L Diesel D9B(XUD9A/U) 69 hp 51 kW 1.9 L Diesel D9B(XUD9A/U) 69 hp 51 kW 1.9 L Diesel DJY(XUD9A) 68 hp 50 kW 1.9 L Diesel F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel F1CE3481N 146 hp 107 kW 3 L Diesel F28TDCR 128 hp 94 kW 2.8 L Diesel RFW(XU10J2U) 109 hp 80 kW 2 L Petrol RHV(DW10TD) 84 hp 62 kW 2 L Diesel RHV(DW10UTD) 84 hp 62 kW 2 L Diesel RHV(DW10UTD) 84 hp 62 kW 2 L Diesel T8A(DJ5T) 103 hp 76 kW 2.5 L Diesel T9A(DJ5) 86 hp 63 kW 2.5 L Diesel THX(DJ5TED) 107 hp 79 kW 2.5 L Diesel THZ(DJ5T) 103 hp 76 kW 2.5 L Diesel XU10J2 110 hp 81 kW 2 L Petrol | AWD / 4WD Front wheel Front wheel AWD / 4WD | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| CITROËN | RELAY 230 230L 230P 244 244 Z | 1.9 D 1.9 TD 1.9 TD 4x4 2.0 2.0 4x4 2.0 bivalent 2.0 BlueHDi 110 2.0 BlueHDi 130 2.0 BlueHDi 160 2.0 HDi 2.0 HDI 2.2 HDi 2.2 HDi 100 2.2 HDi 110 2.2 HDi 120 2.2 HDi 130 2.2 HDi 150 2.5 D 2.5 D 4x4 2.5 DT 4x4 2.5 TD 2.5 TDi 2.5 TDi 4x4 2.8 D 2.8 HDi 2.8 HDi 4x4 3.0 HDi 145 3.0 HDi 155 3.0 HDi 160 3.0 HDi 180 | 1994/02 - | 110 hp 81 kW 2 L Diesel 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel 4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel 4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel 4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel 4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel 4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel 8140.43N 146 hp 107 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.63(F28D) 87 hp 64 kW 2.8 L Diesel AHN(DW10FUD) 130 hp 96 kW 2 L Diesel AHP(DW10FUC) 163 hp 120 kW 2 L Diesel D8C(XUD9UTF) 90 hp 66 kW 1.9 L Diesel D8C(XUD9UTF) 92 hp 68 kW 1.9 L Diesel D8C(XUD9UTF) 92 hp 68 kW 1.9 L Diesel D8C(XUD9UTF) 92 hp 68 kW 1.9 L Diesel DHX(XUD9TF/BTF) 90 hp 66 kW 1.9 L Diesel D9B(XUD9A/U) 69 hp 51 kW 1.9 L Diesel D9B(XUD9A/U) 69 hp 51 kW 1.9 L Diesel DJY(XUD9A) 68 hp 50 kW 1.9 L Diesel F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel F1CE3481N 146 hp 107 kW 3 L Diesel F28TDCR 128 hp 94 kW 2.8 L Diesel RFW(XU10J2U) 109 hp 80 kW 2 L Petrol RHV(DW10TD) 84 hp 62 kW 2 L Diesel RHV(DW10UTD) 84 hp 62 kW 2 L Diesel RHV(DW10UTD) 84 hp 62 kW 2 L Diesel T8A(DJ5T) 103 hp 76 kW 2.5 L Diesel T9A(DJ5) 86 hp 63 kW 2.5 L Diesel THX(DJ5TED) 107 hp 79 kW 2.5 L Diesel THZ(DJ5T) 103 hp 76 kW 2.5 L Diesel XU10J2 110 hp 81 kW 2 L Petrol | AWD / 4WD Front wheel Front wheel AWD / 4WD | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| CITROËN | XSARA N2 | 1.4 i 1.5 D 1.6 i 1.8 D 1.9 D | 1997/10 - 2005/08 | A9A(XUD7) 58 hp 43 kW 1.8 L Diesel DJY(XUD9A) 68 hp 50 kW 1.9 L Diesel WJY(DW8B) 70 hp 51 kW 1.9 L Diesel WJZ(DW8) 70 hp 51 kW 1.9 L Diesel KFW(TU3JP) 75 hp 55 kW 1.4 L Petrol KFX(TU3JP) 75 hp 55 kW 1.4 L Petrol NFZ(TU5JP) 88 hp 65 kW 1.6 L Petrol VJZ(TUD5) 57 hp 42 kW 1.5 L Diesel | Front wheel | Estate / Turnier / Vario / Wagon |
| FIAT | DUCATO 230 230L 244 244 Z 250 290 290 | 100 Multijet 2 2 D 110 Multijet 2 3 D 115 Multijet 2 0 D 120 Multijet 2 3 D 120 Multijet 2 3 D 4x4 130 Multijet 2 3 D 140 Natural Power 150 Multijet 2 3 D 150 Multijet 3 0 D 160 Multijet 3 0 D 180 Multijet 3 0 D 1.9 D 1.9 D Combinato 1.9 TD 1.9 TD CAT 1.9 TD Combinato 1.9 TD Panorama/Combinato 2.0 2.0 4x4 2.0 Bipower 2.0 JTD 2.0 Panorama/Combinato 2.3 JTD 2.5 D 2.5 D 4x4 2.5 D Combinato 2.5 TD 2.5 TD 4x4 2.5 TDI 2.5 TDI 4x4 2.5 TDI Panorama/Combinato 2.8 D 2.8 D 4x4 2.8 iDTD 4x4 2.8 JTD 2.8 JTD 4x4 2.8 JTD Power 2.8 TD 4x4 2.8 TDI 2.8 TDI 4x4 | 1990/07 - | 230A2.000 69 hp 51 kW 1.9 L Diesel 230A2.000 69 hp 51 kW 1.9 L Diesel DJY 68 hp 50 kW 1.9 L Diesel 230A3.000 82 hp 60 kW 1.9 L Diesel 230A3.000 82 hp 60 kW 1.9 L Diesel DHX(XUD9TF/L) 90 hp 66 kW 1.9 L Diesel 230A4.000 80 hp 59 kW 1.9 L Diesel 250A1.000 116 hp 85 kW 2 L Diesel 250A2.000 116 hp 85 kW 2 L Diesel 4HV 100 hp 74 kW 2.2 L Diesel 8140.27 95 hp 70 kW 2.5 L Diesel 8140.43 122 hp 90 kW 2.8 L Diesel 8140.43N 145 hp 107 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.43N 146 hp 107 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.47 116 hp 85 kW 2.5 L Diesel 8140.47 116 hp 85 kW 2.5 L Diesel 8140.47R 109 hp 80 kW 2.5 L Diesel 8140.63 87 hp 64 kW 2.8 L Diesel 8140.67 84 hp 62 kW 2.5 L Diesel D9B 68 hp 50 kW 1.9 L Diesel D9B(XUD9A) 68 hp 50 kW 1.9 L Diesel DJY 68 hp 50 kW 1.9 L Diesel DHX(XUD9TF/L) 90 hp 66 kW 1.9 L Diesel F1AE0481C 110 hp 81 kW 2.3 L Diesel F1AE0481D 120 hp 88 kW 2.3 L Diesel F1AE0481D 120 hp 88 kW 2.3 L Diesel FPT 120 hp 88 kW 2.3 L Diesel F1AE0481N 131 hp 96 kW 2.3 L Diesel F1AE0481T 126 hp 93 kW 2.3 L Diesel F1AE3481D 131 hp 96 kW 2.3 L Diesel F1AGL411D 131 hp 96 kW 2.3 L Diesel F1AE0481T 126 hp 93 kW 2.3 L Diesel F1AE3481D 131 hp 96 kW 2.3 L Diesel F1AGL411D 131 hp 96 kW 2.3 L Diesel F1AE3481E 148 hp 109 kW 2.3 L Diesel F1AE3481E 148 hp 109 kW 2.3 L Diesel F1AGL411A 150 hp 110 kW 2.3 L Diesel F1AGL411C 150 hp 110 kW 2.3 L Diesel F1AE3481G 113 hp 83 kW 2.3 L Diesel F1CE0441A 136 hp 100 kW 3 L Petrol F1CE0441A 136 hp 100 kW 3 L Petrol F1CFA401A 136 hp 100 kW 3 L Petrol F1CE0481D 156 hp 115 kW 3 L Diesel F1CE0481D 158 hp 116 kW 3 L Diesel F1CE3481M 158 hp 116 kW 3 L Diesel F1CE0481D 158 hp 116 kW 3 L Diesel F1CE3481M 156 hp 115 kW 3 L Diesel F1CE3481E 177 hp 130 kW 3 L Diesel F1CE3481N 146 hp 107 kW 3 L Diesel RFL 110 hp 81 kW 2 L Petrol RFW 109 hp 80 kW 2 L Petrol RHV(DW10) 84 hp 62 kW 2 L Diesel | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| PEUGEOT | BOXER 230L 230P 244 244 Z ZCT | 2.0 2.0 BlueHDi 110 2.0 BlueHDi 130 2.0 BlueHDi 160 2.0 HDi 2.2 HDi 2.2 HDi 100 2.2 HDi 110 2.2 HDi 120 2.2 HDi 130 2.2 HDi 150 2.5 TD 2.5 TD 4x4 2.5 TDI 2.5 TDI 4x4 2.8 D 2.8 HDi 2.8 HDI 2.8 HDi 4x4 3.0 HDi 3.0 HDi 145 3.0 HDi 160 3.0 HDi 175 | 1994/03 - | 110 hp 81 kW 2 L Diesel 120 hp 88 kW 2.2 L Diesel 130 hp 96 kW 2 L Diesel 146 hp 107 kW 3 L Diesel 163 hp 120 kW 2 L Diesel 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel 4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel 4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel 4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel 4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel 4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel 8140.43N 145 hp 107 kW 2.8 L Diesel 8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel 8140.43N 146 hp 107 kW 2.8 L Diesel 8140.43S(F28DTCR) 126 hp 93 kW 2.8 L Diesel 8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel 8140.43N 146 hp 107 kW 2.8 L Diesel 8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel 8140.43S(F28DTCR) 126 hp 93 kW 2.8 L Diesel 8140.43S(F28DTCR) 126 hp 93 kW 2.8 L Diesel 8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel 8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel 8140.63(F28D) 87 hp 64 kW 2.8 L Diesel F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel RFL(XU10J2U) 110 hp 81 kW 2 L Petrol RHV(DW10TD) 84 hp 62 kW 2 L Diesel RHV(DW10UTD) 84 hp 62 kW 2 L Diesel T8A(DJ5T) 103 hp 76 kW 2.5 L Diesel THX(DJ5TED) 107 hp 79 kW 2.5 L Diesel | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| PEUGEOT | MANAGER | 2.0 BlueHDi 110 2.0 BlueHDi 130 2.0 BlueHDi 160 2.2 HDi 100 2.2 HDi 110 2.2 HDi 120 2.2 HDi 130 2.2 HDi 150 3.0 HDi 3.0 HDi 145 3.0 HDi 160 3.0 HDi 175 | 2006/04 - | 110 hp 81 kW 2 L Diesel 120 hp 88 kW 2.2 L Diesel 130 hp 96 kW 2 L Diesel 146 hp 107 kW 3 L Diesel 163 hp 120 kW 2 L Diesel 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel 4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel 4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel 4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel 4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel | Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
