ATE 24.0124-0215.1 (24012402151) Brake Disc

ATE part 24.0124-0215.1 (24012402151) Brake Disc

ATE 24.0124-0215.1 (24012402151) Brake Disc

by ATE

Manufacturer Part Number: 24.0124-0215.1 (24012402151)
Alternative ATE part number(s): 424215

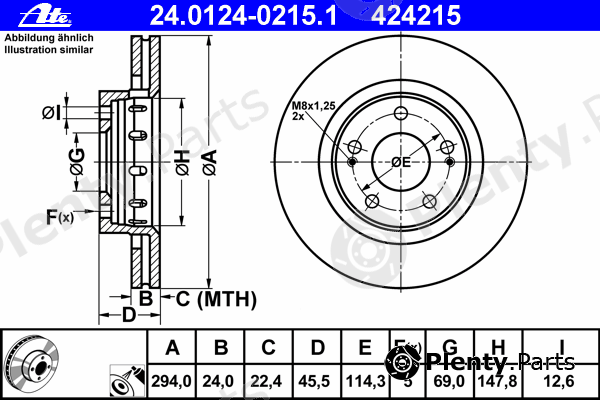

Сharacteristics:
  • Diameter [mm]: 294
  • Brake Disc Thickness [mm]: 24
  • Minimum thickness [mm]: 22,4
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 45,5
  • Centering Diameter [mm]: 69
  • Inner diameter [mm]: 147,8
  • Bore Ø [mm]: 12,6
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0124-0215.1 (24012402151) Alternative ATE part number(s): 424215
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, MITSUBISHI vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT1606375780, 424959, 4249F3, 1611429880, 424958
MITSUBISHIMR205215, 4615A006, MR128659

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0124-0215.1 (24012402151) Brake Disc offered by A.B.S., ADVICS / SUMITOMO, ALANKO, AP, ASHUKI, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, G.U.D, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JP GROUP, JURID, KAGER, KAMOKA, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MDR, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROTINGER, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VEMA, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17433
ADVICS / SUMITOMOD6F105
ALANKO303056
AP25179V
ASHUKIC65225
BENDIX562528BC
BLUE PRINTADC44367, ADC44392
BORG & BECKBBD4481
BOSCH0986479984, 0986479372
Brake ENGINEERINGDI955924
BRECOBS8789, BV8789
BREMBO09A73814, 09.A738.11
BSF11642V
CAR142.1313, 142.1352
CIFAM800939C
DELPHIBG4038
DENCKERMANNB130331
Dr!ve+DP1010110425
E.T.F.192933
EUROBRAKE5815203043
FEBI BILSTEIN28440
FENOXTB219150
FERODODDF1642-1, DDF1642
FOMARFO2971
fri.tech.BD0366
FTEBS5448, BS5448B
GIRLING6061741
G.U.DGDB124215
HELLA8DD355111-561, 8DD355111571
HELLA PAGID8DD355111-571, 8DD355111-561
HERTH+BUSS JAKOPARTSJ3305063
ICER78BD59242
JP GROUP4163101409
JURID562528JC
KAGER370771
KAMOKA1031014
KRAFT6044226
LPRM1012V
MAGNETI MARELLI360406077100, 600000088910
MAPCO25242
MDRMFD2526
METELLI230939C
METZGER6110375, 689610
MEYLE32-155210012/PD, 32155210012
MGAD1884
MINTEXMDC1385
NIBKRN1403
NIPPARTSJ3305063
NK203043, 313043
OPEN PARTSBDR208720
OPTIMALBS8394
PAGID54352, 54352PRO
PATRONPBD1591
PILENGAV483
PROTECHNICPRD2478
QUINTON HAZELLBDC5448, BDC5738, BDC5739
R BRAKE78RBD25924
REMSA6896.10
ROTINGERRT4519HP, RT4519, RT4519T5, RT4519HPT5
sbs1815313043, 1815203043
STARLINEPB20274
STELLOX60203043VSX
SWAG80928440
TEMPLIN0311019980, 0311019985
TEXTAR92135203, 92135200, 98200135201
TRISCAN812042130C
TRUSTINGDF366
TRWDF6174
VAICOV2280008
VEMA98740
ZIMMERMANN440312252, 440312220

Vehicle fitment / ATE 24.0124-0215.1 (24012402151) Brake Disc compatibility

This product fits the following models: CITROËN C-CROSSER, CITROËN C-CROSSER ENTERPRISE, MITSUBISHI AIRTREK I, MITSUBISHI GALANT FORTIS, MITSUBISHI LANCER, MITSUBISHI LANCER EX, MITSUBISHI LANCER SERIE R, MITSUBISHI OUTLANDER I, MITSUBISHI OUTLANDER II, MITSUBISHI OUTLANDER III, PEUGEOT 4007, etc. See all vehicles this product (ATE 24.0124-0215.1 (24012402151)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC-CROSSER
EP
2.0
2.2 HDi
2.4 16V
2007/02 - 4B11 147 hp 108 kW 2 L Petrol
4HN(DW12MTED4) 156 hp 115 kW 2.2 L Diesel
SFZ(4B12-MMC) 170 hp 125 kW 2.4 L Petrol
AWD / 4WD
Front wheel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
CITROËNC-CROSSER ENTERPRISE
2.2 HDi
2.4 16V
2009/01 - 4B12 170 hp 125 kW 2.4 L Petrol
4HN(DW12MTED4) 156 hp 115 kW 2.2 L Diesel
AWD / 4WD
LCV / Van / Cargo
MITSUBISHIAIRTREK I
CUW
2.0
2.0 4WD
2.0 Turbo 4WD
2.4
2.4 4WD
2.4 HDD Mivec

CU2W
CU5W
2001/03 - 2006/124G63(DOHC16V) 126 hp 93 kW 2 L Petrol
4G63(DOHC16V) 136 hp 100 kW 2 L Petrol
4G63(DOHC16V) 136 hp 100 kW 2 L Petrol
4G63T(DOHC16V) 201 hp 148 kW 2 L Petrol
4G63Turbo 241 hp 177 kW 2 L Petrol
4G64(SOHC16V) 139 hp 102 kW 2.4 L Petrol
4G69 160 hp 118 kW 2.4 L Petrol
4G69 160 hp 118 kW 2.4 L Petrol
4G69 162 hp 119 kW 2.4 L Petrol
4G69 162 hp 119 kW 2.4 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIGALANT FORTIS
CXA
2.0 Ralliart
2.0 Ralliart 4WD

CX4A
2008/10 - 4B11T/C 241 hp 177 kW 2 L Petrol
4B11T/C 250 hp 184 kW 2 L Petrol
AWD / 4WD
Hatchback / Sportback / Sport hatch
MITSUBISHILANCER
CXA
2.0 Ralliart
2.0 Ralliart 4WD

CX4A
2008/10 - 4B11T/C 241 hp 177 kW 2 L Petrol
4B11T/C 250 hp 184 kW 2 L Petrol
AWD / 4WD
Hatchback / Sportback / Sport hatch
MITSUBISHILANCER EX
CXA
2.0 Ralliart
2.0 Ralliart 4WD

CX4A
2008/10 - 4B11T/C 241 hp 177 kW 2 L Petrol
4B11T/C 250 hp 184 kW 2 L Petrol
AWD / 4WD
Hatchback / Sportback / Sport hatch
MITSUBISHILANCER SERIE R
CXA
2.0 Ralliart
2.0 Ralliart 4WD

CX4A
2008/10 - 4B11T/C 241 hp 177 kW 2 L Petrol
4B11T/C 250 hp 184 kW 2 L Petrol
AWD / 4WD
Hatchback / Sportback / Sport hatch
MITSUBISHIOUTLANDER I
CUW
CUW
ZE
ZF
2.0
2.0 4WD
2.0 Turbo 4WD
2.4
2.4 4WD
2.4 HDD Mivec

CU2W
CU5W
2001/03 - 2006/124G63(DOHC16V) 126 hp 93 kW 2 L Petrol
4G63(DOHC16V) 136 hp 100 kW 2 L Petrol
4G63(DOHC16V) 136 hp 100 kW 2 L Petrol
4G63T(DOHC16V) 201 hp 148 kW 2 L Petrol
4G63Turbo 241 hp 177 kW 2 L Petrol
4G64(SOHC16V) 139 hp 102 kW 2.4 L Petrol
4G69 160 hp 118 kW 2.4 L Petrol
4G69 160 hp 118 kW 2.4 L Petrol
4G69 162 hp 119 kW 2.4 L Petrol
4G69 162 hp 119 kW 2.4 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHIOUTLANDER II
CWW
CWW
ZG
ZH
2.0
2.0 4WD
2.0 DI-D
2.2 DI-D
2.2 DI-D 4WD
2.4
2.4 4WD
2.4 Flex 4WD
3.0
3.0 4WD
3.0 FWD

CW5W
CW6W
2006/11 - 2012/114B11 147 hp 108 kW 2 L Petrol
4B12 170 hp 125 kW 2.4 L Petrol
4HK 156 hp 115 kW 2.2 L Diesel
4HN 156 hp 115 kW 2.2 L Diesel
4N14 140 hp 103 kW 2.2 L Diesel
4N14 177 hp 130 kW 2.2 L Diesel
4N14 177 hp 130 kW 2.2 L Diesel
6B31 220 hp 162 kW 3 L Petrol
6B31 220 hp 162 kW 3 L Petrol
6B31 241 hp 177 kW 3 L Petrol
BSY 140 hp 103 kW 2 L Diesel
AWD / 4WD
Front wheel
Front wheel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
LCV / Van / Cargo
MITSUBISHIOUTLANDER III
GFW
GGW
GGW
GFW
ZJ
2.0
2.0 4WD
2.2 Di-D
2.2 Di-D 4WD

GF2W
GF7W
2012/08 - 4J11 146 hp 107 kW 2 L Petrol
4J11 150 hp 110 kW 2 L Petrol
4N14 150 hp 110 kW 2.2 L Diesel
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
LCV / Van / Cargo
PEUGEOT4007
GP
2.0
2.0 4x4
2.2 HDi
2.4 16V
2007/02 - 4B11 147 hp 108 kW 2 L Petrol
4HK(DW12MTED4) 156 hp 115 kW 2.2 L Diesel
4HN(DW12MTED4) 156 hp 115 kW 2.2 L Diesel
SFY(4B12-MMC) 170 hp 125 kW 2.4 L Petrol
SFZ(4B12-MMC) 170 hp 125 kW 2.4 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
