ATE 24.0125-0108.1 (24012501081) Brake Disc

ATE part 24.0125-0108.1 (24012501081) Brake Disc

ATE 24.0125-0108.1 (24012501081) Brake Disc

by ATE

Manufacturer Part Number: 24.0125-0108.1 (24012501081)
Alternative ATE part number(s): 425108

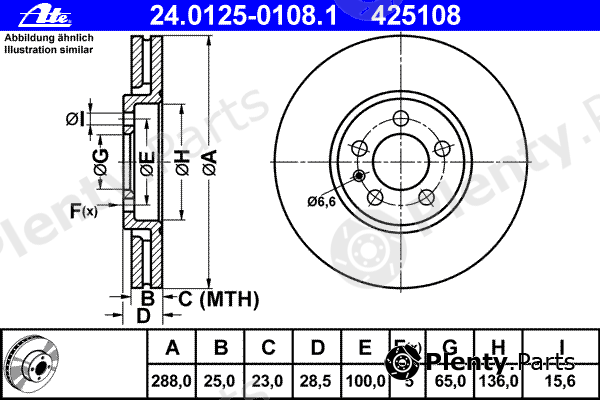

Сharacteristics:
  • Diameter [mm]: 288
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 100
  • Height [mm]: 28,5
  • Centering Diameter [mm]: 65
  • Inner diameter [mm]: 136
  • Bore Ø [mm]: 15,6
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0125-0108.1 (24012501081) Alternative ATE part number(s): 425108
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG3A0615301, 3A0615301A

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0125-0108.1 (24012501081) Brake Disc offered by A.B.S., AP, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16265
AP24586
AUTOMEGA3061503013A0A
BENDIX561856B, 561856BC
BORG & BECKBBD5060
BOSCH0986478619
Brake ENGINEERINGDI955485
BRECOBS8200
BREMBO09.6747.10
BREMSIDBA706V
BSF11240V
CAR142.759
CIFAM800-448
DELPHIBG2729
FARCOM230245, 230852
FEBI BILSTEIN11205
FENOXTB217158
FERODODDF706, DDF706-1, DRF706
FOMARFO2329
fri.tech.BD0413
FTEBS4531
GIRLING6027581
GRAFDF29448
HANS PRIES103586
HELLA8DD355104-331, 8DD355122432
HELLA PAGID8DD355104-331, 8DD355122432
ICER78BD53022
JP GROUP1163102309, 1163102300
JURID561856JC, 561856J
KAGER370529
KAWE649310
KRAFT6040117
LPRV2311V
MAGNETI MARELLI360406009300, 351582420500
MAPCO15866
METELLI23-0448
METZGER6110483, 24586
MEYLE1155211026/PD, 1155211026
MGAD1248
MINTEXMDC915
NECTOWN958
NIBKRN1073
NK204753, 314753
OPEN PARTSBDA159120
OPTIMALBS-4930
PAGID53945
PEX14.0631
PILENGAV158
PROTECHNICPRD2217
QUINTON HAZELL6493.10, BSF4531, BDC4531
R BRAKE78RBD25302
REMSA6493.10
ROADHOUSE6493.10
ROTINGERRT2264T5, RT2264
ROULUNDS BRAKINGD2329
sbs1815314753, 1815204753
SWAG30911205
TEMPLIN0311030090
TEXTAR92072800, 92072805, 98200072801
TRISCAN812029119
TRUSTINGDF413
TRWDF2758, RCDI01520
VAICOV1080053
VALEO186521
VEMA98569
VILLAR6281793
WOKINGD649310
ZIMMERMANN600320220, 600.3202.00, 600.3202.50, 600320252

Vehicle fitment / ATE 24.0125-0108.1 (24012501081) Brake Disc compatibility

This product fits the following models: VW GOLF III, VW GOLFIII, VW JETTA III, VW PASSAT, VW VENTO, etc. See all vehicles this product (ATE 24.0125-0108.1 (24012501081)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VWGOLF III
1H1
1H5
1.9 TDI
2.0
2.0 GTI 16V
2.8 VR6
2.9 VR6 Syncro

1HX1
1991/11 - 1999/042E 115 hp 85 kW 2 L Petrol
ABA 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
ABF 150 hp 110 kW 2 L Petrol
ABV 190 hp 140 kW 2.9 L Petrol
AFN 110 hp 81 kW 1.9 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
VWGOLFIII
1H1
1H5
1.9 TDI
2.0
2.0 GTI 16V
2.8 VR6
2.9 VR6 Syncro

1HX1
1991/11 - 1999/042E 115 hp 85 kW 2 L Petrol
ABA 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
ABF 150 hp 110 kW 2 L Petrol
ABV 190 hp 140 kW 2.9 L Petrol
AFN 110 hp 81 kW 1.9 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
VWJETTA III
1H2
2.0
2.8 VR6
1991/11 - 1998/092E 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
Front wheel
Sedan / Saloon
VWPASSAT
3A2
35I
3A5
35I
2.0 16V
2.8 VR6
2.9 VR6 Syncro
1991/06 - 1997/05AAA 174 hp 128 kW 2.8 L Petrol
ABF 150 hp 110 kW 2 L Petrol
ABV 184 hp 135 kW 2.9 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VWVENTO
1H2
2.0
2.8 VR6
1991/11 - 1998/092E 115 hp 85 kW 2 L Petrol
ADY 115 hp 85 kW 2 L Petrol
AGG 115 hp 85 kW 2 L Petrol
AKR 115 hp 85 kW 2 L Petrol
AAA 174 hp 128 kW 2.8 L Petrol
Front wheel
Sedan / Saloon
