ATE 24.0125-0110.1 (24012501101) Brake Disc

ATE part 24.0125-0110.1 (24012501101) Brake Disc

ATE 24.0125-0110.1 (24012501101) Brake Disc

by ATE

Manufacturer Part Number: 24.0125-0110.1 (24012501101)
Alternative ATE part number(s): 425110

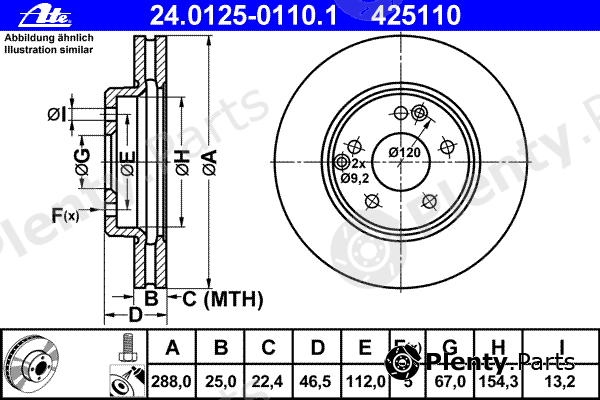

Сharacteristics:
  • Diameter [mm]: 288
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 22,4
  • Brake Disc Type: Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 46,5
  • Centering Diameter [mm]: 67
  • Inner diameter [mm]: 154,3
  • Bore Ø [mm]: 13,2
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0125-0110.1 (24012501101) Alternative ATE part number(s): 425110
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CHRYSLER, MERCEDES-BENZ vehicles

OE manufacturerOEM reference numbers
CHRYSLER5098063AA, 05098063AA
MERCEDES-BENZ2034210312, 2104210712, 2104212412

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0125-0110.1 (24012501101) Brake Disc offered by A.B.S., AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FI.BA, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KLAXCAR FRANCE, KORTEX, KRAFT, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16448
AP24905X, X24678, 24678V, 24903V, 24903X, X24903, 24905V, 24903
BARUMBAR25110
BENDIX562013BC, 562013B
BORG & BECKBBD4470
BOSCH0986479R69, 0986478624
Brake ENGINEERINGDI955547
BRECKBR349VA100
BRECOBS8219, BV8219, BV8401, BS8402, BV8402
BREMBO09.6845.75, 09.8411.10, 09.8411.11, DP50007, 09830411, DP50015, 09.6845.14, 0983041X, 09.8411.75, 09.6845.10, 0984111X, 09.6845.11
BREMSIDBB135V
CAR142.021
CIFAM800701C, 800-701, 800-386
DELPHIBG3240, BG3240C
DENCKERMANNB130354
Dr!ve+DP1010110833
E.T.F.190410
EUROBRAKE5815203332
FARCOM230148, 231158
FEBI BILSTEIN04631, 18886
FENOXTB217290, TB217196
FERODODDF817, DDF1135, DRF817, DDF11351, DDF1135C1
FI.BAFBD116
FOMARFO2415, FO2416
fri.tech.BD0827
FTEBS4539, BS4539HB, BS4539B
GALFERB1G22501101
GIRLING6041801, 6027791
GRAFDF29386, DF29701
G.U.DGDB125110
HANS PRIES400854
HELLA8DD355104-301, 8DD355107471, 8DD355104-291, 8DD355107481, 8DD355107482
HELLA PAGID8DD355107-471, 8DD355107-481, 8DD355104-291, 8DD355107482, 8DD355104-301
ICER78BD04102
JP GROUP1363101909, 1363101900
JURID562013JC, 562013J, 562034J, 562034JC
KAGER371039, 370033
KAMOKA1031634
KAWE655610, 675110, 649510
KEY PARTSKBD4470
KLAXCAR FRANCE25044Z
KORTEXKD0065
KRAFT6041170
LEMFÖRDER3097101
LPRM2601VR
MAGNETI MARELLI351282920500, 360406006301, 351285620500, 361302040194, 360406006300, 360406006900, 360406006901
MAPCO15795
MAXGEAR190725MAX, 190725
METELLI23-0386, 23-0701, 230701C
METZGER6110024, 675110, 24903V
MEYLE0155212035, 0155212035/PD
MGAD1397, D1186
MINTEXMDC852
NATIONALNBD783
NECTOWN1154, WN817
NIBKRN1361
NK313332, 203332
OPEN PARTSBDR131420
OPTIMALBS-4950, BS4950C, BS7400C, BS-7400
PAGID54059, 54059PRO, 52137PRO, 52137
PATRONPBD2779
PEX14.0327N, 14.0327
PILENGAV196, V290
PROTECHNICPRD2632, PRD2179
QUINTON HAZELLBSF4539, BDC4539, 6495.10
R BRAKE78RBD20410
REMSA6751.10, 6495.10, 844502, 876800, 655610
ROADHOUSE876800, 655610, 844502, 6495.10, 675110
ROTINGERRT2474, RT2474T5, RT2912T5, RT2912
ROULUNDS BRAKINGD2432
sbs1815313332, 1815203332
STARLINEPB24201C
STELLOX60203332VSX
SWAG10918886, 10904631
TEMPLIN0311020540, 031102600290, 0311020545
TEXTAR92072500, 92105905, 92072505, 98200105901, 98200072501PRO, 98200072501, 92105900, 92105903, 98200105901PRO
TRISCAN812023133C, 812023133
TRUCKTEC AUTOMOTIVE02.35.027
TRUSTINGDF827
TRWDF4180, DF2779
VAICOV3080034, V3080042
VALEO186467, 297467, 186864
VEMA98388, 98059
VILLAR6280442, 6281918, 6280425
WAGNER LOCKHEEDWGR11351
WOKINGD675110, 8668300, D655610, D649510, 8545302
ZIMMERMANN400.1435.50, 400143552, 400.1435.00, 400.1435.20

Vehicle fitment / ATE 24.0125-0110.1 (24012501101) Brake Disc compatibility

This product fits the following models: MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS COUPE, MERCEDES-BENZ CLC-CLASS, MERCEDES-BENZ CLK, MERCEDES-BENZ E-CLASS, MERCEDES-BENZ SLK, etc. See all vehicles this product (ATE 24.0125-0110.1 (24012501101)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MERCEDES-BENZC-CLASS
CL203
S202
S203
W202
W203
C 160 Kompressor
C 180
C 180 Kompressor
C 200 CDI
C 200 CGI Kompressor
C 200 Kompressor
C 200 T Kompressor
C 220
C 220 CDI
C 230 Kompressor
C 230 T Kompressor
C 240
C 240 T
C 250 T Turbo-D
C 250 Turbo-D
C 280
C 280 T

202.024
202.025
202.026
202.028
202.029
202.085
202.086
202.087
202.088
202.089
202.128
202.188
203.004
203.006
203.007
203.008
203.035
203.042
203.043
203.045
203.046
203.204
203.204
203.207
203.206
203.207
203.208
203.235
203.242
203.243
203.245
203.246
203.706
203.707
203.708
203.730
203.735
203.740
203.742
203.743
203.745
203.746
203.747
1993/05 - 2008/05M104.941 193 hp 142 kW 2.8 L Petrol
M111.944 180 hp 132 kW 2 L Petrol
M111.944 192 hp 141 kW 2 L Petrol
M111.951 129 hp 95 kW 2 L Petrol
M111.955 163 hp 120 kW 2 L Petrol
M111.956 163 hp 120 kW 2 L Petrol
M111.975 193 hp 142 kW 2.3 L Petrol
M111.981 197 hp 145 kW 2.3 L Petrol
M112.910 170 hp 125 kW 2.4 L Petrol
M112.915 170 hp 125 kW 2.6 L Petrol
M112.920 197 hp 145 kW 2.8 L Petrol
M271.921 122 hp 90 kW 1.8 L Petrol
M271.940 163 hp 120 kW 1.8 L Petrol
M271.942 170 hp 125 kW 1.8 L Petrol
M271.946 143 hp 105 kW 1.8 L Petrol
M271.948 192 hp 141 kW 1.8 L Petrol
OM605.960 150 hp 110 kW 2.5 L Diesel
OM611.962 102 hp 75 kW 2.2 L Diesel
OM646.962 102 hp 75 kW 2.2 L Diesel
OM611.962 116 hp 85 kW 2.2 L Diesel
OM611.962 136 hp 100 kW 2.2 L Diesel
OM611.962 136 hp 100 kW 2.2 L Diesel
OM611.962 143 hp 105 kW 2.2 L Diesel
OM611.962 143 hp 105 kW 2.2 L Diesel
OM646.962 102 hp 75 kW 2.2 L Diesel
OM646.962 122 hp 90 kW 2.2 L Diesel
OM646.963 136 hp 100 kW 2.2 L Diesel
OM646.963 150 hp 110 kW 2.2 L Diesel
OM646.963 150 hp 110 kW 2.2 L Diesel
Rear wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
Estate / Turnier / Vario / Wagon
Sedan / Saloon
MERCEDES-BENZC-CLASS COUPE
CL203
C 160 Kompressor
C 180
C 180 Kompressor
C 200 CDI
C 200 CGI Kompressor
C 200 Kompressor
C 220
C 220 CDI
C 230 Kompressor

203.706
203.707
203.708
203.730
203.735
203.740
203.742
203.743
203.745
203.746
203.747
2001/03 - 2008/05M111.951 129 hp 95 kW 2 L Petrol
M111.955 163 hp 120 kW 2 L Petrol
M111.981 197 hp 145 kW 2.3 L Petrol
M271.921 122 hp 90 kW 1.8 L Petrol
M271.940 163 hp 120 kW 1.8 L Petrol
M271.942 170 hp 125 kW 1.8 L Petrol
M271.946 143 hp 105 kW 1.8 L Petrol
M271.948 192 hp 141 kW 1.8 L Petrol
OM611.962 136 hp 100 kW 2.2 L Diesel
OM611.962 143 hp 105 kW 2.2 L Diesel
OM646.962 122 hp 90 kW 2.2 L Diesel
OM646.963 150 hp 110 kW 2.2 L Diesel
Rear wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
MERCEDES-BENZCLC-CLASS
CL203
CLC 160
CLC 180 Kompressor
CLC 200 CDI
CLC 220 CDI
203.707
203.708
203.731
203.746
2008/05 - 2011/06M271.911 129 hp 95 kW 1.6 L Petrol
M271.946 143 hp 105 kW 1.8 L Petrol
OM646.962 122 hp 90 kW 2.1 L Diesel
OM646.963 150 hp 110 kW 2.1 L Diesel
Rear wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
MERCEDES-BENZCLK
A208
A209
C208
C209
200
200 CGI
200 Kompressor
220 CDI
230 Kompressor
CLK 200 CGI
208.335
208.344
208.345
208.347
208.348
208.435
209.308
209.342
209.343
209.443
1997/06 - 2010/03M111.941 136 hp 100 kW 2 L Petrol
M111.945 136 hp 100 kW 2 L Petrol
M111.944 192 hp 141 kW 2 L Petrol
M111.945 136 hp 100 kW 2 L Petrol
M111.956 163 hp 120 kW 2 L Petrol
M111.973 193 hp 142 kW 2.3 L Petrol
M111.975 193 hp 142 kW 2.3 L Petrol
M111.982 197 hp 145 kW 2.3 L Petrol
M271.940 163 hp 120 kW 1.8 L Petrol
M271.942 170 hp 125 kW 1.8 L Petrol
OM646.966 136 hp 100 kW 2.2 L Diesel
OM646.966 150 hp 110 kW 2.2 L Diesel
Rear wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
MERCEDES-BENZE-CLASS
S210
W210
E 200
E 200 CDI
E 200 D
E 200 Kompressor
E 200 T
E 200 T Kompressor
E 220 CDI
E 220 D
E 220 T CDI
E 230
E 230 T
E 240
E 240 T
E 250 D
E 250 T D
E 250 T Turbo-D
E 250 Turbo-D
E 290 T Turbo-D
E 290 Turbo-D
E 300
E 300 D

210.003
210.004
210.006
210.007
210.010
210.015
210.017
210.020
210.035
210.037
210.048
210.061
210.062
210.206
210.210
210.215
210.217
210.235
210.237
210.248
210.261
210.262
1995/06 - 2003/03M111.942 136 hp 100 kW 2 L Petrol
M111.957 163 hp 120 kW 2 L Petrol
M111.970 150 hp 110 kW 2.3 L Petrol
M112.911 170 hp 125 kW 2.4 L Petrol
M112.914 170 hp 125 kW 2.6 L Petrol
OM602.982 129 hp 95 kW 2.9 L Diesel
OM604.912 75 hp 55 kW 2.2 L Diesel
OM604.912 95 hp 70 kW 2.2 L Diesel
OM604.917 88 hp 65 kW 2 L Diesel
OM605.912 113 hp 83 kW 2.5 L Diesel
OM605.962 150 hp 110 kW 2.5 L Diesel
OM606.912 136 hp 100 kW 3 L Diesel
OM611.961 102 hp 75 kW 2.2 L Diesel
OM611.961 116 hp 85 kW 2.2 L Diesel
OM611.961 125 hp 92 kW 2.2 L Diesel
OM611.961 136 hp 100 kW 2.1 L Diesel
OM611.961 143 hp 105 kW 2.2 L Diesel
OM611.961 125 hp 92 kW 2.2 L Diesel
OM611.961 143 hp 105 kW 2.2 L Diesel
OM611.961 136 hp 100 kW 2.2 L Diesel
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
MERCEDES-BENZSLK
R170
R171
200
200 Kompressor
230 Kompressor
170.435
170.444
170.445
170.447
170.449
171.442
1996/09 - 2011/02M111.943 192 hp 141 kW 2 L Petrol
M111.946 136 hp 100 kW 2 L Petrol
M111.958 163 hp 120 kW 2 L Petrol
M111.973 193 hp 142 kW 2.3 L Petrol
M111.983 197 hp 145 kW 2.3 L Petrol
M271.944 163 hp 120 kW 1.8 L Petrol
Rear wheel
Convertible / cabrio
