ATE 24.0125-0114.1 (24012501141) Brake Disc

ATE part 24.0125-0114.1 (24012501141) Brake Disc

ATE 24.0125-0114.1 (24012501141) Brake Disc

by ATE

Manufacturer Part Number: 24.0125-0114.1 (24012501141)
Alternative ATE part number(s): 425114

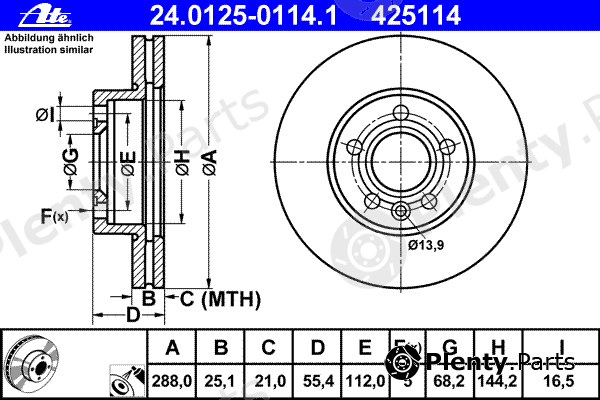

Сharacteristics:
  • Supplementary Article/Info 2: with screws
  • Diameter [mm]: 288
  • Brake Disc Thickness [mm]: 25,1
  • Minimum thickness [mm]: 21
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 55,4
  • Centering Diameter [mm]: 68,2
  • Inner diameter [mm]: 144,2
  • Bore Ø [mm]: 16,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0125-0114.1 (24012501141) Alternative ATE part number(s): 425114
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD, VAG vehicles

OE manufacturerOEM reference numbers
FORD1001093, 1045994
VAG7M0615301E, 7M0615301G

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0125-0114.1 (24012501141) Brake Disc offered by A.B.S., ALANKO, AP, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16297S, 16297
ALANKO302950, 300604, 304695, 304631, 301810
APX24628, 24628V
AUTOMEGA30100450994, 3061503017M0G
BARUMBAR25114
BENDIX562043BC, 562043B
BORG & BECKBBD4071
BOSCH0986479B57, 0986478845, 0986478893
Brake ENGINEERINGDI955645
BRECKBR333VA100
BRECOBS8263, BV8263
BREMBO09.6934.11, 09.6934.14, 09.6934.10, 09.6934.75
BREMSIDBA846V
BSF11243V
CAR142.239
CIFAM800-403
DELPHIBG3025
DENCKERMANNB130074
Dr!ve+DP1010110733
E.T.F.191093
EUROBRAKE5815202545
FARCOM230276, 230872
FEBI BILSTEIN14160
FENOXTB217156
FERODODDF846C, DDF8461, DDF846C-1, DDF846
FOMARFO592481, FO2250
fri.tech.BD0503
FTEBS4628, BS4628B, BS7035
GALFERB1G22501141
GIRLING6027761
GRAFDF29403
G.U.DGDB125114
HANS PRIES107628
HELLA8DD355104-471, 8DD355104-481
HELLA PAGID8DD355104-481, 8DD355104-471
ICER78BD10932
JP GROUP1163105200, 1163105209
JURID562043J, 562043JC
KAGER370054
KAMOKA1031691, 1031692
KAWE649610
KRAFT6040290
LPRF1571V
MAGNETI MARELLI360406049100, 353615828240
MALÒ1110169
MAPCO15828
MAXGEAR190775MAX, 190775
METELLI23-0403
METZGER649610, 6110114
MEYLE1155211029/PD, 1155211029
MGAD1203
MINTEXMDK0069, MDC1017
NECTOWN846
NIBKRN1075
NK312545, 202545
OPEN PARTSBDR167620, BDA167620
OPTIMALBS-4960
PAGID53963, 53963PRO
PATRONPBD2776
PEX14.0635, 14.0635N
PILENGAV156
PROTECHNICPRD2154
QUINTON HAZELLBSF4628, 6496.10, BDC4628
R BRAKE78RBD21093
REMSA839004, 6496.10
ROADHOUSE6496.10, 839004
ROTINGERRT2536, RT2536T5
ROULUNDS BRAKINGD2250
sbs1815312545, 1815202545
STARLINEPB2536C, PB2536
STELLOX6020-2545V-SX
SWAG32914160
TEMPLIN0311015040, 0311015045
TEXTAR92074203, 92074200, 89012000, 98200074201, 89003800, 98200074201PRO
TRISCAN812010145
TRUCKTEC AUTOMOTIVE0735099
TRUSTINGDF503
TRWDF2776BP, DF2776
VAICOV1080067
VALEO197236, 186601
VEMA98095
VILLAR6280303
WAGNER LOCKHEEDWGR08461
WOKINGD649610, 8290304
ZIMMERMANN600.3209.00, 600.3209.50, 600320920, 600320952

Vehicle fitment / ATE 24.0125-0114.1 (24012501141) Brake Disc compatibility

This product fits the following models: FORD GALAXY, SEAT ALHAMBRA, VW SHARAN, etc. See all vehicles this product (ATE 24.0125-0114.1 (24012501141)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDGALAXY
WGR
1.9 TDI
2.0 i
2.3 16V
2.8 i V6
2.8 i V6 4x4
1995/03 - 2006/051Z 90 hp 66 kW 1.9 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
ANU 90 hp 66 kW 1.9 L Diesel
AUY 115 hp 85 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
AAA 174 hp 128 kW 2.8 L Petrol
AMY 174 hp 128 kW 2.8 L Petrol
E5SA 146 hp 107 kW 2.3 L Petrol
Y5B 146 hp 107 kW 2.3 L Petrol
NSE 116 hp 85 kW 2 L Petrol
ZVSA 116 hp 85 kW 2 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
SEATALHAMBRA
7V8
7V9
1.8 T 20V
1.9 TDI
2.0 i
1996/04 - 2010/031Z 90 hp 66 kW 1.9 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
ANU 90 hp 66 kW 1.9 L Diesel
AUY 115 hp 85 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
BVK 115 hp 85 kW 1.9 L Diesel
ADY 115 hp 85 kW 2 L Petrol
ATM 115 hp 85 kW 2 L Petrol
AJH 150 hp 110 kW 1.8 L Petrol
AWC 150 hp 110 kW 1.8 L Petrol
Front wheel
MPV / Van / Minivan
VWSHARAN
7M8
7M9
7M6
1.8 T 20V
1.9 TDI
2.0
2.0 16V
2.0 LPG
2.8 VR6
2.8 VR6 Syncro
1995/09 - 2010/03150 hp 110 kW 2 L Petrol
1Z 90 hp 66 kW 1.9 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
ANU 90 hp 66 kW 1.9 L Diesel
AUY 115 hp 85 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
BVK 115 hp 85 kW 1.9 L Diesel
AAA 174 hp 128 kW 2.8 L Petrol
AMY 174 hp 128 kW 2.8 L Petrol
ADY 115 hp 85 kW 2 L Petrol
ATM 115 hp 85 kW 2 L Petrol
AJH 150 hp 110 kW 1.8 L Petrol
AWC 150 hp 110 kW 1.8 L Petrol
ATM 115 hp 85 kW 2 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
