ATE 24.0125-0115.1 (24012501151) Brake Disc

ATE part 24.0125-0115.1 (24012501151) Brake Disc

ATE 24.0125-0115.1 (24012501151) Brake Disc

by ATE

Manufacturer Part Number: 24.0125-0115.1 (24012501151)
Alternative ATE part number(s): 425115

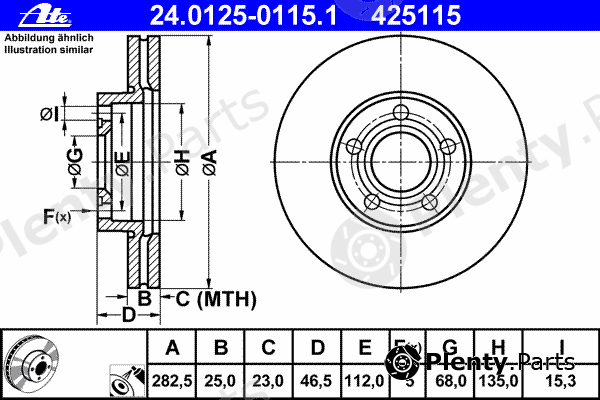

Сharacteristics:
  • Diameter [mm]: 282,5
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 46,5
  • Centering Diameter [mm]: 68
  • Inner diameter [mm]: 135
  • Bore Ø [mm]: 15,3
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0125-0115.1 (24012501151) Alternative ATE part number(s): 425115
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG8E0615301A, 8E0615301C

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0125-0115.1 (24012501151) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, BSF, BSG, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16878, 16878S
ALANKO304300, 300955, 305480, 304671
AP24714
BARUMBAR25115
BENDIX562052B, 562052BC
BORG & BECKBBD4220
BOSCH0986479C81, 0986478872
Brake ENGINEERINGDI955678
BRECKBR383VA100
BRECOBS8294
BREMBODP85046, 09.7195.10
BREMSIDBB014V
BSF11343V
BSGBSG90210002
CAR142.757
CIFAM800-378
DELPHIBG3199
DENCKERMANNB130077
Dr!ve+DP1010110707
EUROBRAKE5815204765
FARCOM230301, 231177
FEBI BILSTEIN18392
FENOXTB217850
FERODODDF1014, DDF1014C-1, DDF1014C, DRF1014, DDF10141
FOMARFO2518
fri.tech.BD0471
FTEBS4731HB, BS4731, BS4731B, BS7040
GALFERB1G22501151
GIRLING6040451
GRAFDF29378
HANS PRIES107685
HELLA8DD355102-821, 8DD355105-551, 8DD355105552, 8DD355105-541
HELLA PAGID8DD355105552, 8DD355105-551, 8DD355105-541, 8DD355102-821
ICER78BD53062
JP GROUP1163106000, 1163106009
JURID562052J, 562052JC
KAGER370057, 371417
KAMOKA1032028
KAWE654910
KRAFT6040320
LPRV2401V
MAGNETI MARELLI360704009400, 353615835240, 360406050000
MAPCO15838
MAXGEAR190757, 190757MAX
METELLI23-0378
METZGER24714, 6110231
MEYLE1155211022, 1155211022/PD
MGAD1178
MINTEXMDC1048
NECTOWN934
NK314765, 204765
OPEN PARTSBDRS173225, BDR173220
OPTIMALBS-5490
PAGID53962, 53942PRO, 53962PRO
PATRONPBD4045
PEX14.0643N, 14.0643
PILENGAV850
PROTECHNICPRD2218
QUINTON HAZELL6549.10, BSF4731, BDC4731
R BRAKE78RBD25306
REMSA839003, 6549.10
ROADHOUSE839003, 6549.10
ROTINGERRT2484, RT2484T5
ROULUNDS BRAKINGD2518
sbs1815204765, 1815314765
STARLINEPB2484, PB2484C
STELLOX6020-4765V-SX
SWAG30918392
TEMPLIN0311030145, 0311030140
TEXTAR92083603, 98200083601, 89011700, 98200083601PRO, 92083600, 92083605
TRISCAN812029151
TRUSTINGDF471
TRWDF4045
VAICOV1080040
VALEO297332, 197332, 186583
VEMA98078
VILLAR6280666
WOKING8290303, D654910
ZIMMERMANN600.3208.20, 600.3208.00, 600.3208.50, 600.3208.52

Vehicle fitment / ATE 24.0125-0115.1 (24012501151) Brake Disc compatibility

This product fits the following models: VW PASSAT, etc. See all vehicles this product (ATE 24.0125-0115.1 (24012501151)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VWPASSAT
3B2
3B3
3B5
3B6
1.6
1.8
1.8 Syncro/4motion
1.8 T
1.8 T 20V
1.8 T 4motion
1.9 TDI
1.9 TDI 4motion
1.9 TDI Syncro/4motion
2.3 V5
2.3 V5 4motion
2.3 VR5
2.3 VR5 4motion
2.3 VR5 Syncro/4motion
2.8 4motion
2.8 Syncro
2.8 V6
2.8 V6 Syncro/4motion
1996/08 - 2005/08ACK 193 hp 142 kW 2.8 L Petrol
AGE 180 hp 132 kW 2.8 L Petrol
AHA 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
ATX 190 hp 140 kW 2.8 L Petrol
BBG 190 hp 140 kW 2.8 L Petrol
ACK 193 hp 142 kW 2.8 L Petrol
AHA 193 hp 142 kW 2.8 L Petrol
ALG 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
ADP 101 hp 74 kW 1.6 L Petrol
AHL 101 hp 74 kW 1.6 L Petrol
ANA 101 hp 74 kW 1.6 L Petrol
ARM 101 hp 74 kW 1.6 L Petrol
ADR 125 hp 92 kW 1.8 L Petrol
AEB 152 hp 112 kW 1.8 L Petrol
APT 125 hp 92 kW 1.8 L Petrol
ARG 125 hp 92 kW 1.8 L Petrol
ADR 125 hp 92 kW 1.8 L Petrol
APT 125 hp 92 kW 1.8 L Petrol
ARG 125 hp 92 kW 1.8 L Petrol
AEB 150 hp 110 kW 1.8 L Petrol
ANB 150 hp 110 kW 1.8 L Petrol
APU 150 hp 110 kW 1.8 L Petrol
AFN 110 hp 81 kW 1.9 L Diesel
AHH 90 hp 66 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
AJM 115 hp 85 kW 1.9 L Diesel
ATJ 115 hp 85 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
AGE 180 hp 132 kW 2.8 L Petrol
AGZ 150 hp 110 kW 2.3 L Petrol
ALZ 102 hp 75 kW 1.6 L Petrol
AMX 193 hp 142 kW 2.8 L Petrol
ATQ 193 hp 142 kW 2.8 L Petrol
ATJ 115 hp 85 kW 1.9 L Diesel
AWL 150 hp 110 kW 1.8 L Petrol
AWT 150 hp 110 kW 1.8 L Petrol
AWM 170 hp 125 kW 1.8 L Petrol
AWT 150 hp 110 kW 1.8 L Petrol
AZX 170 hp 125 kW 2.3 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
