ATE 24.0125-0140.1 (24012501401) Brake Disc
ATE 24.0125-0140.1 (24012501401) Brake Disc
by ATEManufacturer Part Number: 24.0125-0140.1 (24012501401)
Alternative ATE part number(s): 425140

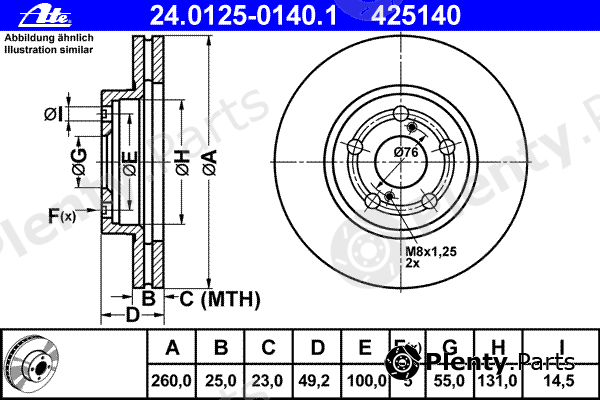

- Diameter [mm]: 260
- Brake Disc Thickness [mm]: 25
- Minimum thickness [mm]: 23
- Brake Disc Type: Vented
- Number of Holes: 5
- Surface: Coated
- Height [mm]: 49,2
- Centering Diameter [mm]: 55
- Inner diameter [mm]: 131
- Bolt Hole Circle Ø [mm]: 100
- Bore Ø [mm]: 14,5
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0125-0140.1 (24012501401) Alternative ATE part number(s): 425140 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for TOYOTA vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| TOYOTA | 43512-05030 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0125-0140.1 (24012501401) Brake Disc offered by A.B.S., ALANKO, AP, ASHIKA, ASHUKI, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JAPANPARTS, JAPKO, JP GROUP, JURID, KAGER, KAMOKA, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SAKURA, SASIC, sbs, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 16892 |
| ALANKO | 301817, 303693, 300612, 301396 |
| AP | 24736, 24736V |
| ASHIKA | 6002279 |
| ASHUKI | T60280 |
| BENDIX | 562125B, 562125BC |
| BLUE PRINT | ADT343112 |
| BORG & BECK | BBD4131 |
| BOSCH | 0986478451, 0986479869 |
| Brake ENGINEERING | DI955850 |
| BRECO | BV8322, BS8322 |
| BREMBO | 09.7395.11, 09.7395.10 |
| BREMSI | DBB064V |
| CAR | 142.863 |
| CIFAM | 800-512 |
| DELPHI | BG3347 |
| DENCKERMANN | B130133 |
| Dr!ve+ | DP1010110744 |
| E.T.F. | 195030 |
| EUROBRAKE | 5815204564 |
| FARCOM | 230364 |
| FEBI BILSTEIN | 26072 |
| FENOX | TB217651 |
| FERODO | DDF1064-1, DDF1064 |
| FOMAR | FO2501 |
| fri.tech. | BD0517 |
| FTE | BS4991, BS4991B |
| GIRLING | 6040461 |
| GRAF | DF29512 |
| HELLA | 8DD355106-511, 8DD355106-501 |
| HELLA PAGID | 8DD355106-501, 8DD355106-511 |
| HERTH+BUSS JAKOPARTS | J3302119 |
| ICER | 78BD50302 |
| JAPANPARTS | DI-279 |
| JAPKO | 60279 |
| JP GROUP | 4863100609 |
| JURID | 562125JC, 562125J |
| KAGER | 370212 |
| KAMOKA | 1032128 |
| KAVO PARTS | BR9396C, BR9396 |
| KAWE | 657710 |
| LPR | T2601V |
| MAGNETI MARELLI | 360406046400, 430216170214, 353615202224, 363702160214, 600000087330 |
| MAPCO | 15551 |
| MAXGEAR | 190967MAX, 190967 |
| METELLI | 23-0512 |
| METZGER | 657710, 6110280 |
| MEYLE | 30-155210057 |
| MGA | D1312 |
| MINTEX | MDC1068, MDK0156 |
| NECTO | WN1068 |
| NIBK | RN1111 |
| NIPPARTS | J3302119 |
| NK | 314564, 204564 |
| OPEN PARTS | BDR184020 |
| OPTIMAL | BS-5770 |
| PAGID | 50256PRO, 50256 |
| PATRON | PBD4046 |
| PEX | 14.0610 |
| PILENGA | V651 |
| PROTECHNIC | PRD2235 |
| QUINTON HAZELL | BSF4991, BDC4991 |
| R BRAKE | 78RBD25030 |
| REMSA | 657710 |
| ROADHOUSE | 657710 |
| ROTINGER | RT2568, RT2568T5 |
| ROULUNDS BRAKING | D2501 |
| SAKURA | 604203870 |
| SASIC | 6106062 |
| sbs | 1815204564, 1815314564 |
| STELLOX | 6020-4564V-SX |
| SWAG | 81926072 |
| TEMPLIN | 0311027960, 0311027965 |
| TEXTAR | 98200096901PRO, 98200096901, 92096903, 92096900 |
| TRISCAN | 812013152 |
| TRUSTING | DF517 |
| TRW | DF4046 |
| VAICO | V7080005 |
| VALEO | 297705, 186705 |
| VEMA | 98539 |
| VILLAR | 6281681 |
| WOKING | D657710 |
| ZIMMERMANN | 590.2563.00, 590.2563.50, 590256320, 590256352 |
Vehicle fitment / ATE 24.0125-0140.1 (24012501401) Brake Disc compatibility
This product fits the following models: TOYOTA AVENSIS, etc. See all vehicles this product (ATE 24.0125-0140.1 (24012501401)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| TOYOTA | AVENSIS T22 | 1.6 1.8 2.0 2.0 D 2.0 D-4D 2.0 TD AT220 AT221 CDT220 CT220 ST220 | 1997/09 - 2003/02 | 1CD-FTV 110 hp 81 kW 2 L Diesel 2C-T 82 hp 61 kW 2 L Diesel 2C-T 83 hp 61 kW 2 L Diesel 2C-TE 90 hp 66 kW 2 L Diesel 3S-FE 128 hp 94 kW 2 L Petrol 4A-FE 101 hp 74 kW 1.6 L Petrol 4A-FE 110 hp 81 kW 1.6 L Petrol 7A-FE 110 hp 81 kW 1.8 L Petrol | Front wheel | Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch Sedan / Saloon |
