ATE 24.0125-0141.1 (24012501411) Brake Disc

ATE part 24.0125-0141.1 (24012501411) Brake Disc

ATE 24.0125-0141.1 (24012501411) Brake Disc

by ATE

Manufacturer Part Number: 24.0125-0141.1 (24012501411)
Alternative ATE part number(s): 425141

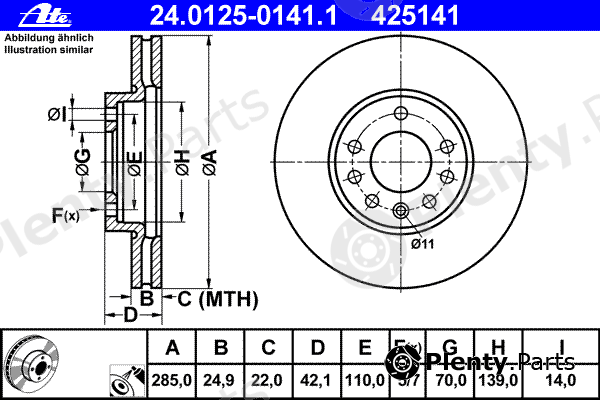

Сharacteristics:
  • Supplementary Article/Info 2: with screws
  • Diameter [mm]: 285
  • Brake Disc Thickness [mm]: 24,9
  • Minimum thickness [mm]: 22
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • No. of holes 2: 7
  • Height [mm]: 42,1
  • Centering Diameter [mm]: 70
  • Inner diameter [mm]: 139
  • Bolt Hole Circle Ø [mm]: 110
  • Bore Ø [mm]: 14
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0125-0141.1 (24012501411) Alternative ATE part number(s): 425141
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FIAT / LANCIA / ALFA, OPEL, SAAB vehicles

OE manufacturerOEM reference numbers
FIAT / LANCIA / ALFA71772553, 46836491, 46844071, 51819733
OPEL569003, 93171497
SAAB9156807, 93171497

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0125-0141.1 (24012501411) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FI.BA, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, G.U.D, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17368
ALANKO303900, 305228
AP25096V, X24846, 25096, 24846V, 24846, 24846X
BARUMBAR25141
BENDIX562216B, 562216BC
BORG & BECKBBD4318
BOSCH0986479107, 0986479946
Brake ENGINEERINGDI956243
BRECKBR351VA100
BRECOBV8470, BV8702, BS8470, BS8702
BREMBO09.A222.11, 09.9165.10, 09.9165.14, 09.9165.75, 0991651X, 09.A222.10, 09.9165.11, DP59020
BREMSIDBB191V
CAR142.031
CIFAM800608C, 800-608
DELPHIBG3713, BG3713C
DENCKERMANNB130273
Dr!ve+DP1010110371
E.T.F.199003
EUROBRAKE5815203645
FARCOM230477, 231238
FEBI BILSTEIN23549
FERODODDF1678, DDF1678-1, DDF1191, DDF1191C, DDF1191C1, DDF11911
FI.BAFBD162
FOMARFO2686
fri.tech.BD0974
FTEBS5412B, BS5412, BS5412HB
GALFERB1G22501411
GIRLING6042931
GRAFDF29608
G.U.DGDB125141
HELLA8DD355109-231, 8DD355122552, 8DD355109-241
HELLA PAGID8DD355109-241, 8DD355109-231, 8DD355122552
ICER78BD90032
JP GROUP1263100309, 1263100300
JURID562216JC, 562216J
KAGER371099, 371391
KAMOKA1032382
KAWE668910
KEY PARTSKBD4318
KRAFT6041731
LPRO1009VR
MAGNETI MARELLI351344620500, 361302040154, 360704007000, 360406008300
MALÒ1110077
MAPCO257082, 25708
MAXGEAR190812MAX, 190812
METELLI23-0608, 230608C
METZGER24846V, 6110156
MEYLE6155216024, 6155216024/PD
MGAD1447
MINTEXMDC1632, MDK0193
NECTOWN1218
NIBKRN1390
NK203645, 313645
OPEN PARTSBDRS199125, BDR199120
OPTIMALBS7908C, BS-7908
PAGID54187PRO, 54187
PATRONPBD4293
PEX14.0774
PILENGAV764
PROTECHNICPRD2625
QUINTON HAZELLBDC5412, 6689.10
R BRAKE78RBD29003
REMSA6689.10
ROADHOUSE6689.10
ROTINGERRT20163, RT20163T5
sbs1815203645, 1815313645
STARLINEPB20163C, PB20163
SWAG40923549
TEMPLIN0311024220, 0311024225
TEXTAR92118700, 89016500, 92118703, 98200118701PRO, 98200118701
TRISCAN812024143
TRUSTINGDF974
TRWDF4293
VAICOV4080048
VALEO186881
VEMA98763
VILLAR6282113, 6281225
WAGNER LOCKHEEDWGR11911
WOKINGD668910
ZIMMERMANN430.1498.20, 430149852, 430.1498.50

Vehicle fitment / ATE 24.0125-0141.1 (24012501411) Brake Disc compatibility

This product fits the following models: FIAT CROMA, OPEL SIGNUM, OPEL VECTRA C, OPEL VECTRA C GTS, SAAB 9-3, SAAB 9-3X, VAUXHALL SIGNUM, VAUXHALL VECTRAII, etc. See all vehicles this product (ATE 24.0125-0141.1 (24012501411)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FIATCROMA
194
1.8 16V
1.9 D Multijet
2.2 16V
2005/06 - 194A1.000 147 hp 108 kW 2.2 L Petrol
939A1.000 120 hp 88 kW 1.9 L Diesel
939A2.000 150 hp 110 kW 1.9 L Diesel
939A7.000 115 hp 85 kW 1.9 L Diesel
939A8.000 136 hp 100 kW 1.9 L Diesel
939A4.000 140 hp 103 kW 1.8 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
OPELSIGNUM
1.8
1.9 CDTI
2.0 DTI
2.2 direct
2.2 DTI
2.2 DTI 16V
2003/05 - Y20DTH 100 hp 74 kW 2 L Diesel
Y22DTR 117 hp 86 kW 2.2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 100 hp 74 kW 1.9 L Diesel
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z22YH 155 hp 114 kW 2.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
OPELVECTRA C
1.6
1.6 16V
1.8
1.8 16V
1.9 CDTI
2.0 DTI
2.0 DTI 16V
2.2 16V
2.2 direct
2.2 DTI
2.2 DTI 16V
2002/04 - Y20DTH 100 hp 74 kW 2 L Diesel
Y20DTH 101 hp 74 kW 2 L Diesel
Y22DTR 117 hp 86 kW 2.2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Z16XE 100 hp 74 kW 1.6 L Petrol
Z16XEP 105 hp 77 kW 1.6 L Petrol
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z18XEL 110 hp 81 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 100 hp 74 kW 1.9 L Diesel
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z19DTL 100 hp 74 kW 1.9 L Diesel
Z22SE 147 hp 108 kW 2.2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
OPELVECTRA C GTS
1.6
1.8
1.8 16V
1.9 CDTI
2.0 DTI 16V
2.2 16V
2.2 direct
2.2 DTI 16V
2002/08 - Y20DTH 101 hp 74 kW 2 L Diesel
Y22DTR 117 hp 86 kW 2.2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Z16XE 100 hp 74 kW 1.6 L Petrol
Z16XEP 105 hp 77 kW 1.6 L Petrol
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XEL 110 hp 81 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z19DTL 100 hp 74 kW 1.9 L Diesel
Z22SE 147 hp 108 kW 2.2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
SAAB9-3
YS3F
1.8 i
1
8t
1.8t 2.0
1
8t BioPower
1.9 TiD
1.9 TTiD
2.0 t
2.0 t Bio Power
2.0 t BioPower
2.0 t Bio Power XWD
2.0 t BioPower XWD
2.0 t XWD
2.2 TiD
2002/09 - A19DTR 130 hp 96 kW 1.9 L Diesel
A19DTR 160 hp 118 kW 1.9 L Diesel
A19DTR 180 hp 132 kW 1.9 L Diesel
Z19DTR 180 hp 132 kW 1.9 L Diesel
A19DTR 130 hp 96 kW 1.9 L Diesel
A19DTR 160 hp 118 kW 1.9 L Diesel
Z19DTR 180 hp 132 kW 1.9 L Diesel
A20NFT 220 hp 162 kW 2 L Petrol
B207E 150 hp 110 kW 2 L Petrol
B207H 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207R 197 hp 145 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207G 163 hp 120 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207G 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207R 210 hp 154 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207H 163 hp 120 kW 2 L Petrol
A20NFT 220 hp 162 kW 2 L Petrol
B207H 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207M 200 hp 147 kW 2 L Petrol
B207E 150 hp 110 kW 2 L Petrol
B207E 150 hp 110 kW 2 L Petrol
B207G 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207E 150 hp 110 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207H 163 hp 120 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207R 197 hp 145 kW 2 L Petrol
B207L 175 hp 129 kW 2 L Petrol
B207R 241 hp 177 kW 2 L Petrol
B207M 200 hp 147 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
D223L 125 hp 92 kW 2.2 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
AWD / 4WD
Front wheel
Convertible / cabrio
Estate / Turnier / Vario / Wagon
Sedan / Saloon
SAAB9-3X
1.9 TTiD
2.0 t BioPower XWD
2.0 t XWD
2009/02 - A19DTR 180 hp 132 kW 1.9 L Diesel
Z19DTR 180 hp 132 kW 1.9 L Diesel
A20NFT 220 hp 162 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
B207R 209 hp 154 kW 2 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VAUXHALLSIGNUM
1.8
1.9 CDTI
1.9 CDTI 16V
1.9 Turbo
2.0 DTI
2.2 DTI
2.2 i
2003/05 - 2008/05Y20DTH 100 hp 74 kW 2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z19DTL 101 hp 74 kW 1.9 L Diesel
Z22YH 155 hp 114 kW 2.2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
VAUXHALLVECTRAII
C
C GTS
C
1.8
1.8 16V
1.8 16V Dualfuel
1.9 CDTI
1.9 CDTI 16V
2.0 DTI 16V
2.2 16V
2.2 direct
2.2 DTI 16V
2002/01 - 2008/10Y20DTH 101 hp 74 kW 2 L Diesel
Y22DTR 125 hp 92 kW 2.2 L Diesel
Z18XE 122 hp 90 kW 1.8 L Petrol
Z18XER 140 hp 103 kW 1.8 L Petrol
Z19DT 120 hp 88 kW 1.9 L Diesel
Z19DTH 150 hp 110 kW 1.9 L Diesel
Z22SE 147 hp 108 kW 2.2 L Petrol
Z22YH 155 hp 114 kW 2.2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
