ATE 24.0125-0148.1 (24012501481) Brake Disc

ATE part 24.0125-0148.1 (24012501481) Brake Disc

ATE 24.0125-0148.1 (24012501481) Brake Disc

by ATE

Manufacturer Part Number: 24.0125-0148.1 (24012501481)
Alternative ATE part number(s): 425148

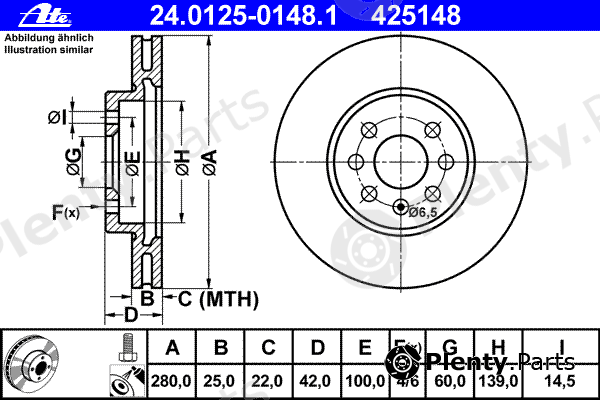

Сharacteristics:
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 22
  • Brake Disc Type: Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Number of Holes: 4
  • No. of holes 2: 6
  • Bolt Hole Circle Ø [mm]: 100
  • Height [mm]: 42
  • Centering Diameter [mm]: 60
  • Inner diameter [mm]: 139
  • Bore Ø [mm]: 14,5
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0125-0148.1 (24012501481) Alternative ATE part number(s): 425148
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for OPEL vehicles

OE manufacturerOEM reference numbers
OPEL569007, 93181113, 569006, 93175376

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0125-0148.1 (24012501481) Brake Disc offered by A.B.S., AP, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, BSG, CAR, CASALS, CIFAM, DELPHI, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17463
AP24884V, 24884
BARUMBAR25148
BENDIX562278B, 562315B, 562278BC, 562315BC
BLUE PRINTADG043203
BORG & BECKBBD4393, BBD4455
BOSCH0986479B68, 0986479S55, 0986479077
Brake ENGINEERINGDI956320
BRECKBR311VA100
BRECOBS8486, BV8486
BREMBO09915911, 09.9159.10
BREMSIDBB236V, DBB036V, DBB374V
BSGBSG65210009
CAR142.035
CASALS55439
CIFAM800825, 800-800
DELPHIBG3933, BG3989
Dr!ve+DP1010110417
E.T.F.199006
EUROBRAKE5815203652, 5815203651
FARCOM231017, 230530
FEBI BILSTEIN28167
FENOXTB219170
FERODODDF10361, DDF1374, DDF13741, DDF1236C, DDF1036, DDF1374C, DDF1236C-1, DDF12361, DDF1236
FOMARFO2699
fri.tech.BD0388
FTEBS5455B, BS5455
GALFERB1G22501481
GIRLING6044261
GRAFDF29800
HELLA8DD355110741, 8DD355110251, 8DD355110241, 8DD355110731
HELLA PAGID8DD355110-241, 8DD355110731, 8DD355110-251, 8DD355110741
ICER78BD90012, 78BD90072
JP GROUP1263100609, 1263100600
JURID562278JC, 562315JC, 562278J, 562315J, 562099JC, 562099J
KAGER371127, 371385
KAMOKA103254
KAWE668410, 668510
KEY PARTSKBD4393
KRAFT6041745
LPRO1006V, O1006VR
MAGNETI MARELLI361302040156, 351344720500, 360406008400
MALÒ1110093
MAPCO257012, 25701
MAXGEAR191065, 191314, 191065MAX
METELLI23-0800, 230825
METZGER6110261, 24884V
MEYLE6155216035
MGAD1491
MINTEXMDC1703, MDC1673, MDK0221
NECTOWN1342, WN1096
NK203651, 313651, 203652, 313652
OPEN PARTSBDA207420, BDR207420
OPTIMALBS7910C, BS7910
PAGID54246, 54293, 54246PRO
PATRONPBD4426
PEX14.0817
PILENGAV379
PROTECHNICPRD2678
QUINTON HAZELLBDC5455, 6684.10, 6685.10, BSF5455
R BRAKE78RBD29001, 78RBD29007
REMSA6685.10, 6684.10
ROADHOUSE6684.10, 6685.10
ROTINGERRT2980T5, RT2980
ROULUNDS BRAKINGWD00905
SASIC6106015, 6106014
sbs1815203651, 1815313651, 1815313652, 1815203652
STARLINEPB2980C, PB2980
STELLOX60209971SX
SWAG40928167
TEMPLIN0311024280, 0311024285
TEXTAR98200124601PRO, 98200124601, 92124600, 92124603, 89016700, 92129300, 89008300, 92129303, 98200129301
TRISCAN812024147
TRUSTINGDF388
TRWDF4426, DF4318
VAICOV4080052, V4080049, V4080045
VALEO186869
VEMA98791
VILLAR6281046
WAGNER LOCKHEEDWGR12361
WOKINGD668410, D668510
ZIMMERMANN430260020, 430.2600.50, 430260052, 430.2606.50, 430.2600.00, 430.2606.00

Vehicle fitment / ATE 24.0125-0148.1 (24012501481) Brake Disc compatibility

This product fits the following models: OPEL COMBO, OPEL MERIVA, VAUXHALL COMBO II, VAUXHALL COMBOII, VAUXHALL MERIVAI, etc. See all vehicles this product (ATE 24.0125-0148.1 (24012501481)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
OPELCOMBO

71
1.3 CDTI 16V
1.4
1.4 16V
1.6
1.6 CNG
1.6 CNG 16V
1.7 DI 16V
1.7 DTI 16V
1999/08 - X14XE 90 hp 66 kW 1.4 L Petrol
Y13DT 69 hp 51 kW 1.3 L Diesel
Z13DT 69 hp 51 kW 1.3 L Diesel
Z13DTJ 75 hp 55 kW 1.3 L Diesel
Y17DT 75 hp 55 kW 1.7 L Diesel
Y17DTL 65 hp 48 kW 1.7 L Diesel
Z13DT 69 hp 51 kW 1.3 L Diesel
Z13DTJ 75 hp 55 kW 1.3 L Diesel
Z14XEP 90 hp 66 kW 1.4 L Petrol
Z16SE 87 hp 64 kW 1.6 L Petrol
Z16YNG 94 hp 69 kW 1.6 L Petrol
Z16YNG 97 hp 71 kW 1.6 L Petrol
Front wheel
LCV / Van / Cargo
LCV / Van / Cargo / Small truck
MPV / Van / Minivan
OPELMERIVA
1.3 CDTI
1.6
1.6 16V
1.7 DTI
1.8
2003/05 - 2010/05Y13DT 69 hp 51 kW 1.3 L Diesel
Z13DT 69 hp 51 kW 1.3 L Diesel
Z13DTJ 75 hp 55 kW 1.3 L Diesel
Y17DT 75 hp 55 kW 1.7 L Diesel
Z16XE 100 hp 74 kW 1.6 L Petrol
Z16XEP 105 hp 77 kW 1.6 L Petrol
Z18XE 125 hp 92 kW 1.8 L Petrol
Front wheel
MPV / Van / Minivan
VAUXHALLCOMBO II
C F25
1.3 CDTI 16V
1.4
1.6
1.6 CNG
1.7 DI 16V
1.7 DTI 16V
2001/09 - 2012/02Y13DT 69 hp 51 kW 1.3 L Diesel
Z13DT 69 hp 51 kW 1.3 L Diesel
Z13DTJ 75 hp 55 kW 1.3 L Diesel
Y17DT 75 hp 55 kW 1.7 L Diesel
Y17DTL 65 hp 48 kW 1.7 L Diesel
Z14XEP 90 hp 66 kW 1.4 L Petrol
Z16SE 87 hp 64 kW 1.6 L Petrol
Z16YNG 94 hp 69 kW 1.6 L Petrol
Z16YNG 97 hp 71 kW 1.6 L Petrol
Front wheel
MPV / Van / Minivan
VAUXHALLCOMBOII
C / F25
1.3 CDTI 16V
1.4 16V
1.4 i 16V
1.6
1.6 CNG 16V
1.7 DI 16V
1.7 DTI 16V
2001/09 - 2012/02Y17DT 75 hp 55 kW 1.7 L Diesel
Y17DTL 65 hp 48 kW 1.7 L Diesel
Z13DT 69 hp 51 kW 1.3 L Diesel
Z13DTJ 75 hp 55 kW 1.3 L Diesel
Z14XE 90 hp 66 kW 1.4 L Petrol
Z14XEP 90 hp 66 kW 1.4 L Petrol
Z16SE 84 hp 62 kW 1.6 L Petrol
Z16SE 87 hp 64 kW 1.6 L Petrol
Z16YNG 94 hp 69 kW 1.6 L Petrol
Z16YNG 97 hp 71 kW 1.6 L Petrol
Front wheel
LCV / Van / Cargo / Small truck
VAUXHALLMERIVAI
A
1.3 CDTI
1.6 i 16V
1.6 i 16V Twinport
1.7 DTI 16V
1.8 i 16V
2003/01 - 2010/06Y17DT 75 hp 55 kW 1.7 L Diesel
Z13DTJ 75 hp 55 kW 1.3 L Diesel
Z16XE 100 hp 74 kW 1.6 L Petrol
Z16XEP 105 hp 77 kW 1.6 L Petrol
Z18XE 125 hp 92 kW 1.8 L Petrol
Front wheel
MPV / Van / Minivan
