ATE 24.0125-0156.1 (24012501561) Brake Disc

ATE part 24.0125-0156.1 (24012501561) Brake Disc

ATE 24.0125-0156.1 (24012501561) Brake Disc

by ATE

Manufacturer Part Number: 24.0125-0156.1 (24012501561)
Alternative ATE part number(s): 425156

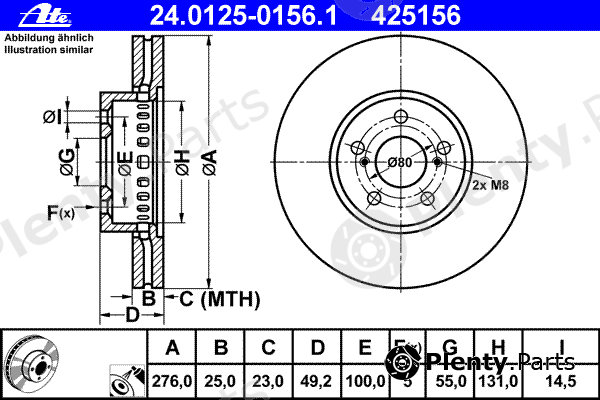

Сharacteristics:
  • Diameter [mm]: 276
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 100
  • Height [mm]: 49,2
  • Centering Diameter [mm]: 55
  • Inner diameter [mm]: 131
  • Bore Ø [mm]: 14,5
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0125-0156.1 (24012501561) Alternative ATE part number(s): 425156
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA43512-20730, 43512-05060

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0125-0156.1 (24012501561) Brake Disc offered by A.B.S., ALANKO, AP, ASHIKA, ASHUKI, BLUE PRINT, BORG & BECK, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FI.BA, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JAPANPARTS, JAPKO, JP GROUP, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, MDR, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SAKURA, sbs, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17508
ALANKO303696, 305114
AP24967, 24967V
ASHIKA6002211
ASHUKI09907412
BLUE PRINTADT343159
BORG & BECKBBD4456
BRECOBV8586, BS8586
BREMBO09979011, 09.9790.10
BREMSIDBB575V
CAR142.644
CIFAM800-845, 800845C
DELPHIBG3778
DENCKERMANNB130199
E.T.F.195060
FARCOM230520
FEBI BILSTEIN26065
FENOXTB219220
FERODODDF1575-1, DDF1575
FI.BAFBD172
FOMARFO592481, FO2995
fri.tech.BD0955
FTEBS5354B, BS5354
GIRLING6048711
GRAFDF29845
HELLA8DD355110-531, 8DD355110-521
HELLA PAGID8DD355110-531, 8DD355110-521
HERTH+BUSS JAKOPARTSJ3302147
ICER78BD50602
JAPANPARTSDI211
JAPKO60211
JP GROUP4863101009
KAVO PARTSBR9415C, BR9415
KAWE688710
LPRT2009V
MAGNETI MARELLI600000087550, 360406058400
MAPCO45551
MAXGEAR191303
MDRMFD22038
METELLI23-0845, 230845C
METZGER6110625, 688710
MEYLE30-155210082
MGAD1737
MINTEXMDC1684
NATIONALNBD1308
NECTOWN1503
NIPPARTSJ3302147
NK314595, 204595
OPEN PARTSBDR205720
OPTIMALBS-7988
PAGID54264, 54264PRO
PATRONPBD9790
PEX14.0780
PILENGAV687
PROTECHNICPRD2681
QUINTON HAZELLBDC5354, BSF5354
R BRAKE78RBD25060
REMSA688710
ROADHOUSE688710
ROTINGERRT20115, RT20115T5
SAKURA604203874
sbs1815204595, 1815314595
SWAG81926065
TEMPLIN0311028640, 0311028645
TEXTAR92126400, 98200126401, 98200126401PRO, 92126403
TRUSTINGDF955
TRWDF4871, DF4387
VAICOV7080010
VALEO197368
VILLAR6282051
WOKINGD688710
ZIMMERMANN590.2581.50, 590258152, 590258120, 590.2581.00

Vehicle fitment / ATE 24.0125-0156.1 (24012501561) Brake Disc compatibility

This product fits the following models: TOYOTA AVENSIS, etc. See all vehicles this product (ATE 24.0125-0156.1 (24012501561)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
TOYOTAAVENSIS
T22
1.6 VVT-i
1.8 VVT-i
2.0 D
2.0 D-4D
2.0 TD
2.0 VVT-i

CDT220
CT220
1997/09 - 2003/021AZ-FSE 150 hp 110 kW 2 L Petrol
1CD-FTV 110 hp 81 kW 2 L Diesel
1CD-FTV 115 hp 85 kW 2 L Diesel
1ZZ-FE 129 hp 95 kW 1.8 L Petrol
2C-TE 90 hp 66 kW 2 L Diesel
3ZZ-FE 110 hp 81 kW 1.6 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
