ATE 24.0125-0165.1 (24012501651) Brake Disc

ATE part 24.0125-0165.1 (24012501651) Brake Disc

ATE 24.0125-0165.1 (24012501651) Brake Disc

by ATE

Manufacturer Part Number: 24.0125-0165.1 (24012501651)
Alternative ATE part number(s): 425165

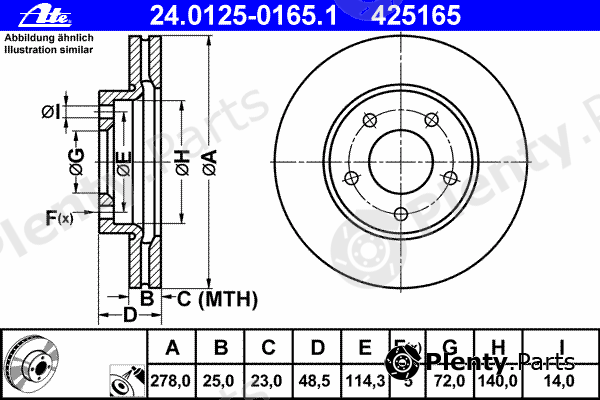

Сharacteristics:
  • Diameter [mm]: 278
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 48,5
  • Centering Diameter [mm]: 72
  • Inner diameter [mm]: 140
  • Bore Ø [mm]: 14
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0125-0165.1 (24012501651) Alternative ATE part number(s): 425165
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MAZDA vehicles

OE manufacturerOEM reference numbers
MAZDABP4Y-33-25XB, BP4Y-33-25XC, C24Y-33-25XB, C24Y-33-25XC, C24Y-33-25XD

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0125-0165.1 (24012501651) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, DIRECT PARTS, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FI.BA, FOMAR, fri.tech., FTE, GALFER, GIRLING, G.U.D, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JP GROUP, KAGER, KAMOKA, KAVO PARTS, KAWE, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, MDR, MENSAN, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NIPPARTS, NK, OPEN PARTS, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SAKURA, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17636
ALANKO305548, 304427
AP24957V
ASHUKIM60635, M60636, M60635HD
BLUE PRINTADM54381, ADM543114
BORG & BECKBBD4447
BOSCH0986479R83, 0986479C68, 0986479179
Brake ENGINEERINGDI956494
BRECOBV8576, BS8576
BREMBO09.9464.21, 09.9464.24
BREMSIDBB311V
BSF11622V
CAR142.1119
CIFAM800729
DELPHIBG3927
DENCKERMANNB130345
DIRECT PARTSBP4Y-33-25XD
E.T.F.193272
EUROBRAKE5815203251
FARCOM230553, 231031, 231258
FEBI BILSTEIN32765
FENOXTB219120
FERODODDF1311-1, DDF1311
FI.BAFBD225
FOMARFO2914
fri.tech.BD0227
FTEBS5490B, BS5490
GALFERB1G22501651
GIRLING6043841
G.U.DGDB125165
HELLA8DD355110871, 8DD355110-881
HELLA PAGID8DD355110-871, 8DD355110-881
HERTH+BUSS JAKOPARTSJ3303083
ICER78BD32722
JP GROUP3863101309
KAGER371367, 370832
KAMOKA1031122
KAVO PARTSBR4762C, BR4762
KAWE667110
LPRM5003V
MAGNETI MARELLI360406056700, 600000088170
MAPCO25576
MAXGEAR191012
MDRMFD2311
MENSAN350212
METELLI230729
METZGER667110, 6110213
MEYLE35155210028, 35155210028PD
MGAD1595
MINTEXMDC1691
NECTOWN1317
NIBKRN1193
NIPPARTSJ3303083
NK203251, 313251
OPEN PARTSBDA214220, BDRS214225, BDR214220
PAGID54303PRO, 54303
PATRONPBD4384
PILENGAV522
PROTECHNICPRD2661
QUINTON HAZELLBDC5490
R BRAKE78RBD23272
REMSA667110
ROADHOUSE667110
ROTINGERRT2877, RT2877T5
SAKURA604303690
sbs1815203251, 1815313251
STARLINEPB2877, PB2877C
STELLOX6020-3251V-SX
SWAG83932765
TEMPLIN0311022195, 0311022190
TEXTAR98200130301, 92130300, 92130303
TRUSTINGDF227
TRWDF4384
VAICOV3280007
VALEO197260, 186872
VEMA98779
VILLAR6281832
WOKINGD667110
ZIMMERMANN370.3076.52, 370307620, 370.3076.50, 370.3076.00

Vehicle fitment / ATE 24.0125-0165.1 (24012501651) Brake Disc compatibility

This product fits the following models: MAZDA 3, MAZDA 5, MAZDA AXELA, MAZDA PREMACY, etc. See all vehicles this product (ATE 24.0125-0165.1 (24012501651)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MAZDA3
BK
BL
1.4
1.6
1.6 DI Turbo
1.6 MZ-CD
1.6 MZR
1.6 MZR CD
2003/10 - B6ZE 105 hp 77 kW 1.6 L Petrol
FXJA 80 hp 59 kW 1.4 L Petrol
ZJ-VE 84 hp 62 kW 1.4 L Petrol
Y406 90 hp 66 kW 1.6 L Diesel
Y601 109 hp 80 kW 1.6 L Diesel
Y601 109 hp 80 kW 1.6 L Diesel
Y642 109 hp 80 kW 1.6 L Diesel
Y650 116 hp 85 kW 1.6 L Diesel
Y655 116 hp 85 kW 1.6 L Diesel
Y642 109 hp 80 kW 1.6 L Diesel
Y650 116 hp 85 kW 1.6 L Diesel
Y655 116 hp 85 kW 1.6 L Diesel
Z6 105 hp 77 kW 1.6 L Petrol
Z6 105 hp 77 kW 1.6 L Petrol
Z6 107 hp 79 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
Sedan / Saloon
MAZDA5
CR19
CW
1.6 CD
1.8
1.8 MZR
2.0
2.0 CD
2005/03 - L823 116 hp 85 kW 1.8 L Petrol
L850 116 hp 85 kW 1.8 L Petrol
LF5H 150 hp 110 kW 2 L Petrol
LFZB 144 hp 106 kW 2 L Petrol
LFZB 147 hp 108 kW 2 L Petrol
PE-VPS 151 hp 111 kW 2 L Petrol
LFF7 146 hp 107 kW 2 L Petrol
RF7J 110 hp 81 kW 2 L Diesel
RF7J 143 hp 105 kW 2 L Diesel
Y650 116 hp 85 kW 1.6 L Diesel
Y655 116 hp 85 kW 1.6 L Diesel
Front wheel
MPV / Van / Minivan
MAZDAAXELA
BK
1.6
1.6 DI Turbo
2004/02 - 2009/06Y601 109 hp 80 kW 1.6 L Diesel
Z6 105 hp 77 kW 1.6 L Petrol
Front wheel
Sedan / Saloon
MAZDAPREMACY
CP
CW
1.6 CD
1.8 MZR
2.0
2005/02 - L850 116 hp 85 kW 1.8 L Petrol
LF5H 150 hp 110 kW 2 L Petrol
LFZB 144 hp 106 kW 2 L Petrol
LFZB 147 hp 108 kW 2 L Petrol
PE-VPS 151 hp 111 kW 2 L Petrol
LFF7 145 hp 107 kW 2 L Petrol
Y650 116 hp 85 kW 1.6 L Diesel
Y655 116 hp 85 kW 1.6 L Diesel
Front wheel
MPV / Van / Minivan
