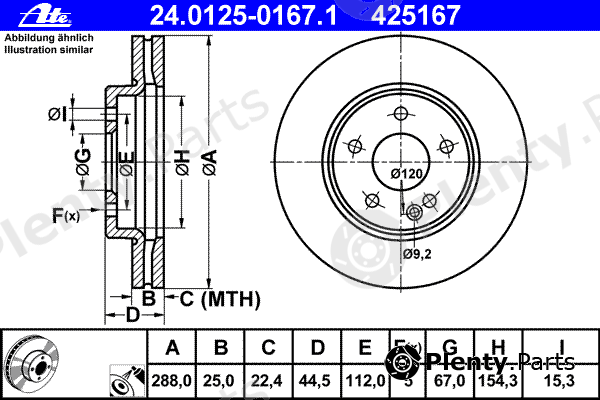

ATE 24.0125-0167.1 (24012501671) Brake Disc
ATE 24.0125-0167.1 (24012501671) Brake Disc
by ATEManufacturer Part Number: 24.0125-0167.1 (24012501671)
Alternative ATE part number(s): 425167
- Supplementary Article/Info 2: with screws
- Diameter [mm]: 288
- Brake Disc Thickness [mm]: 25
- Minimum thickness [mm]: 22,4
- Brake Disc Type: Vented
- Number of Holes: 5
- Machining: Alloyed / High-carbon
- Surface: Coated
- Bolt Hole Circle Ø [mm]: 112
- Height [mm]: 44,5
- Centering Diameter [mm]: 67
- Inner diameter [mm]: 154,3
- Bore Ø [mm]: 15,3
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0125-0167.1 (24012501671) Alternative ATE part number(s): 425167 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for MERCEDES-BENZ vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| MERCEDES-BENZ | 1694210212, 1694211112 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0125-0167.1 (24012501671) Brake Disc offered by A.B.S., ALANKO, AP, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAWE, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, STOP, SWAG, TEMPLIN, TEXTAR, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17647 |
| ALANKO | 304781, 303090 |
| AP | 24923V, 24923 |
| BENDIX | 562314B, 562314BC |
| BORG & BECK | BBD4486 |
| BOSCH | 0986479234 |
| Brake ENGINEERING | DI956611 |
| BRECO | BS8498, BV8498 |
| BREMBO | 09.8681.10, 09.8681.11 |
| BREMSI | DBB316V |
| BSF | 11636V |
| CAR | 142.1168 |
| CIFAM | 800832C |
| DELPHI | BG3909 |
| DENCKERMANN | B130351 |
| E.T.F. | 197214 |
| FARCOM | 231270, 230592, 231057 |
| FEBI BILSTEIN | 24749 |
| FERODO | DDF13161, DDF1316C, DDF1316, DDF1316C1 |
| FOMAR | FO4011 |
| fri.tech. | BD0233 |
| FTE | BS5441, BS5441B, BS5441HB |
| GIRLING | 6044541 |
| HELLA | 8DD355111-081, 8DD355111-071 |
| HELLA PAGID | 8DD355111-081, 8DD355111-071 |
| ICER | 78BD01172 |
| JP GROUP | 1363103309, 1363103300 |
| JURID | 562314J, 562314JC |
| KAGER | 371231 |
| KAWE | 6102910 |
| LPR | M2022V |
| MAGNETI MARELLI | 351286520500, 360406007500, 361302040176, 360406007501 |
| MAPCO | 25809 |
| MAXGEAR | 191796 |
| METELLI | 230832C |
| METZGER | 6110148, 24923V |
| MEYLE | 0155212078/PD, 0155212078 |
| MGA | D1571 |
| MINTEX | MDC1845 |
| NK | 313373, 203373 |
| OPEN PARTS | BDA219020, BDR219020 |
| OPTIMAL | BS-7814, BS7814C |
| PAGID | 54320PRO, 54320 |
| PATRON | PBD4454 |
| PEX | 14.0823 |
| PILENGA | V925 |
| PROTECHNIC | PRD2466 |
| QUINTON HAZELL | BSF5441, BDC5441 |
| R BRAKE | 78RBD20117 |
| REMSA | 6102910 |
| ROADHOUSE | 6102910 |
| ROTINGER | RT20196T5, RT20196 |
| SASIC | 6106052 |
| sbs | 1815203373, 1815313373 |
| STARLINE | PB20196C |
| STOP | 562314S |
| SWAG | 10924749 |
| TEMPLIN | 0311020915, 0311020910 |
| TEXTAR | 98200132001PRO, 98200132001, 92132005, 92132003, 92132000 |
| TRUCKTEC AUTOMOTIVE | 02.35.139 |
| TRUSTING | DF233 |
| TRW | DF4454, DF4454BP |
| VAICO | V3080073, V3080064 |
| VALEO | 197091 |
| VILLAR | 6281867 |
| WAGNER LOCKHEED | WGR13161 |
| WOKING | D6102910 |
| ZIMMERMANN | 400.3642.00, 400364252, 400.3642.50, 400.3642.20 |
Vehicle fitment / ATE 24.0125-0167.1 (24012501671) Brake Disc compatibility
This product fits the following models: MERCEDES-BENZ A-CLASS, MERCEDES-BENZ B-CLASS, etc. See all vehicles this product (ATE 24.0125-0167.1 (24012501671)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | A-CLASS W169 | A 200 CDI A 200 TURBO E-CELL 169.008 169.308 169.034 169.334 169.308 | 2004/09 - 2012/06 | EM780.992 68 hp 50 kW L Electric M266.980 193 hp 142 kW 2 L Petrol OM640.941 136 hp 100 kW 2 L Diesel OM640.941 140 hp 103 kW 2 L Diesel | Front wheel Rear wheel | Hatchback / Sportback / Sport hatch |
| MERCEDES-BENZ | B-CLASS W245 | B 170 NGT B 180 CDI B 180 NGT B 200 B 200 CDI B 200 TURBO 245.207 245.208 245.233 245.234 | 2005/03 - 2011/11 | M266.960 116 hp 85 kW 2 L Petrol M266.960 136 hp 100 kW 2 L Petrol M266.980 193 hp 142 kW 2 L Petrol OM640.940 109 hp 80 kW 2 L Diesel OM640.941 136 hp 100 kW 2 L Diesel OM640.941 140 hp 103 kW 2 L Diesel | Front wheel | Hatchback / Sportback / Sport hatch |
