ATE 24.0125-0170.1 (24012501701) Brake Disc

ATE part 24.0125-0170.1 (24012501701) Brake Disc

ATE 24.0125-0170.1 (24012501701) Brake Disc

by ATE

Manufacturer Part Number: 24.0125-0170.1 (24012501701)
Alternative ATE part number(s): 425170

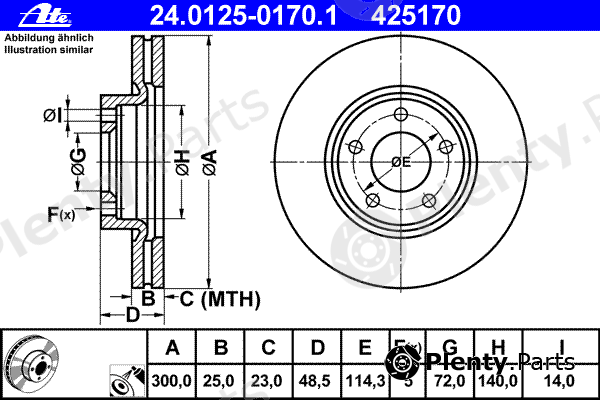

Сharacteristics:
  • Diameter [mm]: 300
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 114,3
  • Height [mm]: 48,5
  • Centering Diameter [mm]: 72
  • Inner diameter [mm]: 140
  • Bore Ø [mm]: 14
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0125-0170.1 (24012501701) Alternative ATE part number(s): 425170
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MAZDA vehicles

OE manufacturerOEM reference numbers
MAZDABP6Y-33-25XE, C26Y-33-25XB, BP6Y-33-25XD

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0125-0170.1 (24012501701) Brake Disc offered by A.B.S., ALANKO, AP, ASHUKI, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, DIRECT PARTS, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAVO PARTS, KAWE, KORTEX, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, MENSAN, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SAKURA, SASIC, sbs, STOP, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17637
ALANKO304429
AP24958V, X24958, 24958X, 24958
ASHUKIM60636HD, M60636
BLUE PRINTADM54382
BORG & BECKBBD4449
BOSCH0986479183
Brake ENGINEERINGDI956351
BRECOBS8577, BV8577
BREMBO09.9468.76, 09.9468.21, 0994682X, 09.9468.20
BREMSIDBB312V
BSF11623V
CIFAM800730C
DELPHIBG3928
DENCKERMANNB130284
DIRECT PARTSBP6Y-33-25XF, DP104A059
E.T.F.193273
FARCOM231040, 230564, 231265
FEBI BILSTEIN32770
FERODODDF1312-1, DDF1312
FOMARFO2929
fri.tech.BD0988
FTEBS5492B, BS5492
GALFERB1.G225-0170.1
GIRLING6043851
HELLA8DD355110891
HELLA PAGID8DD355110-891
HERTH+BUSS JAKOPARTSJ3303084
ICER78BD32732
JP GROUP3863100809
JURATEKMAZ126
JURID562635JC
KAGER371366, 370831
KAMOKA1031123
KAVO PARTSBR4764C, BR4764
KAWE667210
KORTEXKD0108
LPRM5006V
MAGNETI MARELLI600000088180, 360406056800
MAPCO25575
MAXGEAR191268
MENSAN350213
METELLI230730C
METZGER667210, 6110229
MEYLE35155210029, 35155210029PD
MGAD1596
MINTEXMDC1988, MDC1692
NECTOWN1318
NIBKRN1194
NIPPARTSJ3303084
NK313253, 203253
OPEN PARTSBDA215620, BDRS215625, BDR215620
OPTIMALBS7756
PAGID54304
PATRONPBD4385
PILENGAV523
PROTECHNICPRD2438
QUINTON HAZELLBDC5492
R BRAKE78RBD23273
REMSA667210
ROADHOUSE667210
ROTINGERRT2964, RT2964T5
SAKURA604303691
SASIC6106113
sbs1815203253, 1815313253
STOP562635S
SWAG83932770
TEMPLIN0311022215, 0311022210
TEXTAR98200130401, 92130403, 92130400
TRISCAN812050142C
TRUSTINGDF988
TRWDF4385
VALEO197365
VILLAR6281851
WOKINGD667210
ZIMMERMANN370.3077.00, 370307720, 370307752

Vehicle fitment / ATE 24.0125-0170.1 (24012501701) Brake Disc compatibility

This product fits the following models: MAZDA 3, MAZDA 5, MAZDA AXELA, MAZDA PREMACY, etc. See all vehicles this product (ATE 24.0125-0170.1 (24012501701)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MAZDA3
BK
BL
2.0
2.0 MZR
2.0 MZR-CD
2.0 MZR DISI
2.2 MZR CD
2.3
2.3 MZR
2.3 MZR Sport
2.5
2003/10 - L3-VE 156 hp 115 kW 2.3 L Petrol
L3-VE 160 hp 118 kW 2.3 L Petrol
L3YS 171 hp 126 kW 2.3 L Petrol
L3YT 171 hp 126 kW 2.3 L Petrol
L5-VE 166 hp 122 kW 2.5 L Petrol
LF17 141 hp 104 kW 2 L Petrol
LF17 150 hp 110 kW 2 L Petrol
LF17 150 hp 110 kW 2 L Petrol
LF17 150 hp 110 kW 2 L Petrol
LF5H 147 hp 108 kW 2 L Petrol
LF-DE 150 hp 110 kW 2 L Petrol
LF17 150 hp 110 kW 2 L Petrol
LF-DE 150 hp 110 kW 2 L Petrol
LF5H 151 hp 111 kW 2 L Petrol
LF5W 151 hp 111 kW 2 L Petrol
R2AA 150 hp 110 kW 2.2 L Diesel
R2AA 185 hp 136 kW 2.2 L Diesel
RF7J 143 hp 105 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
Sedan / Saloon
MAZDA5
CR19
CW
1.6 CD
1.8
1.8 MZR
2.0
2.0 CD
2005/03 - L823 116 hp 85 kW 1.8 L Petrol
L850 116 hp 85 kW 1.8 L Petrol
LF5H 150 hp 110 kW 2 L Petrol
LFZB 144 hp 106 kW 2 L Petrol
LFZB 147 hp 108 kW 2 L Petrol
PE-VPS 151 hp 111 kW 2 L Petrol
LFF7 146 hp 107 kW 2 L Petrol
RF7J 110 hp 81 kW 2 L Diesel
RF7J 143 hp 105 kW 2 L Diesel
Y650 116 hp 85 kW 1.6 L Diesel
Y655 116 hp 85 kW 1.6 L Diesel
Front wheel
MPV / Van / Minivan
MAZDAAXELA
BK
2.0
2.0 MZR-CD
2.3
2004/02 - 2009/06L3-VE 160 hp 118 kW 2.3 L Petrol
LF17 141 hp 104 kW 2 L Petrol
LF17 150 hp 110 kW 2 L Petrol
RF7J 143 hp 105 kW 2 L Diesel
Front wheel
Sedan / Saloon
MAZDAPREMACY
CP
CW
1.6 CD
1.8 MZR
2.0
2005/02 - L850 116 hp 85 kW 1.8 L Petrol
LF5H 150 hp 110 kW 2 L Petrol
LFZB 144 hp 106 kW 2 L Petrol
LFZB 147 hp 108 kW 2 L Petrol
PE-VPS 151 hp 111 kW 2 L Petrol
LFF7 145 hp 107 kW 2 L Petrol
Y650 116 hp 85 kW 1.6 L Diesel
Y655 116 hp 85 kW 1.6 L Diesel
Front wheel
MPV / Van / Minivan
