ATE 24.0125-0171.1 (24012501711) Brake Disc

ATE part 24.0125-0171.1 (24012501711) Brake Disc

ATE 24.0125-0171.1 (24012501711) Brake Disc

by ATE

Manufacturer Part Number: 24.0125-0171.1 (24012501711)
Alternative ATE part number(s): 425171

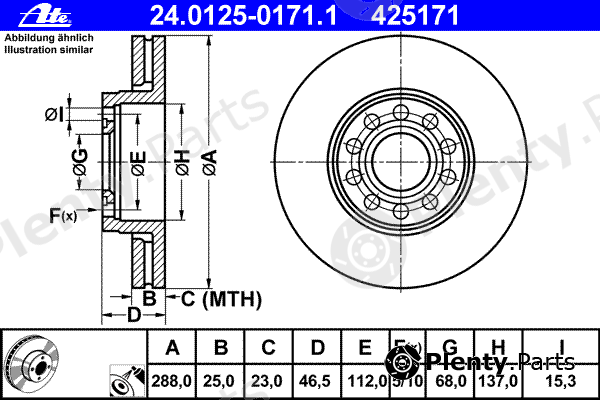

Сharacteristics:
  • Diameter [mm]: 288
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • No. of holes 2: 10
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 46,5
  • Centering Diameter [mm]: 68
  • Inner diameter [mm]: 137
  • Bore Ø [mm]: 15,3
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0125-0171.1 (24012501711) Alternative ATE part number(s): 425171
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG4B0615301B

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0125-0171.1 (24012501711) Brake Disc offered by A.B.S., AP, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, BSG, CAR, CIFAM, DELPHI, DENCKERMANN, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, FTE, GALFER, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17527
AP25104V
AUTOMEGA3061503014B0B, 1061503014B0B
BARUMBAR25171
BENDIX561548BC, 561548B
BORG & BECKBBD4948
BOSCH0986479S19, 0986479157
Brake ENGINEERINGDI956802, DI956253
BRECKBR336VA100
BRECOBS8713, BV8713
BREMBO09.A428.11, 09.A428.14
BREMSIDBB706V
BSGBSG90210003, BSG90210009
CAR142.1188
CIFAM800-745, 800745C
DELPHIBG2745
DENCKERMANNB130440
FARCOM231316, 230661
FEBI BILSTEIN28505
FENOXTB219256
FERODODDF1677, DDF1706, DDF1706C1, DDF1706C, DDF17061
FOMARFO2683, FO2679, FO2136
FTEBS3825B, BS3825, BS3825HB
GALFERB1G22501711
GIRLING6048161, 6026521, 6042951
GRAFDF29745
G.U.DGDB125171
HANS PRIES110420
HELLA8DD355109-621, 8DD355109622, 8DD355109-611
HELLA PAGID8DD355109-611, 8DD355109-621, 8DD355109622
ICER78BD10682
JURID561548J, 561548JC
KAGER371420, 371322, 371148, 371035
KAMOKA103640, 1033354
KAWE6122710
KEY PARTSKBD4948
KRAFT6040333
LPRV2004VR
MAGNETI MARELLI360406063900
MAPCO25870
METELLI23-0745, 230745C
METZGER6110080
MEYLE1155211120
MGAD1614
MINTEXMDC2338
NECTOWN533
OPEN PARTSBDR228020, BDRS228025
OPTIMALBS7532, BS7532C
PAGID54210, 54210PRO
PATRONPBD4295, PBD4816
PEX14.0789
PROTECHNICPRD2483
QUINTON HAZELLBDC5471, BSF5471
R BRAKE78RBD21068
REMSA6122710
ROADHOUSE6122710
ROTINGERRT20363T5, RT2958HP, RT2958HPT5, RT20363, RT2958, RT2958T5
SWAG30928505
TEMPLIN0311030355, 0311030350
TEXTAR92121003, 98200121001, 92121005, 92121000, 98200121001PRO
TRUSTINGDF1604
TRWDF4816, DF2652, DF4295
VAICOV1080098
VALEO197222
WAGNER LOCKHEEDWGR17061
WOKINGD6122710
ZIMMERMANN600.3236.50, 600.3236.52, 600.3236.20, 600.3236.00

Vehicle fitment / ATE 24.0125-0171.1 (24012501711) Brake Disc compatibility

This product fits the following models: SKODA SUPERB, VW PASSAT, etc. See all vehicles this product (ATE 24.0125-0171.1 (24012501711)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
SKODASUPERB
3U4
1.8 T
1.9 TDI
2.0
2001/12 - 2008/03AVB 101 hp 74 kW 1.9 L Diesel
AVF 130 hp 96 kW 1.9 L Diesel
AWX 130 hp 96 kW 1.9 L Diesel
BSV 105 hp 77 kW 1.9 L Diesel
AWT 150 hp 110 kW 1.8 L Petrol
AZM 115 hp 85 kW 2 L Petrol
Front wheel
Sedan / Saloon
VWPASSAT
3B2
3B3
3B5
3B6
1.6
1.8
1.8 Syncro/4motion
1.8 T
1.8 T 20V
1.8 T 4motion
1.9 TDI
1.9 TDI 4motion
1.9 TDI Syncro/4motion
2.0
2.0 4motion
2.0 TDI
2.3 VR5
2.3 VR5 Syncro/4motion
2.5 TDI
2.5 TDI Syncro/4motion
2.8 Syncro
2.8 V6
2.8 V6 Syncro/4motion
1996/08 - 2005/08ACK 193 hp 142 kW 2.8 L Petrol
AGE 180 hp 132 kW 2.8 L Petrol
AHA 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
ATX 190 hp 140 kW 2.8 L Petrol
BBG 190 hp 140 kW 2.8 L Petrol
ACK 193 hp 142 kW 2.8 L Petrol
AHA 193 hp 142 kW 2.8 L Petrol
ALG 193 hp 142 kW 2.8 L Petrol
APR 193 hp 142 kW 2.8 L Petrol
AQD 193 hp 142 kW 2.8 L Petrol
ADP 101 hp 74 kW 1.6 L Petrol
AHL 101 hp 74 kW 1.6 L Petrol
ANA 101 hp 74 kW 1.6 L Petrol
ARM 101 hp 74 kW 1.6 L Petrol
ADR 125 hp 92 kW 1.8 L Petrol
AEB 152 hp 112 kW 1.8 L Petrol
APT 125 hp 92 kW 1.8 L Petrol
ARG 125 hp 92 kW 1.8 L Petrol
ADR 125 hp 92 kW 1.8 L Petrol
APT 125 hp 92 kW 1.8 L Petrol
ARG 125 hp 92 kW 1.8 L Petrol
AEB 150 hp 110 kW 1.8 L Petrol
ANB 150 hp 110 kW 1.8 L Petrol
APU 150 hp 110 kW 1.8 L Petrol
AFB 150 hp 110 kW 2.5 L Diesel
AKN 150 hp 110 kW 2.5 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AHH 90 hp 66 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
AJM 115 hp 85 kW 1.9 L Diesel
ATJ 115 hp 85 kW 1.9 L Diesel
AVB 101 hp 74 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
AGE 180 hp 132 kW 2.8 L Petrol
AGZ 150 hp 110 kW 2.3 L Petrol
ALT 130 hp 96 kW 2 L Petrol
AZM 115 hp 85 kW 2 L Petrol
ALT 130 hp 96 kW 2 L Petrol
AZM 115 hp 85 kW 2 L Petrol
BFF 115 hp 85 kW 2 L Petrol
ALZ 102 hp 75 kW 1.6 L Petrol
ASU 120 hp 88 kW 2 L Petrol
ASU 120 hp 88 kW 2 L Petrol
AUZ 120 hp 88 kW 2 L Petrol
ATJ 115 hp 85 kW 1.9 L Diesel
AVB 101 hp 74 kW 1.9 L Diesel
AVF 130 hp 96 kW 1.9 L Diesel
AWX 130 hp 96 kW 1.9 L Diesel
AVF 130 hp 96 kW 1.9 L Diesel
AWL 150 hp 110 kW 1.8 L Petrol
AWT 150 hp 110 kW 1.8 L Petrol
AWM 170 hp 125 kW 1.8 L Petrol
AWT 150 hp 110 kW 1.8 L Petrol
AZM 115 hp 85 kW 2 L Petrol
BGW 136 hp 100 kW 2 L Diesel
BHW 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
