ATE 24.0125-0184.1 (24012501841) Brake Disc
ATE 24.0125-0184.1 (24012501841) Brake Disc
by ATEManufacturer Part Number: 24.0125-0184.1 (24012501841)
Alternative ATE part number(s): 425184

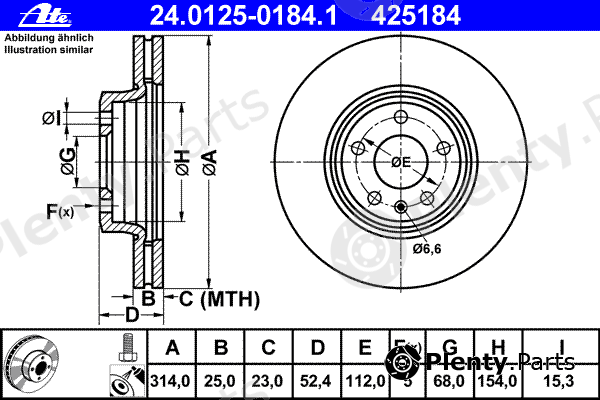

- Diameter [mm]: 314
- Brake Disc Thickness [mm]: 25
- Minimum thickness [mm]: 23
- Brake Disc Type: Vented
- Machining: High-carbon
- Surface: Coated
- Number of Holes: 5
- Bolt Hole Circle Ø [mm]: 112
- Height [mm]: 52,4
- Centering Diameter [mm]: 68
- Inner diameter [mm]: 154
- Bore Ø [mm]: 15,3
- Supplementary Article/Info 2: with screws
- MAPP code available:
Product Details
| Brand | ATE |
| ATE article (MPN) | 24.0125-0184.1 (24012501841) Alternative ATE part number(s): 425184 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for VAG vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| VAG | 8K0615301 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ATE 24.0125-0184.1 (24012501841) Brake Disc offered by A.B.S., ALANKO, AP, AUTOMEGA, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17862 |
| ALANKO | 304311 |
| AP | 25212, 25212V, 25212X |
| AUTOMEGA | 1061503018K0, 3061503018K0 |
| BARUM | BAR25184 |
| BENDIX | 562466B |
| BLUE PRINT | ADV184313 |
| BORG & BECK | BBD4689 |
| BOSCH | 0986479467 |
| Brake ENGINEERING | DI956722 |
| BRECO | BV8822, BS8822 |
| BREMBO | 09A8201X, 09.A820.11, 09.A820.10 |
| BSF | 11714V |
| CAR | 142.1127 |
| CIFAM | 800-917C |
| DELPHI | BG4079 |
| DENCKERMANN | B130474 |
| E.T.F. | 191131 |
| FEBI BILSTEIN | 36232 |
| FERODO | DDF1663C1, DDF1663C |
| FOMAR | FO2964 |
| fri.tech. | BD1334 |
| FTE | BS7214B, BS7214, BS7214HB |
| GALFER | B1G22501841 |
| GIRLING | 6048665 |
| GRAF | DF29917C |
| HANS PRIES | 113009 |
| HELLA | 8DD355113-881 |
| HELLA PAGID | 8DD355113-881 |
| ICER | 78BD60772 |
| JP GROUP | 1163108109, 1163108100 |
| JURID | 562466JC, 562466J |
| KAGER | 370563, 371323 |
| KAMOKA | 103137 |
| KAWE | 6129210 |
| KRAFT | 6040009 |
| LPR | A1037V |
| MAGNETI MARELLI | 360406081400 |
| MAPCO | 25879 |
| MAXGEAR | 191287 |
| METELLI | 23-0917C |
| METZGER | 6110138, 6129210 |
| MEYLE | 1155210001/PD |
| MGA | D1751 |
| MINTEX | MDC2200 |
| NIBK | RN33003 |
| NK | 2047132, 3147132 |
| OPEN PARTS | BDR248520 |
| OPTIMAL | BS8506C, BS8506 |
| PAGID | 54599PRO, 54599 |
| PATRON | PBD4866 |
| PILENGA | V981 |
| PROTECHNIC | PRD2743 |
| QUINTON HAZELL | BDC5709 |
| R BRAKE | 78RBD26077 |
| REMSA | 61292.10 |
| ROADHOUSE | 61292.10 |
| ROTINGER | RT4512, RT4512T5 |
| SASIC | 6106151 |
| sbs | 18152047132, 18153147132 |
| STARLINE | PB20985C |
| SWAG | 30936232 |
| TEMPLIN | 0311010670, 0311010675 |
| TEXTAR | 98200159901PRO, 92159905, 92159903 |
| TRUCKTEC AUTOMOTIVE | 0735253 |
| TRUSTING | DF1334 |
| TRW | DF4866S |
| VAICO | V1080121, V1080090 |
| VALEO | 197213 |
| WOKING | D6129210 |
| ZIMMERMANN | 100.3330.50, 100.3330.52, 100.3330.20 |
Vehicle fitment / ATE 24.0125-0184.1 (24012501841) Brake Disc compatibility
This product fits the following models: AUDI A4, AUDI A4 ALLROAD, AUDI A5, etc. See all vehicles this product (ATE 24.0125-0184.1 (24012501841)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| AUDI | A4 8K2 B8 8K5 B8 | 1.8 TFSI 1.8 TFSI quattro 2.0 TDI 2.0 TDI quattro 2.0 TFSi 2.0 TFSI 2.0 TFSI flexible fuel 2.0 TFSI flexible fuel quattro 2.0 TFSI quattro 2.7 TDI 3.0 TDI 3.0 TDI quattro 3.0 TFSI quattro 3.2 FSI 3.2 FSI quattro | 2007/11 - 2015/12 | CABA 120 hp 88 kW 1.8 L Petrol CABB 160 hp 118 kW 1.8 L Petrol CDHA 120 hp 88 kW 1.8 L Petrol CDHB 160 hp 118 kW 1.8 L Petrol CJEB 170 hp 125 kW 1.8 L Petrol CABB 160 hp 118 kW 1.8 L Petrol CDHA 120 hp 88 kW 1.8 L Petrol CDHB 160 hp 118 kW 1.8 L Petrol CJEB 170 hp 125 kW 1.8 L Petrol CAEA 180 hp 132 kW 2 L Petrol CAEB 211 hp 155 kW 2 L Petrol CDNB 180 hp 132 kW 2 L Petrol CDNC 211 hp 155 kW 2 L Petrol CFKA 180 hp 132 kW 2 L Petrol CAEA 180 hp 132 kW 2 L Petrol CDNB 180 hp 132 kW 2 L Petrol CFKA 180 hp 132 kW 2 L Petrol CNCD 224 hp 165 kW 2 L Petrol CAEB 211 hp 155 kW 2 L Petrol CAED 220 hp 162 kW 2 L Petrol CDNC 211 hp 155 kW 2 L Petrol CNCD 224 hp 165 kW 2 L Petrol CPMA 211 hp 155 kW 2 L Petrol CPMB 220 hp 162 kW 2 L Petrol CAEB 211 hp 155 kW 2 L Petrol CDNC 211 hp 155 kW 2 L Petrol CAEB 211 hp 155 kW 2 L Petrol CDNC 211 hp 155 kW 2 L Petrol CNCD 224 hp 165 kW 2 L Petrol CAED 220 hp 162 kW 2 L Petrol CNCD 224 hp 165 kW 2 L Petrol CAGA 143 hp 105 kW 2 L Diesel CAGB 136 hp 100 kW 2 L Diesel CAGC 120 hp 88 kW 2 L Diesel CAHA 170 hp 125 kW 2 L Diesel CAHB 163 hp 120 kW 2 L Diesel CGLC 177 hp 130 kW 2 L Diesel CGLD 163 hp 120 kW 2 L Diesel CJCA 143 hp 105 kW 2 L Diesel CJCB 136 hp 100 kW 2 L Diesel CJCC 120 hp 88 kW 2 L Diesel CJCD 150 hp 110 kW 2 L Diesel CMEA 143 hp 105 kW 2 L Diesel CMFA 143 hp 105 kW 2 L Diesel CMFB 150 hp 110 kW 2 L Diesel CMGB 177 hp 130 kW 2 L Diesel CNHA 190 hp 140 kW 2 L Diesel CNHC 163 hp 120 kW 2 L Diesel CSUA 150 hp 110 kW 2 L Diesel CSUB 136 hp 100 kW 2 L Diesel CAGA 143 hp 105 kW 2 L Diesel CAGB 136 hp 100 kW 2 L Diesel CAGC 120 hp 88 kW 2 L Diesel CAHA 170 hp 125 kW 2 L Diesel CAHB 163 hp 120 kW 2 L Diesel CGLC 177 hp 130 kW 2 L Diesel CGLD 163 hp 120 kW 2 L Diesel CJCA 143 hp 105 kW 2 L Diesel CJCB 136 hp 100 kW 2 L Diesel CJCC 120 hp 88 kW 2 L Diesel CJCD 150 hp 110 kW 2 L Diesel CMEA 143 hp 105 kW 2 L Diesel CMFA 143 hp 105 kW 2 L Diesel CMFB 150 hp 110 kW 2 L Diesel CNHA 190 hp 140 kW 2 L Diesel CNHC 163 hp 120 kW 2 L Diesel CSUA 150 hp 110 kW 2 L Diesel CSUB 136 hp 100 kW 2 L Diesel CAGA 143 hp 105 kW 2 L Diesel CAHA 170 hp 125 kW 2 L Diesel CGLC 177 hp 130 kW 2 L Diesel CJCA 143 hp 105 kW 2 L Diesel CJCD 150 hp 110 kW 2 L Diesel CNHA 190 hp 140 kW 2 L Diesel CSUA 150 hp 110 kW 2 L Diesel CALA 265 hp 195 kW 3.2 L Petrol CAMA 190 hp 140 kW 2.7 L Diesel CAMB 163 hp 120 kW 2.7 L Diesel CGKA 190 hp 140 kW 2.7 L Diesel CGKB 163 hp 120 kW 2.7 L Diesel CAPA 240 hp 176 kW 3 L Diesel CCLA 240 hp 176 kW 3 L Diesel CCWA 240 hp 176 kW 3 L Diesel CCWB 211 hp 155 kW 3 L Diesel CDUC 245 hp 180 kW 3 L Diesel CKVB 245 hp 180 kW 3 L Diesel CKVC 245 hp 180 kW 3 L Diesel CDHB 160 hp 118 kW 1.8 L Petrol CJEB 170 hp 125 kW 1.8 L Petrol CFKA 180 hp 132 kW 2 L Petrol CLAB 204 hp 150 kW 3 L Diesel CMUA 272 hp 200 kW 3 L Petrol CRED 272 hp 200 kW 3 L Petrol | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon Sedan / Saloon |
| AUDI | A4 ALLROAD 8KH B8 | 2.0 TDI quattro 2.0 TFSI quattro 3.0 TDI quattro | 2009/04 - | CAGA 143 hp 105 kW 2 L Diesel CAGB 136 hp 100 kW 2 L Diesel CAHA 170 hp 125 kW 2 L Diesel CAHB 163 hp 120 kW 2 L Diesel CGLC 177 hp 130 kW 2 L Diesel CGLD 163 hp 120 kW 2 L Diesel CJCA 143 hp 105 kW 2 L Diesel CJCB 136 hp 100 kW 2 L Diesel CJCD 150 hp 110 kW 2 L Diesel CNHA 190 hp 140 kW 2 L Diesel CNHC 163 hp 120 kW 2 L Diesel CSUA 150 hp 110 kW 2 L Diesel CSUB 136 hp 100 kW 2 L Diesel CCWA 240 hp 176 kW 3 L Diesel CDUC 245 hp 180 kW 3 L Diesel CKVB 245 hp 180 kW 3 L Diesel CKVC 245 hp 180 kW 3 L Diesel CDNC 211 hp 155 kW 2 L Petrol CNCD 224 hp 165 kW 2 L Petrol CPMA 211 hp 155 kW 2 L Petrol CPMB 220 hp 162 kW 2 L Petrol | AWD / 4WD | Estate / Turnier / Vario / Wagon |
| AUDI | A5 8F7 8T3 8TA | 1.8 TFSI 2.0 TDI 2.0 TDI quattro 2.0 TFSI 2.0 TFSI quattro 2.7 TDI 3.0 TDI 3.0 TDI quattro 3.0 TFSI quattro 3.2 FSI 3.2 FSI quattro 35 TFSI 1.8 45 TFSI 45 TFSI 2.0 | 2007/06 - | CABD 170 hp 125 kW 1.8 L Petrol CDHB 160 hp 118 kW 1.8 L Petrol CJEB 170 hp 125 kW 1.8 L Petrol CJEE 177 hp 130 kW 1.8 L Petrol CAEA 180 hp 132 kW 2 L Petrol CAEB 211 hp 155 kW 2 L Petrol CAED 220 hp 162 kW 2 L Petrol CDNB 180 hp 132 kW 2 L Petrol CDNC 211 hp 155 kW 2 L Petrol CNCD 224 hp 165 kW 2 L Petrol CNCE 230 hp 169 kW 2 L Petrol CAEB 211 hp 155 kW 2 L Petrol CAED 220 hp 162 kW 2 L Petrol CDNC 211 hp 155 kW 2 L Petrol CNCD 224 hp 165 kW 2 L Petrol CNCE 230 hp 169 kW 2 L Petrol CPMB 220 hp 162 kW 2 L Petrol CAEB 211 hp 155 kW 2 L Petrol CDNC 211 hp 155 kW 2 L Petrol CNCD 224 hp 165 kW 2 L Petrol CNCE 230 hp 169 kW 2 L Petrol CPMB 220 hp 162 kW 2 L Petrol CAGA 143 hp 105 kW 2 L Diesel CAGB 136 hp 100 kW 2 L Diesel CAHA 170 hp 125 kW 2 L Diesel CAHB 163 hp 120 kW 2 L Diesel CGLC 177 hp 130 kW 2 L Diesel CGLD 163 hp 120 kW 2 L Diesel CJCA 143 hp 105 kW 2 L Diesel CJCB 136 hp 100 kW 2 L Diesel CJCD 150 hp 110 kW 2 L Diesel CMEA 143 hp 105 kW 2 L Diesel CMFA 143 hp 105 kW 2 L Diesel CNHA 190 hp 140 kW 2 L Diesel CAHA 170 hp 125 kW 2 L Diesel CAHB 163 hp 120 kW 2 L Diesel CGLC 177 hp 130 kW 2 L Diesel CGLD 163 hp 120 kW 2 L Diesel CJCA 143 hp 105 kW 2 L Diesel CJCD 150 hp 110 kW 2 L Diesel CNHA 190 hp 140 kW 2 L Diesel CAHA 170 hp 125 kW 2 L Diesel CAHB 163 hp 120 kW 2 L Diesel CGLC 177 hp 130 kW 2 L Diesel CGLD 163 hp 120 kW 2 L Diesel CNHA 190 hp 140 kW 2 L Diesel CAHA 170 hp 125 kW 2 L Diesel CGLC 177 hp 130 kW 2 L Diesel CNHA 190 hp 140 kW 2 L Diesel CALA 265 hp 195 kW 3.2 L Petrol CAMA 190 hp 140 kW 2.7 L Diesel CAMB 163 hp 120 kW 2.7 L Diesel CGKA 190 hp 140 kW 2.7 L Diesel CGKB 163 hp 120 kW 2.7 L Diesel CAPA 240 hp 176 kW 3 L Diesel CCWA 240 hp 176 kW 3 L Diesel CCWB 211 hp 155 kW 3 L Diesel CDUC 245 hp 180 kW 3 L Diesel CKVB 245 hp 180 kW 3 L Diesel CKVC 245 hp 180 kW 3 L Diesel CKVD 218 hp 160 kW 3 L Diesel CCWA 240 hp 176 kW 3 L Diesel CDUC 245 hp 180 kW 3 L Diesel CKVB 245 hp 180 kW 3 L Diesel CKVC 245 hp 180 kW 3 L Diesel CKVD 218 hp 160 kW 3 L Diesel CCWA 240 hp 176 kW 3 L Diesel CDUC 245 hp 180 kW 3 L Diesel CKVC 245 hp 180 kW 3 L Diesel CKVD 218 hp 160 kW 3 L Diesel CDHB 160 hp 118 kW 1.8 L Petrol CJEB 170 hp 125 kW 1.8 L Petrol CJED 144 hp 106 kW 1.8 L Petrol CJEE 177 hp 130 kW 1.8 L Petrol CDNB 180 hp 132 kW 2 L Petrol CDNC 211 hp 155 kW 2 L Petrol CNCD 224 hp 165 kW 2 L Petrol CNCE 230 hp 169 kW 2 L Petrol CDNC 211 hp 155 kW 2 L Petrol CNCD 224 hp 165 kW 2 L Petrol CNCE 230 hp 169 kW 2 L Petrol CGKA 190 hp 140 kW 2.7 L Diesel CGKB 163 hp 120 kW 2.7 L Diesel CGLC 177 hp 130 kW 2 L Diesel CNHA 190 hp 140 kW 2 L Diesel CJEE 177 hp 130 kW 1.8 L Petrol CLAB 204 hp 150 kW 3 L Diesel CMUA 272 hp 200 kW 3 L Petrol CNCD 224 hp 165 kW 2 L Petrol CNCE 230 hp 169 kW 2 L Petrol | AWD / 4WD Front wheel Front wheel AWD / 4WD | Convertible / cabrio Coupe / Sports car / Grand tourer / Speedster / Roadster Hatchback / Sportback / Sport hatch |
