ATE 24012501971 Brake Disc

ATE part 24012501971 Brake Disc

ATE 24012501971 Brake Disc

by ATE

Manufacturer Part Number: 24012501971
Alternative ATE part number(s): 425197

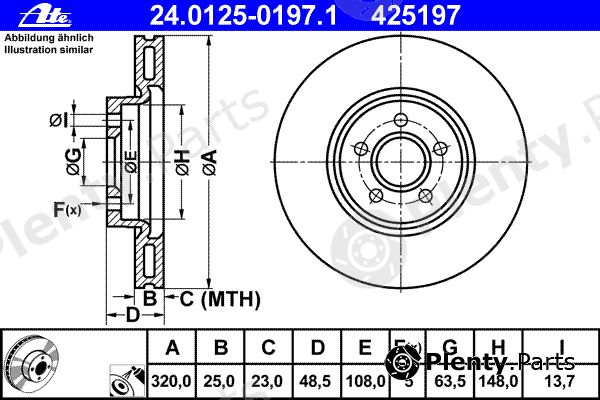

Сharacteristics:
  • Diameter [mm]: 320
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 108
  • Height [mm]: 48,5
  • Centering Diameter [mm]: 63,5
  • Inner diameter [mm]: 148
  • Bore Ø [mm]: 13,7
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24012501971 Alternative ATE part number(s): 425197
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD, VOLVO vehicles

OE manufacturerOEM reference numbers
FORD1724956, 3M51-2C375-CC, 3M51-2C375-CE, 1384290, 3M51-2C375-CD, 1677434, 1368548
VOLVO31400818, 31400938, 31400942, 274521, 31262720, 31302573, 31329122, 31381376, 31341644

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24012501971 Brake Disc offered by A.B.S., BENDIX, BOSCH, Brake ENGINEERING, BREMBO, CAR, CIFAM, DELPHI, FERODO, FOMAR, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, JP GROUP, KAGER, LPR, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROFIT, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, TEXTAR, TRUSTING, TRW, VAICO, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17635
BENDIX562434B
BOSCH0986479310, 0986479C75
Brake ENGINEERINGDI956450
BREMBO09.9468.11, 09.A728.11, 09.9468.14, 09.A728.10
CARHPD1259, 142.1259
CIFAM800892C
DELPHIBG4056
FERODODDF1649
FOMARFO2684
fri.tech.BD0987
FTEBS7179HB
GIRLING6044651
HELLA8DD355113-001
HELLA PAGID8DD355113-001
JP GROUP4963101109
KAGER371089
LPRV1005V
MAPCO25827
METELLI230892C
METZGER6110503, 6122310
MEYLE5155215028/PD
MGAD1732
MINTEXMDC1800
NATIONALNBD1386
NK344850, 204850
OPEN PARTSBDR215420
OPTIMALBS8072, BS8072C
PAGID54491
PATRONPBD4465
PILENGAV258
PROFIT50101225
QUINTON HAZELLBDC5488
REMSA61223.10
ROADHOUSE61223.10
ROTINGERRT2959, RT2959T5, RT2961, RT2961T5
sbs1815204850, 1815344850
TEXTAR92149100, 92149105, 98200149101, 92149103
TRUSTINGDF987
TRWDF6676S, DF4465
VAICOV2580022
ZIMMERMANN610.3709.00, 610.3709.50, 610370920, 610370952, 610372220

Vehicle fitment / ATE 24012501971 Brake Disc compatibility

This product fits the following models: FORD FOCUS II, VOLVO C70 II, VOLVO S40 II, VOLVO V40, VOLVO V50, etc. See all vehicles this product (ATE 24012501971) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDFOCUS II
DA
2.5 ST
i XR5 Turbo
2005/10 - 2012/09HYDA 225 hp 166 kW 2.5 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
VOLVOC70 II
2.0 D
2.4
2.4 D
2.4 i
D3
D4
D5
T5
2006/03 - 2013/06B5244S4 170 hp 125 kW 2.4 L Petrol
B5244S5 140 hp 103 kW 2.4 L Petrol
B5254T3 220 hp 162 kW 2.5 L Petrol
B5254T7 230 hp 169 kW 2.5 L Petrol
D4204T 136 hp 100 kW 2 L Diesel
D5204T 177 hp 130 kW 2 L Diesel
D5204T5 150 hp 110 kW 2 L Diesel
D5244T13 180 hp 132 kW 2.4 L Diesel
D5244T8 180 hp 132 kW 2.4 L Diesel
D5244T9 163 hp 120 kW 2.4 L Diesel
Front wheel
Convertible / cabrio
VOLVOS40 II
MS
1.6
1.6 D
1.6 D2
1.8
1.8 FlexFuel
2.0
2.0 D
2.0 D4
2.0 F
2.4
2.4 AWD
2.4 D5
D3
D4
T5
T5 AWD
2004/01 - B4164S3 101 hp 74 kW 1.6 L Petrol
B4184S11 125 hp 92 kW 1.8 L Petrol
B4184S8 125 hp 92 kW 1.8 L Petrol
B4204S3 146 hp 107 kW 2 L Petrol
B4204S4 146 hp 107 kW 2 L Petrol
B5244S4 170 hp 125 kW 2.4 L Petrol
B5244S4 170 hp 125 kW 2.4 L Petrol
B5244S5 140 hp 103 kW 2.4 L Petrol
B5254T3 220 hp 162 kW 2.5 L Petrol
B5254T7 230 hp 169 kW 2.5 L Petrol
D4162T 115 hp 84 kW 1.6 L Diesel
D4164T 110 hp 81 kW 1.6 L Diesel
D4204T 136 hp 100 kW 2 L Diesel
D4204T2 131 hp 96 kW 2 L Diesel
D5204T 177 hp 130 kW 2 L Diesel
D5204T5 150 hp 110 kW 2 L Diesel
D5244T13 179 hp 132 kW 2.4 L Diesel
D5244T8 179 hp 132 kW 2.4 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOV40
D2
D3
D4
T
T2
T2 GTDi
T3
T3 GTDi
T4
T4 AWD
T4 GTDi
T5
T5 AWD
2012/03 - B4154T4 152 hp 112 kW 1.5 L Petrol
B4204T37 152 hp 112 kW 2 L Petrol
B4154T5 122 hp 90 kW 1.5 L Petrol
B4204T38 122 hp 90 kW 2 L Petrol
B4164T 180 hp 132 kW 1.6 L Petrol
B4164T 200 hp 147 kW 1.6 L Petrol
B5204T8 180 hp 132 kW 2 L Petrol
B4164T3 150 hp 110 kW 1.6 L Petrol
B4164T4 120 hp 88 kW 1.6 L Petrol
B4204T11 245 hp 180 kW 2 L Petrol
B5204T9 214 hp 157 kW 2 L Petrol
B5254T12 254 hp 187 kW 2.5 L Petrol
B4204T11 245 hp 180 kW 2 L Petrol
B5204T9 214 hp 157 kW 2 L Petrol
B5254T12 254 hp 187 kW 2.5 L Petrol
B5254T14 249 hp 183 kW 2.5 L Petrol
B4204T21 190 hp 140 kW 2 L Petrol
B5204T8 180 hp 132 kW 2 L Petrol
B5204T8 180 hp 132 kW 2 L Petrol
D4162T 114 hp 84 kW 1.6 L Diesel
D4204T8 120 hp 88 kW 2 L Diesel
D4204T14 190 hp 140 kW 2 L Diesel
D5204T4 177 hp 130 kW 2 L Diesel
D4204T9 150 hp 110 kW 2 L Diesel
D5204T6 150 hp 110 kW 2 L Diesel
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
VOLVOV50
MW
1.6
1.6 D
1.6 D2
1.8
1.8 FlexFuel
2.0
2.0 D
2.0 FlexFuel
2.4
2.4 AWD
2.4 D5
2.4 Tdi
D3
D4
T5
T5 AWD
2004/04 - B4164S3 101 hp 74 kW 1.6 L Petrol
B4184S11 125 hp 92 kW 1.8 L Petrol
B4184S8 125 hp 92 kW 1.8 L Petrol
B4204S3 146 hp 107 kW 2 L Petrol
B4204S4 146 hp 107 kW 2 L Petrol
B5244S4 170 hp 125 kW 2.4 L Petrol
B5244S4 170 hp 125 kW 2.4 L Petrol
B5244S5 140 hp 103 kW 2.4 L Petrol
B5254T3 220 hp 162 kW 2.5 L Petrol
B5254T7 230 hp 169 kW 2.5 L Petrol
D4162T 114 hp 84 kW 1.6 L Diesel
D4164T 110 hp 81 kW 1.6 L Diesel
D4204T 136 hp 100 kW 2 L Diesel
D5204T 177 hp 130 kW 2 L Diesel
D5204T5 150 hp 110 kW 2 L Diesel
D5244T13 179 hp 132 kW 2.4 L Diesel
D5244T8 179 hp 132 kW 2.4 L Diesel
D5244T9 163 hp 120 kW 2.4 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
