ATE 24.0126-0105.1 (24012601051) Brake Disc

ATE part 24.0126-0105.1 (24012601051) Brake Disc

ATE 24.0126-0105.1 (24012601051) Brake Disc

by ATE

Manufacturer Part Number: 24.0126-0105.1 (24012601051)
Alternative ATE part number(s): 426105

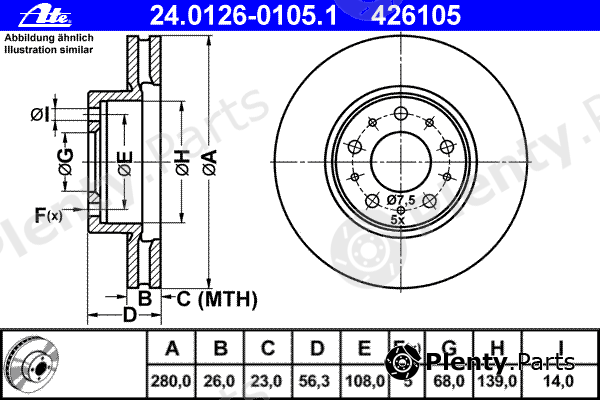

Сharacteristics:
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 108
  • Height [mm]: 56,3
  • Centering Diameter [mm]: 68
  • Inner diameter [mm]: 139
  • Bore Ø [mm]: 14
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0126-0105.1 (24012601051) Alternative ATE part number(s): 426105
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VOLVO vehicles

OE manufacturerOEM reference numbers
VOLVO31262209, 3516567, 6848902

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0126-0105.1 (24012601051) Brake Disc offered by A.B.S., BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16094
BARUMBAR26105
BENDIX561512B, 561512BC
BORG & BECKBBD4940
BOSCH0986478298
Brake ENGINEERINGDI955166
BRECOBS8013
BREMBO09.5315.14, 09.5315.10
BREMSIDBA255V
CAR142.661
CIFAM800-310
DELPHIBG2719
E.T.F.196567
FARCOM230255, 230857
FEBI BILSTEIN15089
FERODODDF255, DDF255-1
FOMARFO2303
fri.tech.BD0465
FTEBS3837
GIRLING6016971
GRAFDF29310
HELLA8DD355102-541, 8DD355122462
HELLA PAGID8DD355102-541, 8DD355122462
ICER78BD65672
JP GROUP4963100309
JURID561512JC, 561512J
KAGER370037
KAWE630410
LPRV1251V
MAGNETI MARELLI353616022240, 360406051200
MAPCO15961
METELLI23-0310
METZGER6110441
MEYLE5155215002/PD, 5155215002
MGAD1110
MINTEXMDC736
NATIONALNBD308
NECTOWN511
NK204831, 314831
OPEN PARTSBDA161120, BDR161120
OPTIMALBS-3040, BS3040C
PAGID54016
PATRONPBD1697
PEX14.0660
PILENGAV161
PROTECHNICPRD2185
QUINTON HAZELLBDC3837, BSF3837
R BRAKE78RBD26567
REMSA6304.10
ROADHOUSE6304.10
ROTINGERRT2475T5, RT2475
ROULUNDS BRAKINGD2303
sbs1815204831, 1815314831
SWAG55915089
TEXTAR98200055401, 92055400
TRISCAN812027115C, 812027115
TRUSTINGDF465
TRWDF1697
VAICOV9580006
VALEO186274, 186289
VEMA98595
VILLAR6281616
WOKINGD630410
ZIMMERMANN610119252, 610119220, 610.1192.00, 610.1192.50

Vehicle fitment / ATE 24.0126-0105.1 (24012601051) Brake Disc compatibility

This product fits the following models: VOLVO 740, VOLVO 740 RURAL, VOLVO 940, VOLVO 940 II, VOLVO 940II, VOLVO 960, VOLVO 960 II, VOLVO 960II, etc. See all vehicles this product (ATE 24.0126-0105.1 (24012601051)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VOLVO740
744
745
2.0
2.3
2.4 Diesel
2.4 Turbo-Diesel
1984/08 - 1992/08B200E 121 hp 89 kW 2 L Petrol
B200F 112 hp 82 kW 2 L Petrol
B200G 121 hp 89 kW 2 L Petrol
B200G 121 hp 89 kW 2 L Petrol
B230F 115 hp 85 kW 2.3 L Petrol
B230F 118 hp 87 kW 2.3 L Petrol
B234F 151 hp 111 kW 2.3 L Petrol
B230F 115 hp 85 kW 2.3 L Petrol
B234F 151 hp 111 kW 2.3 L Petrol
B234F 156 hp 114 kW 2.3 L Petrol
D24 82 hp 60 kW 2.4 L Diesel
D24T 109 hp 80 kW 2.4 L Diesel
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VOLVO740 RURAL
745
2.0
2.3
2.4 Turbo-Diesel
1985/08 - 1992/08B200E 121 hp 89 kW 2 L Petrol
B200F 112 hp 82 kW 2 L Petrol
B200G 121 hp 89 kW 2 L Petrol
B230F 115 hp 85 kW 2.3 L Petrol
B230F 118 hp 87 kW 2.3 L Petrol
B234F 151 hp 111 kW 2.3 L Petrol
D24T 109 hp 80 kW 2.4 L Diesel
Rear wheel
Estate / Turnier / Vario / Wagon
VOLVO940
944
945
2.0
2.0 Turbo
2.3
2.3 Turbo
2.4 D
2.4 TD Intercooler
2.4 Turbo Diesel
1990/08 - 1995/07B200F 112 hp 82 kW 2 L Petrol
B200FT 155 hp 114 kW 2 L Petrol
B230FB 131 hp 96 kW 2.3 L Petrol
B230FD 116 hp 85 kW 2.3 L Petrol
B230G 131 hp 96 kW 2.3 L Petrol
B234F 156 hp 114 kW 2.3 L Petrol
B234G 156 hp 114 kW 2.3 L Petrol
B230FB 131 hp 96 kW 2.3 L Petrol
B230FD 116 hp 85 kW 2.3 L Petrol
B234F 155 hp 114 kW 2.3 L Petrol
B230FT 165 hp 121 kW 2.3 L Petrol
B230FT+ 190 hp 140 kW 2.3 L Petrol
D24 82 hp 60 kW 2.4 L Diesel
D24T 109 hp 80 kW 2.4 L Diesel
D24TIC 122 hp 90 kW 2.4 L Diesel
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VOLVO940 II
944
945
2.0 Turbo
2.3
2.3 ti
2.3 Turbo
2.4 TD Interc.
1994/08 - 1998/12B200FT 155 hp 114 kW 2 L Petrol
B230FB 131 hp 96 kW 2.3 L Petrol
B230FD 116 hp 85 kW 2.3 L Petrol
B230FK 135 hp 99 kW 2.3 L Petrol
B230FT 165 hp 121 kW 2.3 L Petrol
B230FT 171 hp 126 kW 2.3 L Petrol
D24TIC 122 hp 90 kW 2.4 L Diesel
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VOLVO940II
944
945
2.0 Turbo
2.3
2.3 ti
2.3 Turbo
2.4 TD Interc.
1994/08 - 1998/12B200FT 155 hp 114 kW 2 L Petrol
B230FB 131 hp 96 kW 2.3 L Petrol
B230FD 116 hp 85 kW 2.3 L Petrol
B230FK 135 hp 99 kW 2.3 L Petrol
B230FT 165 hp 121 kW 2.3 L Petrol
B230FT 171 hp 126 kW 2.3 L Petrol
D24TIC 122 hp 90 kW 2.4 L Diesel
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VOLVO960
964
965
2.0
2.4 TD Interc.
2.8
2.9
1990/08 - 1994/07B204E 140 hp 103 kW 2 L Petrol
B204FT 190 hp 140 kW 2 L Petrol
B280F 147 hp 108 kW 2.8 L Petrol
B6304F 204 hp 150 kW 2.9 L Petrol
B6304FS 204 hp 150 kW 2.9 L Petrol
B6304G 204 hp 150 kW 2.9 L Petrol
B6304F 204 hp 150 kW 2.9 L Petrol
B6304S 204 hp 150 kW 2.9 L Petrol
D24TIC 115 hp 85 kW 2.4 L Diesel
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VOLVO960 II
964
965
2.9
1994/07 - 1996/12B6304S 204 hp 150 kW 2.9 L Petrol
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VOLVO960II
964
965
2.9
1994/07 - 1996/12B6304S 204 hp 150 kW 2.9 L Petrol
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
