ATE 24.0126-0106.1 (24012601061) Brake Disc

ATE part 24.0126-0106.1 (24012601061) Brake Disc

ATE 24.0126-0106.1 (24012601061) Brake Disc

by ATE

Manufacturer Part Number: 24.0126-0106.1 (24012601061)
Alternative ATE part number(s): 426106

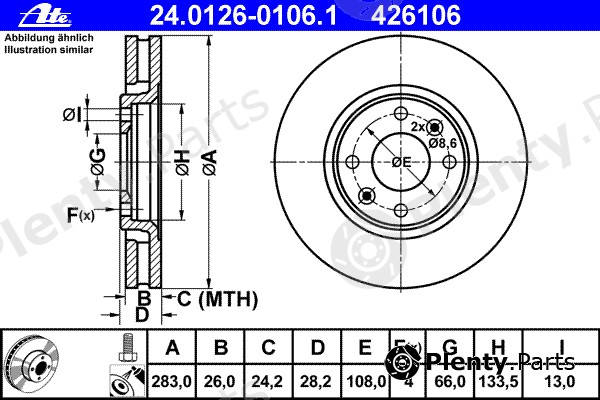

Сharacteristics:
  • Diameter [mm]: 283
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 24,2
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 108
  • Height [mm]: 28,2
  • Centering Diameter [mm]: 66
  • Inner diameter [mm]: 133,5
  • Bore Ø [mm]: 13
  • Supplementary Article/Info 2: with screws
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0126-0106.1 (24012601061) Alternative ATE part number(s): 426106
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4246L8, 4246N0, 4246R7

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0126-0106.1 (24012601061) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FI.BA, FOMAR, fri.tech., FTE, GALFER, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KLAXCAR FRANCE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VILLAR, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16649
ALANKO303584
AP24865V
BARUMBAR26106
BENDIX562019BC, 562019B
BORG & BECKBBD5100
BOSCH0986478831, 0986479908, 0986BB4092
Brake ENGINEERINGDI955628
BRECOBV8531, BS8531, BS8269
BREMBO09961611, 09.6925.14, DP61021, DP61017, 09.6925.10, 09.9616.14
BREMSIDBA841V
BSF11236V
CAR142.151
CIFAM800-454
DELPHIBG2872
DENCKERMANNB130252
Dr!ve+DP1010110732
E.T.F.197406
EUROBRAKE5815203720
FARCOM230293, 230887
FEBI BILSTEIN10679
FENOXTB217087
FERODODDF841C, DDF841, DRF841, DDF841-1
FI.BAFBD122
FOMARFO2175
fri.tech.BD0502
FTEBS7003, BS4662, BS4662B
GALFERB1G22601061
GIRLING6027961
GRAFDF29454
G.U.DGDB126106
HANS PRIES720245
HELLA8DD355105-051, 8DD355105-041
HELLA PAGID8DD355105-041, 8DD355105-051
ICER78BD74062
JP GROUP4163103309
JURID562019JC, 562019J
KAGER370148
KAMOKA1031682
KAWE648610
KEY PARTSKBD5100
KLAXCAR FRANCE25019Z
KRAFT6045600
LPRP1211V
MAGNETI MARELLI431602040320, 360406040700, 353613617240
MAPCO153252, 15325
MAXGEAR190842, 190842MAX
METELLI23-0454
MEYLE11-155210007
MGAD1254, D1398
MINTEXMDK0052, MDC869
NATIONALNBD799
NECTOWN841
NK313720, 203720
OPEN PARTSBDA171520, BDR171520
OPTIMALBS-4860
PAGID52518, 52518PRO
PATRONPBD2796
PEX14.0461
PILENGAV087
PROTECHNICPRD2123
QUINTON HAZELLBDC4662, 6486.10, BSF4662
R BRAKE78RBD27406
REMSA6486.10
ROADHOUSE6486.10
ROTINGERRT2535, RT2535T5
ROULUNDS BRAKINGD2175
SASIC2464R74J
sbs1815203720, 1815313720
STARLINEPB2535C
STELLOX6020-3720V-SX
SWAG62910679
TEMPLIN0311012985, 0311012980
TEXTAR98200078701, 89013700, 89003400, 92078700, 92078703
TRISCAN812028108
TRUSTINGDF502
TRWDF2796, DF2796BP
VAICOV4280012
VALEO186533
VILLAR6280275
WAGNER LOCKHEEDWGR08411
WOKINGD648610
ZIMMERMANN180.3012.50, 180301252, 180301220, 180.3012.00

Vehicle fitment / ATE 24.0126-0106.1 (24012601061) Brake Disc compatibility

This product fits the following models: CITROËN XANTIA, PEUGEOT 406, etc. See all vehicles this product (ATE 24.0126-0106.1 (24012601061)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNXANTIA
X1
X2
2.0 i 16V
2.0 Turbo
2.1 Turbo D 12V
1995/06 - 2003/04P8C(XUD11BTE) 109 hp 80 kW 2.1 L Diesel
RFV(XU10J4R) 132 hp 97 kW 2 L Petrol
RGX(XU10J2TE) 147 hp 108 kW 2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
PEUGEOT406
8B
8C
8E/F
1.9 TD
2.0
2.0 16V
2.0 16V HPi
2.0 HDi 110
2.0 HDI 110
2.0 HDI 90
2.0 Turbo
2.1 TD 12V
2.2
2.2 HDi
2.2 HDI
3.0 24V
3.0 V6
1995/11 - 2004/123FZ(EW12J4) 158 hp 116 kW 2.2 L Petrol
4HX(DW12TED4/FAP) 133 hp 98 kW 2.2 L Diesel
DHX(XUD9TE) 90 hp 66 kW 1.9 L Diesel
DHX(XUD9TE) 90 hp 66 kW 1.9 L Diesel
DHY(XUD9TE) 92 hp 68 kW 1.9 L Diesel
P8C(XUD11BTE) 109 hp 80 kW 2.1 L Diesel
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFR(DEW10J4) 135 hp 99 kW 2 L Petrol
RFV(XU10J4R) 132 hp 97 kW 2 L Petrol
RFN(EW10J4) 136 hp 100 kW 2 L Petrol
RFR(DEW10J4) 135 hp 99 kW 2 L Petrol
RFV(XU10J4R) 132 hp 97 kW 2 L Petrol
RFV(XU10J4R) 135 hp 99 kW 2 L Petrol
RFV(XU10J4R) 136 hp 100 kW 2 L Petrol
RGX(XU10J2TE) 147 hp 108 kW 2 L Petrol
RGY(XU10J2TE) 141 hp 104 kW 2 L Petrol
RHS(DW10ATED) 107 hp 79 kW 2 L Diesel
RHZ(DW10ATED) 107 hp 79 kW 2 L Diesel
RHY(DW10TD) 90 hp 66 kW 2 L Diesel
RHZ(DW10ATED) 109 hp 80 kW 2 L Diesel
RLZ(EW10D) 140 hp 103 kW 2 L Petrol
XFX(ES9J4S) 207 hp 152 kW 3 L Petrol
XFZ(ES9J4) 190 hp 140 kW 3 L Petrol
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
Estate / Turnier / Vario / Wagon
Sedan / Saloon
