ATE 24.0126-0116.1 (24012601161) Brake Disc

ATE part 24.0126-0116.1 (24012601161) Brake Disc

ATE 24.0126-0116.1 (24012601161) Brake Disc

by ATE

Manufacturer Part Number: 24.0126-0116.1 (24012601161)
Alternative ATE part number(s): 426116

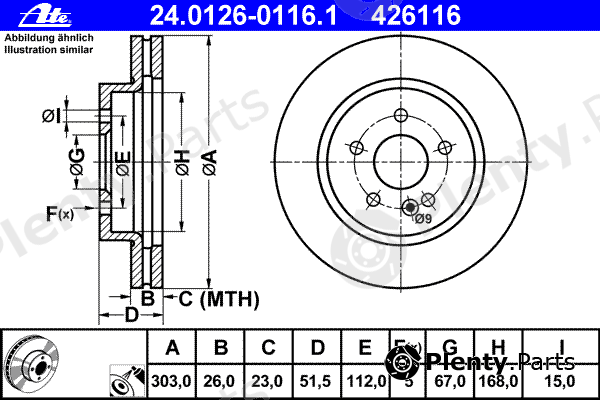

Сharacteristics:
  • Diameter [mm]: 303
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 23
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Machining: High-carbon
  • Surface: Coated
  • Height [mm]: 51,5
  • Centering Diameter [mm]: 67
  • Inner diameter [mm]: 168
  • Bolt Hole Circle Ø [mm]: 112
  • Bore Ø [mm]: 15
  • MAPP code available:

Product Details

BrandATE
ATE article (MPN)24.0126-0116.1 (24012601161) Alternative ATE part number(s): 426116
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MERCEDES-BENZ vehicles

OE manufacturerOEM reference numbers
MERCEDES-BENZ1634210212, 1634210412, 1634210012

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ATE 24.0126-0116.1 (24012601161) Brake Disc offered by A.B.S., ALANKO, AP, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, NECTO, NIBK, NK, OPEN PARTS, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17109
ALANKO303062, 304761
AP24767, 24767V
BARUMBAR26116
BENDIX562099BC, 562099B
BORG & BECKBBD4140
BOSCH0986478468
Brake ENGINEERINGDI955819
BRECOBS8352, BV8352
BREMBO09.7823.10, 09.7823.11
BREMSIDBB036V
BSF11814V
CAR142.428
CIFAM800700C, 800-700
DELPHIBG3397
FARCOM230418, 231214
FEBI BILSTEIN21921
FENOXTB217289
FERODODDF1036-1, DDF1036
FOMARFO2431
fri.tech.BD0535
FTEBS4817HB, BS4817B, BS4817
GIRLING6041501
GRAFDF29700
HANS PRIES401400
HELLA8DD355105-831, 8DD355121041, 8DD355105-821, 8DD355105832
HELLA PAGID8DD355105832, 8DD355105-821, 8DD355121041, 8DD355105-831
JP GROUP1363102609
JURID562099J, 562099JC
KAGER184171
KAWE678210
KRAFT6041450
LPRM2711V
MAGNETI MARELLI360406033600, 353612849240
MAPCO15792
MAXGEAR190947
METELLI230700C, 23-0700
METZGER24767V, 6110480
MEYLE0155212041/PD, 0155212041
MGAD1379
MINTEXMDC1359
NECTOWN1096
NIBKRN1136
NK343347, 203347, 313347
OPEN PARTSBDR191520
PAGID52167PRO, 52167
PATRONPBD4150
PEX14.0727
PILENGAV289
PROTECHNICPRD2365
QUINTON HAZELLBDC4817, BSF4817
REMSA6782.10
ROADHOUSE678210
ROTINGERRT2712, RT2712T5
ROULUNDS BRAKINGD2431
sbs1815203347, 1815343347, 1815313347
SWAG10921921
TEXTAR92089903, 92089905, 98200089901PRO, 92089900, 98200089901
TRISCAN812023147
TRUSTINGDF535
TRWDF4150
VAICOV3080041
VALEO197237, 186689
VEMA98396
VILLAR6281337
WOKINGD678210
ZIMMERMANN400.3603.52, 400.3603.50, 400.3603.20, 400.3603.00

Vehicle fitment / ATE 24.0126-0116.1 (24012601161) Brake Disc compatibility

This product fits the following models: MERCEDES-BENZ M-CLASS, etc. See all vehicles this product (ATE 24.0126-0116.1 (24012601161)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MERCEDES-BENZM-CLASS
W163
ML 230
ML 270 CDI
ML 320
ML 430
163.113
163.136
163.154
163.172
1998/02 - 2005/06M111.977 150 hp 110 kW 2.3 L Petrol
M112.942 218 hp 160 kW 3.2 L Petrol
M113.942 272 hp 200 kW 4.3 L Petrol
OM612.963 163 hp 120 kW 2.7 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
